CIAT COADIS LINE 900 Series Manual

Comfort units

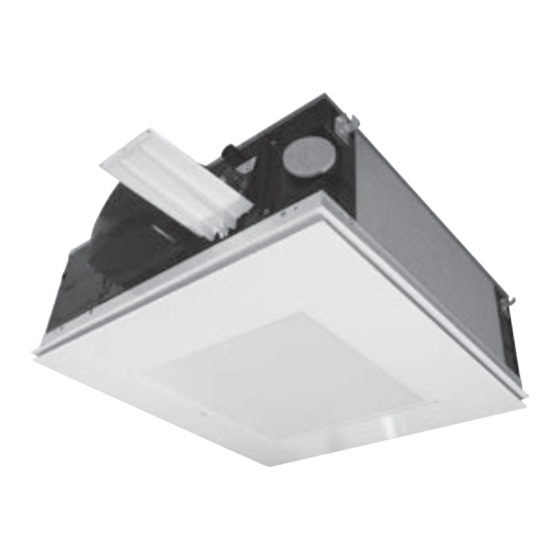

Coanda effect cassette
New generation
of water loop cassette
comfort units
360° Coanda effect
Energy efficient
high-efficiency filtration
and
ErP
READY
U
se
The active water loop comfort unit, for installation in suspended
ceilings, can be used to autonomously and individually adapt
the indoor temperature over very short periods to ensure the
R
ange
The COADIS LINE 900 range of cassettes features 9 sizes
covering flow rates from 550 to 1400 m 3 /h, and meeting the
most stringent sound level requirements.
■ 1 Visual 360° diffusion model:
- Coanda effect diffuser across 360°.
a
dvantages
■ Uses an ecological and long-lasting heat-transfer fluid.
■ Individual adaptation of the indoor temperature.
■ Responsiveness of the system.
■ Extensive capacity range.
■ Diffusion by Coanda effect across 360° for comprehensive
coverage, and perfect control of thermal phenomena which
cause discomfort.
■ Acoustic comfort.
■ Optimum indoor air quality thanks to the EPURE function.
HEAT PUMPS - AIR CONDITIONING - REFRIGERATION - AIR HANDLING - HEAT EXCHANGE - NA 14.712 A
diffusion
motor
comfort of occupants. Designed for offices, open plan areas,
meeting rooms, commercial premises and entrance halls.
■ The Coadis Line is available as:
- A 2-tube system, with heating or cooling mode,
- A 2-tube, 2-wire system, with heating or
cooling/cooling + electric mode,
- A 4-tube system, with heating and cooling mode.
■ Energy optimisation:
- High Energy Efficiency motor,
- EPURE filter with low pressure drop,
- Optimised hydraulic coil.
■ Maintenance facilitated by access to the filter and the highly
accessible internal components.
■ Modern, elegant design to ensure perfect integration.
■ Environmentally-responsible product.
3 to 11 kW
Cooling capacity:
3 to 20 kW
Heating capacity:
