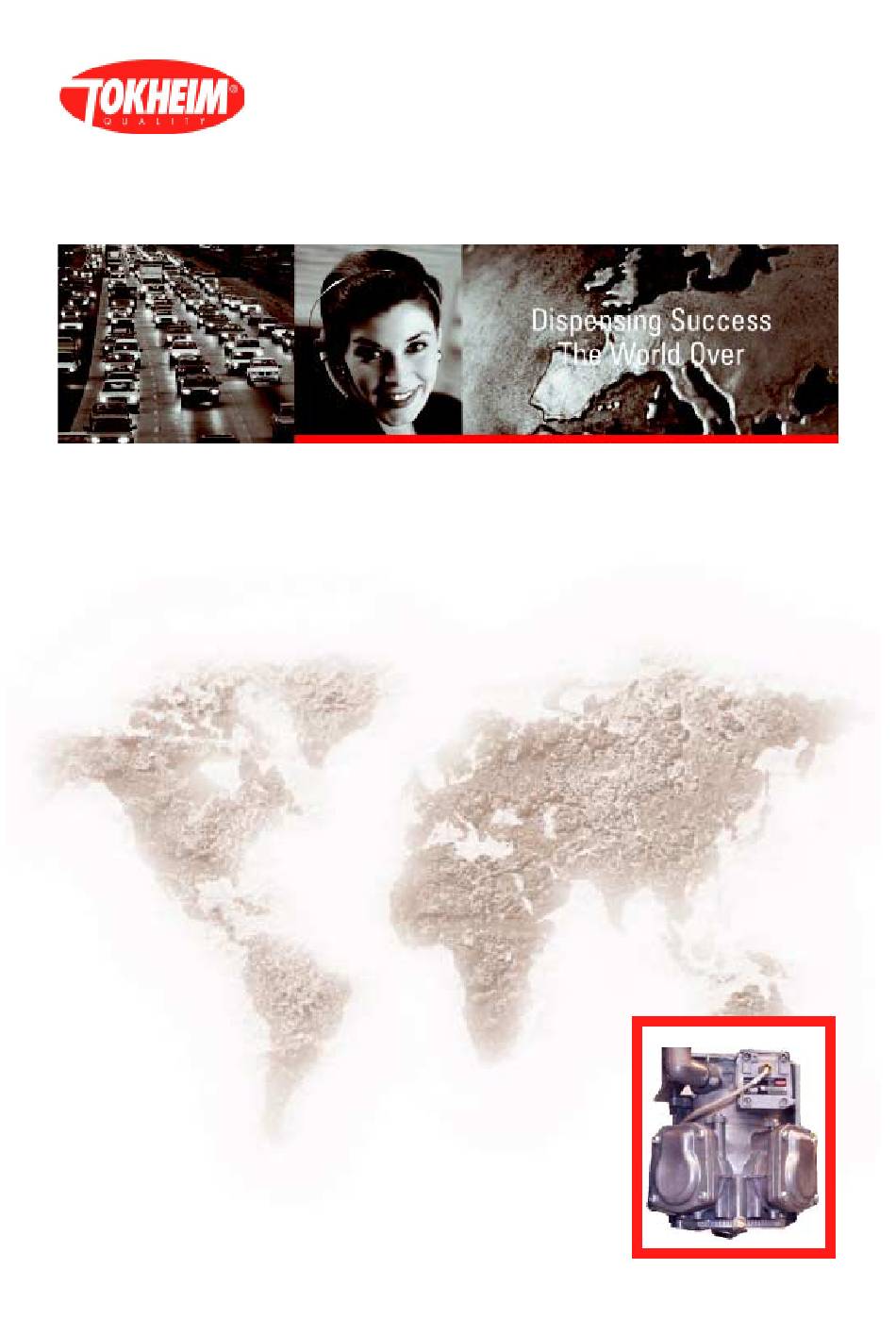

- Page 1 MA26 Meter & MP-T1 Pulser Component Technical Manual Document Ref 903158-001 Rev - 1 10/2001...
- Page 2 MA26 MP-T1 Meter for Fuel Dispensers Component Technical Manual This page is intentionally blank Document Ref 903158-001...
- Page 3 Component Technical Manual MA26 MP-T1 Meter for Fuel Dispensers REVISION RECORD Date Revision Page Issue Reason 18/10/2001 Original Issue Page 1 Document Ref 903158-001...
- Page 4 MA26 MP-T1 Meter for Fuel Dispensers Component Technical Manual This page is intentionally blank Page 2 Document Ref 903158-001...
-
Page 5: Table Of Contents
Component Technical Manual MA26 MP-T1 Meter for Fuel Dispensers CONTENTS PURPOSE / DESCRIPTION ................... 6 MA26 Piston Meter ....................6 1.1.1 Purpose ....................6 1.1.2 Description ..................... 6 1.1.3 Technical Specifications ................. 7 1.1.4 Approvals ....................7 1.1.5 Dimensions ..................... 8 1.1.6... - Page 6 MA26 MP-T1 Meter for Fuel Dispensers Component Technical Manual This page is intentionally blank Page 4 Document Ref 903158-001...
- Page 7 Component Technical Manual MA26 MP-T1 Meter for Fuel Dispensers CONTENTS PURPOSE / DESCRIPTION ................... 6 MA26 Piston Meter ....................6 1.1.1 Purpose ....................6 1.1.2 Description ..................... 6 1.1.3 Technical specifications ................. 7 1.1.4 Approvals ....................7 1.1.5 Dimensions ..................... 8 1.1.6...
-
Page 8: Purpose / Description
MA26 MP-T1 Meter for Fuel Dispensers Component Technical Manual PURPOSE / DESCRIPTION MA26 Piston Meter 1.1.1 PURPOSE The MA26 meter has been designed to provide accurate measurement of traditional fuels using a positive displacement system. 1.1.2 DESCRIPTION Calculator Totaliser Pulser... -
Page 9: Technical Specifications
Metrological European Approval : 01.00 . 422.003.0 (21 June 2001) The MA26 meter is a measurement transducer for use in a measuring instrument for liquids other than water. As such it is tested and certified according to the OIML (Organisation International de Metrology Legal) Recommendation R117. -
Page 11: Meter Operation
Component Technical Manual MA26 MP-T1 Meter for Fuel Dispensers 1.1.6 METER OPERATION The fuel enters the meter via the intake orifice (5) and flows up to the valve (3), where it applies pressure to the piston (7), while the piston (6) linked to the former by the connecting rod (8) is in communication with the exhaust orifice via the opening (4) of the rotary valve (3). -
Page 12: Mp-T1 Pulser
This device will be placed in series with the nozzle of a dispenser. It converts the fuel flow into rotations of a shaft. One rotation of the MA26 volume meter represents a fuel flow of 70cl. The MP-T1 housing is placed on top of the volume meter. This housing contains the MP-T1 electronics (placed on a support), 3 gear wheels and a magnetic disc. - Page 13 Component Technical Manual MA26 MP-T1 Meter for Fuel Dispensers Magnetic disk The disc contains one outer ring, divided into 20 north and 20 south polarised magnetic parts and one inner ring divided into 10 north and 10 south polarised magnetic parts. The disc will be driven by, as mentioned before, the volume meter.
- Page 14 MA26 MP-T1 Meter for Fuel Dispensers Component Technical Manual Output driver The output driver is necessary to supply the current needed for the inputs of the calculator. Furthermore it delays the low to high transition of the cl pulses on the output lines A and B.
-
Page 15: Ma26 Mp-T1 Sealing
Component Technical Manual MA26 MP-T1 Meter for Fuel Dispensers MA26 MP-T1 Sealing Piston sealing A sealing wire feeds through the head of a seal screw fitted in each piston end cover. This seal wire also diverts upwards between two of the end covers to feed through a seal screw securing the top housing to the meter body. - Page 16 MA26 MP-T1 Meter for Fuel Dispensers Component Technical Manual This page is intentionally blank Page 14 Document Ref 903158-001...
- Page 17 Component Technical Manual MA26 MP-T1 Meter for Fuel Dispensers CONTENTS PARTS LIST ........................16 MA 26 Meter ......................16 MA 26 Collector ....................18 MA26 Bottom Cover .................... 19 MP-T1 Pulser, Gears and Totaliser ............... 20 Page 15 Document Ref 903158-001...
-
Page 18: Parts List
MA26 MP-T1 Meter for Fuel Dispensers Component Technical Manual PARTS LIST MA 26 Meter Page 16 Document Ref 903158-001... - Page 19 Component Technical Manual MA26 MP-T1 Meter for Fuel Dispensers Item Reference Désignation Description 901106 Mesureur MA 26 assemblé MA26 meter assembly 900015-010 Vis M6-20 Screw M6-20 900050-009 Joint torique 94,5 x 3 O-ring 94,5 x 3 900050-010 Joint torique 104,2 x 3...
-
Page 20: Ma 26 Collector
MA26 MP-T1 Meter for Fuel Dispensers Component Technical Manual MA 26 Collector Item Reference Désignation Description 900053-001 Vis torx M4-10 Torx screw M4-10 901247 Collecteur bagué Collector with bearing 901249 Supp. membrane assemblé (rodé) Countervalve assembly (lapped) 901251 Joint profil S vert... -
Page 21: Ma26 Bottom Cover
Component Technical Manual MA26 MP-T1 Meter for Fuel Dispensers MA26 Bottom Cover Item Reference Désignation Description 900017-004 Vis CHc M8-50 inox CHc stainless steel screw M8-50 900050-003 Joint torique 13,6 x 2,7 O-ring 13.6 x 2.7 900101-005 Joint plat Flat seal... -
Page 22: Mp-T1 Pulser, Gears And Totaliser
MA26 MP-T1 Meter for Fuel Dispensers Component Technical Manual MP-T1 Pulser, Gears and Totaliser Item Reference Désignation Description 900643-001 Vis Fhc M6 x 12 inox Screw M6-12 stainless steel 901280 Pignon - vis d’entrainement Endless screw wheel 901281 Pignon axe intermédiaire... - Page 23 Component Technical Manual MA26 MP-T1 Meter for Fuel Dispensers CONTENTS TROUBLE SHOOTING ....................22 Piston Meter Blocked ................... 22 Calibration Error ....................23 External Leakage ....................23 Page 21 Document Ref 903158-001...
-
Page 24: Trouble Shooting
MA26 MP-T1 Meter for Fuel Dispensers Component Technical Manual TROUBLE SHOOTING Piston Meter Blocked Meter inlet ❍ Check the pump p r e s s u r e Meter outlet ❍ Check the nozzle line open? ❍ Check the solenoid valves ❍... -
Page 25: 3.2 Calibration Error
Component Technical Manual MA26 MP-T1 Meter for Fuel Dispensers 3.2 Calibration error Positive display error / not enough liquid in the can: 100.90 ❍ ❍ ❍ ❍ External leakage 100.80 100.70 100.60 100.50 100.40 100.30 100.20 100.10 Adjust the meter (see section 1.1.7) 100% 99.90... - Page 26 MA26 MP-T1 Meter for Fuel Dispensers Component Technical Manual This page is intentionally blank Page 24 Document Ref 903158-001...
- Page 27 Component Technical Manual MA26 MP-T1 Meter for Fuel Dispensers This page is intentionally blank Document Ref 903158-001...
- Page 28 Tokheim Europe & Africa Headquarters Manufacturing ZAC Paris Nord 2 Unit 3, Baker Road B.P. 40027 Tremblay-en-France West Pitkerro Industrial Estate 95912 Roissy C.D.G. Cedex Dundee DD5 3RT France Scotland ! +33 (0)1 49 90 77 00 ! +44 (0)1382 598000 "...
