ASSEMBLY INSTRUCTIONS
Copyright by Murphy WallBed Systems Inc. No part of this
publication may be reproduced or transmitted without
permission of the Copyright owner.
© 2017 Murphy WallBed Systems Inc.
Patents Pending.

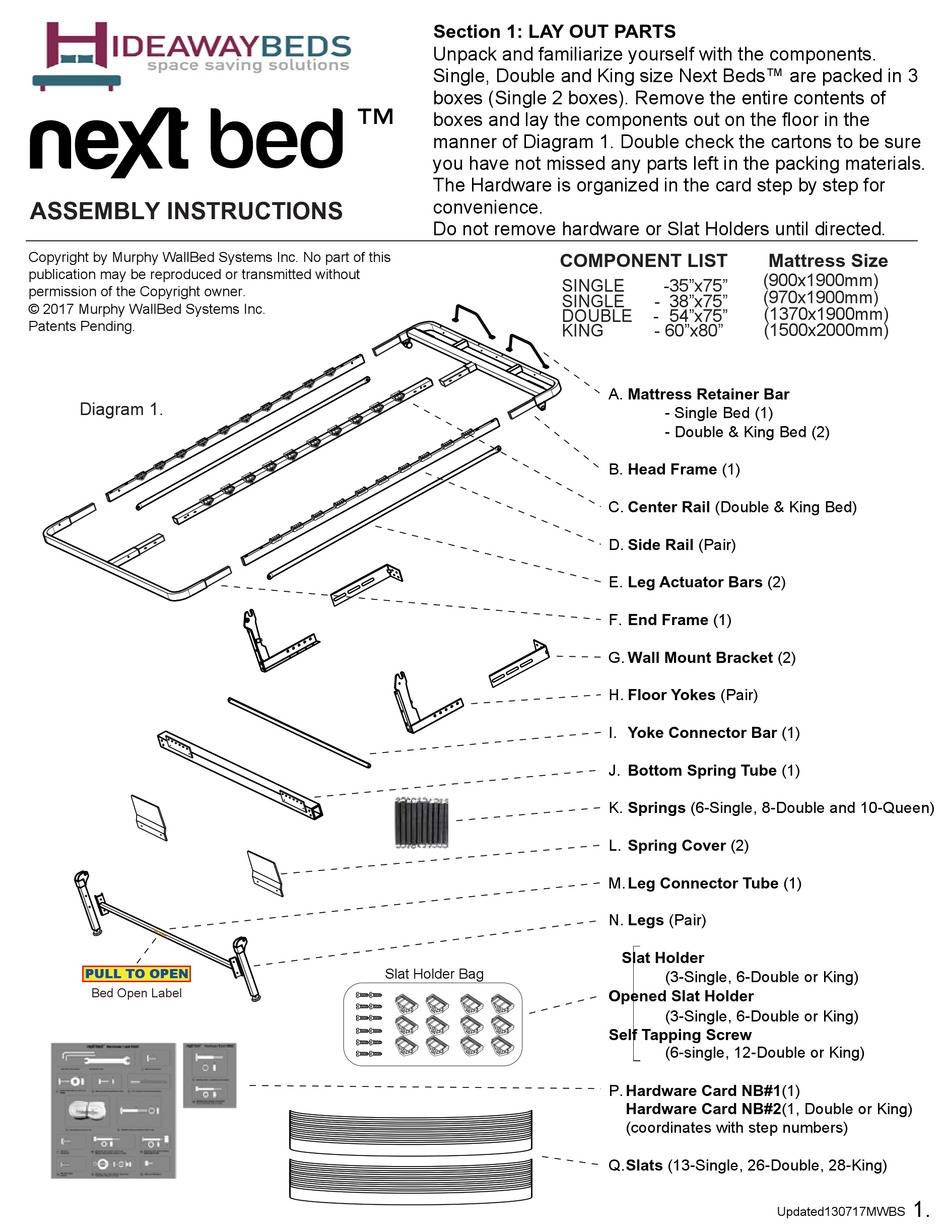

Diagram 1.
PULL TO OPEN
Bed Open Label
Section 1: LAY OUT PARTS
Unpack and familiarize yourself with the components.
Single, Double and King size Next Beds™ are packed in 3
boxes (Single 2 boxes). Remove the entire contents of
boxes and lay the components out on the floor in the
manner of Diagram 1. Double check the cartons to be sure
you have not missed any parts left in the packing materials.
The Hardware is organized in the card step by step for
convenience.
Do not remove hardware or Slat Holders until directed.
COMPONENT LIST
SINGLE
SINGLE
DOUBLE
KING
Slat Holder Bag
Mattress Size
(900x1900mm)
-35"x75"
(970x1900mm)
- 38"x75"
(1370x1900mm)
- 54"x75"
(1500x2000mm)
- 60"x80"
A. Mattress Retainer Bar
- Single Bed (1)
- Double & King Bed (2)
B. Head Frame (1)
C. Center Rail (Double & King Bed)
D. Side Rail (Pair)
E. Leg Actuator Bars (2)
F. End Frame (1)
G. Wall Mount Bracket (2)
H. Floor Yokes (Pair)
I. Yoke Connector Bar (1)
J. Bottom Spring Tube (1)
K. Springs (6-Single, 8-Double and 10-Queen)
L. Spring Cover (2)
M. Leg Connector Tube (1)
N. Legs (Pair)
Slat Holder
(3-Single, 6-Double or King)
O.
Opened Slat Holder
(3-Single, 6-Double or King)
Self Tapping Screw
(6-single, 12-Double or King)
P. Hardware Card NB#1 (1)
Hardware Card NB#2 (1, Double or King)
(coordinates with step numbers)
Q.Slats (13-Single, 26-Double, 28-King)
Updated130717MWBS
