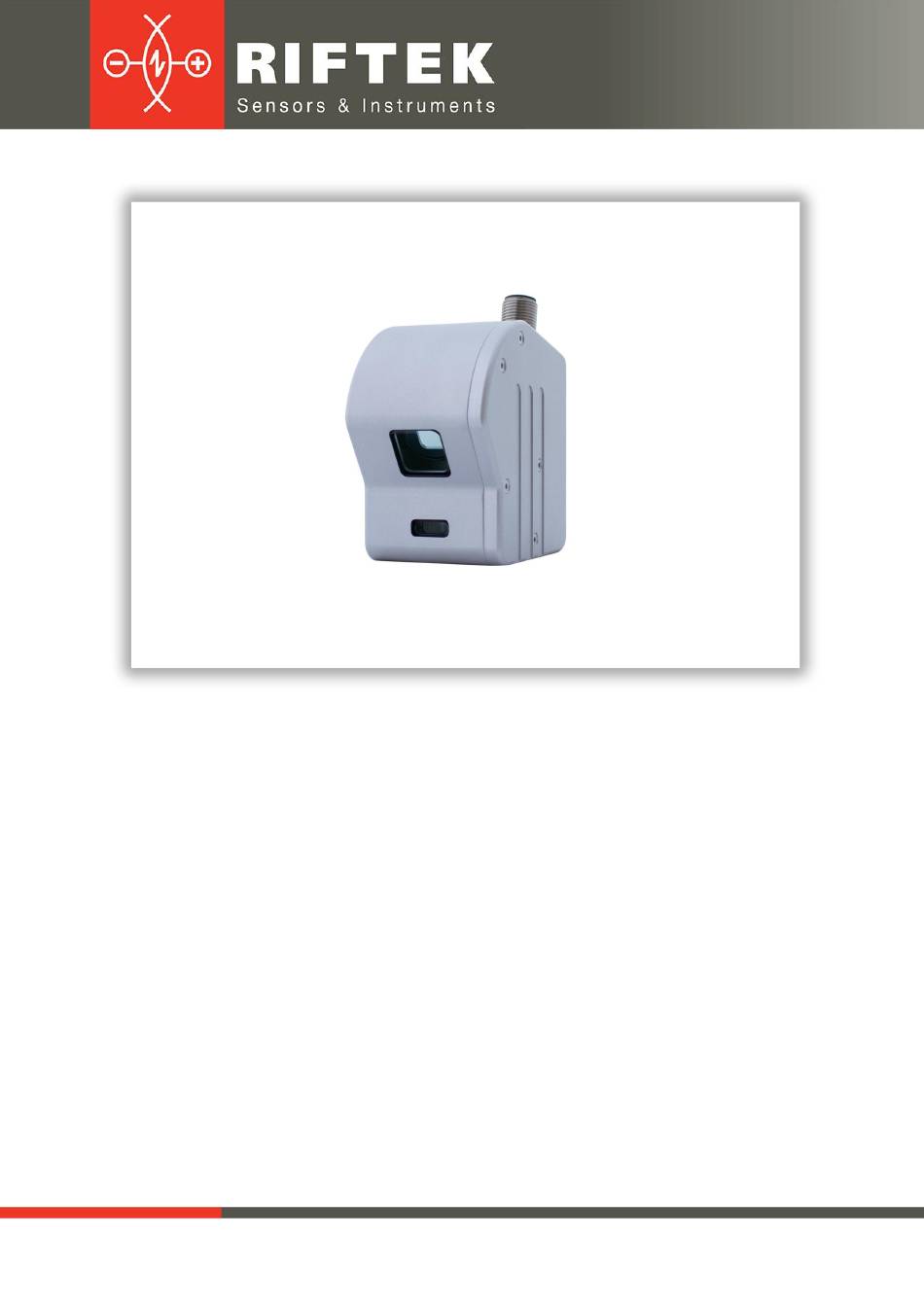

- Page 1 LASER SCANNERS RF627 Series User's manual 22, Logoisky tract, Minsk 220090, Republic of Belarus tel/fax: +375 17 281 36 57 info@riftek.com www.riftek.com Certified according to ISO 9001:2015...
-
Page 2: Table Of Contents
Laser Scanners. RF627 Series Contents Safety precautions .............................4 .............................4 CE сompliance Laser safety .............................4 .............................4 General information .............................4 Structure and operating principle Configurations, operating modes, and options .............................5 .............................6 Basic technical data ............................6 7.1. Specification 7.2. Working ranges and dimensions ............................ - Page 3 Laser Scanners. RF627 Series .............................31 Technical support .............................31 Revisions Distributors .............................31 RF627 [Revision 1.0.1] 28.12.2018...
-
Page 4: Safety Precautions
Laser Scanners. RF627 Series Safety precautions · Use supply voltage and interfaces indicated in the scanner specifications. · In connection/disconnection of cables, the scanner power must be switched off. · Do not use scanners in locations close to powerful light sources. -
Page 5: Configurations, Operating Modes, And Options
Laser Scanners. RF627 Series Configurations, operating modes, and options Scanners are available in the following versions: · based on red laser, 660 nm; · based on blue lasers (BLUE version), 405 or 450 nm; · based on infrared laser (IR version), 808 nm. -
Page 6: Basic Technical Data
Laser Scanners. RF627 Series Basic technical data 7.1. Specification Sampling rate, accuracy, resolution 484 profiles/s (standard mode), Nominal sampling rate (full working range) 938 profiles/s (DS mode) 5096 profiles/s, Maximal sampling rate (ROI mode) 6800 profiles/s (DS mode) ±0.05% of the range (standard mode), Linearity (measurement error), Z axis ±0.1% of the range (DS mode) - Page 7 Laser Scanners. RF627 Series The scanner housing is made of anodized aluminum. The front panel of the housing has two windows: the output window and the window for receiving radiation reflected from the object under control. The housing has fastening holes for installing the scanner on the equipment.
-
Page 8: Example Of Item Designation When Ordering
Laser Scanners. RF627 Series Example of item designation when ordering RF627.(WAVE)-SMR/MR-Xsmr/Xemr-M(R)-H Symbol Description (WAVE) Laser wavelength. 660 nm – no symbol, 405 nm or 450 nm – BLUE, 808 nm – IR. Beginning of the measuring range for Z, mm. -
Page 9: Cables
Laser Scanners. RF627 Series Connector 1. Assignment, 100baseTX Assignment, 1000baseT Connector 2. Assignment Note OUT1- RS422 IN3- RS422 IN3+ RS422 IN2- RS422 IN2+ RS422 NEXT_LAS_OFF Laser OFF IN1+ RS422 IN1- RS422 OUT1+ RS422 +9...30V, 650m max Grounding 0V power supply («-») -
Page 10: Ethernet Interface
Laser Scanners. RF627 Series White NEXT_LAS_OFF Green IN1+ Yellow IN1- Violet OUT1+ Blue Brown Ethernet interface Profiles are transmitted via the UDP protocol, the structure of packets is described in the Programmer's Guide. The scanner can be controlled by the service protocol described in the Programmer’s Guide, or via the WEB interface built into the scanner. -
Page 11: Network Configuration 12.2
Laser Scanners. RF627 Series The network settings of the scanner can be changed using the service software (SDK), the service protocol, or via the web page of the scanner. NOTE: Ethernet Jumbo frames are not supported. 12.2. First connection ·... - Page 12 Laser Scanners. RF627 Series The web page contains four areas (shown above): 1. Scanner status indicators. 2. Parameterization tabs. 3. Result and status display tabs. 4. Control buttons. Area 1 contains the following indicators: Icon Name Description Serial number Serial number of the scanner, which is a unique identifier of the scanner and is assigned by the manufacturer.
-
Page 13: Search For Scanners On The Network And Connection
Laser Scanners. RF627 Series · Info. General information about the scanner (firmware version, working range, etc). · Profile. Profile view. · Video. Video signal view. · Log data. Information about the scanner operation. Area 4 is located in the upper right corner and contains the control buttons:... -
Page 14: Video" Tab. Image View 16.2
Laser Scanners. RF627 Series In this example, the image was zoomed on and the mode is enabled. Red color is a video signal, green color is an uncalibrated profile. 16.2. "Profile" tab To view the profile, go to the Profile tab and click Play . -
Page 15: Parameters Setting Procedure
Laser Scanners. RF627 Series Parameters setting procedure To configure the scanner settings, go to the required tab and make changes. All settings, except network settings, are applied immediately. In order for the network settings to take effect, it is necessary to click the Change button. All changes are made in RAM and will be lost when you reboot the scanner. -
Page 16: General" Tab. General Parameters
Laser Scanners. RF627 Series "General" tab. General parameters 19.1. Image quality settings The intensity of the reflected light entering the scanner depends on the properties of the surface of the object under control. In turn, the value of electric signal generated by the CMOS image sensor of the scanner depends on the time of accumulation of radiation (exposure time). -
Page 17: Roi Settings 19.3
Laser Scanners. RF627 Series Parameter Factory value Description Laser output The output power level of the laser. Range of values: 0...100%. power, % Note: The power level of the laser is adjustable only in manual mode. Exposure time Laser brightness are set manually based on visual analysis of the quality of the image obtained from the image sensor, and on analysis of the quality of the resulting profile (see p. -
Page 18: Data Stream Control
Laser Scanners. RF627 Series Parameter Factory value Description ROI mode FIXED Control modes: · FIXED - Manual mode. The position of the region of interest is fixed and is determined by the ROI position parameter. The size of the area is determined by the ROI size parameter. -
Page 19: Image Processing" Tab. Profile Extraction Settings
Laser Scanners. RF627 Series Parameter Factory value Description X-Axis Resolution 1296 Number of points by X coordinate (648 or 1296). Profile data format Calibrated profile Profile formats: · Calibrated profile - transfer of calibrated data (profile in Cartesian coordinates of the measuring area). -
Page 20: Triggering Settings" Tab. Triggering Modes
Laser Scanners. RF627 Series "Triggering settings" tab. Triggering modes 21.1. Time cycle Image capture, processing (profile extraction) and result transfer are performed in a pipeline mode. The pipeline mode is illustrated by diagram: Description of elements is shown below: Frame (profile) period. -
Page 21: Triggering Modes
Laser Scanners. RF627 Series 21.2. Triggering modes The Inputs section of the Triggering settings tab is intended to set up the measurement triggering modes. The required mode is selected from the drop-down menu: If the selected mode allows for options, set the required values in the appropriate... - Page 22 Laser Scanners. RF627 Series Description of triggering modes: Mode Event source How it works Options How to install name Internal clock Profiles are transmitted See par. 19.1.1. Internal continuously at the set frame rate Clock (FPS). · · External trigger,...
-
Page 23: Triggering Settings" Tab. Synchronization Of Multiple Scanners
Laser Scanners. RF627 Series Mode Event source How it works Options How to install name · the fall edge of the If necessary, set the input pulse value of the Input · Divider divider · · External trigger. The series of measurements with... -
Page 24: Asynchronous Measurements
Laser Scanners. RF627 Series · One of the scanners (Master) is configured in the required mode, #0...#8. · The OUT Master output is initialized. · The other scanners (Slave) are switched to mode #1 (External trigger) with Measurement start - Rise. -
Page 25: Scanner Name Change
Laser Scanners. RF627 Series "System" tab 23.1. Scanner name change To change the scanner name, enter the new name into the Scanner name field and click Change. 23.2. Compatibility with RF625 scanners To enable the compatibility mode, change the OFF state to ON. In this mode, data (profiles) are transmitted via the protocol of the RF625 scanner. -
Page 26: Calibration Table Update
Laser Scanners. RF627 Series 23.4. Calibration table update To update the calibration table, select the Calibration table write tab. · Click Choose File and select the calibration table file. · Click Upload to upload the selected file. · Click Start to start the update process. In case of successful update, you will see:... -
Page 27: Log Data" Tab
Laser Scanners. RF627 Series "Log data" tab The Log data tab displays information about the scanner operation that can be used to detect errors: The tab contains information about the operations performed and their order. Technical maintenance The Laser Scanners is virtually maintenance free. As these are optical systems, they are sensitive to dust and sputter on the front windows. -
Page 28: Annex 1. Recovery Mode
Laser Scanners. RF627 Series Problem Cause Solution ROI mode is enabled and the object is Check the ROI settings beyond the set ROI area Incorrect profile Scanner windows are not clean Clean the windows as described in par. Incorrect scanner settings... -
Page 29: General" Tab
Laser Scanners. RF627 Series Button Name Description Save configuration Save settings to the flash memory of the scanner. Load defaults Restore the factory settings. Important: It is necessary to reboot the scanner after restoring the factory settings. Click the Restart device button. -
Page 30: Network" Tab
Laser Scanners. RF627 Series 28.2. "Network" tab To configure the network parameters of the scanner, go to the Network tab. Parameters: Parameter Factory value Description IP address 192.168.1.30 IP address of the scanner. Gateway 192.168.1.1 Gateway address. Subnet mask 255.255.255.0 Network mask. -
Page 31: Warranty Policy
Laser Scanners. RF627 Series Warranty policy Warranty assurance for Laser Scanners RF627 Series – 24 months from the date of putting in operation; warranty shelf-life – 12 months. Warranty repair is not provided in the following cases: · mechanical damage caused by impacts or falling from height, ·... - Page 32 Laser Scanners. RF627 Series CHINA CHINA CHINA Zhenshangyou Technologies Shanghai micron-metrology JRKtech Co., Ltd. Co.,Ltd. com., Ltd. 1F, Building 9, 100 Xianlie Rd., Guangzhou, China Rm 2205-2210, Zhongyou Hotel Room 602 unit 4, lane 399, Tel: +86 755 85267190/ 1110 Nanshan Road, Nanshan...
- Page 33 Laser Scanners. RF627 Series ITALY LATVIA, ESTONIA MALAYSIA FAE s.r.l. SIA "SOLARTEX" OptoCom InstruVentures Via Tertulliano, 41 RAILWAY INSTRUMENTS ONLY H-49-2, Jalan 5, Cosmoplex 20137 Milano, Italy Duntes 15a, 5th floor, office B7 Industrial Park, Bandar Baru Tel: +39-02-55187133 Riga, Latvia...
- Page 34 Laser Scanners. RF627 Series SWEDEN, DENMARK THAILAND TURKEY Latronix AB Advantech Solution Co.,Ltd. TEKMA Muhendislik A.S. Propellervagen 10, 20/170 Motorway Rd., Cevizli Mh. M. Kemal Cd., 183 62 Taby, Sweden Kwang Pravet, Khet Pravet, Hukukcular Towers, Tel.: +46 08-446 48 30...
