ESL
ESL
SW
SW
+/- 60 degrees
+/- 0.5 m

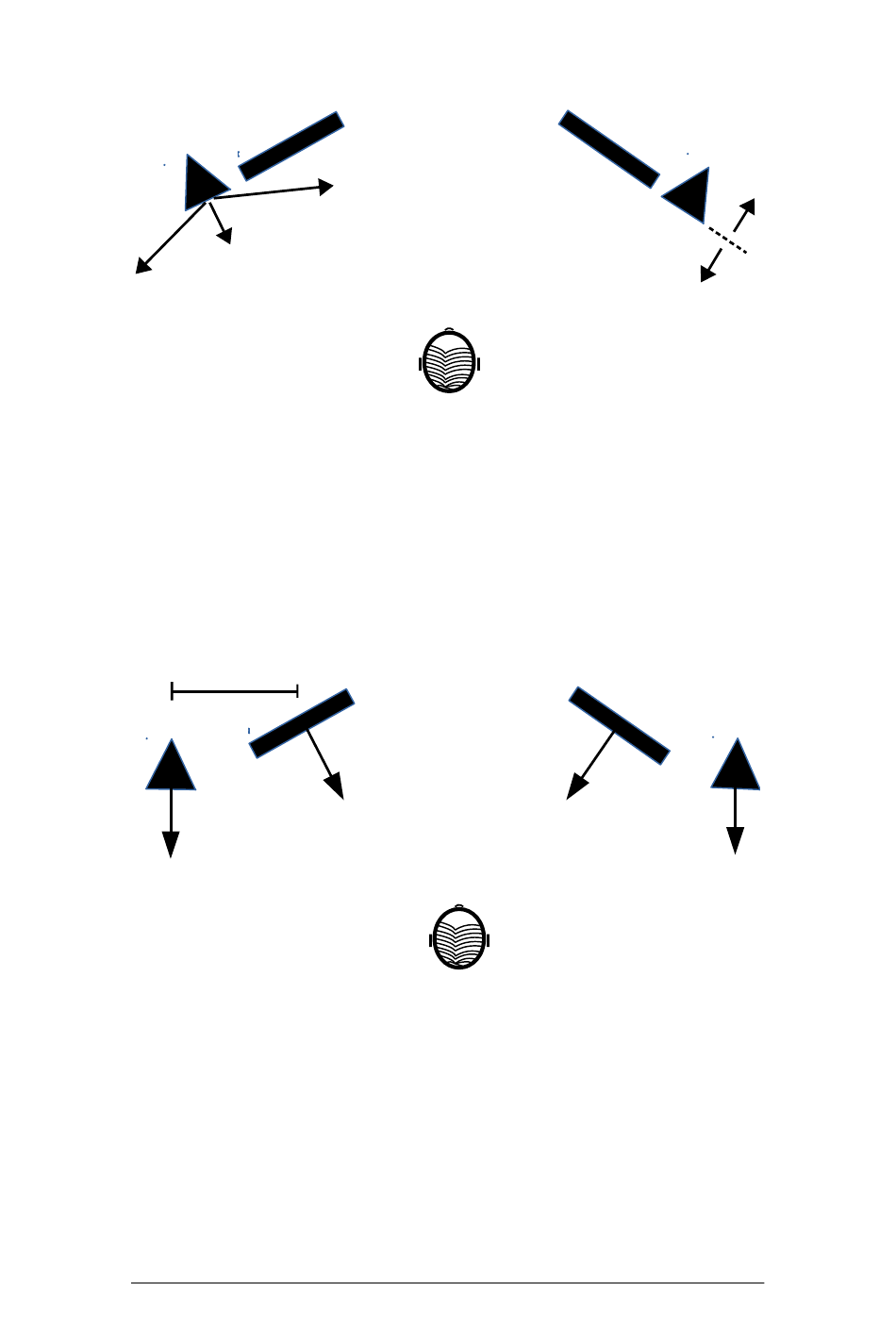

Figure 1. The woofers can be oriented freely +/-60
degrees to reach the optimum bass performance. The
mutual distance of the speakers can vary. In any case it
is recommended to use symmetric layout.
Up to several meters
ESL
SW
Figure 2. The woofers parallel to the side walls, firing
along the walls, will increase the bass output by
several dBs. Use symmetric layout. The distance of the
ESL and the SW from the listener should not vary more
than +/-0.5m.
3
