Summary of Contents for Axetris LGD F200P2

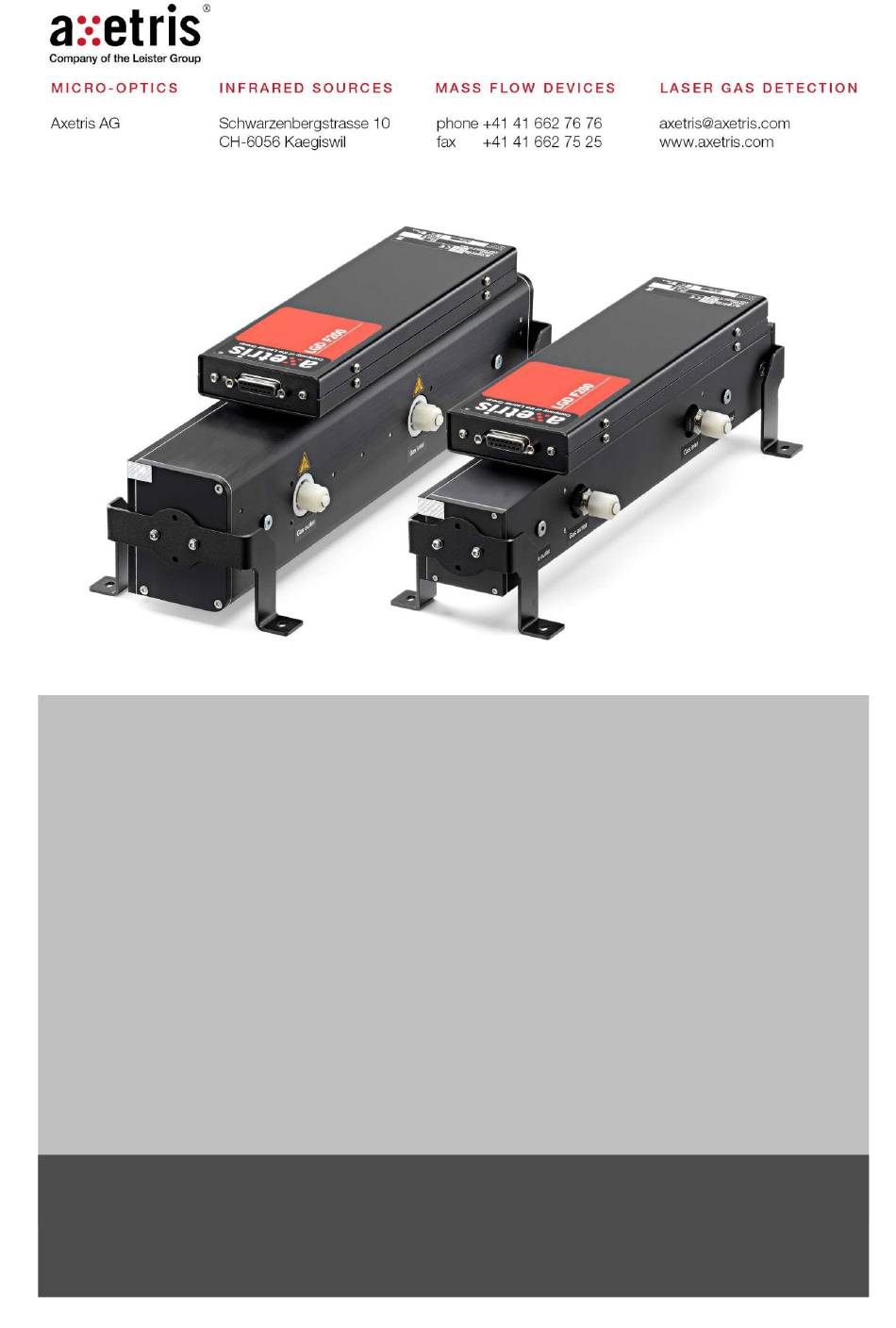

  • Page 1 Operating & Integration Instructions Laser Gas Detection OEM Module LGD F200P2 Axetris AG...
  • Page 2 Transmission and/or reproduction of this document is not allowed without the written permission from Axetris AG. The data and information provided in this document is accurate to the best of our knowledge. This content is subject to change without prior notice.
  • Page 3 Risque de brûlure ! Ne pas toucher les raccords de gaz Les réparations doivent exclusivement être ni le boîtier lorsqu’ils sont chauds. Laisser refroidir effectuées par un centre de service Axetris agréé. l’appareil. Lors de la mesure de concentrations potentiellement L’ensemble des informations et avertissements...
  • Page 4 Sin certificación ATEX. Indicación Peligro de quemaduras. No toque las conexiones de Solo los puntos de servicio técnico Axetris están gas ni la carcasa si están calientes. Dejar que el equipo autorizados a realizar reparaciones en el dispositivo.
  • Page 5 접촉하지 마십시오. 이런 경우 장치를 냉각시키십시오. 실시해야 합니다. 잠재적 위험이 있는 유독 가스 농도를 측정하는 경우, 사용설명서에 명시된 모든 정보 및 여기에 포함된 센서의 출구가 안전한 영역에 위치해야 합니다. 경고 사항의 내용을 준수해야 합니다. Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 5/60...
  • Page 6 Any warranties regarding this product, and as mentioned in the General Terms and Conditions of Axetris AG, are void in the event the system is altered or damaged by the user, not installed, used and serviced according to this document.
  • Page 7  Read all instructions carefully before using the device.  The LGD F200P2 gas sensor modules are not designed to sense liquid flow and damage will result if liquid is passed through the sensor.  Gas loaded with particles will eventually contaminate the optics and affect the performance of the sensor.
  • Page 8: Table Of Contents

    2.14 Data logger software........................28 2.15 Attaching multiple devices to a single computer ................. 29 INSTRUCTIONS FOR LGD SYSTEM INTEGRATION ............... 30 Mechanical mounting of the unit ....................30 Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 8/60...
  • Page 9 Status, Warning and Error Code Listing for Integrators/OEMs ............49 Examples for Analog Output Adjustments ................... 50 Mechanical Dimensions ........................52 LGD F200P2 mechanical dimensions, ambient version (A) ............52 LGD F200P2 mechanical dimensions, heated version (H) ............54 Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018...
  • Page 10: General User Information

    GENERAL USER INFORMATION 1.1 LGD F200P2 introduction Axetris’ laser gas detector (LGD), “LGD F200P2,” is a system for the continuous monitoring of gases such as NH and (H O), HCl and (H O), CH or CO . Based on state-of-the-art Tunable Diode Laser Spectrometry (TDLS), the system has a very high selectivity to the target gas and features an innovative, patented measurement principle without the need for a physical reference channel.
  • Page 11: Technical Data

    Approx. weight 3.3 (heated version) 1.9 (ambient version) Inlet outlet connectors, 6 O.D., Swagelok measurement gas Inlet / outlet connectors, purge 6 O.D., push-in fitting (optional accessory) gas (optional) Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 11/60...
  • Page 12: Electrical Characteristics

    Dust or condensing water in the measurement cell leads to signal reduction of the sensor. It is therefore crucial to ensure that the measurement gas flow is free of dust and that condensation cannot occur: Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 12/60...
  • Page 13: System Layout And Materials

    Prevent any dust, insulation or other material from entering the measurement cell. The main external features of the LGD F200P2 are the housing, the electronics housing, and the gas-in and gas-out connectors. On the inside, the system is equipped with an electro-optic module containing a laser and photo-diode, a measurement cell, and a high reflectivity mirror.
  • Page 14: Interfacing For Evaluation

    2.4 Setting up for lab evaluation Position the LGD F200P2 module at the location where the measurement will be carried out and where computer, power supplies and gas delivery systems can be installed. For customer support and system service it is ideal if the computer also can be connected to the internet.
  • Page 15: Additional Set-Up For Measurements Of Hot Gases (H-Version)

    First, plug the DB15 connector into the instrument prior to connecting the RS232 and the power supply. Plugging the AC/DC adapter into a 100–240 VAC source turns on the LGD F200P2 (in case another power supply and RS232 cable are used, please keep in mind that it is important that the RS232 cable is a straight one and not the cross-over version.
  • Page 16 (i.e. the temperature for which the sensor was calibrated) is important in order to obtain accurate results. This is best controlled by a temperature sensor in the gas flow prior to the measurement cell. Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 16/60...
  • Page 17: Gas Conditioning And Filtering Information

    (or to 12 Vcc/8A in case only one supply is used). The LGD F200P2 cell (heated version) is protected with an internal safety switch which shuts off the heating elements if the cell temperature exceeds 250°C / 482°F.
  • Page 18 Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 18/60...
  • Page 19: Calibration / Calibration Verification / Offset And Span

    (optional) The LGD F200P2 housing is dust-tight but not gas tight. For thermal decoupling reasons, an air space exists between the electro-optic elements and the measurement cell. Under very unfavorable conditions the gas present in this space might contribute to the measurement signal.
  • Page 20: Gas Supply

    Improper venting of the exhaust may cause serious personal injury 2.11 Measurement range and precision Detailed specifications of each device are customer-, application- and gas-specific. Please refer to the respective LGD F200P2 data sheets. Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 20/60...
  • Page 21: Measurement Software And Interfacing

    …\Installer\Volume\setup.exe Please follow the installation instructions on the screen. After rebooting the computer, the measurement software can be started by the new entry in the Windows start menu (Axetris LGD Interface).  The computer may need to be restarted after installation. It is recommended to close all other programs and to save any data before inserting the CD ROM.
  • Page 22: Data Acquisition & Saving Measurement Data To A File

    Additionally, the interface logs system status information to the computer (“.LGD” file extension). Sending this file to the Axetris support team helps to analyze the behavior of the sensor. The software automatically generates the following path where the log data is stored: “C:\ProgramData\Axetris LGD\Interface_Logg_Files”.
  • Page 23: Status And Error Codes

    Figure 19 Sensor user parameter settings 2.12.5.1 Calibration adjustment Adjustment of the sensor calibration Customer offset [ppm] and Customer span [ppm/ppm]) allows correcting the measured values with the linear function: Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 23/60...
  • Page 24: Analog Output Adjustment

    Please adapt the customer calibration first, so that the measured concentration fits to your set points. And then adjust the analog output of your system. Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 24/60...
  • Page 25: Adjusting Firmware Integration Time (T90)

    (please also refer to TN_LGD_How to get Diagnostic Data) 2.12.5.5 Laboratory mode switch To adapt the LGD F200P2 sensor to specific application conditions, the sensor can be configured accordingly. Laboratory Mode = 0 (inactive)  Normal mode / Laboratory Mode = 1 (active)  Laboratory mode (please also refer to TN_LGD_Operation Modes SCR CEM) 2.12.5.6 Analog_switch...
  • Page 26: Cursor Function

    Statistical data is computed from the area of the graph between the two cursors and is shown in the cursor data field. Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 26/60...
  • Page 27: Relay Alarm Definition

    Note: The LGD F200P2 module relies on the concept of line locking. Line locking can be achieved by locking on the gas absorption line or on a reference gas line. To ensure a robust and stable gas concentration reading the sensor must be line locked.
  • Page 28: Data Logger Software

    5 Volt can be measured either when alarm is configured ‘off,’ or when desired the parameter is within its limits, whereas 0 Volt indicates an alarm condition. Older LGD F200P2 versions may not provide this functionality. For those versions, the item in the mouse menu will not be activated.
  • Page 29: Attaching Multiple Devices To A Single Computer

    2.15 Attaching multiple devices to a single computer Multiple LGD F200P2 gas sensor modules can be operated by the same computer. Connect the sensors one-by-one to the different serial-ports and start a new instance of the measuring program for each of the sensors.
  • Page 30: Instructions For Lgd System Integration

    If the instrument is used in an environment where shocks and vibrations are expected, it is recommend the installation of the LGD F200P2 module with the supplied rubber dampers. Figure 26 shows the rubber dampers mounted onto the base of the mounting brackets. The damping works optimally for a screw- torque of 3.5 Nm.
  • Page 31: Thermal Management Of The Lgd Analyzer Module

    50°C / 122°F. Otherwise the system will overheat and might be irreversibly damaged. Please refer to our TN LGD Temperature Stabilization and our FAQ document for further information. Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 31/60...
  • Page 32: Thermal Management Of The Lgd Analyzer Module @220°C

    All horizontal mounting positions are allowed. The electronic board can be on any side (top, side, bottom). Vertical mounting is possible only if the cell heater screw terminal connector is not on top position Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 32/60...
  • Page 33: Interfacing For Integration

    3.4 Interfacing for integration Interfacing and connectors For integration of the LGD F200P2 into original equipment manufacturer (OEM) instruments, (e.g. 19” racks), the same connector as shown in Figure 3 can be used. In order to access the connectors, the plug...
  • Page 34: Load Limitation For The Analog Interface

    Figure 29 Load limitation of the 4-20 mA interface due to variable power supply (10V – 30V) Graph: V [V] versus R max [Ω] supply load Setting the alarms For Alarm settings 1 and 2, see Chapter. 2.13 Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 34/60...
  • Page 35: Data Transmission Protocol

    Command / Response ID Abbreviation Ping Config Start Measurement Idle Save to EEPROM Version. Status monitoring The data transfer is based on packets constituted of a multiple of 8 Bytes. Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 35/60...
  • Page 36 - 1 Check sum Check sum (sum from 1 to n-1 = 0) “}” End of the packet Table 7: Example of a Response from the sensor (Ping user calibration). Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 36/60...
  • Page 37: Timing & Rs232-Protocol

    For long commands (< 64 bytes), two successive bytes should not be separated by more than 200 ms, but a maximal time of 500 ms is allowed for the full packet. If this occurs, errors are issued and the packet Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 37/60...
  • Page 38: Measurement Data Format

    End of packet close brace } 1 Byte  Floats are coded based on IEEE754 - tools can be used under http://www.binaryconvert.com/convert_float.html to convert them. (Bytes order should be reverted “Little endian.”) Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 38/60...
  • Page 39: Change Of User Parameters

    Command in ASCII The response contains the sensor serial number and diverse checksums. The response is 64 bytes long; inside the packet the data has the following structure (see Table 8). Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 39/60...
  • Page 40: Stop Measurement (Idle)

    With the Ping command user data can be asked from the sensor. Please note that the sensor needs to be in Idle-mode to have access to the user data. Command in Hex 7B 50 08 00 10 00 Command in ASCII Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 40/60...
  • Page 41 The device is configured so that it always switches from Laboratory mode back to normal after the device was powered off.  Not all LGD F200P2 module configurations offer Laboratory mode option Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018...
  • Page 42: Configure User Data

    The device is configured that it always switches from Laboratory mode back to normal after the device was powered off.  Not all LGD F200P2 module configurations do offer Laboratory mode option Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018...
  • Page 43: Save To Eeprom

    The Error-packet contains status, warning, and error codes. Please consult Annex A and B for a listing of these codes. Failure-Packet: Table 12: Failure packet sent from sensor (Error checksum not correct). Response in Hex 7B 46 08 00 C1 0F Response in ASCII Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 43/60...
  • Page 44 ( {D…} ). The D-packets are for internal use only and can only be monitored while working with the Axetris GUI (they can be ignored by the customer in standard sensor operation). When quitting the Axetris GUI to work with the LGD Sensor Communication Protocol, the sensor stops sending D-packets.
  • Page 45: Maintenance And Trouble Shooting

    4 MAINTENANCE AND TROUBLE SHOOTING 4.1 Maintenance The Axetris LGD F200P2 gas sensor modules will not require routine maintenance when the installation and operation instructions described in this document are carefully applied. The surface of the instrument can be cleaned with a soft tissue and the use of isopropyl alcohol. Any gas filtration and conditioning equipment must be checked and replaced periodically according to manufacturer specifications.
  • Page 46: Troubleshooting

    The correct serial port is set on startup If a software problem occurs, it is important to send to Axetris the stored data (*.TXT and *.LGD files). This allows Axetris to analyze the system monitoring data and helps to identify the reason for the problem.
  • Page 47: Important Disclaimer / Notice

    5 IMPORTANT DISCLAIMER / NOTICE The information furnished by Axetris AG is believed to be correct and accurate. However, Axetris shall not be held liable to recipient of any third-party for any damages, including but not limited to personal injury,...
  • Page 48: Annex

    0xEE Sensor Line-Locking not secured Contact the Axetris service if the Reference for line locking is below track-limit problem persists Baseline noise above defined track-limit Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 48/60...
  • Page 49: Status, Warning And Error Code Listing For Integrators/Oems

    Ping page too small (protected page) 0xDA Wrong password Config). Check password. Wrong password Config). 0xDC Wrong password (Ping). Check password. Wrong password (Ping). 0xDE Wrong password (Save). Check password. Wrong password (Save). Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 49/60...
  • Page 50: Examples For Analog Output Adjustments

    Span       Offset For this example, the sensor parameters to type into the interface are:  AnalogOut_Min_Conc:  AnalogOut_Max_Conc:  AnalogOut_Offset: 0.02  AnalogOut_Span: Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 50/60...
  • Page 51       Offset For this example, the sensor parameters to type into the interface are:  AnalogOut_Min_Conc:  AnalogOut_Max_Conc: 1.25  AnalogOut_Offset: -0.01  AnalogOut_Span: Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 51/60...
  • Page 52: Mechanical Dimensions

    D. Mechanical Dimensions LGD F200P2 mechanical dimensions, ambient version (A) Figure 30 General view of the LGD F200P2 (A) sensor Figure 31 Side view, with gas connectors. Dimensions in mm Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018...
  • Page 53 Figure 32 Front view. Dimensions in mm Figure 33 Top view. Dimensions in mm Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 53/60...
  • Page 54: Lgd F200P2 Mechanical Dimensions, Heated Version (H)

    LGD F200P2 mechanical dimensions, heated version (H) Figure 34 General view of the LGD F200P2 H sensor Figure 35 Side view, with gas connectors. Dimensions in mm Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 54/60...
  • Page 55 Figure 36 Front view. Dimensions in mm Figure 37 Top view. Dimensions in mm Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 55/60...
  • Page 56 Declaration of conformity Axetris AG, Schwarzenbergstrasse 10, 6056 Kaegiswil, Switzerland confirms that this product fulfils the requirements of the following EU Guidelines in the models that we have made available for purchase. Guidelines: 2004/108 (valid from 04/19/2016), 2014/30 (valid from 04/20/2016)
  • Page 57 Notes Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 57/60...
  • Page 58 Notes Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 58/60...
  • Page 59 Notes Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 59/60...
  • Page 60 Notes Axetris AG LGD F200P2 Operating Instructions - Rev D 19.09.2018 60/60...
  • Page 61 Adaption for LGD F200P2 product 26.06.2017 Added declaration of conformity Several corrections and improvements Added content for new LGD F200P2 products  LGD F200P2-H NH3 Ind. SCR 220C  LGD F200P2-H HCl CEM Powerplant  LGD F200P2- CH4 Leak Detection 26.06.2017...
