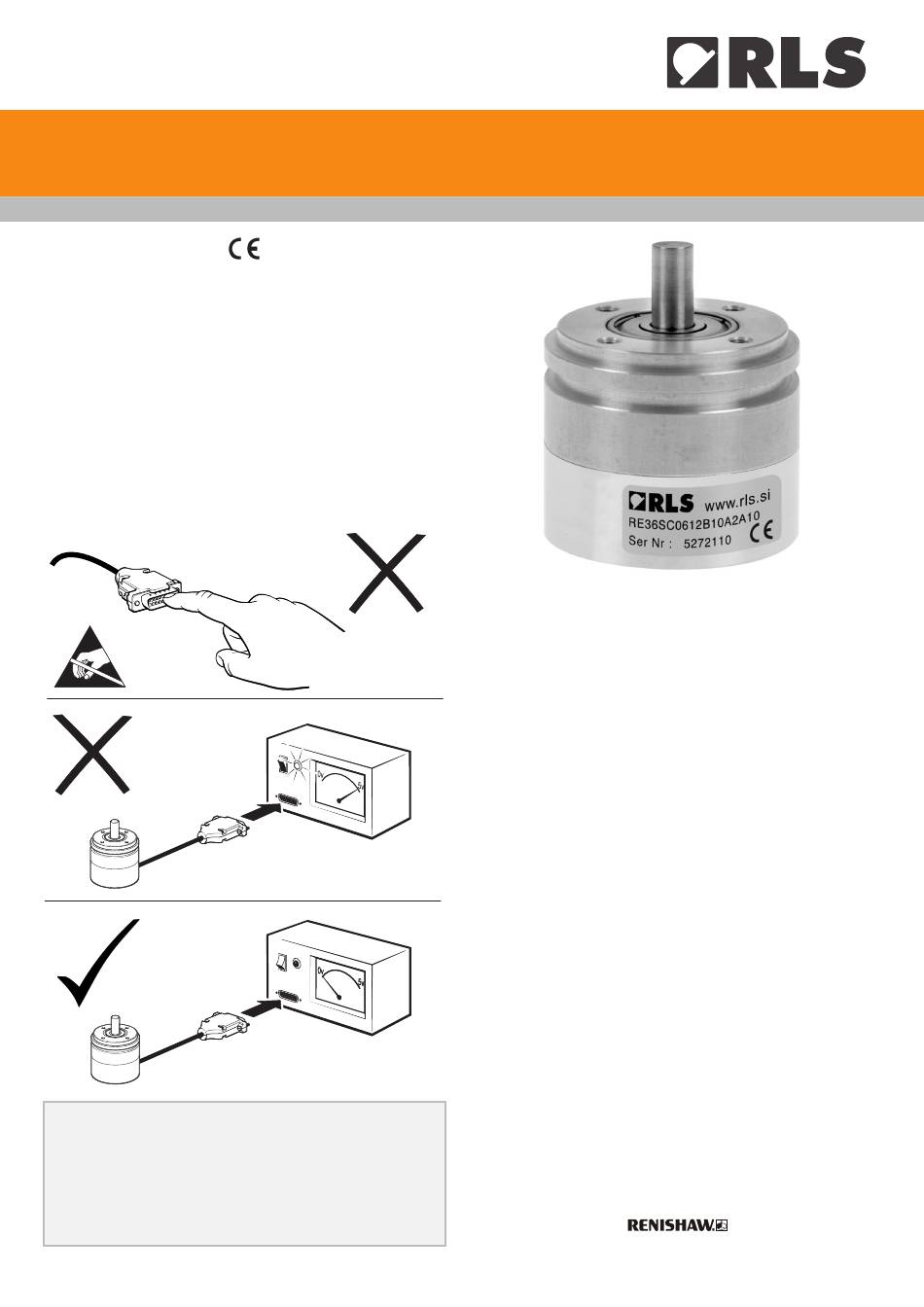

RLS RE36 series Installation Manual

RLS merilna tehnika d.o.o.
Poslovna cona Žeje pri Komendi
Pod vrbami 2
SI-1218 Komenda
Slovenia

EMC compliance

This encoder system conforms to the relevant harmonised European standards for
electromagnetic compatibility as detailed below.
BS EN 61326

Further information

For further information relating to the installation of RE36 encoders see also the
RE36 data sheet (part number RE36D01). This can be downloaded from our
website www.rls.si and is also available from your local representative.

Disclaimer

Considerable effort has been made to ensure that the contents of this document
are free from inaccuracies and omissions. However, RLS merilna tehnika d.o.o.
makes no warranties with respect to the contents of this document and specifically
disclaims any implied warranties. RLS merilna tehnika d.o.o. reserves the right
to make changes to this document and to the product described herein without
obligation to notify any person of such changes.

Handling

IMPORTANT: Power to RE36 encoders must be supplied from a
DC SELV supply complying with the essential
requirements of EN (IEC) 60950 or similar specification.
The RE36 series encoders have been designed to the relevant
EMC standards, but must be correctly integrated to achieve
EMC compliance. In particular, attention to shielding arrangements
is critical.
T +386 1 5272100
F +386 1 5272129
E mail@rls.si
www.rls.si
Installation guide
RE36D02_01
Issue 1, 13 January 2009
th
RE36 series rotary encoders

General specifications

Power supply 5 V ± 5% RE36 I 35 mA
RE36 S 35 mA
Power supply 24 V ± 10% RE36 P 40 mA variant A, 25 mA variant B
(9 - bit versions only) RE36 P variant A requires heat sink-typ. 3 W
RE36 I 50 mA variant A (30 mA – 9bit)
RE36 I variant A requires heat-sink typ 1W
RE36 I 25 mA variant B
RE36 V 40 mA
RE36 C 50 mA
NOTE: Current consumption figures
refer to unterminated encoders.
Sealing IP53 (IP64/68 options available)
Temperature 5 V versions
RE36 I/S -25 °C to +85 °C
24 V versions RE36 I/V/C -25 °C to +70 °C
(0 °C to +70 °C variant IB)
RE36 P -25 °C to +125 °C
(0 °C to +70 °C variant PB)
Humidity
Storage 95% maximum relative humidity
(non-condensing) (BS EN 61010-1)
Operating 80% maximum relative humidity
(non-condensing) (BS EN 61010-1)
Acceleration operating 500 m /s
(IEC 68-2-7:1983)
Shock non-operating 1000 m/s
BS EN 60068-2-27:1993
(IEC 68-2-27:1987)
Vibration operating 100 m/ s
BS EN 60068-2-6:1996
(IEC 68-2-6:1995)
Mass Encoder unit 1 m cable (no connector)
IP53 side cable 105 g. IP64/68 side cable 128 g
Cable Outside diameter 5 mm
Maximum cable length 10 m (RE36 P),
20 m (RE36 I/ S/V/C)
A
2
BS EN 60068-2-7:1993
2
, 6 ms, ½ sine
2
, 55 Hz to 2000 Hz
