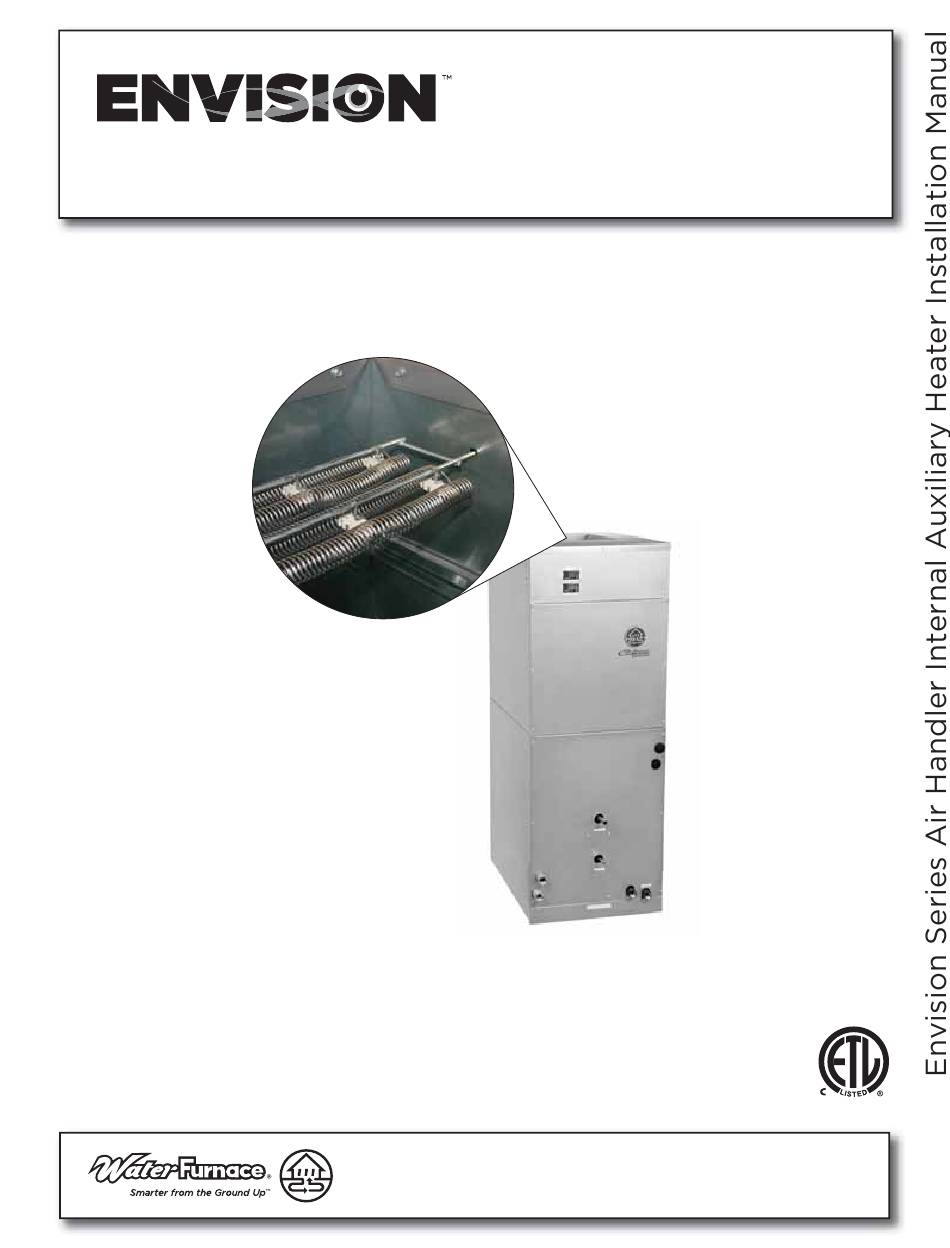

- Page 1 Air Handler Internal Auxiliary Heater IM1616 07/08...
- Page 2 ENVISION SERIES AIR HANDLER INTERNAL AUXILIARY HEATER INSTALLATION MANUAL Table of Contents General Installation Information ..........2 Installation Steps .
-
Page 3: General Installation Information
ENVISION SERIES AIR HANDLER INTERNAL AUXILIARY HEATER INSTALLATION MANUAL General Installation Information The Envision Air Handler series electric auxiliary heater lays. Signals from the air handler control energize the relays mounts internally to provide supplemental and/or emer- in a time-staged sequence; second stage will be energized gency heating capability. - Page 4 ENVISION SERIES AIR HANDLER INTERNAL AUXILIARY HEATER INSTALLATION MANUAL Installation Procedure Figure 5: Screw #7 to be inserted at top of blower assem- Once wiring has been completed replace blower bly opening. assembly and auxiliary heat access panels. Note: For...
- Page 5 ENVISION SERIES AIR HANDLER INTERNAL AUXILIARY HEATER INSTALLATION MANUAL Wiring Schematics - 5kW 208-230/60/1 Transformer Gry(6) Black Gry(4) Brown NOTE 1 Orange Blue Blk/Wh Black RPM grnd Black Gray Grn(9) Gry(12) Black Grn/Yel(1) XFRM Black Black Note 3 Black COOL...
- Page 6 ENVISION SERIES AIR HANDLER INTERNAL AUXILIARY HEATER INSTALLATION MANUAL Wiring Schematics - 10kW 208-230/60/1 Yel(7) Transformer Gry(6) Black Gry(4) Yel(5) Brown NOTE 1 Orange Blue Blk/Wh Black RPM grnd Black Gray Grn(9) Gry(12) Black Grn/Yel(1) XFRM Black Black Note 3...
- Page 7 ENVISION SERIES AIR HANDLER INTERNAL AUXILIARY HEATER INSTALLATION MANUAL Wiring Schematics - 15kW 208-230/60/1 208-230/60/1 Note 4 Circuit 1 Circuit 2 BRK1 BRK2 Transformer Red (2) Black(3) Black Brown NOTE 1 Orange Gry(20) Blue Blk(21) Blk/Wh Yel(22) Gry(24) Black Blk(25)
- Page 8 ENVISION SERIES AIR HANDLER INTERNAL AUXILIARY HEATER INSTALLATION MANUAL Wiring Schematics - 20kW 208-230/60/1 208-230/60/1 Circuit 1 Circuit 2 Note 4 BRK2 BRK1 Transformer Red (2) Black Black(3) Brown NOTE 1 Orange Blue Gry(20) Blk(21) Blk/Wh Yel(22) Pnk(23) Gry(24) Black...
-
Page 9: Electrical Data
ENVISION SERIES AIR HANDLER INTERNAL AUXILIARY HEATER INSTALLATION MANUAL Electrical Data Auxiliary Heat Compatibility NAH Envision Series Air Handler Compatibility Model Stages Min CFM 022 - 026 030 - 036 042 - 048 ¸ ¸ 19P578-01 ¸ ¸ ¸ 19P578-02 ¸... -
Page 10: Blower Performance
ENVISION SERIES AIR HANDLER INTERNAL AUXILIARY HEATER INSTALLATION MANUAL Blower Performance Dip Switch Settings... - Page 11 Envision Series - Air Handler Auxiliary Heater Type: Hydronic — R410A Size: 2-6 Tons Document: Installation Manual WaterFurnace Renewable Energy has a policy of continuous product research and development and reserves the right to change design and specifications without notice. ©2008 WRE.
