Page 1 Issue 1.9 – Nov 2015 eng105 MARKTRONIC™ MARKING SYSTEM USER GUIDE EDWARD PRYOR & SON LIMITED EGERTON STREET SHEFFIELD S1 4JX www.pryormarking.com support@pryormarking.com Telephone No. - 0114 276 6044 Facsimile No. - 0114 276 6890 Serial No.: Serial Number...
Page 3 REQUIREMENTS STATED IN THE ABOVE LISTED DIRECTIVES, STANDARDS AND SPECIFICATIONS. SIGNED: ..............TITLE: Managing Director..DATE: ............EMPOWERED TO SIGN ON BEHALF OF THE RESPONSIBLE PERSON, MR N. ANDREW, DIRECTOR OF EDWARD PRYOR AND SON LTD. AT THE ABOVE ADDRESS. Conformity 1 - Issue 5 – 07/17...
Page 5 CONFORMITY WITH THE PROVISIONS OF THE EC MACHINERY DIRECTIVE. SIGNED: ..............TITLE: ..Managing Director..... DATE: ............EMPOWERED TO SIGN ON BEHALF OF THE RESPONSIBLE PERSON, MR N. ANDREW, DIRECTOR OF EDWARD PRYOR AND SON LTD. AT THE ABOVE ADDRESS. Incorporation 1 - Issue 4- 08/17...
Page 7 HEALTH & SAFETY Marktronic Marker This covers essential health and safety of the Marktronic Marking machine. It is intended to supplement and support the training given by the suppliers of the equipment and the operation manuals. Weight of Machine and Ancillary Equipment BenchDot300-150ZA Marking Unit 54Kg inc.
Page 8 Possible Hazards whilst Operating The motors are low force and inertia; they therefore present a low risk when used in accordance with manufacturer’s instructions. Care should be taken in the vicinity of the marking head whilst setting, operating or maintaining the machine. It is important when operating the machine that any object other than the work piece to be marked is kept away from the marking area.
Page 9: Table Of Contents
CONTENTS ABOUT THIS MANUAL ........................1-1 ..............................1-1 NTRODUCTION Bench / Column Mount Machines ......................1-2 Marktronic BenchDot™ Compatible Options .................... 1-2 ..........................1-3 NTEGRATED ACHINES ™ C ........................1-3 OMPATIBLE PTIONS ............................. 1-4 ORTABLE ACHINES ........................1-4 ORTABLE OMPATIBLE PTIONS SYSTEM OVERVIEW ..........................
Page 10 Prompt ................................ 5-4 Width................................5-4 Angle ................................5-4 Radius ................................ 5-4 Z ................................. 5-4 Length ................................ 5-4 Direction ..............................5-4 Serial Increment, Every, Marked........................ 5-4 Diameter/Position ............................5-5 ............................5-5 DITING LAYOUTS Editing keys ..............................5-5 Special character menu ..........................5-5 Cut/paste menu ............................
Page 11 ............................9-4 EMOTE OPERATION ............................... 9-5 ELECT LAYOUT Introduction ..............................9-5 Method ............................... 9-5 Feedback ..............................9-6 Wear warnings ............................9-6 ..............................9-6 ATCH MODE Introduction ..............................9-6 Method ............................... 9-7 ..........................9-7 ERIAL OMMAND Method ............................... 9-7 Serial Command Line Commands ......................9-7 Serial Command Example ..........................
Page 12 MARKING ASSEMBLIES ........................13-1 ..............................13-1 (E) ..........................13-1 LECTRIC SOLENOID (DP) ....................13-1 NEUMATIC ARKING ASSEMBLY (FP)........................... 13-1 NEUMATIC (SP) ......................13-1 IAMOND CRIBE SSEMBLY (SP) ......................13-1 ARBIDE CRIBE SSEMBLY (SDPH) ................... 13-1 EAVY ARBIDE SSEMBLY ........................... 13-1 WIN ELECTRIC SOLENOIDS ..........................
Page 13 ......................20-2 ONFIGURATION OF THE CONTROLLER FAULT FINDING ............................1 ..............................1 ONTROLLER The Controller screen is flashing on and off ....................1 The Controller does not power up when turned on ..................1 The Controller keeps rebooting to the bootloader screen................1 The Controller screen reports an ASM exception error.
Page 14 10010046 3000 Electric Solenoid Assembly ..........................23-22 Stylus & Nosepiece Range ............................... 23-22 ..........................23-23 NTEGRATED ACHINES InDot 50-25 ............................23-23 Integrator 50-25 Assembly ............................... 23-23 InDot 130-30 ............................23-25 10028636 InDot130-30 Marking Head ............................ 23-25 10027339 130-30 Mechanism ..............................23-25 InDot 60-60 ............................
Page 15: About This Manual
ABOUT THIS MANUAL Introduction This manual is a simple introduction to the Pryor range of dot peen and scribe marking machines and also a complete reference their functions. The various machines can be broken down into 3 categories. • Bench Mount (BenchDot™) o Marking head mounted on an adjustable column.
Page 16: Bench / Column Mount Machines
Bench / Column Mount Machines Bench Mount Machines Description Marking Area(s) Marktronic MarkMate LCD A cost effective electric solenoid dot 100mm x 75mm (4” x 3”) peen machine. MarkMate features a manual Z axis column for marking parts of different heights. Available with optional...
Page 17: Integrated Machines
Integrated Machines Integrated Machines Description Marking Area(s) Marktronic InDot 50-25 E The smallest and fastest marking 50mm x 25mm (2” x 1”) head in the range. The InDot50-25 is designed to easily integrate into the tightest spaces in the production process.
Page 18: Portable Machines
Portable Machines PortaDot™ Machines Description Marking Area(s) Marktronic PortaDot 50-25 E The Portadot 50-25 E is a light 50mm x 25mm (2” x 1”) weight portable peen machine weighing only 2.3kg. Ideal for applications where it is an advantage to take the marker to the part rather than the part to the marker.
Page 19: System Overview
SYSTEM OVERVIEW The system consists of a controller with integrated keyboard, remote start/stop box (optional) and marking head. The Controller and Software The controller software lets you select the option you want by highlighting it using the cursor keys and pressing the Enter key or by pressing the appropriate function key. You can create marks (layouts) in either straight lines or arcs.
Page 20: Varidot Marking
Varidot marking In this mode you are allowed to choose the size of the character and the gap between the dots used to form the character. The minimum character size and increment steps are the same as the 5x7 characters. This is useful if you want to mark large characters.
Page 21: Guide To Effective Marking
GUIDE TO EFFECTIVE MARKING The Marktronic machines can mark a very wide range of work pieces using a variety of different character styles, sizes and depths. Fixturing IMPORTANT - Unless the work piece is held firmly then there is little hope of obtaining a good quality mark.
Page 22: Depth Of Mark (Dot Marking)
in gap. If using this approach the Split Line software function will assist if marking variable data. • Reduce the character size or width so that the whole mark is shorter. Depth of mark (Dot Marking) The depth of mark depends on the following factors •...
Page 23: Character Size (Dot Marking)
A large included angle (perhaps 120°) will result in a longer stylus life. A less deep mark will be obtained but the mark may be more readable, this is because individual dots will be wider. Marking Data Matrix codes with a stylus angle of 120° often produces the best results and leads to the most readable codes.
Page 24: Stylus Tip Radius (Scribe Marking)
bad mark. If the machine is stalling try reducing the air pressure or reducing the marking speed. Stylus tip Radius (Scribe Marking) This is normally determined by trials on the material prior to delivery of the machine. Typical radii are between 0.5mm and 1mm. Generally, the smaller the radius, the deeper the mark, but small radii can lead to tearing of the material instead of forming it.
Page 25: Getting Started
GETTING STARTED Setting up For column mounted systems it is important to use a sturdy bench and fasten the base of the machine using the 2 mounting holes on the base. Before using the marking head for the first time fit the stylus nozzle, stylus and spring in position and check the stylus moves freely, The system is very easy to connect, all the connectors on the rear of the...
Page 26: Mode
There are two common modes available, ‘Windows Interface’ or ‘Embedded LCD’ Windows Interface Selecting this mode of operation, allows the controller to be used with Pryor’s Win2068, MarkMaster or Traceable-IT software. A separate manual covers the use of the PC software. This manual only covers use of the machine in ‘Embedded LCD’...
Page 27: Layouts
Layouts To produce any kind of mark a layout must be created. A layout contains information about the Text to be marked, its Size, Force and XY position. The controller can save many layouts in memory. Creating a layout Select “F8) Create layout” from the Main menu by pressing function key F8.
Page 28: Preview
Preview Select “F6) Preview” from the main menu. The entire marking area is displayed and in the top left corner, the text you have entered. It may be very small, to zoom in use the cursor keys to move the box with a solid outline over the text and press ENTER.
Page 29: Saving A Layout
interlock on the controller will stop marking by removing all power from the controller but will lose the current layout if it has not been saved. If the machine is a portable unit, it is possible to configure the Start button to also work as a Stop button while the machine is marking.
Page 30: Deleting A Layout
Editing a layout To make changes to the current layout select F5) Edit layout. The Text, Size, Force and XY position may be changed by using the up/down/left/right cursor keys to move the cursor between the various lines and parameters. To add a serial number to the second line of the current layout use the cursor keys to move the cursor to line 2 Text.
Page 31: Layouts
LAYOUTS Introduction A layout consists of a number of lines of information (up to 40). Each line has its own Text, Size, Force, XYZ position and many other parameters. The controller can store up to 1350 layouts (organised as 9 groups of 150 for ease of use) .
Page 32 Contents Text Text is marked exactly as it appears. Text Text is replaced by text from a bar-code reader. Bar-code Text is a serial number and is incremented after the Serial layout is marked. Text is replaced by the global serial number when Global serial the layout is marked.
Page 33: Font
Font The Font parameter specifies the style of character. The available styles are: Font Description Standard 5x7 dot matrix. 0.15 mm (0.006”) minimum 5x7 dot Size. Characters are formed from lines of dots, the spacing 5x7 varidot between dots can be specified. Not good for small characters.
Page 34: Prompt
As Arc (cw) but the arc is centred about Angle. Arc (cw) centred As Arc (ccw) but the arc is centred about Angle. Arc (ccw) centred Prompt When Contents is set to Variable, Serial or Data Entry Via then this parameter is used as a prompt that will be displayed when the serial numbers or variables are being edited.
Page 35: Diameter/Position
Diameter/Position When Circumferential marking mode is selected then Diameter may be used to specify a different diameter for each line of a layout. If it is set to 0.0 then the diameter specified when the layout was created will be used. When Normal or Reverse marking mode is selected then Position may be used to specify the distance to move the Circumferential motor.
Page 36: Cut/Paste Menu
To use these menus, move the cursor to the desired character. Pressing SPACE will place the character in the layout text at the cursor position and keep the character menu on screen. Pressing ENTER places the character in the layout text and closes the character menu.
Page 37: Serial Numbers And Variables
SERIAL NUMBERS AND VARIABLES Serial numbers Introduction Serial numbers automatically increment or decrement after a layout has been successfully marked. Serial numbers can consist of numbers or letters, the actual sequence they follow can be defined if the standard 0000-9999 configuration is inadequate.
Page 38: Editing Serial Numbers
To configure a serial number to be reset change the Ser.Reset value from Never to one of the above options. Then set ‘Reset to’ to the value the serial number should default back to on the configured event. Editing serial numbers To edit serial numbers (to reset a number back to 0001, for example) it is possible to just select F5) Edit layout, a better solution is to use F9) Edit serial numbers.
Page 39: Editing Variables
Editing variables To edit variables select F7) Edit variables from the Main menu. This shows the value of the global variable and the values of any variables used in the layout along with any prompts associated with them. For a more advanced prompt based approach to loading layouts and entering variables, see the ‘Data Entry Via Prompt’...
Page 41: Time And Date Functions
TIME AND DATE FUNCTIONS Introduction The controller has a real-time clock that provides time and date information. This information can be incorporated in a layout in many different ways. Setting time/date and date format To set the time and date select F1) Time/date from the Configuration menu. To select the appropriate date format select F6) Various from the Configuration menu.
Page 42: Shift Codes
also have a letter or number associated with it. Select F1) Time/date from the Configuration menu and enter 12 characters for the month codes (the first character is for JAN., the second for FEB. etc.) Enter a string of characters for the year code (the first character is for 1990, the second for 1991 etc.).
Page 43 Note that the date displayed by the controller will be the real date, not the delayed date. Marktronic User Guide...
Page 45: Logos
LOGOS Introduction As well as being able to mark the standard character set in various styles and sizes the controller can also mark complex logos. These logos may be created in the controller using a simple editor (dot logos), or drawn on a PC using one of the many CAD programs available (HPGL logos).
Page 46: Advanced Editing Features
Advanced editing features To help create logos a set of simple drawing tools are available. These tools use markers as guidelines. Markers (small + crosses) may be placed by pressing the ENTER key, up to 10 markers may be placed in the logo. To delete markers press the BACKSPACE key.
Page 47: Marking Hpgl Logos
serial or USB port. Downloading logos is described in the comms utility program manual Once a logo has been saved in memory it can be used in a layout. Marking HPGL logos To put a logo in a layout enter the name of the logo in the Text and set the line parameter Contents to HPGL logo (Smooth) or HPGL logo (Sharp).
Page 49: Communications
COMMUNICATIONS Introduction The controller features 2 ports of communication. The MarkMate controller features 2 RS232 Serial Ports. The 3000 controller provides further communication options. On the 3000 controller the two ports can be configured to be a combination of RS232, USB Slave, TCP/IP Ethernet or a range of field communication buses such as Ethernet/IP, Profibus, ProfiNet, DeviceNet etc.
Page 50: Field Bus Options
www.pryormarking.com/trial-download.html The software download automatically installs the USB drivers. 3000 Controller Communications Utilities also work with RS232 and TCP/IP Ports. This utility will also work with the MarkMate controller using one of the RS232 ports. Field Bus Options The 3000 controller may be fitted with an optional communication module which will allow the machine to be controlled by an external control systems such as a field bus enabled PLC.
Page 51: Rs232 Connector Pinout
RS232 Connector pinout The pinout for the A and B serial port connectors are: Signal Comments *Data Carrier Detect. Data to controller port. Data from controller port. *Data Terminal Ready Signal ground *Data Set Ready Request to Send Clear to Send 5 volt supply from controller (100 mA max.).
Page 52: Printer
For an alternative barcode reading mode see the ‘Data Entry via Prompt’ section. This mode allows the layout name as well as variable data to be scanned in a single cycle. Barcode scanners configured specifically for the controller can be purchased direct from enquiries@pryormarking.com Printer A printer with an RS232 serial interface may be connected to the controller to keep a...
Page 53: Select Layout
Cursor down Page down Home Escape Backspace Reset controller Enter As each character is processed by the controller it is transmitted back to the external device. Select layout Introduction This mode allows an external device to perform the following operations via the RS232 or USB serial port: •...
Page 54: Feedback
This will load layout “AB1234” from group 1. Insert “MFR A1234” into the first line in the layout set to Variable. Then insert “SER 12345” into the next line set to variable. Finally the <EOT> character will automatically start the mark. The ENQ (ASCII 0x05) character can be sent to the controller and it will respond with the currently loaded layouts name.
Page 55: Method
Method To transfer a batch of items to the controller select F3) Receive batch from the Batch menu. The controller will then wait for items from the external device. For each item the remote device must send an STX character followed by the layout name (layout must be in group 1) followed by a CR character.
Page 56: Serial Command Example
(Note Line 2 is configured to Serial Command) 4. SHEFFIELD and the following layout will transmit, <STX> EDWARD PRYOR of SHEFIELD <ETX> Note: To transmit the ‘[‘ character use the ‘[[]’ command. Host This mode is reserved for special applications.
Page 57: Test Communications
Test communications To verify that data is being received and transmitted from the controller select F6) Serial ports from the Test hardware menu. The bottom part of the screen will display characters that have been received; the top part will display characters that have been transmitted (by typing on the keyboard).
Page 59: 10. Digital Inputs And Outputs
10. DIGITAL INPUTS AND OUTPUTS Introduction The controller has 8 opto-isolated 24v inputs and 6 solid state relay outputs that are available to interface to external equipment. A 24v 500 mA power supply is also available. Configuration The inputs and outputs can be configured to operate in several modes.
Page 60: Outputs
Outputs The outputs are solid state relay connections capable of switching 24V d.c. at up to 1A. The contacts should not be used to switch a.c. signals directly. To interface an indicator lamp, connect one side of the lamp to GND, connect the other side to the negative (-) side of the Output relay, then connect the positive (+) side of the output relay to 24V.
Page 61: I/O Select Layout Mode
Switch output n on (n is 1 to 6). Switch output n off (n is 1 to 6). Wait for input n to become true (n is 1-8). Wait for input n to become false (n is 1-8). Delay for n*0.1 seconds (n is 1 to 99). Process the next line of the layout if input n is true (n is 1-8).
Page 62: I/O Special Interface Mode
LAYOUT-30 LAYOUT-31 The READY signal indicates that the controller is waiting for a layout code. When the appropriate code has been applied to the inputs then selected layout can be loaded and marked by applying a pulse to the START input. The controller will reset the READY output and set the BUSY output while the layout is being marked.
Page 63: Test Inputs/Outputs
Wait for input n to become false (n is 4-8). Delay for n*0.1 seconds (n is 1 to 99). Process the next line of the layout if input n is true (n is 4-8). Decrement global serial number The following commands are available in firmware version 20.10 and above: Abort mark if input n is true.
Page 65: 11. Miscellaneous
11. MISCELLANEOUS Backup/restore The entire memory contents of the controller can be saved to a PC disk drive for safety. If a fault subsequently occurs and the contents of the memory are lost then they can be loaded from PC disk drive. A cable and a disk containing utility programs are available for this purpose.
Page 66: Counters
Counters The controller can count the number of times a layout has been successfully marked and stop at a pre-set limit. The value of the counter is displayed on the menu screen. There are two kinds of counters; layout counters and the global counter. A layout counter counts the number of times a particular layout has been marked, it is saved with the layout.
Page 67: Offsets
The Circumferential/programmable axis also has provision for a proximity switch to fix a zero position, this is not normally used. Offsets A layout can have its XYZ zero position defined as being offset from the absolute home position defined by the XYZ proximity switches. This may be used to prevent excessive movement to/from the absolute home position if the workpiece is an awkward shape.
Page 68: Quality/Speed
previous home position) using X prox shift and Y prox shift. The configuration of the proximity switches (X prox and Y prox) may also need to be changed (NPN or PNP) if using the same option. Note that all XY positions will still be specified as though the home position was still at the top left corner of the marking area.
Page 69: Default Layout
ensure that if the controller is switched off the saved layout will contain up to date serial numbers and variables. Menu style - This setting determines which layout is to be used for the menu system. On 3000 style controllers with the built in keyboard and function keys next to the display, GRID mode is the default setting.
Page 70: Group Names
Group names The groups used to store layouts are normally called GROUP 1 to GROUP 9. These names may be edited to reflect the type of layouts stored in them. Select F5) Group names from the Configuration menu. Hot Keys The controller also has a hot key configuration screen.
Page 71: Data Matrix Option
A hard reset can also be performed by switching the controller on while pressing the F9 key. Then enter the password “HARD RESET” and press enter. If a machine has sensors or switches connected to the red or green button inputs instead of a start/stop box, the reset functionality can be disabled to stop settings being lost.
Page 72: Encoding Non Printable Characters In To A Datamatrix Code
It is possible to mark serial numbers, time date entries or variables as datamatrix codes, consult the line commands section for further details. Encoding Non Printable characters in to a DataMatrix code. The DataMatrix standard ISO16022 allows non printable characters such as (Record Separator), (Group Separator), (End of Text),...
Page 73: Data Matrix Marking On The Markmate
~59512345~]01AB12345~]21123456789 will actually decode [)> 9512345 01AB12345 21123456789 ~617V12345~]1PAB12345~]S123456789 will actually decode [)> 17V12345 1PAB12345 S123456789 Data Matrix Marking on the MarkMate. • The MarkMate machine has some restrictions when marking Data Matrix codes. • No support for the encoding of non-printable characters within the Data Matrix code.
Page 74: Line Commands
Line Commands There are several line command options available on the machine. Line commands are entered on a line and are often enclosed in square brackets such as [L1]. Each type of command is explained below. Link Line Commands The link line command syntax allows many lines in the layout to be combined on to a single line in the layout.
Page 75 would be scanned onto a line configured not to mark. Then on another line the Split line command would take only the characters to be marked. The Split line syntax is described below. [SPx:y-z] Where:- x = the line number to link to (i.e. the section of text required) y = the starting character z = the end character (Note if the end of the line occurs before this end character value only the characters available are printed)
Page 76: Data Entry Via Prompt Mode
Line 1 is the serial number which is not marked as the MarkLine parameter is set to No. The following 3 lines each mark 4 characters of the serial number at different Z heights to compensate for the curve of the part. The X and Y values of each line position the characters so they appear continuous when marked.
Page 77 for the variables on each cycle. To activate this feature press F10, F10, F3, F6) Various from the main menu and set ‘Multi-Mark’ to ‘On’ It is also possible to enter a starting serial number and have the controller automatically increment the number for every mark without prompting on every mark.
Page 79: 12. Marking Heads
12. MARKING HEADS There are several types of head available in the marktronic range. The software will be configured for each type so no configuration should be necessary. For reference, the parameters that may be configured for a marking head are: Machine X Limit Y Limit...
Page 81: 13. Marking Assemblies
13. MARKING ASSEMBLIES There are several types of marking assemblies available. It may be necessary to configure the hardware before the controller can be used. Check the compatibility tables at the beginning of the manual for compatibility with a specific machine type. MarkMate The MarkMate machine features an electric solenoid allowing 9 different forces.
Page 82: Using The Twin Solenoid
See section 4-1, ‘Configuring the controller’ for details of how to configure the twin solenoid option. Using the twin solenoid If the parameters have been changed, the machine is now ready for use. Make a layout, but change the forces as a double number. The first number relating to the left hand solenoid, the second number works with the right hand solenoid.
Page 83: 14. Electric Z Axis
14. ELECTRIC Z AXIS The 3000 BenchDot™ ZA machines are fitted with an electric Z motor. It is possible to upgrade a non ZA machine using the kit below. The Z axis must be configured before it can be used. The following parameters are applicable: Parameter Description...
Page 84: Manually Jogging The Zaxis
Manually Jogging the Z axis If marking similar layouts on a variety of components of differing heights it may be useful not to program Z moves in to the layout and simply jog the Z axis manually to the correct marking height using the Z up and down buttons on the Remote Start/Stop box.
Page 85: 15. Circumferential Fixture
15. CIRCUMFERENTIAL FIXTURE Introduction The circumferential fixture is used for marking around the diameter of the work pieces which cannot be marked in the conventional way on the standard XYZ arrangement. Setting up the Circumferential Fixture The fixture is supplied with 2 bolts or tee nuts with which to mount it to the Marktronic base.
Page 86: Character Size
A long nozzle and long stylus (100 mm) (4”) is recommended for use with this fixture. NOTE When the trial run or marking button is pressed the stylus movement comes forward then along the Y Axis, at the end of marking the reverse movement occurs. If for any reason the stop button is pressed then the stylus stays in that position, to return to home press F10, F4.
Page 87: Normal
Other parameters defining the operation of the Circumferential fixture motor in circumferential marking mode are available in the EDIT CONFIGURATION screen. They are: Parameter Description C axis proximity switch (None, NPN or PNP). Normally set to C prox None. Number of C axis motor steps required to turn the fixture C steps/rev through 1 revolution.
Page 89: 16. Auto Sense
16. AUTO SENSE The sensor will only work if an electric z-axis is also fitted to the Marktronic BenchDot™ machine. Autosense is only available on electric solenoid dot marking machines. This enables the machine to sense the height of the work piece and mark, ideal for marking different work piece heights with the same depth of force every time.
Page 91: 17. Function Key Sequences
17. FUNCTION KEY SEQUENCES Introduction The various menus are reached from the Main menu by pressing the following function keys: Menu Keys Other Advanced F10, F10 Logo F10, F10, F1 Backup/restore F10, F10, F2 Configuration F10, F10, F3 Test hardware F10, F10, F4 Edit timings F10, F10, F5...
Page 93: 18. Automatic Label Feed
18. AUTOMATIC LABEL FEED Introduction This section covers the setting up and use of the Automatic Label Feed Fixture used in conjunction with the Marktronic machine. Single Pneumatic Feed Fixture Configuration The operation of the feed can be configured for a number of fixture arrangements i.e.
Page 94: Operating Modes
Access to the label feed menu is via F1 Label Feed Menu in the main menu ( previously F1 Mark Layout with the feed disabled ) or alternatively F6 Label Feed Menu in the Advanced Menu. Operating Modes In addition to the fixture configuration the operating mode can be configured to one of three modes.
Page 95: Feed Utilities
The automatic cycle is started using the F1 Automatic Cycle command in the label feed menu. At any time the automatic cycle can be stopped without destroying the contents of the unmarked queue by pressing the ESC key, returning back to the automatic cycle will result in the remaining labels in the queue being marked and allow further batches to be received.
Page 97: 19. Advanced Features
19. ADVANCED FEATURES The ADVANCED FEATURES MENU is accessed from the CONFIGURATION MENU. Font Editor The Font Editor allows the operator to change the appearance of marked characters. To access the Font Editor, select FEATURES on the CONFIGURATION MENU, then select FONT EDITOR. Select the font to edit (Either 5x7 or 7x9). The system will show the current character that is selected and ready to be edited.
Page 98: Output Settings
As seen on the example preview screen for the above example download, the outlined character font is used for ABC, overriding the built in single line font. The remaining characters are marked with the built in single line font. Output Settings The system can output its settings to serial port B.
Page 99 An example of part of the printed data: Environment printout Data printout Marktronic User Guide 19-3...
Page 100: Lookup
Lookup The LOOKUP function allows a layout to have text inserted in a line based on the contents of another line. The following parameters are available: Parameter Description The line number to check for the lookup string Line The first character of the line contents to start looking from. 0 Start means compare the whole line.
Page 101: Warning Events
Warning Events The Warning Events can be configured to warn when a number of events have happened, e.g. a number of marks, or a number of dots marked. These events can be used to keep track of preventative maintenance periods. They can be set to warn the operator, and allow marking to continue, or they can cause an error, and stop the operator from marking any more parts.
Page 102 When the controller has done a mark, it will increment its counters, and check the warning and error counts against these counts. Warnings If the count goes over the warning level, a message box is displayed: The operator can press the R key to reset the counter, or any other key to continue marking.
Page 103 Communication port functionality If a communication port is set to “select layout”, wear warning features may be used over that port. The host machine must send commands inside STX-BEL pairs. [STX]Sn[BEL] will transmit the status of warning event ‘n’ over the port. STX is ASCII character 2, and BEL is ASCII character 7.
Page 104: Duplicate Lists
Duplicate Lists The controller software can keep track of data that has been marked, and produce a warning or an error if the same data is to be marked again. This feature can be used to make sure the same serial number is not marked twice, for example from the operator picking up the same job sheet twice by accident.
Page 105 If “DUP check” is set to “abort”, the system will not allow the data to be marked: The system can store up to 5 separate duplicate lists. This is so you can have the same serial number on more than one different part (e.g. an engine and a gearbox) without having to dismiss warnings every time you mark.
Page 106 Pressing the X key will pop up a confirmation box to clear the list: Marktronic User Guide 19-10...
Page 107: 20. Maintenance
20. MAINTENANCE Maintaining the Electric Punch If problems arise with an inconsistent mark check that the nosepiece(18) for the stylus is firmly screwed in to the solenoid assembly (2). Check for contamination of the nosepiece(18) and stylus(*) at regular intervals as this will degrade the quality of the mark.
Page 108: Method Of Operation
Method of operation The Marktronic slowly increases power to the solenoid to extend the stylus, if it cannot extend the stylus it then retracts the Z-AXIS and tries again. It then reduces the power to the solenoid until the stylus is just held in the extended position. The Z-AXIS then winds down.
Page 109: 21. Fault Finding
21. FAULT FINDING Controller The Marktronic Controller is a reliable machine and most faults can be put right by simple adjustments. Detailed below are most of the common faults that could occur. If after trying all these suggestions the fault still occurs then either contact your supplier or our technical department for advice.
Page 110: The Controller Screen Reports An Asm Exception Error
Switch the controller on holding down the F9 key. When prompted for a password type “SOFT RESET” and press Enter, if prompted press any key several times until you reach the main menu. This will default the machine configuration. If this does not work try “HARD RESET” this will default the layout memory, if this does not work try “WIPEOUT”...
Page 111: Z Axis Is Stalling Or Making Excessive Noise (Benchdot™ Machines)
If all the proximities seem to be working check they are selected correctly on the firmware (LCD only, option 'Configure hardware' - F10, F10, F3, F7). Check the fuses inside the controller are intact. Check F10, F10, F3, F7 and ensure the X Prox Offset and Y Prox Offset values are set to 0.00.
Page 112: Mechanical Fault Analysis Charts
Mechanical Fault Analysis Charts The following charts are for quick reference to the most likely faults that could occur on the Marking Head. Contact your supplier if any further assistance is required. Quality of mark deteriorates Possible Cause Action Stylus Spring sticking Change Stylus Spring Clean Stylus and Nosepiece Pulleys loose (BenchDot™...
Page 113: Depth Of Mark Inconsistent
Depth of mark inconsistent Possible Cause Action Stylus Spring sticking Change Stylus Spring Clean Stylus and Nosepiece Solenoid Core sticking Realign Solenoid Housing Check all Screws Distance from Stylus to Workpiece Reduce gap excessive Stylus sticking in Nosepiece Clean Stylus and Nosepiece Realign Solenoid Housing Assembly Change Stylus Change Nosepiece...
Page 114: Excessive Depth Of Mark
Excessive depth of mark Possible Cause Action Material too soft Reduce height of Stylus Distance from Stylus toWorkpiece Reduce gap excessive Incorrect Marking Force Reduce the force in the layout. If already at Force 1, then contact service provider for advice to reduce the punch timings. No movement of the Stylus when marking should take place Possible Cause Action...
Page 115: 22. Preventative Maintenance
22. PREVENTATIVE MAINTENANCE Controller Memory Backups It is recommended to take regular backups of the controllers memory to allow quick recovery in the event of a memory corruption event. See the backup restore section of the manual for further details. 12 Monthly BenchDot™...
Page 117: 23. Machine Drawings
23. MACHINE DRAWINGS Portable Machines PortaDot 50-25 LD2HEAD1 Portadot 50-25 Assembly LD200-A02 50-25 Case Assembly Item Item Stockcode Description Qty. Stockcode Description Qty. LD200-A02 LD2 Case LD200032 Right Hand Casing LD200-A01 LD2 Internals LD200033 Left Hand Casing LD200053 Actuation switch for LD2 head LD200034 Flat Mask 10014879...
Page 118: Ld200-A01 50-25 Internals
LD200-A01 50-25 Internals Item Stockcode Description LD200001 Pivot Frame LD200002 X Bracket LD200003 Y Bracket LD200005 Solenoid Housing LD200007 Solenoid Armature LD200009 Pivot Bush LD200010 Proximity Sensor Pad LD200011 Y Motor Clevis LD200012 Pivot Pin - Pivot Frame LD200013 Pivot Pin - Clevis LD200014 Pivot Pin - Y Bracket LD200015-F...
Page 119: Portadot 130-30
PortaDot 130-30 10027455 PortaDot 130-30 10027339 130-30 Marking Head Assembly...
Page 120: Portadot 100-75
PortaDot 100-75 HD2HEAD1 Portadot 100-75 Head Assembly Item Stockcode Description Qty. 10004586 External Circlip 6mm Dia 10004619 Blanking Plug 12.7mm Dia 119PORCH HD2 Portadot Handle BUTSC001 M3 x 6 Button Head Socket Screw (ISO) BUTSC009 M5 x 12 Button Head Socket Screw (ISO) CAPSC041 M8 x 10 Cap Head Socket Screw (ISO) HD2-04...
Page 121 Item Stockcode Description QTY. 10000395 1 Mod Spur Gear 34 Teeth, Ø6.35 Bore 10000396 1 Mod Spur Gear 34 Teeth, Ø6.00 Bore 119IT875 2 Phase Stepper Motor, 1.8° Step With 320mm Cable 119IT930 Tap Washer 119PSW 5mm x 0.5 Proximity Sensor 119SFS Solenoid D6 A93 BUTSC001...
Page 122: Bench Mount Machines
Bench Mount Machines MarkMate Overall Assembly General Arrangement...
Page 123: Base Layout
Base Layout...
Page 125: Benchdot Column
BenchDot Column 10018377 3000 Column Assembly Item No. Stockcode Description Qty. 10011860 15 Tooth 5 Pitch Timing Pulley 10014032 Taper Lock Bush 10014133 New Column Leadscrew No2 10014149 Handwheel 10014185 Carriage 10014221 Guard Plate 10014243 Bearing Retainer (B) 10014255 Bearing Retainer (T) 10014267 Nut Block 10014268...
Page 126: 10015545 3000 Z Axis Motor Assembly
10015545 3000 Z Axis Motor Assembly Item Stockcode Description Qty. 10003491 Stepper Motor 10011861 Timing Pulley 10014215 Z Motor Plate 10014248 Rear Cover 10014423 Hood Clip 10014822 Timing Belt CABLE003 Z Axis Cable CAPSC007 M4 x 8 Cap Head Socket Screw (ISO) CAPSC031 M6 x 20 Cap Head Socket Screw (ISO) CAPSC088...
Page 127 Item Stockcode Description Qty. 10014142 3000 Cover (100x75) 10015107 3000 Head Attachment Bracket (60x60) 10015560 3000 Head (60x60) 10015610 Cover Bracket 10015612 Cover Bracket 119PSW 5mm x 0.5 Proximity Sensor BUTSC008 M5 x 10 Button Head Socket Screw (ISO) CAPSC018 M5 x 12 Cap Head Socket Screw (ISO) CAPSC031 M6 x 20 Cap Head Socket Screw (ISO)
Page 128: 10015090 60Mm X-Axis Slide Assembly
10015090 60mm X-Axis Slide Assembly Item Stockcode Description Qty. 60mm Stepper Motor (Requires separate cable assy 10007310 (stock code 10019446) 10009384 Proximity Holder Block 10014709 Ball Screw Support Unit FK 10014710 Motor Mounting Plate (3000) 10014718 Ball Screw Nut Flange 10014722 Modified Timing Pulley 10014760...
Page 129: 10015092 60Mm Y-Axis Slide Assembly
10015092 60mm Y-Axis Slide Assembly Item Stockcode Description Qty. 60mm Stepper Motor (Requires separate 10007310 cable assy (stock code 10019446) 10009384 Proximity Holder Block 10014706 Ball Screw Bearing Mounting Plate 10014709 Ball Screw Support Unit FK 10014710 Motor Mounting Plate (3000) 10014718 Ball Screw Nut Flange 10014722...
Page 130: 10017081 3000 100X100 Marking Head
3000 BenchDot 100-100 10017081 3000 100x100 Marking Head Item Stockcode Description Qty. 10021006 3000 Cover- mk2 10015107 3000 Head Attachment Bracket (60x60) 10017082 3000 Head Assembly 100x100 (Mech Assy) 10017129 Cover Bracket (100x100) 10017130 3000 Head Cover Bracket, Rear (100x100) 10017928 Front Pulley Cover 100x100 Head 119PSW...
Page 131: 10017084 100Mm X-Axis Slide Assembly
10017084 100mm X-AXIS SLIDE ASSEMBLY Item Stockcode Description Qty. 60mm Stepper Motor (Requires separate 10007310 cable assy (stock code 10019446) 10009384 Proximity Holder Block 10014709 Ball Screw Support Unit FK 10014710 Motor Mounting Plate (3000) 10014718 Ball Screw Nut Flange 10014722 Modified Timing Pulley 10014760...
Page 132: 10017083 100Mm Y-Axis Slide Assembly
10017083 100mm Y-AXIS SLIDE ASSEMBLY Item Stockcode Description Qty. 10017085 Y Slide Support Plate (100x100) 10014706 Ball Screw Bearing Mounting Plate 10014710 Motor Mounting Plate (3000) 10015094 Y Slide (60x60, 100x100) 10014718 Ball Screw Nut Flange 10009384 Proximity Holder Block 10014760 Proximity Stricker 119IT930...
Page 133: 10014713 3000 150X150 Marking Head
3000 BenchDot 150-150 10014713 3000 150x150 Marking Head Item Stockcode Description Qty. 10016132 3000 Head Assembly 150x150 (Mech Assy) 10014755 Cover Bracket 10014756 Cover Support Pillar PCB00013 Marktronic Head PCB HITEC063 Grey Spacer 10014730 3000 Cover - 150x150 Head 10014687 Attachment Bracket 119PSW 5mm x 0.5 Proximity Sensor...
Page 134: 10014701 150Mm X-Axis Slide Assembly
10014701 150mm X-Axis Slide Assembly Item Stockcode Description Qty. 10014676 X Slide Support Plate 10014702 X Slide 10014744 Ball Screw Bearing Mounting Plate 10014710 Motor Mounting Plate (3000) 10009384 Proximity Holder Block 10014760 Proximity Stricker 10014718 Ball Screw Nut Flange 10014722 Modified Timing Pulley 10015272...
Page 135: 10013853 150Mm Y-Axis Slide Assembly
10013853 150mm Y-Axis Slide Assembly Item Stockcode Description Qty. 10014677 Y Slide Support Plate 10014704 Y Slide (150x150, 300x150) 119IT930 Tap Washer 10014706 Ball Screw Bearing Mounting Plate 10014710 Motor Mounting Plate (3000) 10009384 Proximity Holder Block 10014760 Proximity Stricker 10014718 Ball Screw Nut Flange 10014722...
Page 136: 10016183 3000 300X150 Marking Head
3000 300 x 150 Head Cover 10018002 Cable Chain + Bracket 10018037 Guard Support Pillar assby 10018604 Label. Pryor Marktronic Multidot 3000 (85 x 34) 119PSW 5mm x 0.5 Proximity Sensor BUTSC008 M5 x 10 Button Head Socket Screw (ISO) HITEC063...
Page 137: 10016171 300Mm X-Axis Slide Assembly
10016171 300mm X-Axis Slide Assembly Item Stockcode Description Qty. 10016172 X Slide Support Plate 300mm 10014702 X Slide 10014744 Ball Screw Bearing Mounting Plate 10014710 Motor Mounting Plate (3000) 10009384 Proximity Holder Block 10014760 Proximity Stricker 10014718 Ball Screw Nut Flange 10014722 Modified Timing Pulley 10015272...
Page 138: Stylus & Nosepiece Range
10010046 3000 Electric Solenoid Item Assembly Stockcode Description Qty. See Separate Sheet Nosepiece See Separate Sheet Stylus 10010040 HI RC Plate 10010054 HI Slug 10013200 Styli Spring 10016155 Autosense - Plug In Module 2M07 O-Ring CABLE005 Punch cable 760mm long CAPSC001 M3 x 6 Cap Socket Hd.
Page 139: Integrated Machines
Integrated Machines InDot 50-25 Integrator 50-25 Assembly Item No. Stockcode Description Qty. 10020866 Chassis Plate 10020920 Rail - Carriage assy - MGN9C, 55mm long 10020921 Rail Assy - MGN9 x 95mm long rail 10020958 Back plate 10021009 Carriageway end stop 10021072 Proximity actuation block 10021742...
Page 140 50-25 cover with guard mounting points 10021737 5025 Chassis Head interface PCB assy - compact 10022287 connector 119EL Label. Pryor (60 x 20) 2 Phase Stepper Motor, 1.8° Step With 119IT875 320mm Cable M5 x 0.5 PNP Inductive Proximity 119PSW Sensor...
Page 141: 10028636 Indot130-30 Marking Head
InDot 130-30 10028636 InDot130-30 Marking Head 10027339 130-30 Mechanism...
Page 142: Indot 60-60
InDot 60-60 10015098 Integrator 60-60 Assembly Item Stockcode Description QTY. 10010046 HI Stylus 10015437 Integrator Cover (60x60) 10015438 Integrator Back Cover (60x60) 10015439 Integrator Top Cover (60x60) 10015446 Integrator Bracket (60x60) 10015560 3000 Head (60x60) 10016024 Cover Plate Guide Ring 10016032 Integrator XY Slide Plate (60x60) 10016033...
Page 143: 10016749 Integrator 150-150 Assembly
10016749 Integrator 150-150 Assembly Item Stockcode Description Qty. 10010046 HI Stylus 10016067 Integrator XY Slide Plate (150x150) 10016068 Integrator Y Slide Cover Plate (150x150) 10016070 Integrator Y Slide Cover Plate (150x150) 10016071 Integrator Y Slide Cover Plate (150x150) 10016102 Cover Plate Guide Ring 10016104 Integrator Cover (150x150) 10016105...
Page 144 10020046 Assembly...
Page 145 10020047 Assembly 10016897 Assembly...
Page 147: Inspection Checklist
24. INSPECTION CHECKLIST Inspection check list Sales order number Customer name Job/serial number Software version Embedded • WIN2068 • Mark2Verify • MarkMaster • Traceable-IT • Slug offset Unlock key number Machine type Date Manual Check list: Operation √ Read order details for machine specification Fit electric z-axis to column if required Check solenoid alignment ensuring all screws are tight Fit column to base (3000).
Page 148 Check quality of the mark (two test plates required) – before and after running the head (5 day testing of head required) One for the customer • One for Pryor’s record • Incorporate a data matrix mark and write verification results in the comments box below •...
Page 149 Comments: Data Matrix verification results (if applicable): Name (print) Signature Date Marktronic User Guide 24-3...

This manual is also suitable for:

Marktronic series Marktronic 3000 benchdot 100-100e Marktronic 3000 benchdot 150-150e Marktronic markmate lcd Marktronic 3000 benchdot 300-150e Marktronic 3000 benchdot 100-100 eza ... Show all

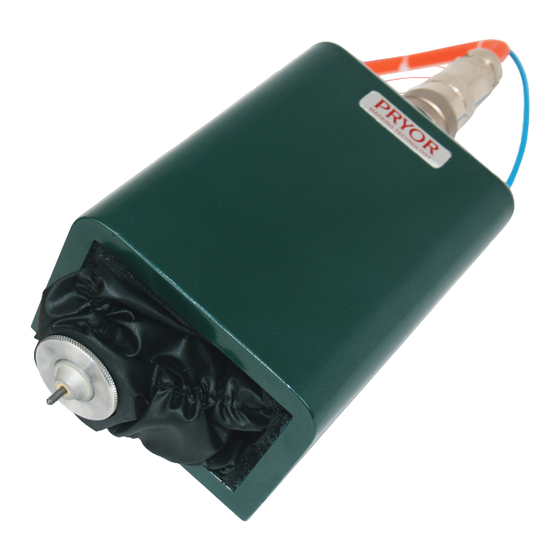

Pryor Marktronic 3000 BenchDot 60-60E User Manual

About this Manual

System Overview

Guide to Effective Marking

Getting Started

Layouts

Serial Numbers and Variables

Time and Date Functions

Logos

Communications

10. Digital Inputs and Outputs

11. Miscellaneous

12. Marking Heads

13. Marking Assemblies

14. Electric Z Axis

15. Circumferential Fixture

16. Auto Sense

17. Function Key Sequences

18. Automatic Label Feed

19. Advanced Features

20. Maintenance

21. Fault Finding

22. Preventative Maintenance

23. Machine Drawings

Inspection Checklist

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pryor Marktronic 3000 BenchDot 60-60E

Summary of Contents for Pryor Marktronic 3000 BenchDot 60-60E

This manual is also suitable for:

Table of Contents
