- next to an extractor fan;
- in an area where the temperature may drop below - 10°C or
exceed + 40°C;
- where dirt and dust may block the sensor;
- in a damp or humid location.
Do not use the following substances in the device immediate
adjacency:
- alcohol, fuels
- solvents and diluents
- adhesives, silicones products and colours
- cleaning detergents
- perfumes
- spray products in general
Clean the device only using a cloth damped with water.
In order to grant a real safety, a gas detector must be coupled
to an electro-valve capable of blocking the gas flow in the event
of an alarm.
Both the gas unit and the solenoid valve must comply with the
law prescriptions in force in the country concerned.
BEAGLE detector can be connected to two types of electro-
valve:
- 230V~ Normally Open electro-valve;
- 230V~ Normally Closed electro-valve;
WARNING
The installer is reminded to fill in and apply the sticking label
supplied with the product by writing the installation date of the
product, the date before which the sensor module must be
replaced and last time and finally the date before which the
entire detector must be replaced.
The latter is stated on 15 solar years from the installation date of
the product.
This label must be applied, at installer care, on a visible side of
the gas detector once it has been fixed in its typical installation
position.
Warning label:
The CO module can be replaced twice only when no faults took
place or several times in case of CO module faults (in this case
remember to respect the whole detector replacement date).
a
WARNING
- Tampering of the device exposes to electrical hazard or
malfunction.
- The appliance must be wired to the electric mains
through a switch capable of disconnecting all poles in
compliant with the current safety standards and with a
contact separation of at least 3 mm in all poles.
- Installation and electrical wirings of this appliance must
be made by qualified technicians and in compliance with
the current standards.
- Before wiring the appliance be sure to turn the mains
power off.
WARRANTY
In the view of a constant development of their products, the
manufacturer reserves the right for changing technical data and
features without prior notice.
The consumer is guaranteed against any lack of conformity
according to the European Directive 1999/44/EC as well as to
the manufacturer's document about the warranty policy.
The full text of warranty is available on request from the seller.
SENSOR REPLACEMENT
Every five years (max twice) the internal sensor module must be
replaced with a new precalibrated sensor module.
The replacement must be done by qualified personnel according
to the following instructions:
1. Use the relevant sensor module part: code AC MC01.
2. Remove the power supply from the detector.
3. Remove the detector's panel as shown in Fig. 2.
4. Spot the sensor module to be replaced:
5. Remove the old sensor module.
For removal just grab the sensor (arrow A) with one hand
while grabbing with the other hand the plastic spacer (arrow
B) and pull at the same time toward you.
B
A
6. Insert the new sensor in the relevant connector. Attention
must be payed in that the module's pins match the
relevant detector's female connector.
7. Reposition the front panel on the detector and tighten the
relevant screw.
8. Power up the detector and check for its correct operation.
9. Fill in the detector's warning label or fill in the new label
supplied with the spare sensor module and stick it on the
detector.
Note: that the warning label's date must be 5 years
ahead the set up of the new sensor module.
4 - ENGLISH -
BEAGLE
CARBON MONOXIDE DETECTOR
ACCUMULATION TYPE
230V~ power supply
•
Replaceable electrochemical sensor
•
Buzzer and relay in case of alarm / fault
•
Alarm test / Alarm mute button
•
Start counting threshold: 30 ppm (50 mg/m³)
•
Flush mount over 2 modules junction boxes (square or round
•
shaped) or wall mount using external plastic duct (10x7,5 mm).
a
WARNING
IN CASE OF ALARM:
1) VENTILATE IMMEDIATELY THE ROOM OPENING DOORS
AND WINDOWS.
2) TURN OFF ANY FUNCTIONING COMBUSTION DEVICE.
3) SEARCH AND REMOVE THE POSSIBLE CAUSE OF
ALARM.
4) IN CASE THE CAUSE OF THE ALARM IS NOT IMMEDI
ATELY REMOVED, VACATE THE ROOM AND CALL A
QUALIFIED TECHNICIAN.
IF THE ALARM STOPS IT IS NECESSARY TO SEARCH THE
POSSIBLE CAUSE AND CONSEQUENTLY PROVIDE.
a
WARNING
THE INSTALLATION OF THE DETECTOR DOESN'T EXEMPT FROM THE OBSERVANCE OF ALL RULES
ABOUT THE CHARACTERISTICS, INSTALLATIONS AND THE USE OF THE GAS DEVICES, THE
VENTILATION OF THE ROOMS AND THE EMISSIONS OF THE PRODUCTS OF THE COMBUSTION
PRESCRIBED FROM UNI STANDARDS AND THE PROVISIONS OF THE LAW.

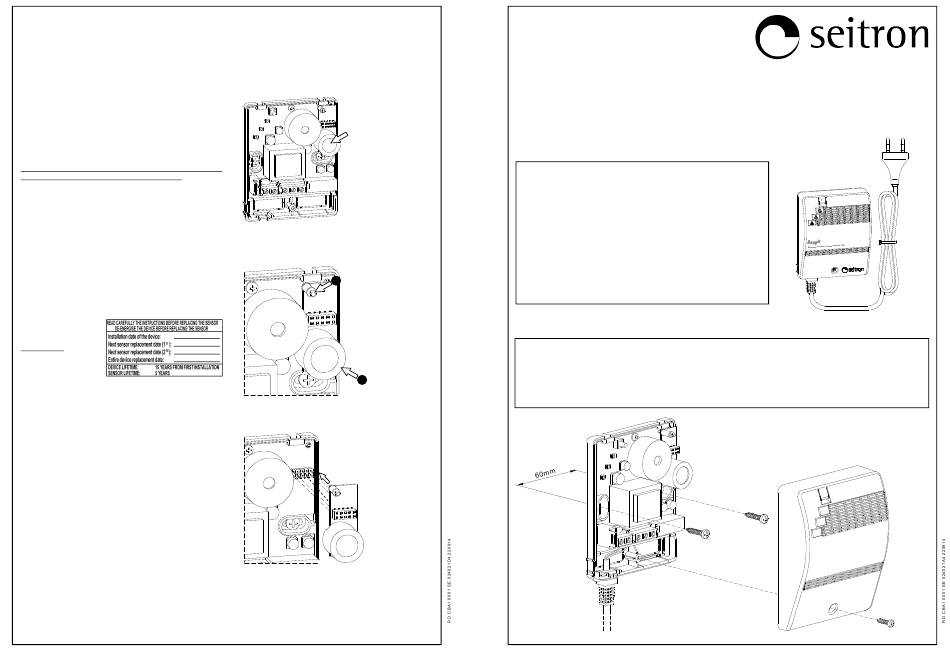

Fig. 2: Installation example.
c
Via Prosdocimo, 30
I-36061 BASSANO DEL GRAPPA (VI)
Tel.: +39.0424.567842
Fax.: +39.0424.567849
http://www.seitron.it
e-mail: info@seitron.it
Fig. 1: External aspect.
