Summary of Contents for Mark TANNER CLA 070

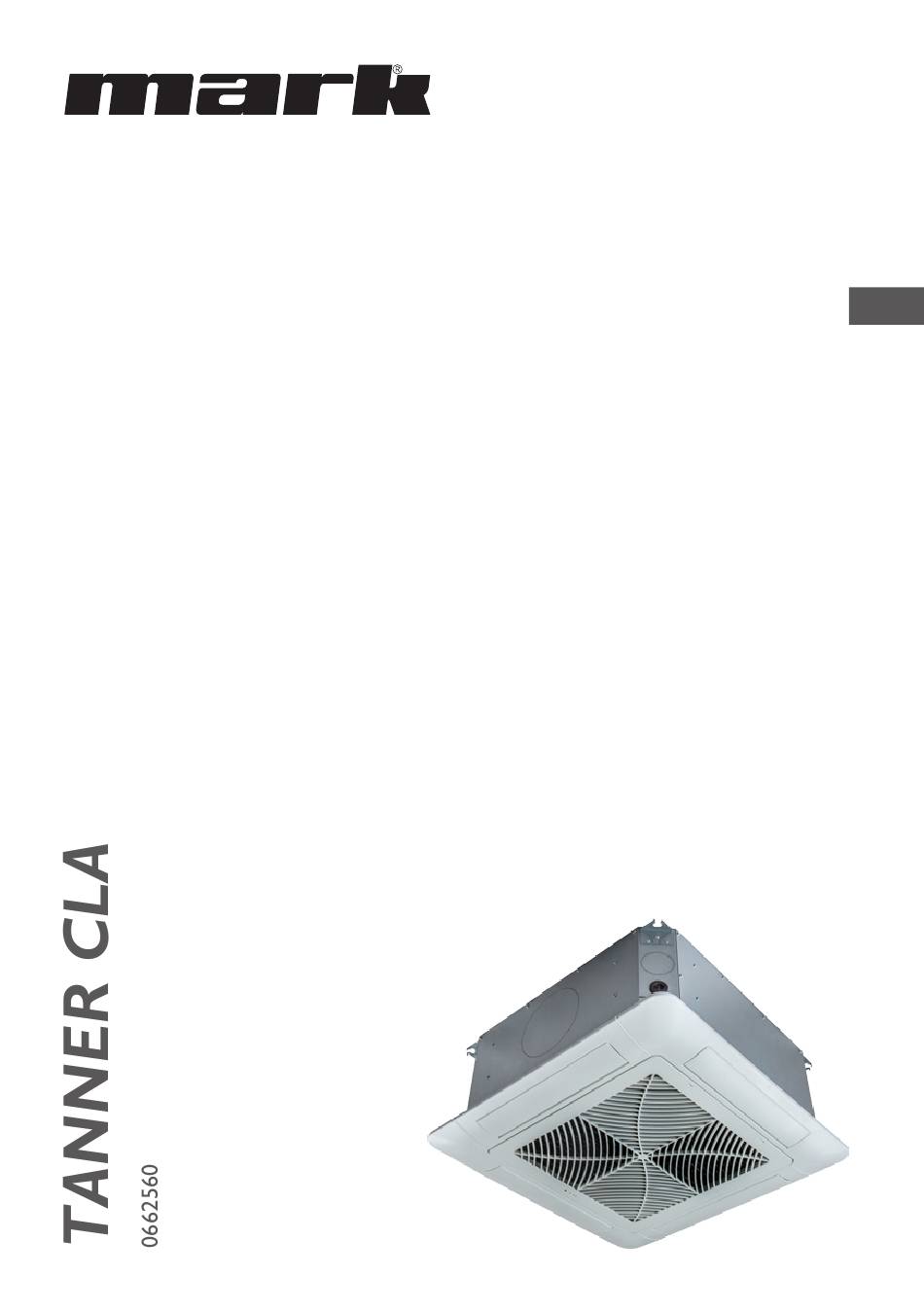

  • Page 1 Technical manual...
  • Page 2: Table Of Contents

    Index Warnings Product description and Dimensions Operating limits Installation Fresh air system and remote air distribution Hydraulic connections Condensate drain connections Valves condensate tray mounting Electrical connections Cleaning and maintenance Malfunction and corrective actions Electrical diagram Warnings THE MANUFACTURER DOES NOT RESPOND TO CHANGES AND ERRORS OF HYDRAULIC AND ELECTRICAL CONNECTIONS.
  • Page 3: Product Description And Dimensions

    UNIT DESCRIPTION AND DIMENSION TYPE 070/090/094 1 Frontal panel 2 Hydraulic connections 3 Condensate drain Ø16 4 Power supply wires input 5 Fresh air Ø60 mm 6 Distribution air Ø150 mm TYPE 150/154 OPERATING LIMITS - Maximum temperature of flow: 70ºC - Minimum temperature of flow: 4ºC - Maximum working pressure: 10bar - Minimum room temperature: 4ºC...
  • Page 4: Installation

    Installation - Fix the unit on a ceiling or a solid support without vibrations. - Do not install the appliance in a space exposed to sunlight or heat sources, vapor or flammable gas. - Install the cassette so that the inlet and outlet air ducts are not obstructed; the air must circulate freely throughout the area that has to be air-conditioned.
  • Page 5: Fresh Air System And Remote Air Distribution

    PANEL FIXING Fixed tightly the unit, the plastic panel must be mounted using only and exclusively the screws provided (holes position in Fig. C) To prevent the deformation of the grid, be careful not to overtighten the screws. Fig. C RENEWAL SYSTEM AND REMOTE AIR DISTRIBUTION The side openings allow the separate realization of an external air intake duct for the renewal and of an air hose duct for an adjacent room.
  • Page 6: Hydraulic Connections

    HYDRAULIC CONNECTIONS A correct installation provides also the anti-condensate insulation of the water pipes. Always use adequate keys to avoid the damage of the connections. The disposition of the water connections for the 2-pipes cassette is reported in fig. E, while the one for the 4-pipes cassette is reported in fig.
  • Page 7: Valves Condensate Tray Mounting

    VALVES CONDENSATE TRAY MOUNTING (optional) The auxiliary tray collects the condensate formed near the water connections and the valves. Fix the tray to the structure with the screws provided in the position shown in Fig. H., making sure pipes and insulation do not tilt it, hindering the drain. TYPE 070/090/094 Fig.
  • Page 8: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Before maintenance, make sure the power of the unit is turned off. Only qualified specialists can intervene. The only component of the cassette that needs cleaning and maintenance is the filter, placed on the air intake (unless there is the breakage of other components). The filter must be cleaned with every season change, using a vacuum-cleaner or brushing it.
  • Page 9: Malfunction And Corrective Actions

    MALFUNCTIONS AND CORRECTIVE ACTIONS FAN DOES NOT RUN CORRECTIVE ACTIONS - make sure that the machine is powered; - check if some switches or fuses are; - check the correct wiring of the unit (qualified personnel only) - check if the thermostat is set in the right way. LOW AIR FLOW CORRECTIVE ACTIONS - select an higher fan speed;...
  • Page 10: Electrical Diagram

    ELECTRICAL DIAGRAMS...
  • Page 12 FAX +31 (0)598 624584 TELEFAX +49 (0)2822 97728-10 info@mark.nl info@mark.de www.mark.nl www.mark.de MARK EIRE BV MARK POLSKA Sp. z o.o COOLEA, MACROOM UL. JASNOGÓRSKA 27 CO. CORK 42-202 CZĘSTOCHOWA (POLSKA) P12 W660 (IRELAND) PHONE +48 34 3683443 PHONE +353 (0)26 45334...
