Summary of Contents for WorkPro SLA SERIES

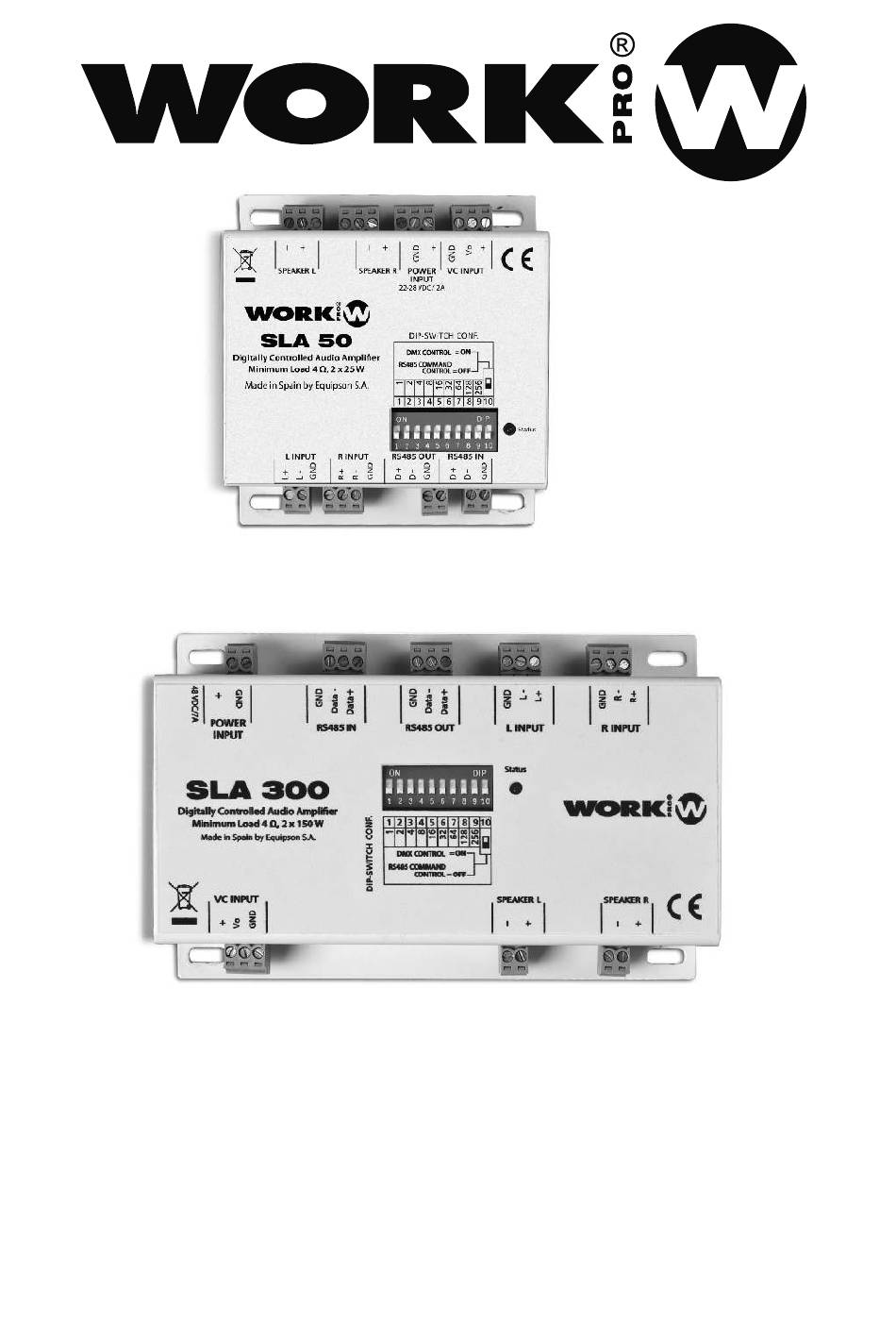

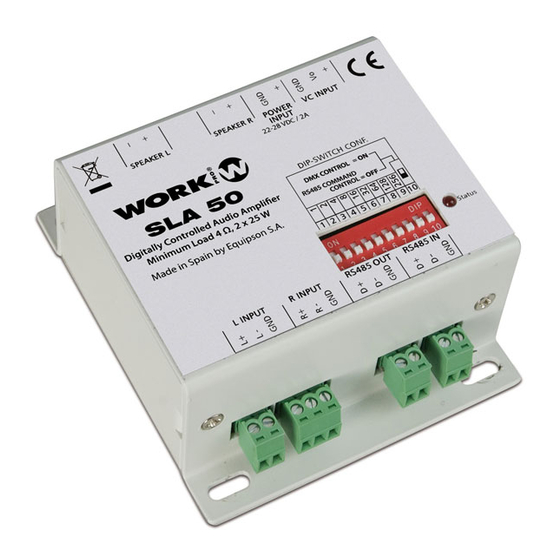

- Page 1 SLA SERIES User Manual / Instrucciones de Usuario Ver. 12.07.01...
- Page 2 SLA Series OPERATING INSTRUCTIONS INTRODUCTION Thanks for purchasing of SLA Series device. SLA Series is compossed by a range of stereo amplifiers controlled by RS 485 ( ASCII commands), DMX signal (1 channel), or 0-10V analog signal. All devices incorporate fixation pieces in order to place them on walls or ceiling.
- Page 3 The device turns to ALARM condition. In this mode the volume will change to maximum and the analog control will be disabled. ##nnnNOAL:\ The device leaves ALARM condition, returning to normal condition with the previous volume level. SLA Series (SLA 50 - SLA 300) User Manual/Manual de Instrucciones Pag 2...
-
Page 4: Connection Example
+ and Vo pins in the Analog input. The purpose of this is to avoid that the amplifier considerer a noise introduced in the analogic input as audio level. SLA Series (SLA 50 - SLA 300) User Manual/Manual de Instrucciones Pag 3... -
Page 5: Instrucciones De Uso
Conector euroblock 3 pin. Unir pin L- a GND Linput cuando la entrada sea desbalanceada. Conector euroblock 3 pin. RS485 / DMX IN RS485 / DMX OUT Conector euroblock 3 pin. SLA Series (SLA 50 - SLA 300) User Manual/Manual de Instrucciones Pag 4... - Page 6 - aa puede ser CH1, CH2 o MASTER (para variar ambos canales). #nnnSTB:\ El dispositivo pasa a modo STANDBY. En este modo el consumo es mínimo. #nnnNOSTB:\ El dispositivo vuelve al modo normal de funcionamiento. SLA Series (SLA 50 - SLA 300) User Manual/Manual de Instrucciones Pag 5...
- Page 7 + y Vo pin en la entrada Analógica. El propósito de esto es evitar que el amplificador considere un ruido introducido por la entrada analógica como nivel de audio. SLA Series (SLA 50 - SLA 300) User Manual/Manual de Instrucciones Pag 6...
- Page 8 This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical an electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
