CRYO T-SHOCK
U S E R M
N U
L
1
UMTH12 - Rev.1 - 17/04/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HC CRYO T-SHOCK and is the answer not in the manual?

Questions and answers

Related Manuals for Elettronica Pagani HC CRYO T-SHOCK

Summary of Contents for Elettronica Pagani HC CRYO T-SHOCK

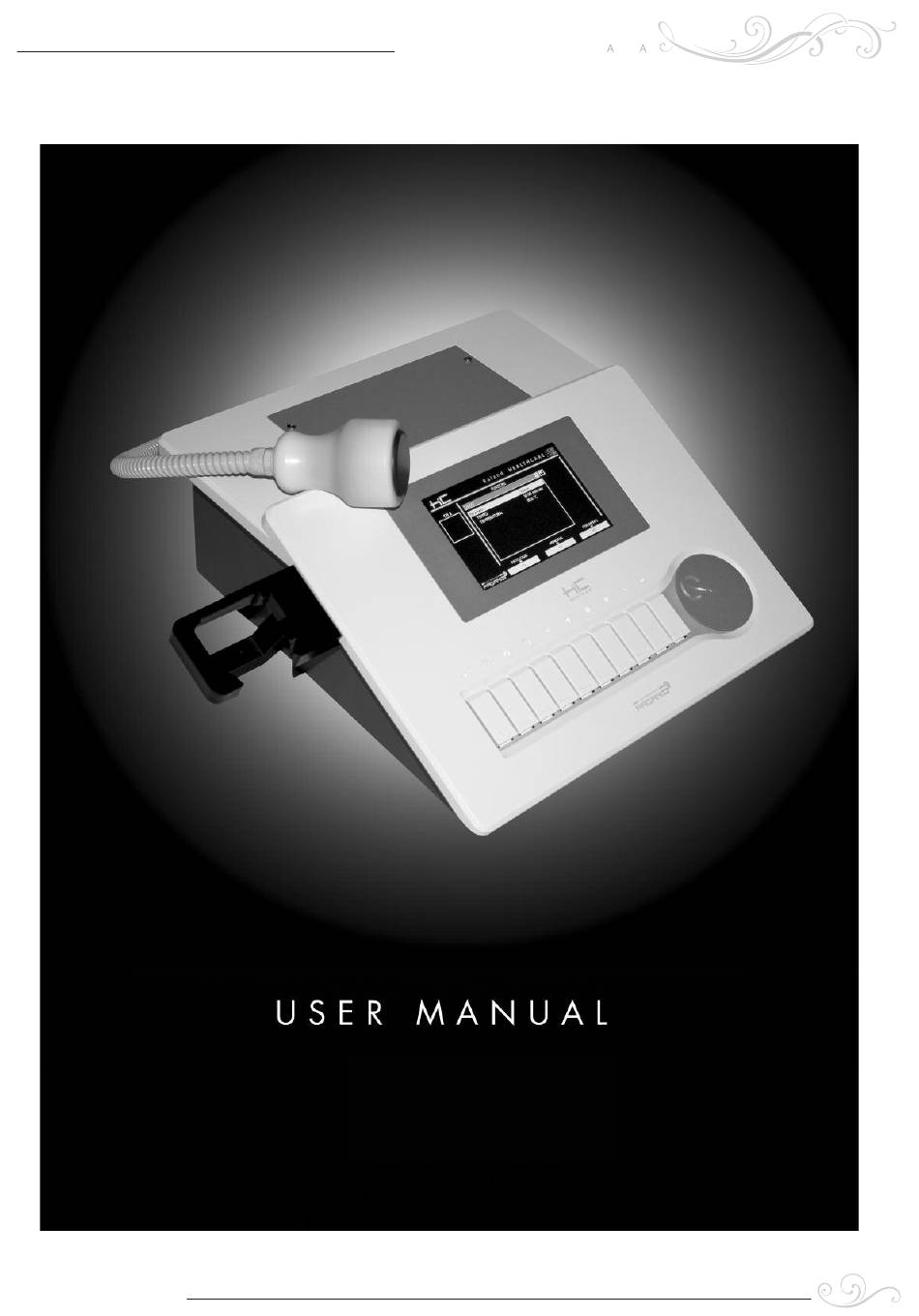

  • Page 1 CRYO T-SHOCK U S E R M UMTH12 - Rev.1 - 17/04/2018...
  • Page 2 CRYO T-SHOCK U S E R M index 1.0 INTRODUCTION ..........3 UMTH12 - Rev.1 - 17/04/2018...
  • Page 3 TSHOCK unit, APHRODITE. This device is not a medical device HC CRYO T-SHOCK offers a practical innovation; is an almost exclusive product. On year 2014, HC CRYO T-SHOCK has been awarded by an international jury at the Gicare Exhibition in Paris for the most innovative device both in terms of techno- logy and application.
  • Page 4 CRYO T-SHOCK U S E R M 3.0 CONTROL P NEL Desktop device Device on trolley The keyboard is provided with 10 keys with the following features: F1; F2; F3 function keys: each of them depends on the display description : decreases the value of parameter selected +: increase the value of parameter selected n : stop the treatment...
  • Page 5 CRYO T-SHOCK U S E R M The second one is granting electronic signals between desk-top device and trolley. Take the metal connector coming from the top of the trolley and push it into the socket placed on the bottom of the desk-top device, by screwing it for assuring it. Male connector Female connector on the bottom on the top of trolley...
  • Page 6 CRYO T-SHOCK U S E R M 5.0 HOW TO USE THE H ND-PIECE The hand-piece is provided with a separable connector. Be careful to push the con- nector by respecting placement of the plug. Over the connector the proper way is shown.
  • Page 7 CRYO T-SHOCK U S E R M Standard surface of hand-piece is around 50 mm large and it should be useful for almost all applications. For being more focused and precise over small parts of the various parts of the body (face, small joints, etc.), it is also available a special adapter granting a surface of around 30 mm large.
  • Page 8 CRYO T-SHOCK U S E R M 7.0 M IN MENU Display shall show the following screen: 8.0 M NU L SETTING From main menu use + and - keys or move the knob for scrolling available functions. After selecting the desired function confirm by pressing This screen shall appear.
  • Page 9 CRYO T-SHOCK U S E R M The parameters marked by using the padlock symbol on the left, as pictured below, can not be modified At the end of application time, the device shall generate an acoustic signal and the following message may appear.
  • Page 10 CRYO T-SHOCK U S E R M 8.1 USING A PRE-SET PROGRAM From main menu press F2. The following screen shall appear with two icons, the first one concerning programs and the second one concerning memories. Use the knob for selecting "programs" and press Select between MAN or WOMAN for a more appropriate application.
  • Page 11 CRYO T-SHOCK U S E R M When you select man, the following screen shall appear Knob To select the desired part of the body turn the knob and press The following screen appear: Turn the knob to scroll the list of programs. Press to select the desired condition.
  • Page 12 CRYO T-SHOCK U S E R M Should you select a program made by more than one single step, the following screen shall appear: To have a look at the parameters for a special step it’s necessary to scroll through the step by pressing F1 and F2 keys.
  • Page 13 CRYO T-SHOCK U S E R M The program automatically starts. From the previous screen, you can change the parameters by turning the knob and by increasing or decreasing the value using the + or - button. Go back to the previous screen by pressing button When you select woman: the following screen shall appear To select the desired part of body press f2 or f1.
  • Page 14 CRYO T-SHOCK U S E R M 8.2 USING A TARGET The unit gives the possibility to work both for specific treatments (programs see par. 9.1) and for objectives (target see par. 9.2). In the first case the unit suggest setting depending from the part of body selected in the second one suggest the setting depending from your desired objectives.
  • Page 15 CRYO T-SHOCK U S E R M Use the knob for selecting part of body and press The following screen shall appear Use the knob for selecting the target and press Then proceed like shown in the pre-set program 8.3 MEMORY ENTERING Select the desired function , change the parameter and then press F1 to save.
  • Page 16 CRYO T-SHOCK U S E R M Choose each word by turning the knob; to select adjacent space pressing key + and -. Press to save and to esc without saving. 8.4 MEMORY LOADING Your customised programs could be selected from the memory from main menu. Press F2 The following screen shall appear: UMTH12 - Rev.1 - 17/04/2018...
  • Page 17 CRYO T-SHOCK U S E R M Use the knob for choosing the second icon "MEMORY" and press , the following screen appears If multiple memories are present turn the knob to select the desired one, and press Proceed as Programs and Functions. UMTH12 - Rev.1 - 17/04/2018...
  • Page 18 CRYO T-SHOCK U S E R M 8.5 TOUCH SCREEN Each unit is equipped with touch screen. It is possible use both keyboard and touch screen by using the standard pen. In touch mode to select the desired function or parameter you need to touch with a pen through the desired icon.
  • Page 19 CRYO T-SHOCK U S E R M UMTH12 - Rev.1 - 17/04/2018...
  • Page 20 Elettronica PAGANI has created the HC CRYO T-SHOCK, and combined two sources (cryogenic and hyperthermia), as a global and broad-spectrum response to Compared to the few systems available today on the market, HC CRYO T-SHOCK allows not only performing Cryo or hypothermia separately, but also and above all...
  • Page 21 The risk of freezing the treated area is a remote possibility, but there is a risk of an ice burn if not used correctly. 5.0 HOW TO USE IT HC CRYO T-SHOCK is the most innovative and versatile device for the treatment of localised fat, cellulite and “orange skin”, thermo-shock drainage and anti-age treat- ment.
  • Page 22 CRYO T-SHOCK U S E R M primarily involve necrotic cell death by damaging fat with heat, high-intensity focused ultrasound, or chemical injections. Each approach poses potential technical challenges, particularly with respect to tar- geting the right tissue depth and unintended damage to other structures close to or within the fat layer.
  • Page 23 This modality is executed using high technological solutions belonging to HC CRYO T-SHOCK a new and innovative device, using gas and liquid free system, handling from the operator who can follow step by step all evolution of treatment.
  • Page 24 CRYO T-SHOCK U S E R M V IL BLE PROGR MS T RGET Body part Woman Body part Woman Face-lifts Anti-aging 3 min 39°C 1 min 37°C 40 min - 4°C 6 min 4°C 3 min 39°C 2 min 37° Shape &...
  • Page 25 CRYO T-SHOCK U S E R M Body part Woman Body part Woman 30 min 4°C 5 min 8°C 5 min 39°C Cellulite Oedematous Cellulite 2 min 39°C 5 min 7°C 20 min 2° 5 min 39°C 3 min 39°C 5 min 6°C 5 min 39°C Fibrous Cellulite...
  • Page 26 CRYO T-SHOCK U S E R M WOM N PROGR MS Body part Programs Body part Programs Double chin 2 min 39°C 1 min 37° 0° 20 min 8 min 4°C 2 min 39°C 1 min 37° Sclerotic Cellulite Wrinkles 2 min 39°C 2 min 39°...
  • Page 27 CRYO T-SHOCK U S E R M Body part Programs Body part Programs 2 min 39°C 2 min 39°C 0° 20 min 2 min 39°C Sclerotic Cellulite 2 min 39°C Sclerotic Cellulite -2° 25 min 2 min 39°C 3 min 39°C -2°...
  • Page 28 CRYO T-SHOCK U S E R M Body part Programs Body part Programs 25 min - 4°C 5 min 39°C 3 min 39°C Anti-aging Firming 30 min 6°C 2 min 38°C Back side 20 min 5°C Fat removal 2 min 39°C Shape &...
  • Page 29 CRYO T-SHOCK U S E R M M N PROGR MS Body part Body part Face Anti-aging 2 min 40°C 2 min 37°C 2 min 4°C 4 min 4°C 2 min 38°C 2 min 37°C Drainage Double Chin 5 min 40°C 7 min 2°C 5°...
  • Page 30 CRYO T-SHOCK U S E R M Body part Body part Back side 6 min 0°C Fat removal 2 min 38°C Abdomen Fat removal 20 min -5°C 1 min 40°C 2 min 37°C 22 min -8°C 2 min 39°C Firming 6 min 0°C Firming 3 min 38°C...
  • Page 31 CRYO T-SHOCK U S E R M 7.0 How to perform a treatment UMTH12 - Rev.1 - 17/04/2018...
  • Page 32 CRYO T-SHOCK U S E R M UMTH12 - Rev.1 - 17/04/2018...
  • Page 33 CRYO T-SHOCK U S E R M 8.0 Some evidences Sculping application Fat removal Slimming and shaping UMTH12 - Rev.1 - 17/04/2018...
  • Page 34 CRYO T-SHOCK U S E R M Woman 38 years old, after 10 applications Woman 27 years old, after 8 applications Woman 47 years old, hip and gluteus after 12 applications UMTH12 - Rev.1 - 17/04/2018...
  • Page 35 CRYO T-SHOCK U S E R M UMTH12 - Rev.1 - 17/04/2018...
  • Page 36 CRYO T-SHOCK U S E R M UMTH12 - Rev.1 - 17/04/2018...
  • Page 37 CRYO T-SHOCK U S E R M 1.0 INTRODUCTION Tests we do before supplying each unit are essential pre-requisites for meeting all safe- ty conditions coming from the laws in force as far as electro-medical equipment are taken into consideration (Cfr. par. 9). However, don't forget that according laws in force, reliability and the efficiency of an electro-medical unit can be guaranteed only if: Installation, new settings and repairs are carried out only by the manufacturer or...
  • Page 38 CRYO T-SHOCK U S E R M 4.0 IMMEDI TE M INTEN NCE PROCEDURE BY T. .S. The operator must request immediate maintenance of the unit if: the unit has gone through external mechanical stress (i.e. bad falling); the unit has come into prolonged contact with liquids without any protection; the unit has gone through overheating (i.e.
  • Page 39 CRYO T-SHOCK U S E R M UMTH12 - Rev.1 - 17/04/2018...
  • Page 40 If the unit doesn’t work properly during the warranty, Elettronica Pagani would repair it without any charges for the customer; in fact, guarantee includes the cost of spare...
  • Page 41 CRYO T-SHOCK U S E R M 9.0 WORKING ND STORING CONDITIONS - Temperature working: from 15°C to 35°C (from 50°F to 95°F) storage from 0°C to 45°C (from 32°F to 113°F) - Humidity working: from 45% to 75% RH (not condensed) storage: from 20% to 80% RH (not condensed) - Pressure...
  • Page 42 CRYO T-SHOCK U S E R M UMTH12 - Rev.1 - 17/04/2018...
