XV Series – Severe Combination Unit
Emergency Light and Exit Sign
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should
always be followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. Do not let power supply cords touch hot surfaces.
2. Do not mount near gas or electric heaters.
3. Use caution when handling batteries. Avoid possible shorting.
4. Equipment should be mounted in locations and at heights where it
will not readily be subjected to tampering by unauthorized personnel.
5. The use of accessory equipment not recommended by the manufac-
turer may cause an unsafe condition.
6. Do not use this equipment for other than intended use.
7. All servicing should be performed by qualified service personnel.
SAVE THESE INSTRUCTIONS
Installation Instructions
1. Turn off unswitched AC power.
Canopy Mount
a. Remove canopy assembly from carton. Remove mounting plate
from canopy and retain securement screw.
b. Route unswitched AC circuit wires into the junction box and leave
6" of wire length.
c. Remove proper knockouts in canopy backplate for desired
mounting position.
d. Feed unswitched AC wires through large hole in canopy mount-
ing plate.
e. Make sure the securement screw is accessible (see fig.1 & 2 part
# 13). Use existing screws in junction box to secure canopy back-
plate to the junction box.
f. Remove lens, exit panel and diffuser panel from the packaging.
LightAlarms
Tel: (888) 552-6467 ext. 547 or 255

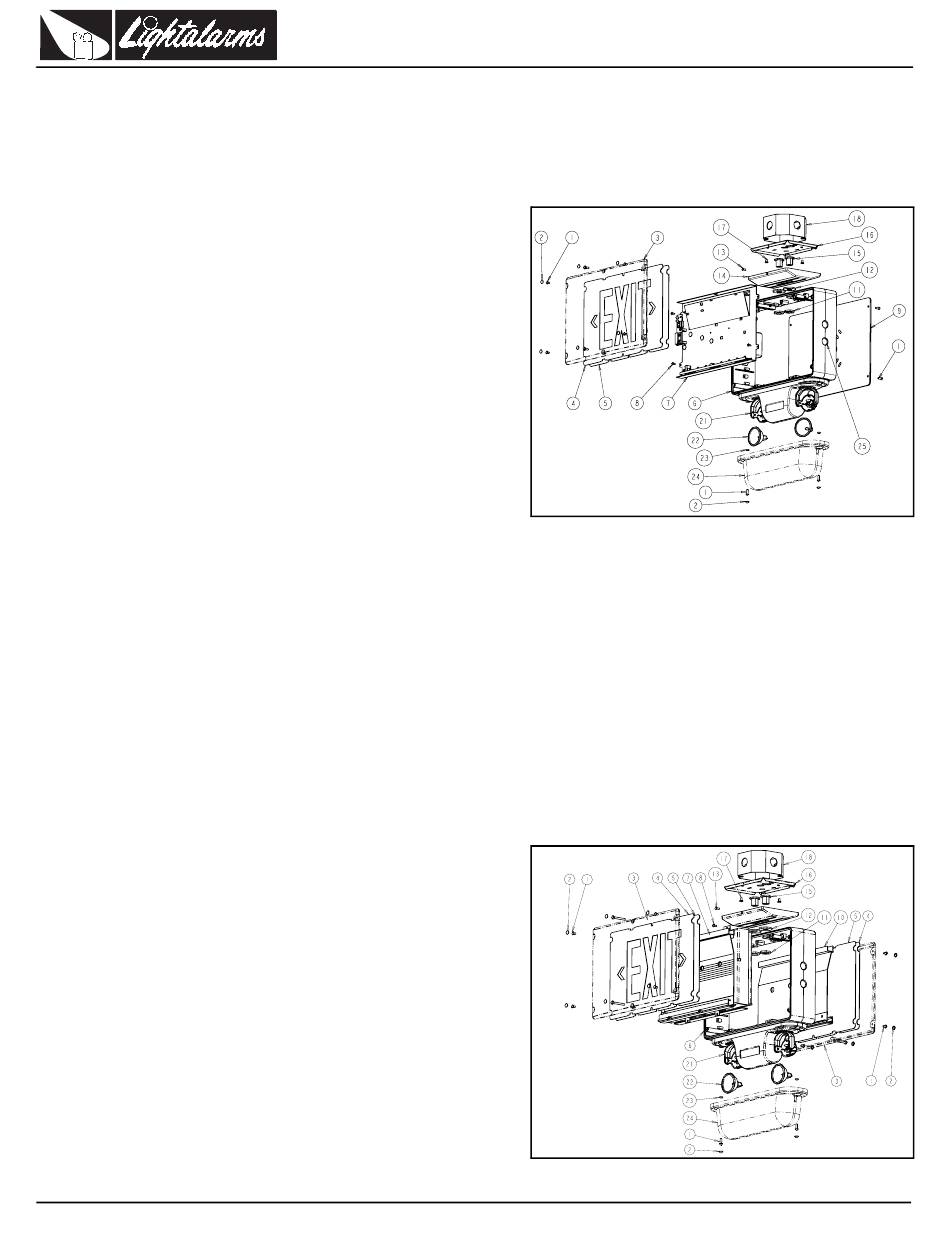

Figure 1
Part List
1. Tamper-proof screws short
(6 per side)
2. Screw covers
3. Lens-legend
4. EXIT panel
5. Diffuser panel
6. Frame
7. Electronic module
8. Electronic module screws
(4)
9. Backplate (single face sign)
10. Diffuser (double-face)
11. Lock-nuts (2)
12. Gasket washer (2)
13. Canopy securement screw
14. Canopy
Figure 2
Fax: (888) 867-1566
www.lightalarms.com
XV Series – Severe Combination Unit
(single face)
15. Nipple assembly (2)
16. Canopy backplate
17. Junction box screws (not
supplied)
18. Junction box (not supplied)
19. Nylon washer (2 for wall
mount)
20. Junction box gasket (for
wall mount)
21. Swivel
22. MR16 lamp
23. O-ring
24. Lens-emergency light
25. Knock-out cover
26. Canopy gasket (for end or
ceiling mount)
(double face)
02/08 750.1160 Rev. B
1/4
