Phantom – Emergency Lighting
Risk of Electrical Shock.
Disconnect Power before Installation.
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be
followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1.
All servicing should be performed by qualified service personnel.
2.
All unused wires must be insulated to prevent shorting.
3.
Do not use outdoors.
4.
Do not let power supply cords touch hot surfaces.
5.
Do not mount near gas or electric heaters.
6.
Use caution when handling batteries. Avoid possible shorting.
7.
Equipment should be mounted in locations and at heights where it will
not readily be subjected to tampering by unauthorized personnel.
8.
The use of accessory equipment not recommended by the manufacturer
may cause an unsafe condition.
9.
Do not use this equipment for other than intended use.
10.
Unit to be installed only as per configuration described in this instruction
manual.
SAVE THESE INSTRUCTIONS
Installation Instructions
Install fixture/lamp type combination no higher than
the maximum mounting heights as stipulated in the
IMPORTANT:
"Lamp Mounting Height Cross-reference Table" (P/N
750.1924). Refer to "Technical Information" section
of our website.
Turn off AC power.

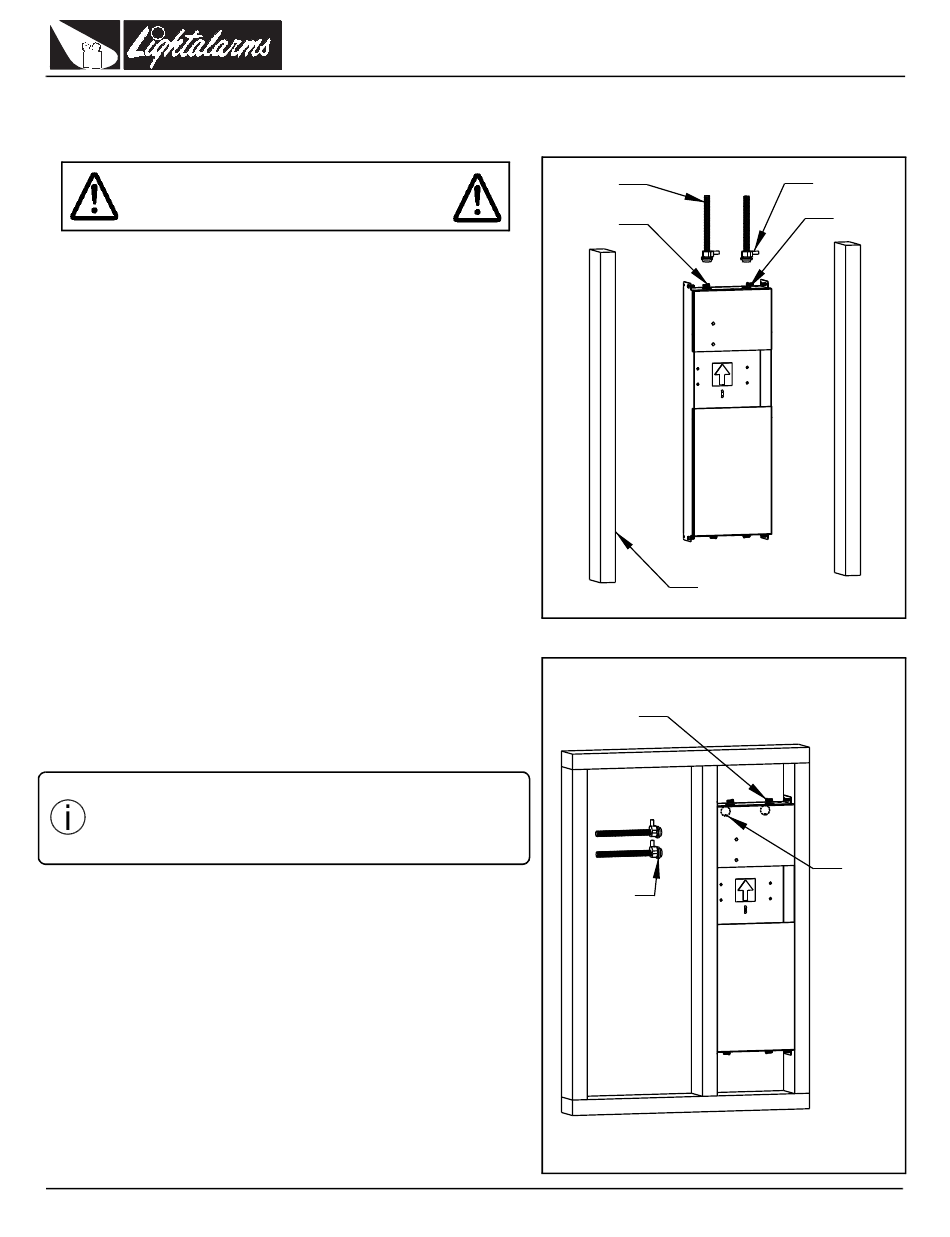

Wall Mount Back-Box Installation (Figure 1)
1. Knock out the hole(s) on top of the back-box for incoming cable(s) (AC
line and/or DC emergency line). (Figure 1)
2. Position the back-box at the desired location to be flush with the front
edge of the stud observing mounting orientation (Figure 1).
3. Use appropriate fasteners (not supplied) to mount the back-box on the
stud (Figure 1).
4. Connect the conduit to the K.O.'s on the top of the box.
5. Pull 10" of wire into the box for the final electrical connections.
6. Install the drywall over the back-box.
7. Locate the center of the opening and rout out drywall. Follow the outline
of the opening in the back-box.
LightAlarms
Tel: (888) 552-6467
WARNING:
Fax: (800) 316-4515
Phantom – Emergency Lighting
Conduit
(4) Mounting
Screws
2 x 4 Stud
Figure 1
(4) Mounting
Screws
Conduit
Conduit
Bushing
Figure 2
www.lightalarms.com
Conduit
Bushing
Wall Mount
Knock Out
Ceiling
Mount
Knock Out
09/16 750.1305 Rev. C
1/4
Advertisement
Table of Contents
Related Manuals for LightAlarms Phantom
Summary of Contents for LightAlarms Phantom
-
Page 1: Important Safeguards
Phantom – Emergency Lighting Phantom – Emergency Lighting WARNING: Conduit Conduit Bushing Risk of Electrical Shock. Wall Mount Disconnect Power before Installation. (4) Mounting Knock Out Screws IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be followed including the following:... - Page 2 Phantom – Emergency Lighting Position#1 Drywall Ceiling Back-Box Installation (Figure 2) 1. Knock out the hole(s) on the back-box for incoming cable(s). (AC line T-Bar Brackets and/or DC emergency line, Figure 2). Position#2 2. Position the back-box at the desired location to be flush with the front Conduit edge of the joist, observing mounting orientation (Figure 2).
- Page 3 Phantom – Emergency Lighting Charger Module Installation (Figure 6) DC Supply AC Supply 1. Pull out the electrical cables from the back box and cut the wires to (If required) leave 2 to 3 inches of wire outside the back-box.
- Page 4 Phantom – Emergency Lighting Three-battery module (Figure 7c) From charger 1. Take the battery with the wiring harness attached. Verify if the wire Blue module harness is well connected to the battery tab and tightly secured with the tie-wrap. 2. Place the battery in the lower compartment of the back-box, with the tabs to the left and the wire harness to the right side.
