ImmersionRC 25mW 5.8GHz audio/video transmitter
Instruction manual
Specifications
RF Output (50 Ohm)
Video input (75 Ohm)
Audio input (10K Ohm)`
Dimensions (LxWxH)
Weight (Grams)
Supply Voltage
Power Consumption
Power output
RF output
Battery input
Audio/video input
Frequencies
Overview
The ImmersionRC 25mW 5.8GHz audio/video transmitter requires a suitable antenna
(included) and a supply voltage to be connected to be functional. Please refer to the
below noted images for familiarizing yourself with your audio/video transmitter prior to
connecting the audio/video transmitter to your power supply and camera or audio/video
source:

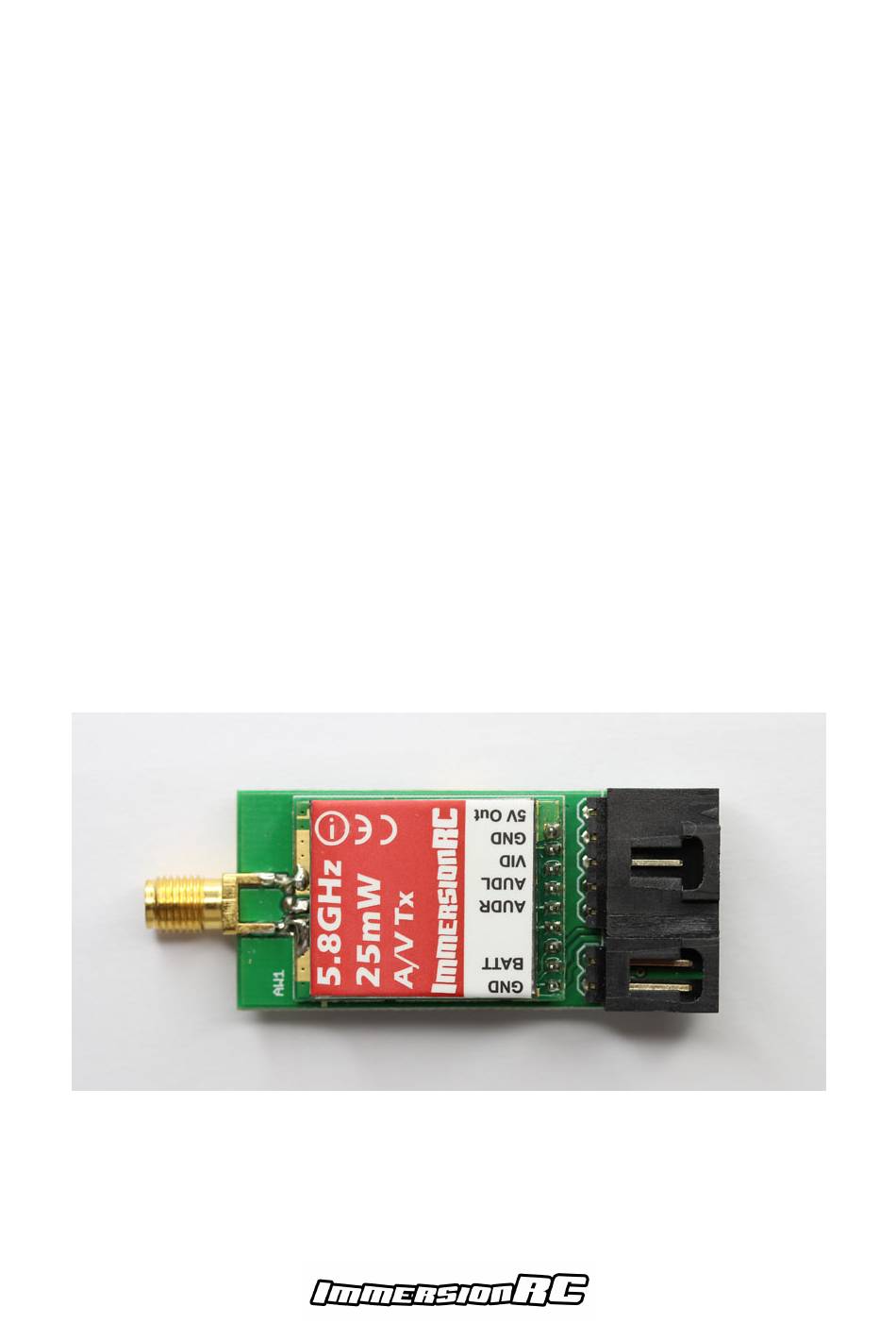

Fig 1. Top side of ImmersionRC 25mW 5.8GHz audio/video transmitter.
Center left
> SMA female connector, connect your antenna here.
Top right
> 5-pin Molex SL, audio/video input, 5V output.
Bottom right
> 2-pin Molex SL, battery input, 6-25V DC.
www.immersionrc.com
>
25mW/14dBm +/- 1dB
>
1Vpp typical
>
1Vpp typical
>
50x23x15mm
>
18 grams
>
6-25V DC (2S-6S LiPo)
>
2.7 Watt
>
5V, 300mA max.
>
SMA female
>
2-pin Molex SL, 2.54mm
>
5-pin Molex SL, 2.54mm
>
5740, 5760, 5780, 5800
>
5820, 5840, 5860MHz
info@immersionrc.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ImmersionRC 25mW 5.8GHz
Summary of Contents for ImmersionRC 25mW 5.8GHz
- Page 1 5820, 5840, 5860MHz Overview The ImmersionRC 25mW 5.8GHz audio/video transmitter requires a suitable antenna (included) and a supply voltage to be connected to be functional. Please refer to the below noted images for familiarizing yourself with your audio/video transmitter prior to...
- Page 2 Fig 2. Bottom side of ImmersionRC 25mW 5.8GHz audio/video transmitter. Center left > SMA female connector, connect your antenna here. Top right > Dipswitch for settings channel frequency. Bottom right > 5-pin Molex Picoblade, audio/video input, 5V output. Please refer to the labeling on the sticker for the correct pin out for connecting your power supply and camera or audio/video source to the audio/video input.
- Page 3 NOTE: Due to the popularity of ImmersionRC's transmitters other brands have opted to use the same connectors as ImmersionRC. In their infinite wisdom they unfortunately have opted to not use the same, industry standard, ImmersionRC pin out. This can result in significant damage to their, or ImmersionRC's, transmitters when used without verifying the pin out.
- Page 4 For warranty claims or repair requests please consult the retailer that you purchased this product from, they will be able to help you with your warranty claim or repair request. Package contents The ImmersionRC 25mW 5.8GHz audio/video transmitter is shipped with the following items: 1pcs - ImmersionRC 25mW 5.8GHz audio/video transmitter.
