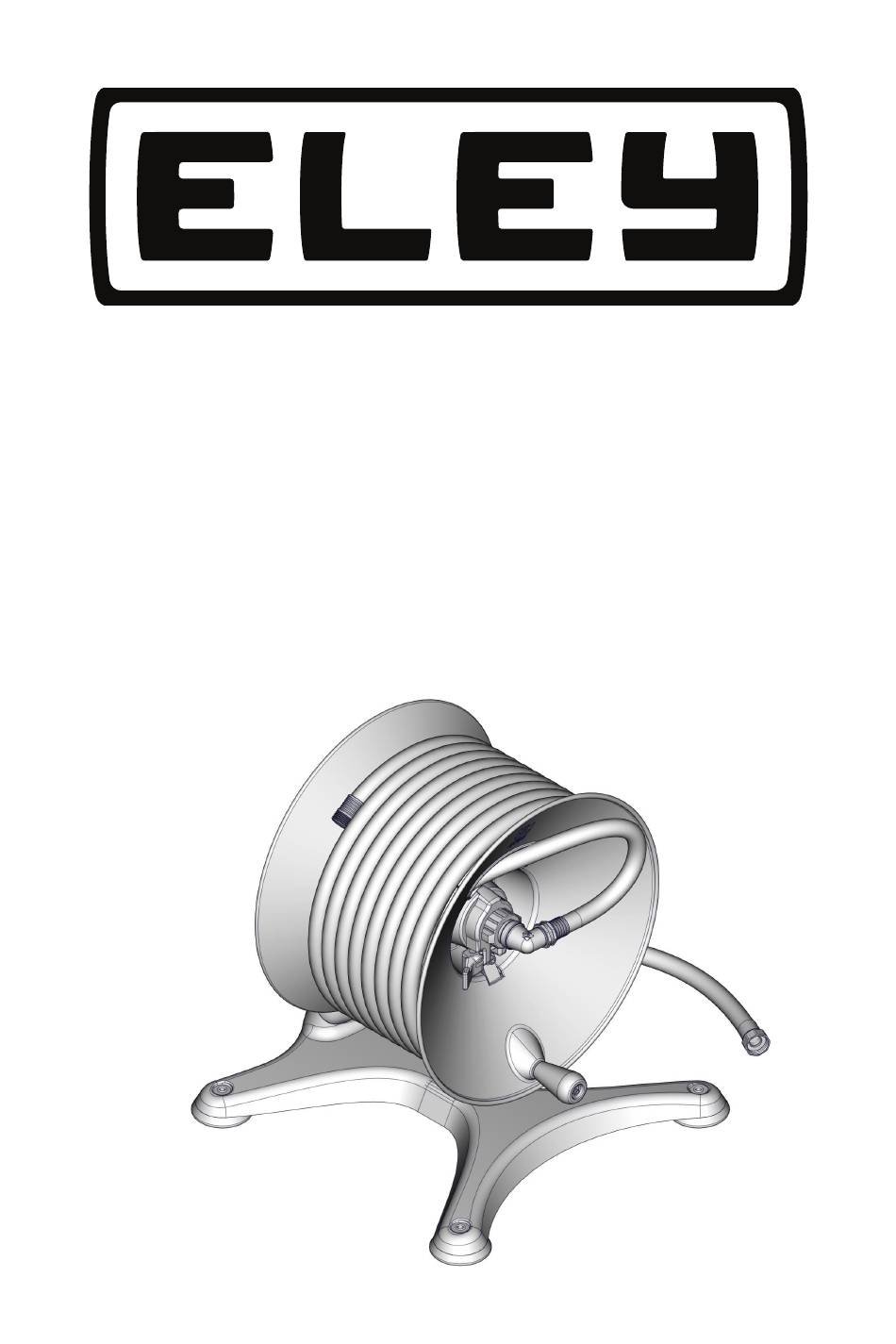

- Page 1 Free Standing Hose Reel Model 1042 Assembly & Installation Instructions...
-
Page 2: Questions? Problems
QUESTIONS? CONTENTS PROBLEMS? Please DO NOT contact or return this item to the retailer. Seek assistance directly from ELEY Corporation using the information below. PHONE: 1-866-523-2363 (toll free) MON- FRI, 8am to 5pm (CST) E-MAIL: support@eleyhosereels.com MON- FRI, 8am to 5pm (CST) - Page 3 Standard Reel IMPORTANT! If you purchased an Extra-Capacity Kit (Item# 1044) with your reel, please refer Upgraded with to the assembly instructions included Extra-Capacity Kit with the Extra-Capacity Kit now. When you have completed those instructions, then proceed to Step 3 of this manual. STEP 1 Place the Front Flange (4027) on...
- Page 4 STEP 2 Fasten flanges together using the three M6 x 20 Hex Socket Head Cap Screws (4006) and the small hex end of the Hex Key Wrench (4003). STEP 3 Remove the screw from the Handle Assembly (2654). STEP 4 Install Handle Assembly onto the Front Flange.
- Page 5 STEP 5 Remove the two M10 x 25 Hex Socket Head Cap Screws (4013) and 3/8” Flat Washers (2520) from the Garden Hose Reel Arm (3071). STEP 6 Attach the Garden Hose Reel Arm (3071) securely to the Reel Base (2903) using the two previously removed M10 x 25 Hex Socket Head Cap Screws (4013) and 3/8”...
- Page 6 Step 8 Insert the externally threaded (male) end of the Inlet hose (1087) into the axle tube until it is accessible from the other side. Step 9 Install the Flange Assembly onto the axle with the crank handle to the outside. Page 6...
- Page 7 Step 10 Install the Cam-lever Brake (2587) onto the axle. Note: Align the tab on the brake with the notch in the flange. Step 11 Attach the Swivel (2914) to the inlet hose (1087). Step 12 Attach the Swivel to the axle. Hand tighten firmly.
- Page 8 Step 13 Position the Hose Strap (4045) 32 inches from the internally threaded (Female) end of your garden hose. Step 14 Position the Hose Strap (4045) so the grommets pass through the small slot in the flange. Page 8...
- Page 9 Step 15 Tighten the hose strap. The M6 x 65 Hex Socket Head Cap Screw (4009) will pass through the 1/4 inch Flat Washer (2331) and the two brass grommets on the hose strap and then thread into the cage nut on the reel flange assembly.
- Page 10 How to use the Cam-Lever Brake As you pull the hose from the reel, our innovative cam-lever brake will prevent the reel from “free-spinning”, unrolling more hose than you want. The brake can be turned ON and OFF with the flick of the lever. BRAKE ON Pulling the hose out.
- Page 11 How to adjust the Cam-Lever Brake 1. Place the cam-lever in the “ON” position. 2. Pull enough hose off the reel to test the amount of drag created by the Cam-Lever Brake. a. Too little drag, and the reel will continue to unspool hose after you’ve stop pulling. i.
-
Page 12: Year Warranty
10 years(120 months). Warranty period starts from original invoice date. In the event of a defect or component failure, Eley Corporation will replace the specific component(s) free of charge.
