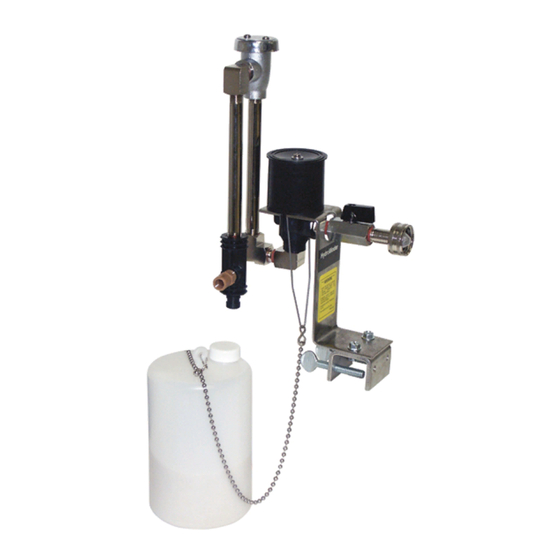

HydroMinder 511 Manual

Package Contains:
1. Proportioner with U-clamp for mounting
2. Float with chain
3. Suction tube with foot valve -- 9 ft.
4. Discharge tube -- 2 ft.
5. Metering tip kit (14 tips)
6. Production information sheet
Hydro Systems manufactures quality chemical proportioners. Please use this equipment carefully and observe all
warnings and cautions.
**************************************************************** NOTE ************************************************************
Through proper care and maintenance, this equipment will serve your toughest cleaning jobs.
Installation:
1. Mount the unit in a level position on the side of a reservoir. The U-clamp may be repositioned or removed as necessary.
2. Install a minimum ½" ID water hose between the inlet threads and the water spigot. Minimum water pressure required
to properly operate the proportioner is 25 PSI (flowing).
3. Attach the end of the discharge tube with the clamp and flooding ring to the discharge barb on the eductor.
4. Insert the foot valve end of the suction tube into the concentrate container. (The level of the concentrate must be below
the level of the eductor, or the proportioner will continue to siphon concentrate after it is turned "off".)
5. Select a metering tip (see next two sections) and screw it into the suction stub on the eductor body.
6. Slide the open end of the suction tube over the suction stub.
7. Adjust the bead chain length to position the float at the desired level of solution. To prevent foaming, be certain that the
solution level will always be above the point of discharge. Be sure float mechanism is not hampered by water turbulence
caused by discharging solution. It may be necessary to baffle the float from the discharge in order for the unit to work
properly.
Metering Tip Selection:
The final concentration of the dispensed liquid is related to both the size of the metering tip opening (orifice) and the viscosity
of the liquid being siphoned. If product viscosity is noticeably greater than that of water, consult the procedure for
Measurement of Concentration on the next page to achieve your desired water-to-product ratio. For water-thin products,
use the chart below as a guideline. Because such factors as inlet water pressure and temperature can affect dilution ratios,
the figures listed below are only approximate. Test the actual dilution you are achieving using the Measurement of
Concentration procedure for best results. Two undrilled, clear tips are supplied for drilling sizes not listed.
Tip Color
No tip
Gray
Black
Beige
Red
White
965520 Rev. E
Blue
5/02
HydroMinder Model 511
THANK YOU FOR YOUR INTEREST IN OUR PRODUCTS
WEAR
protective clothing and eyewear when dispensing chemicals or other materials.
ALWAYS
observe safety and handling instructions of the chemical manufacturers.
ALWAYS
direct discharge away from you or other persons or into approved containers.
ALWAYS
dispense cleaners and chemicals in accordance with manufacturer's instructions. Exercise
CAUTION when maintaining your equipment.
KEEP
equipment clean for proper operation.
WEAR
protective clothing and eyewear when working in the vicinity of all chemicals, filling or emptying
equipment or changing metering tips.
ALWAYS
re-assemble equipment according to instruction procedures. Be sure all components are firmly
screwed or latched into position.
ATTACH
only to tap water outlets (85 PSI maximum).
Approx. Ratio @ 40 PSI,
Drill Size water-thin viscosity Tip Color
4:1
Tan
30 5:1
Green
40 6:1
Orange
50 8:1
Brown
55 17:1
Yellow
57 23:1
Purple
60 25:1
Pink
Approx. Ratio @ 40 PSI,
Drill Size water-thin viscosity
65 36:1
70 48:1
72 64:1
74 75:1
76 90:1
80 120:1
87 240:1
