KMC Controls REE-5001 Installation Manual

Triac relay module, 3-stage reheat

Advertisement

Quick Links

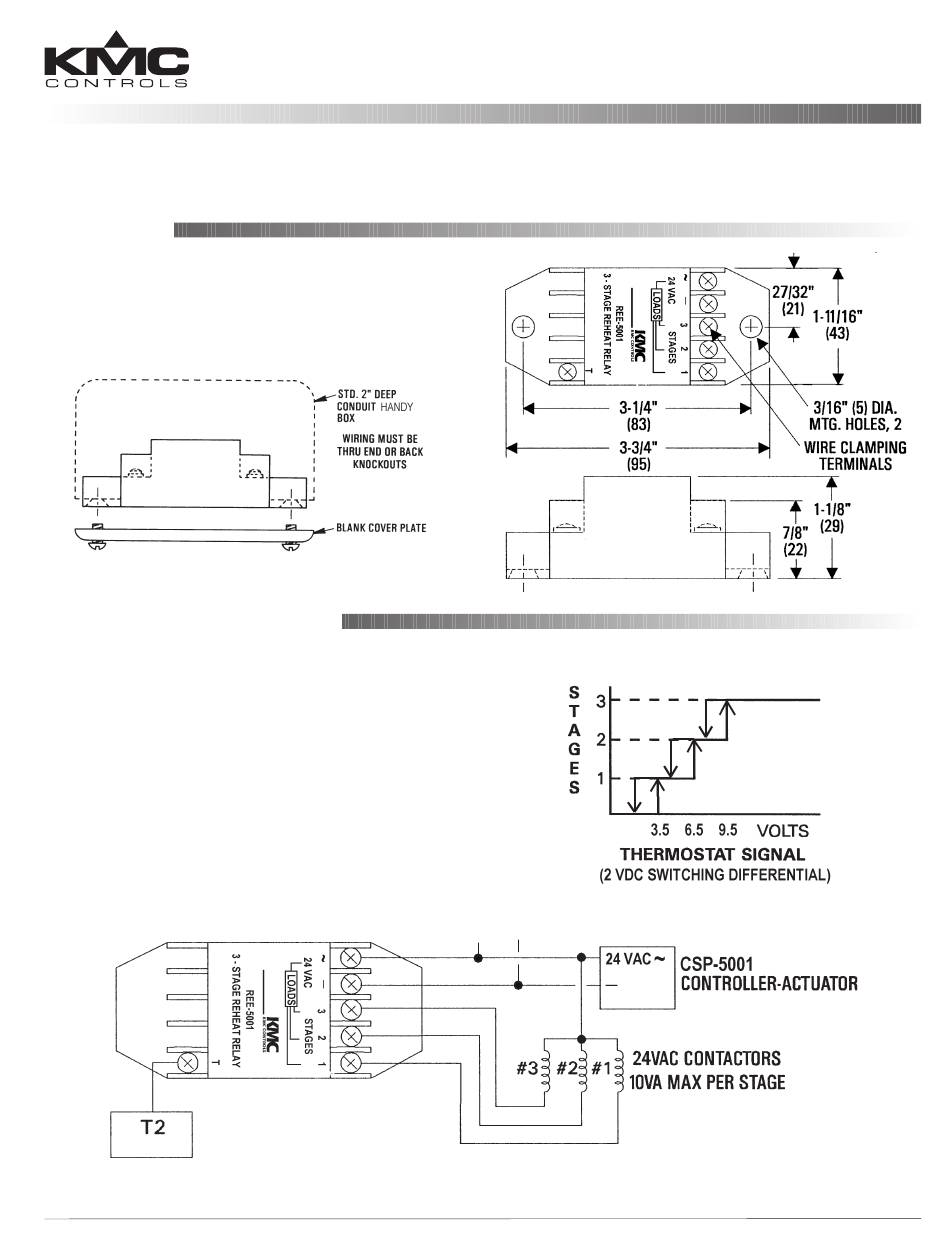

Mounting
The
REE-5001 may be mounted directly to a control
box surface or in a 2 x 4" electrical handy box. Add a
blank cover to conceal the module if desired.
Connections and Wiring
Connect as shown below and/or in the sample
illustration on the next page. Supply the relay with
24 VAC, +20%/ –15%. (Use wire size of 14 to 22 AWG,
stranded.)
NOTE:
Triac outputs are for 24 VAC loads only.
Check the graph for thermostat signal setpoints and
corresponding stages. Stage 1 turns on at 3.5 VDC,
Stage 2 at 6.5 VDC, and Stage 3 turns on at 9.5 VDC.
NOTE: There is a 2 VDC switching differential on
each stage.
CTE-5100 SERIES
REVERSE ACTING THERMOSTAT
REE-5001
Installation Guide
~ –
1
Triac Relay Module, 3-Stage Reheat
REE-5001
Installation Guide
