KMC Controls CCE-3000 Series Installation Manual

Mounting
The CCE-3000 Series relays are not position sensitive
and may be mounted in any orientation.

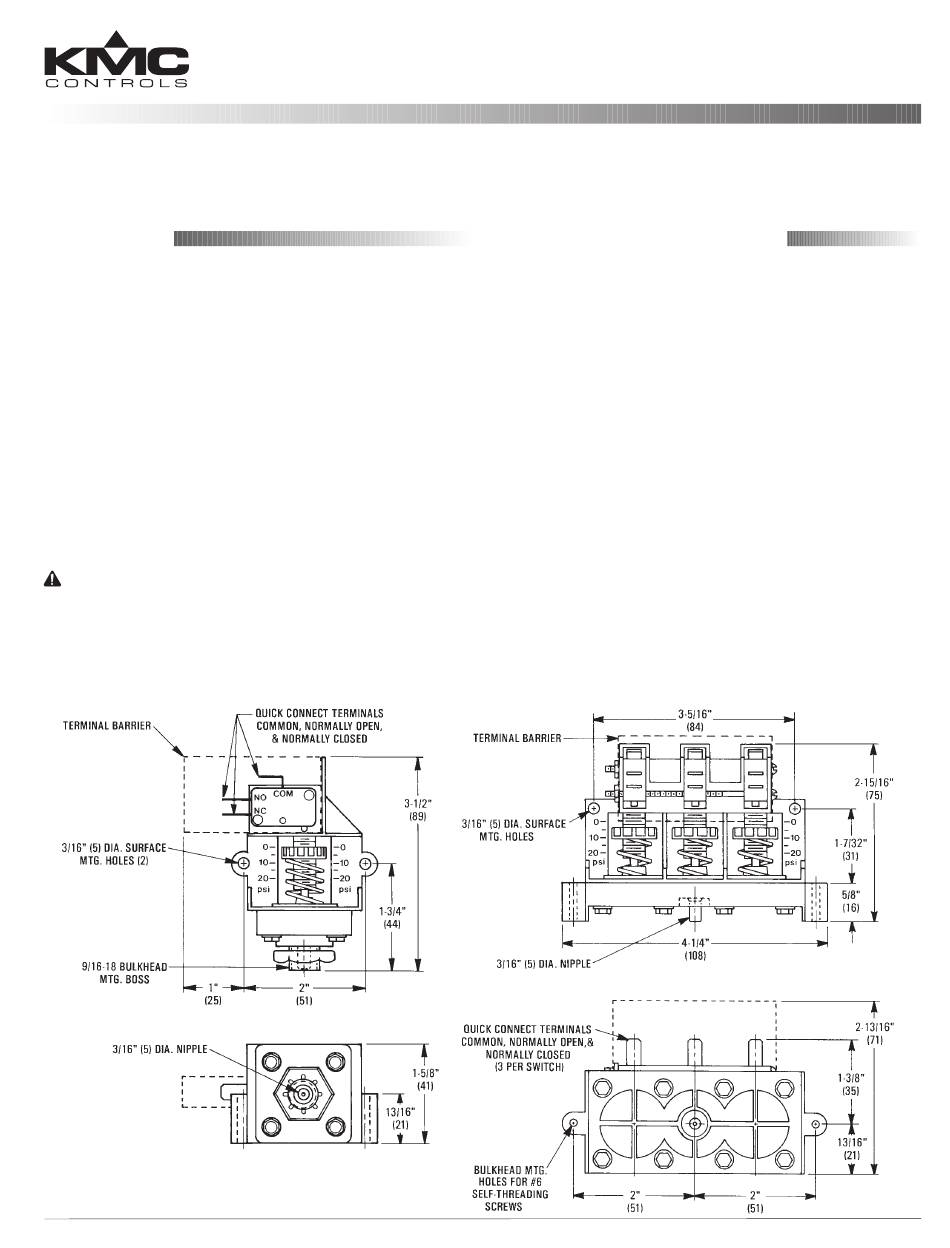

Model CCE-3001
1. Surface mount using the two 3/16" diameter
holes.
2. Bulkhead mount using the 9/16-18 boss and nut.
Model CCE-3002/3003
1. Surface mount using the two 3/16" diameter
holes.
2. Bulkhead mount using two #6 self-threading
screws.
CAUTION
Pneumatic devices must be supplied with clean, dry
control air. Any other medium (e.g., oil or moisture
contamination) will cause the device to fail.
CCE-3001
CCE-3000 Series
Pneumatic-Electric Relays, Single and Multi-Stage
Installation Guide
Connections and Wiring
Electrical
Connections are made to 1/4" quick connect ter-
minals. Do not exceed the electrical ratings of the
switches (see
1. Connect to the Common "C" and Normally Open
2. Connect to the Common "C" and Normally
Air Supply
1. Using 1/4" (6 mm) OD polyethylene tubing,
2. Limit the signal to 30 psig (207 kPa) max.
1
Specifications on page
"NO" terminals if a fall in signal should break the
circuit.
Closed "NC" terminal if a fall in signal should
make a circuit.
connect the signal to the 3/16" (5 mm) inlet in the
bottom of the unit.
CCE-3003
CCE-3000 Series
2).
Installation Guide
