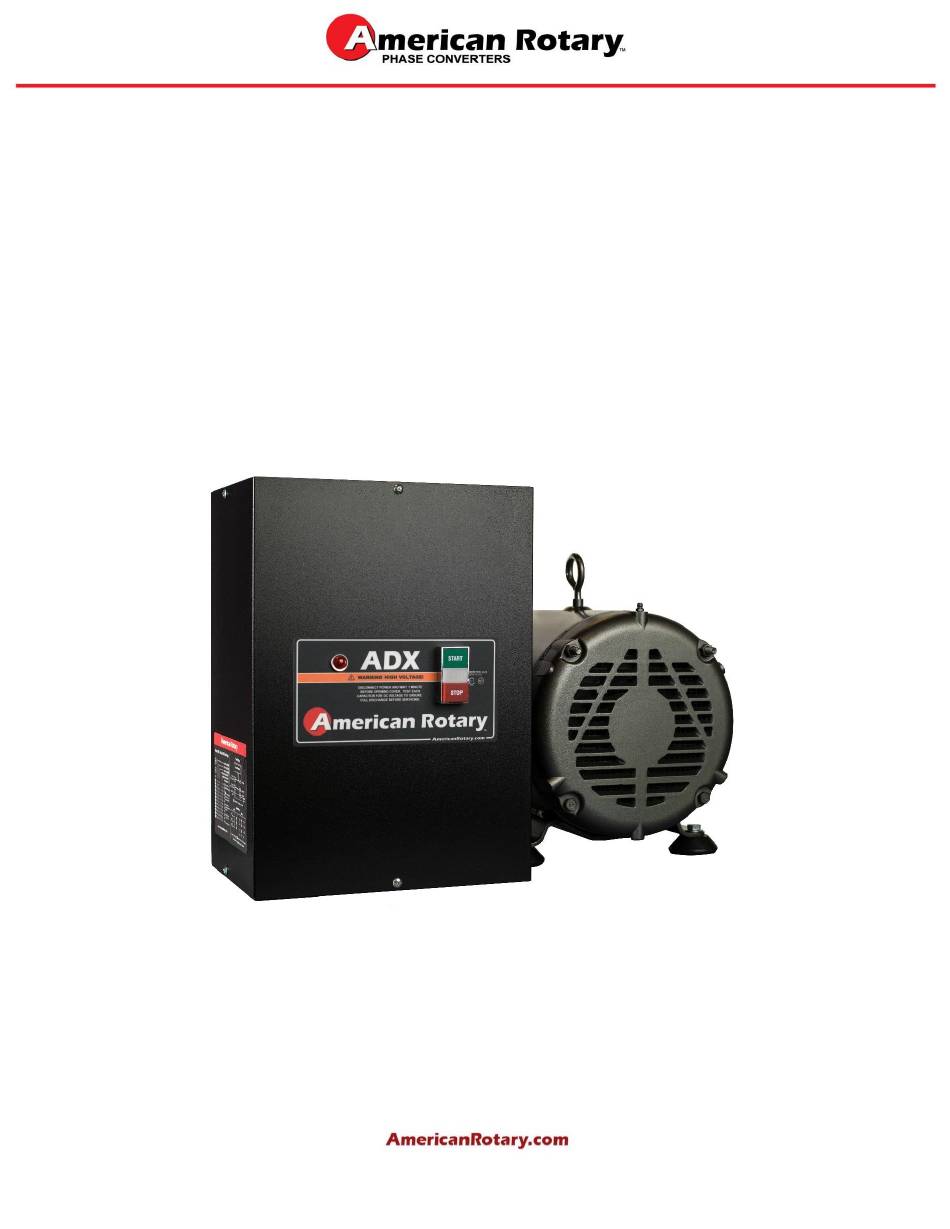

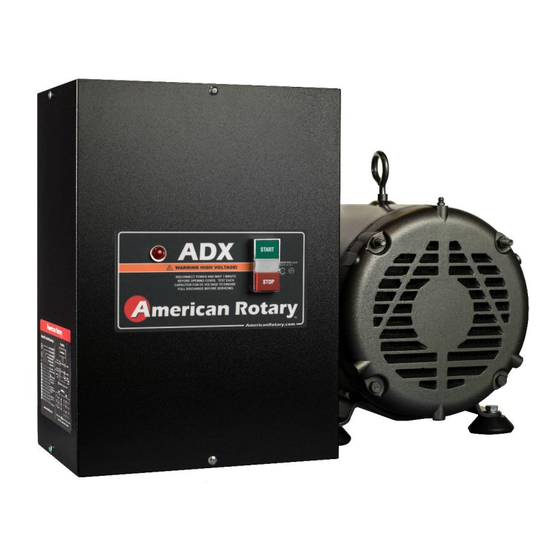

- Page 1 ADX-CUL CNC/HEAVY DUTY Rotary Phase Converters 240 & 480 VOLT SERIES SMART SERIES Operation & Installation Manual © GENTEC LLC. June 2018 – Rev 1.2...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Warning before starting ….…………………………………………………….2 Overview ..………………………………………………………………………3 Warranty .……………………………………………………………………….4 .……………………………………………………………….5 Return Policy 1. Introduction .……………………………………………………………………….6 ………………………………………………………………………..7 2. Installation 2.1. Physical Installation ..…………………………………………….………..7 2.1.1. Physical Installation Environmental Considerations .….……7 2.1.2. Installation Guidelines ...……………………………………...……...7 …...…………………..……..9 2.1.3. General Wiring Considerations 2.1.4. Wire Sizing Recommendation ..………….…………..……10 3. -
Page 3: Warning Before Starting
Make sure the idler motor is wired properly. For the American Rotary/Baldor soft-start idler motor 240 Volts Input (1, 7, A), (2, 8, B), (3, 9, C), (4, 5, 6 bolted together and insulated). 480 Volts Input (1, A), (2, B), (3, C). The following bolted together and insulated: (4, 7), (5, 8), (6, 9) Do not ground any of these connections! Use the supplied bolts and make sure all connections are insulated. -
Page 4: Overview
Our super quiet idler reduces its in-rush starting current by about 75%. The American Rotary / Baldor Idler is the ultimate in flexibility and smooth true sine-wave power. -
Page 5: Warranty
2 year warranty. The rotor is warranted for lifetime against defects in material and workmanship to the original owner. Warranty is from the date of purchase by the original owner. American Rotary will repair or replace (at our option), at no charge, any part(s) found to be faulty during the warranty period specified. The control panel warranty repairs must be performed by/at American Rotary’s facility. -
Page 6: Return Policy
PRODUCT RETURN POLICY This policy covers the return of GENTEC/American Rotary products (excluding Warranty returns, which are covered by a separate policy). Under this policy, original Purchaser may return product to GENTEC LLC with its PRIOR APPROVAL*, for credit under the following terms and conditions: Product MUST BE in its original UNOPENED, UNMARKED carton. -
Page 7: Introduction
The phase converter must be started before the transformer is connected electrically. This is done with a safety disconnect switch. American Rotary can provide these transformers and disconnect switches. -
Page 8: Installation
• High humidity American Rotary offers both wall mount and idler mount control panel locations. In either case, to minimize heat and vibration in the control panel be sure to use proper isolation mounts on the idler/generator. The Idler can be mounted in an elevated position to help reduce the introduction of dust and foreign contaminants into the windings. - Page 9 The following diagram shows the electrical schematic for the rotary phase converter: Firmly snap in the green, yellow/white and red switch terminals into the pushbutton switch body. (In the image at right, a clear enclosure cover is used for clarity.) f.
-
Page 10: General Wiring Considerations
IMPORTANT, as under sizing the wire may lead to a phase converter that does not start or work properly. To minimize voltage drop, American Rotary recommends increasing wire size one size for every 50 feet of run and rounding up. -
Page 11: Wire Sizing Recommendation
2.1.4 WIRE SIZING RECOMMENDATIONS *For all voltages: Conductors recommended are based off minimum single phase breaker which is sized based on largest hard starting load & CNC amps. For combined HP’s greater than 50% of maximum total HP listed in the tables above, consult NEC & local codes for conductor sizing. -
Page 12: Operation & Maintenance
On AI and ADX American Rotary units, there is a red light on the panel. This red light shows when the phase converter is engaged in start-up mode. This light should not be on for more than 5 seconds. -
Page 13: General Maintenance
3.3.2 LUBRICATION American Rotary rotary phase converter idlers/generators are custom made and come with pre- packed bearings using the lubricant specifically designed for this idler. Exxon Polyrex EM high temperature bearing grease or equivalent polyurea lubricant is recommended for the Baldor Idlers and can be purchased through American Rotary. -
Page 14: Trouble Shooting
4.0 TROUBLE SHOOTING Questions/Problems Answer 1. Machine does not seem to have enough power to start A, B, C, L 2. Converter does not start. It makes a growling sound B, C, D, E, L 3. Converter does not start. Absolutely nothing happens. C, D 4. - Page 15 Check the phase converter and the idler for both of these potential problems. Answer P: Your breaker may be undersized. Check sizing requirements for your current setup. If further assistance is needed in sizing, contact American Rotary.
