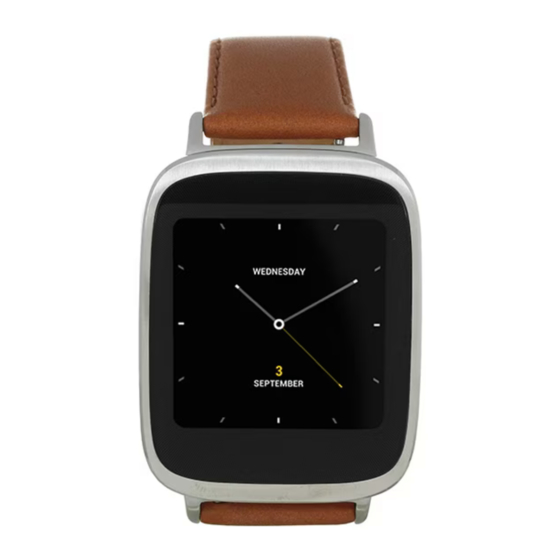

   Summary of Contents for Asus ZenWatch

  • Page 1 E-Manual...
  • Page 2 ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement. This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.
  • Page 3: Table Of Contents

    Features ....................... 7 Charging cradle....................8 Parts ....................... 8 Features ....................... 8 Wearing your ASUS ZenWatch ..............9 Charging your ASUS ZenWatch ..............11 Replacing the wrist band ................12 Downloading Android Wear ................13 Pairing your ASUS ZenWatch ...............14 Pairing with another device .................14 Powering on and off ..................15...
  • Page 4 Declaration of Conformity (R&TTE directive 1999/5/EC) ....43 CE Marking ......................43 Specified Radio Equipment in Japan ............43 Global Environmental Regulation Compliance and Declaration ..44 ASUS Recycling/Takeback Services ............44 Proper disposal ....................45 Rechargeable Battery Recycling Service in North America.....45 Regional notice for California ..............45 Regional notice for India ................45...
  • Page 5: Conventions Used In This E-manual

    = This indicates sections that you can refer to in this user guide. Input mode The icons below indicate the input features you can use to complete a series of tasks or procedures on your ASUS ZenWatch. = Use touch screen gestures. = Use voice command. ASUS ZenWatch E-Manual...
  • Page 6: Asus Zenwatch

    8/29/2014 ASUS ZenWatch Parts Front view wrist band touch screen display panel Rear view wrist band lock microphone reset button charging connectors ASUS ZenWatch E-Manual...
  • Page 7: Features

    8/29/2014 Features Wrist band Your ASUS ZenWatch comes with a wrist band that lets you securely strap the device onto your wrist. Touch screen display panel This touch screen display panel allows you to operate your ASUS ZenWatch using touch screen gestures.
  • Page 8: Charging Cradle

    Insert the bundled micro USB to USB cable into this port to connect your charging cradle to a power supply. Charging pins Connect these pins to the charging connectors to charge the battery and supply power to your ASUS ZenWatch. ASUS ZenWatch E-Manual...
  • Page 9: Wearing Your Asus Zenwatch

    8/29/2014 Wearing your ASUS ZenWatch Refer to the following illustrations for instructions on how to wear your ASUS ZenWatch. Press the buttons on both sides of the clasp to unlock the clasp. Pull apart both bands to enable adjusting the wrist band.
  • Page 10 8/29/2014 Adjust the wrist band according to your preference by detaching the pin from its current hole. Refer to the illustration below for more details. Lock the clasp back in place. ASUS ZenWatch E-Manual...
  • Page 11: Charging Your Asus Zenwatch

    8/29/2014 Charging your ASUS ZenWatch Charge the ASUS ZenWatch for 3 hours before using it in battery mode for the first time. IMPORTANT! Power adapter information: • Input voltage: +5V • Input frequency: 50-60Hz • Rating output current: 0.5 A (2.5W) • Rating output voltage: 19V ASUS ZenWatch E-Manual...
  • Page 12: Replacing The Wrist Band

    8/29/2014 Replacing the wrist band IMPORTANT! Your ASUS ZenWatch is compatible with wrist bands that have a standard 22 mm spring bar pin. NOTE: Refer to your new wrist band’s user guide for instructions on how to attach it with your ASUS ZenWatch.
  • Page 13: Downloading Android Wear

    Downloading Android Wear Download and install the Android Wear app on your mobile device so you can connect it with your ASUS ZenWatch. The Android Wear app is available in the Google Play Store and is compatible with mobile devices running on Android 4.3 or higher.
  • Page 14: Pairing Your Asus Zenwatch

    8/29/2014 Pairing your ASUS ZenWatch Place the ASUS ZenWatch on the charging cradle and wait for it to automatically power on. Get your mobile device, enable Bluetooth, then place it near your ASUS ZenWatch. Launch Android Wear on your mobile device then follow the onscreen instructions to proceed.
  • Page 15: Powering On And Off

    8/29/2014 Powering on and off To turn on your ASUS ZenWatch: Place your ASUS ZenWatch on its charging cradle. Wait for a few seconds until the touch screen display panel lights up and displays the Android then ASUS logo.
  • Page 16: Working With Your Asus Zenwatch

    8/29/2014 Working with your ASUS ZenWatch Watch face The watch face is like a home screen for your ASUS ZenWatch, where the current time is displayed and where Google Voice can be accessed for doing voice commands.
  • Page 17 8/29/2014 Apps Several apps can be used from your ASUS ZenWatch and also from your paired device. You can enable these apps using gestures or voice command. NOTE: For more details on how to use apps, refer to the Using apps...
  • Page 18: Navigating Your Asus Zenwatch

    ASUS ZenWatch. use for your ASUS ZenWatch. Press Press your palm on the ASUS ZenWatch to dim or wake up your display. ASUS ZenWatch E-Manual...
  • Page 19 While on the watch face, swipe up to view cards from swipe down to mute or Google Now. unmute your ASUS ZenWatch. Swipe left Swipe right Swipe to the left to see or Swipe to the right to close a browse through other cards.
  • Page 20: Voice Command Via Ok Google

    8/29/2014 Voice command via OK Google Using voice command allows you to call out features, apps, and settings you would like to access on your ASUS ZenWatch. To use voice command: Tap the touch screen display, say “OK Google. ”...
  • Page 21: Features List

    8/29/2014 Features list While on OK Google, tap your ASUS ZenWatch’s screen to access the following list of features you can use on your ASUS ZenWatch. To view the features list: Tap on the watch face. Tap on the voice command screen.
  • Page 22: Apps On The Features List

    NOTE: For more details, refer to the Fit section in this E-Manual Show me my heart rate - This option allows you to measure your current heart rate on your ASUS ZenWatch using your preferred fitness app. Send a text - Use this to send a text message to any contact saved on your paired device.
  • Page 23: Start Apps

    8/29/2014 Start apps Inside Start, you can find apps that enable the additional features of your ASUS ZenWatch. To view the Start apps list: Launch OK Google, tap the screen to launch its options, then select Start.
  • Page 24: Start App List

    8/29/2014 Start app list Compass This app turns your ASUS ZenWatch to an instant compass for your navigation needs. To enable Compass: Launch OK Google, tap the screen to launch its options, then select Start. Tap Compass.
  • Page 25 NOTE: The heart rate feature of your ASUS ZenWatch is intended for leisure and fitness purposes only. It should not be used for medical diagnosis.
  • Page 26 Measuring your heart rate Launch OK Google, tap the screen to launch its options, then select Start or say S Tap Fit. Swipe left until you see the following heart rate card. to start measuring your heart rate. ASUS ZenWatch E-Manual...
  • Page 27 8/29/2014 Flashlight Turn your ASUS ZenWatch into an instant flashlight using this app. To enable Flashlight: Launch OK Google, tap the screen to launch its options, then select Start. Tap Flashlight. Launch OK Google then say Start Flashlight.
  • Page 28 Wellness This fitness app allows you to measure your current energy level and heart rate using your ASUS ZenWatch. NOTE: The Wellness app results are intended for leisure and fitness purposes only. They should not be used for medical diagnosis.
  • Page 29 ENERGY - This option allows you to measure your current energy level and gives you an idea of your current disposition. HEART RATE - This option allows you to monitor your current heart rate. ASUS ZenWatch E-Manual...
  • Page 30: Featured Asus Zenwatch Apps

    Store or Android Wear. ASUS ZenWatch Manager This app allows you to configure the settings of your ASUS ZenWatch. It also includes security features that help keep track of your ASUS ZenWatch and your paired device. Tap to launch Watch Settings.
  • Page 31 8/29/2014 Watch Settings The Watch Settings allows you to configure some of the Start apps installed on your ASUS ZenWatch. It also allows you to enable additional features for your ASUS ZenWatch. ASUS ZenWatch E-Manual...
  • Page 32 Watch Face Settings Browse through the available watch face settings and tap the theme you would like to apply on your ASUS ZenWatch. These themes are extra special since they can be personalized to fit your preferences. ASUS ZenWatch E-Manual...
  • Page 33: Asus Wellness

    8/29/2014 ASUS Wellness Monitor your fitness using the ASUS ZenWatch E-Manual...
  • Page 34 8/29/2014 ASUS ZenWatch E-Manual...
  • Page 35: Asus Remote Camera

    8/29/2014 ASUS Remote Camera ASUS ZenWatch E-Manual...
  • Page 36 8/29/2014 ASUS ZenWatch E-Manual...
  • Page 37: Asus Remote Link

    8/29/2014 ASUS Remote Link ASUS ZenWatch E-Manual...
  • Page 38 8/29/2014 ASUS ZenWatch E-Manual...
  • Page 39: Appendices

    • Do not leave your ASUS ZenWatch charging on your lap or near any part of your body to prevent discomfort or injury from heat exposure. • Do not use damaged power cords, accessories, and other peripherals with your ASUS ZenWatch. • The socket outlet must be easily accessible and near your ASUS ZenWatch. Battery precautions • The battery used in this device may present a risk of fire or chemical burn if removed or disassembled.
  • Page 40: Federal Communications Commission Interference Statement

    This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ASUS ZenWatch E-Manual...
  • Page 41: Rf Exposure Warning

    Cet appareil est conforme avec Industrie Canada exemptes de licence RSS standard(s). Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. ASUS ZenWatch E-Manual...
  • Page 42: Radio Frequency (rf) Exposure Information

    Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des conditions d'exposition à des appareils mobiles (antennes sont supérieures à 20 cm à partir du corps d'une personne). NCC警語: 經型式認證合格之低功率射頻電機,非經許可,公司、商號或使 用者均不得擅自變更頻率、加大功率或變更原設計之特性及功 能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發 現有干擾現象時,應立即停用,並改善至無干擾時方得繼續使 用。 前項合法通信,指依電信法規定作業之無線電通信。低功率射頻 電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備 之干擾。 ASUS ZenWatch E-Manual...
  • Page 43: Declaration Of Conformity (r&tte Directive 1999/5/ec)

    Radio test suites according to [EN 300 328-2] CE Marking CE marking for devices without wireless LAN/Bluetooth The shipped version of this device complies with the requirements of the EEC directives 2004/108/EC “Electromagnetic compatibility” and 2006/95/EC “Low voltage directive”. Specified Radio Equipment in Japan ASUS ZenWatch E-Manual...
  • Page 44: Global Environmental Regulation Compliance And Declaration

    ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.
  • Page 45: Proper Disposal

    8/29/2014 Proper disposal Do not throw your ASUS ZenWatch in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste.
  • Page 46: Notices For Removeable Batteries

    8/29/2014 Notices for removeable batteries • Risk of explosion if battery is replaced by an incorrect type. • The battery and its component must be recycled or disposed of properly. Avis concernant les batteries remplaçables • La batterie de l’ordinateur portable peut présenter un risque d’incendie ou de brûlure si celle-ci est retirée ou désassemblée. • La batterie et ses composants doivent être recyclés de façon appropriée. ASUS ZenWatch E-Manual...
