12.2.4.3 Accessing the sensors

1
2
2
2

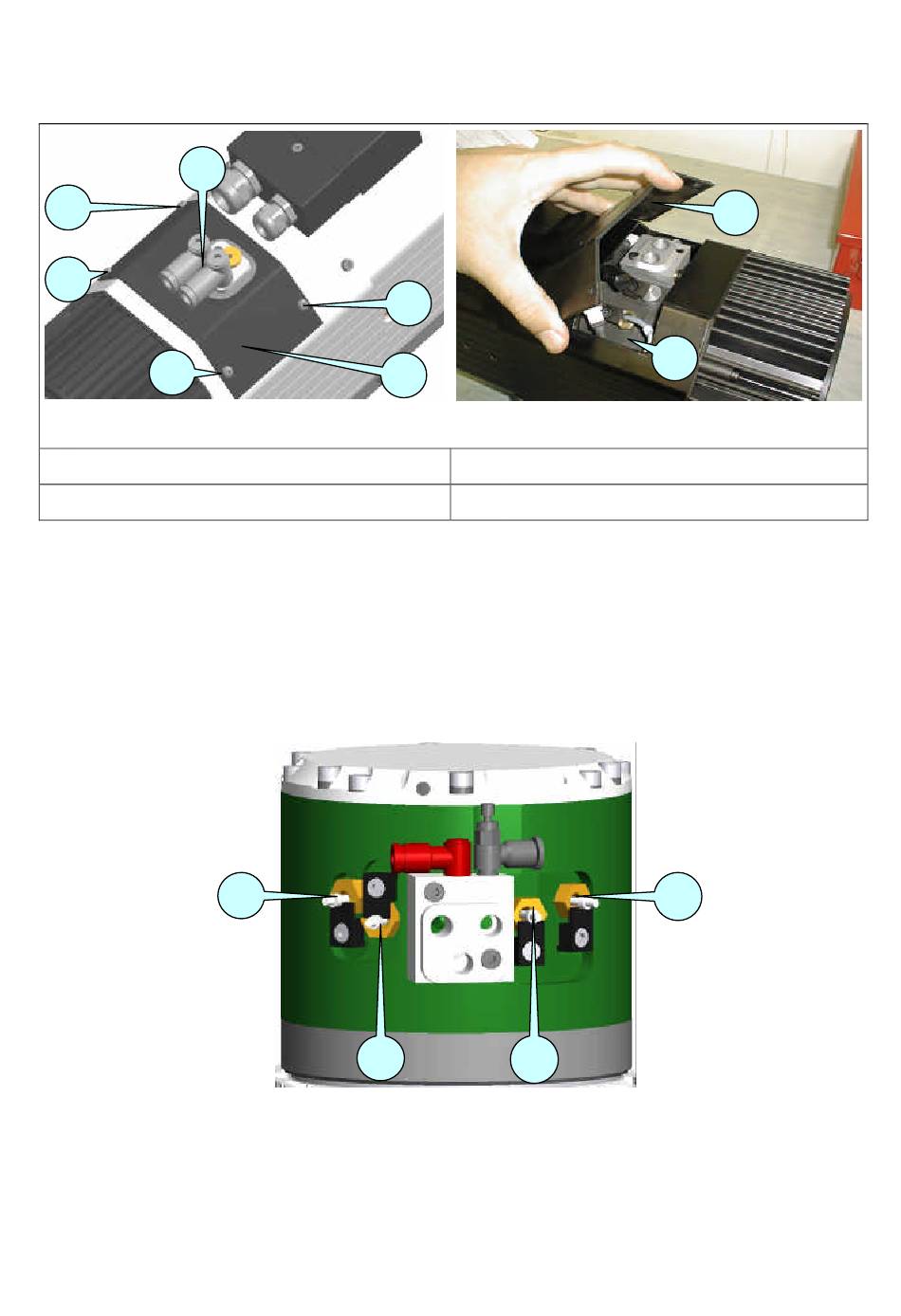

Figure 12.14
1 PAIR OF QUICK-FIT UNIONS
2 SCREWS
• Disconnect the air hoses from the quick-fit unions 1, and turn the quick-fit unions to face the
nose of the spindle.
• Remove the screws 2 from the cover 3.
• Remove the cover 3 to access the sensor compartment 4, taking care not to damage the cover
seal.

12.2.4.4 Location of sensors

5801H0017 Rev. 02 _________________________________________________________ 76/98
3
S3
S1
Figure 12.16 Identification of the sensors
_____________________________________
2
COVER OF SENSOR COMPARTMENT
3
SENSOR COMPARTMENT
4
S4
3
4
Figure 12.15
S2
