CROWN DUO R21
READ THE INSTRUCTIONS CAREFULLY BEFORE MOUNTING
CONNECTION SCHEME
!
29 pcs
- max number of modules in one chain when the power supplied from single end.
! String end voltage can't be less than 11V, do not exceed specified module string length
POWER SUPPLY LOAD RECOMMENDATIONS
POWER SUPPLY
BP3-C700-34.1
* When connecting two chains parallel with even number of modules in each chain
**Distance between power supply and modules.
! Power loss less than 5%.
! Recommendations for optimal use of power supply.
© 2018, All rights reserved BaltLED, UAB. Specifications are subject to change without notice.
1 /
www.baltled.com
2
th
9
August, 2018

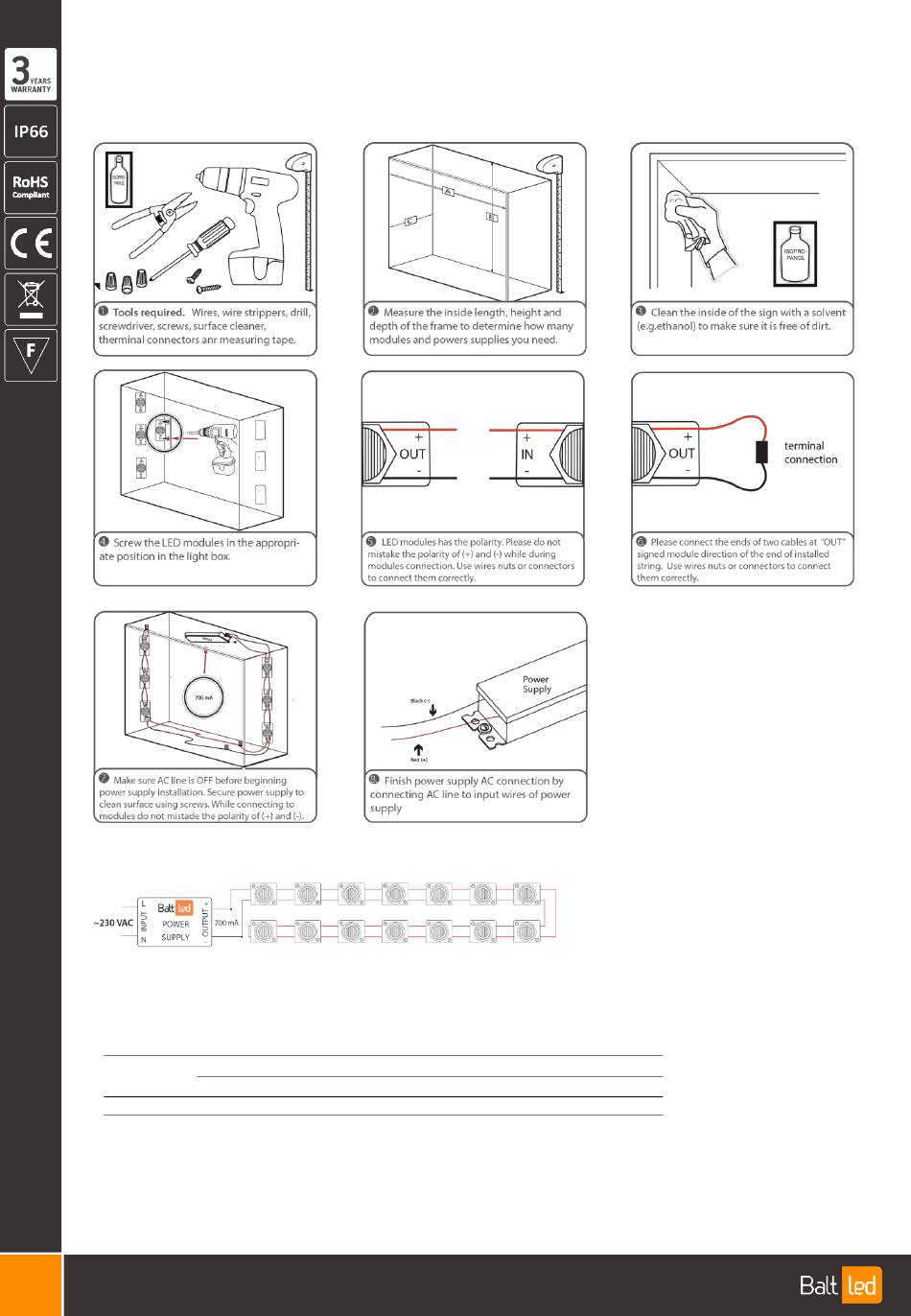

INSTALLATION GUIDE
QUANTITY OF MODULES*
2 m*
2
mm
min
max
3
14
0.5
5 m*
2
AWG
mm
AWG
mm
26
0.5
26
0.5
10 m*
2
AWG
26
