Unit Wiring - Uplink DigiCell AnyNET Installation And User Manual

U W
NIT IRING
The location of the DIP switch, terminal block connections, network port, serial interface, and
status LEDs of the Module are shown in Figure 2 on page 5. Further detailed drawings
included below.
IN1 IN2
+ - + -

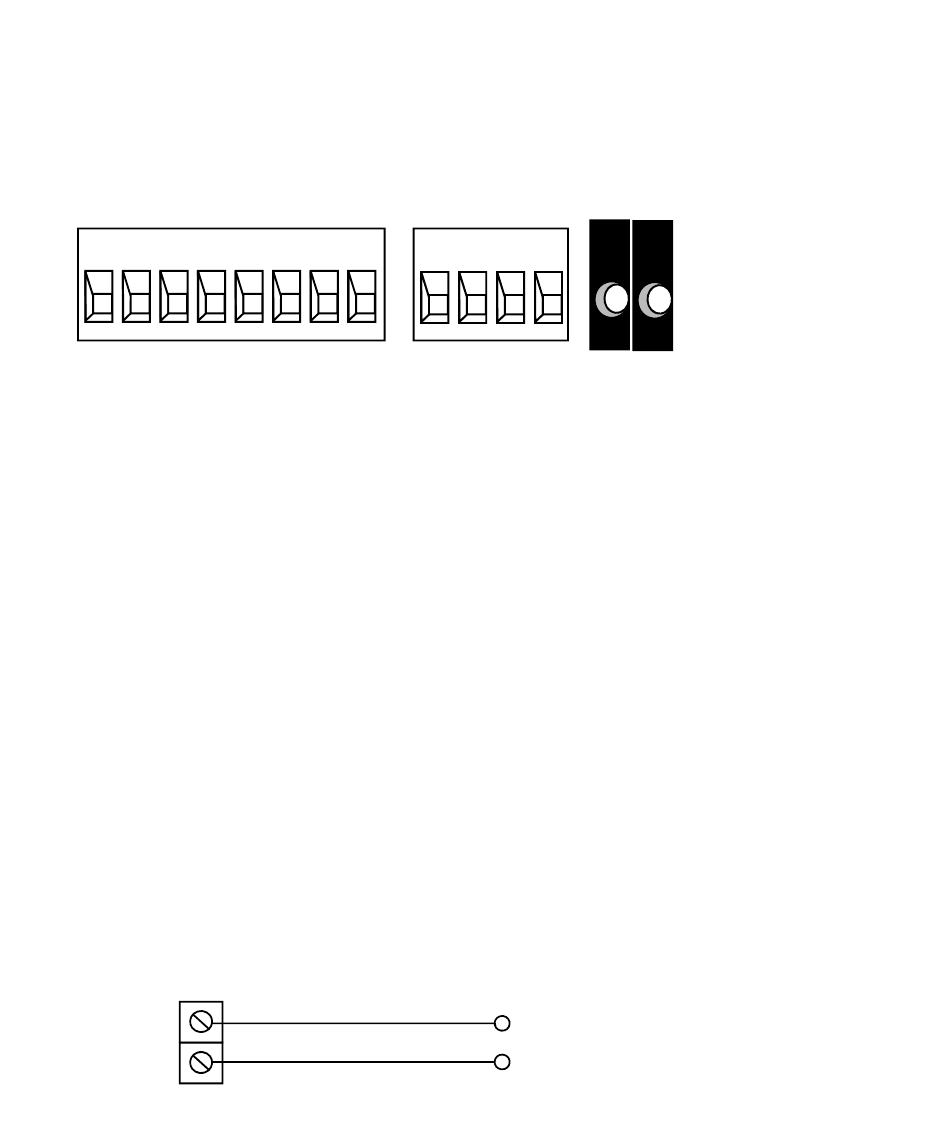

Figure 3: Detail of connections
Input 1 (Selectable Via DIP Switches)
Standard Input - (DIP switches S3 OFF, S4 OFF) This mode configures the unit to be tripped
from a DC voltage ranging from 9 VDC to 12 VDC or an open collector.
Timed Bell - (DIP switches S3 ON, S4 OFF) This mode configures the unit to be tripped from
a DC voltage ranging from 9 VDC to 12 VDC. The unit reads a pulsed voltage as a fire signal
and a steady voltage as a burglary signal.
Sampled Siren - (DIP switches S3 ON, S4 ON) This mode configures the unit to be tripped
from a siren driver or a panel with a built in siren driver. The unit reads a steady tone as a
fire signal and a yelping tone as a burglary signal.
NOTE: The input assumes that a speaker is connected to the panel. If you are not using
a speaker we recommend using a bell trip instead of a siren. This is an option on most
panels.
Pulse Counter - (DIP switches S3 OFF, S4 ON) This mode configures the unit to count the
number of times the unit has been tripped from a DC voltage, or an open collector. The maxi-
mum frequency pulse is 40Hz. The count will be reported on request.
Inputs 2, 3, and 4 (and Input 1 if Standard Type)
INPUT –
INPUT +
IN3 OUTPUT1 OUTPUT2
IN4
+ - + -
12VDC
+
–
Switched 12 V
+
