Page 1: Quick Installation Guide

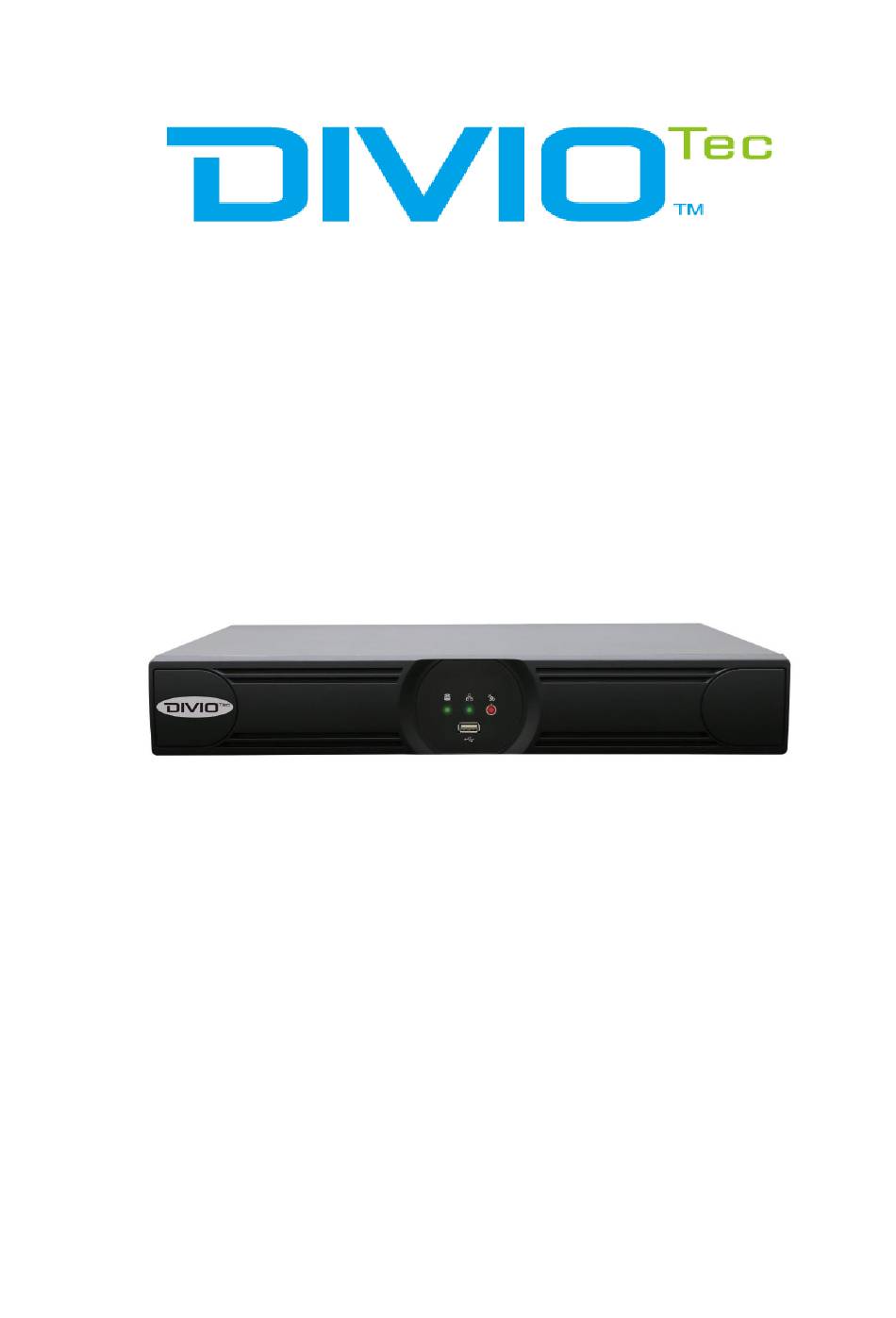

SRA312-016 / SRA312-032 Series Network Video Recorder Quick Installation Guide Note: The Quick Guide is subject to change without notice 2018-05-31 released... - Page 2 1. 16/32CH H.265 NVR Front Panel The front panel includes: Record : Rec indicator turns on when AHD/TVI DVR is recording. Network : Network indicator turns on when AHD/TVI DVR network access is connected. Power/ Alarm: Power indicator turns on when AHD/TVI DVR turns on. Alarm indicator turns on when system alarm is detected.
- Page 3 2. 16/32CH H.265 NVR Rear Panel 16/32CH H.265 NVR Rear Panel Item I/O Description Connect NVR to Internet via a RJ-45 network cable. Connect IP camera to the same LAN as the NVR. Connect a speaker or other audio output device to the audio Audio Out output connectors.
- Page 4 3. 16/32CH H.265 NVR Hard disk Installation Follow the steps to install or replace the hard disk. Step1. Take out the hard disk mounting bracket and hard disk screws from the accessory pack. Step2. Fix the harddisk on to the harddisk mounting bracket and fix the screws on to the screw holes as indicated in the diagram.
