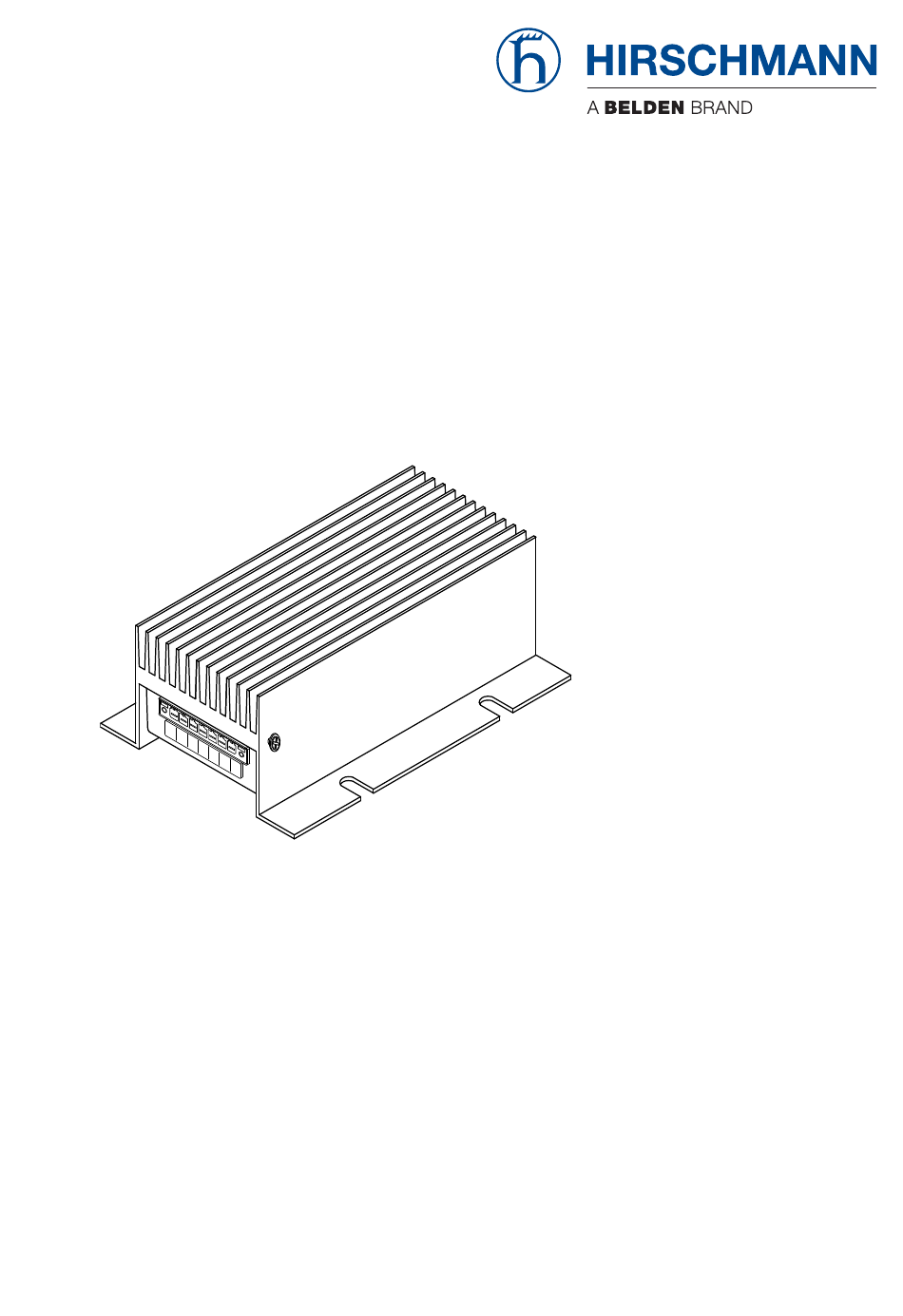

- Page 1 User Manual Installation Power supply unit PC150/110V/54V Installation PC150/110V/54V Technical support Release 01 11/2018 https://hirschmann-support.belden.com...
- Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.
-
Page 3: Table Of Contents
Operating the device Monitoring the ambient air temperature Maintenance and service Disassembly Removing the device Technical data General technical data Dimension drawings EMC and immunity Power consumption/power output Scope of delivery Underlying technical standards Further support Installation PC150/110V/54V Release 01 11/2018... -
Page 4: Safety Instructions
Operate the device with undamaged components exclusively. The device is free of any service components. In case of a damaged or malfunctioning device, turn off the supply voltage and return the device to Hirschmann for inspection. Qualification requirements for personnel ... - Page 5 Do not touch the housing during operation or shortly after switching off the device. Hot surfaces can cause injury. Mount the device on a level surface with 4 M5 screws. Installation PC150/110V/54V Release 01 11/2018...
- Page 6 EN 60950-1. Hirschmann recommends a vertical installation of the power supply unit so that a natural convection can develop. The output power must be reduced if you install the device with differing orientation.
- Page 7 In accordance with the above-named EU directive(s), the EU conformity declaration will be at the disposal of the relevant authorities at the following address: Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Germany www.hirschmann.com The product is suitable for use in the industrial sector and in rail vehicles.
-
Page 8: About This Manual
Documentation mentioned in the "Installation" user manual that is not supplied with your device in print can be found as PDF download on the Internet at the Hirschmann product pages (www.hirschmann.com). Installation PC150/110V/54V Release 01 11/2018... -
Page 9: Legend
Legend The symbols used in this manual have the following meanings: Listing Work step Subheading Installation PC150/110V/54V Release 01 11/2018... -
Page 10: Description
Description General device description The PC150/110V/54V devices are designed for the special requirements of industrial automation. They meet the relevant industry standards, provide very high operational reliability, even under extreme conditions, and also long-term reliability and flexibility. The devices allow you to supply switches in harsh industrial environments and railway vehicles with power. -
Page 11: Pin Assignments
Terminal block with pull spring, 7-pin +OUT Plus terminal of the output voltage -OUT Minus terminal of the output voltage Reserved Reserved Reserved Plus terminal of the input voltage Minus terminal of the input voltage Installation PC150/110V/54V Release 01 11/2018... -
Page 12: Installation
OVERHEATING OF THE DEVICE Verify that all cooling fins are clear when installing the device. Avoid touching the device while it is operating. Failure to follow these instructions can result in minor injury or equipment damage. Installation PC150/110V/54V Release 01 11/2018... - Page 13 Mount the device to a flat surface. Screw on the power supply unit with 4 M5 screws. Note: Hirschmann recommends a vertical installation of the power supply unit so that a natural convection can develop. The output power must be reduced if you install the device with differing orientation.
- Page 14 Figure 3: Grounding: Location of ground connection screw on the device (front side of the device) Proceed as follows: Ground the device via the ground screw. You find the prescribed tightening torque in chapter: “General technical data” on page 20 Installation PC150/110V/54V Release 01 11/2018...
-
Page 15: Connecting The Terminal Blocks
Remove the terminal block from the transport packaging or disconnect the terminal block from the device. Connect the wires according to the pin assignment on the device with the clamps. See “Pin assignments” on page 11. Installation PC150/110V/54V Release 01 11/2018... -
Page 16: Operating The Device
You find the prescribed tightening torque in chapter: “General technical data” on page 20 Enable the supply voltage. Note: Verify that the prescribed performance parameters and ambient air temperatures are adhered to. See “General technical data” on page 20. Installation PC150/110V/54V Release 01 11/2018... -
Page 17: Monitoring The Ambient Air Temperature
Keep the cooling fins free to ensure good air circulation. Hirschmann recommends a vertical installation of the power supply unit so that a natural convection can develop. The output power must be reduced if you install the device with differing orientation. -
Page 18: Maintenance And Service
Maintenance and service When designing this device, Hirschmann largely avoided using high-wear parts. The parts subject to wear and tear are dimensioned to last longer than the lifetime of the product when it is operated normally. Operate this device according to the specifications. -
Page 19: Disassembly
Note: The device heats up during operation. Before you touch the device: After you switch off the supply voltage, wait until the device has cooled down. Remove the terminal connector from the device. Disconnect the grounding. Remove the screws. Installation PC150/110V/54V Release 01 11/2018... -
Page 20: Technical Data
1060 hPa (−1312 ft; −400 m) Pollution degree Protection class according to EN 60950- Degree of protection IP20 a. Temperature of the ambient air at a distance of 2 in (5 cm) from the device Installation PC150/110V/54V Release 01 11/2018... -
Page 21: Dimension Drawings
Dimension drawings 160,5 6.32 2.56 2.76 0.12 0.22 +OUT -OUT 40,5 0.39 5.51... -
Page 22: Emc And Immunity
5 Hz ... 150 Hz, Broadband noise vertical: 7.9 m/s² (rms) horizontal: 5.5 m/s² (rms) IEC 60068-2-27, Shock 15 g at 11 ms — vertical: 30 m/s², 30 ms test Ea horizontal: 50 m/s², 30 ms Installation PC150/110V/54V Release 01 11/2018... -
Page 23: Power Consumption/Power Output
Power consumption/power output Name Maximum Maximum power consumption power output Power supply unit (PSU) PC150/110V/54V 176 W 89 Btu (IT)/h Installation PC150/110V/54V Release 01 11/2018... -
Page 24: Scope Of Delivery
Scope of delivery Scope of delivery Number Article 1 × Device 1 × General safety instructions 1 × 7-pin terminal block Order numbers Power supply unit PC150/110V/54V 942 242-001 Installation PC150/110V/54V Release 01 11/2018... -
Page 25: Underlying Technical Standards
List of the technical standards The device generally fulfills the technical standards named in their current versions. The device has an approval based on a specific standard only if the approval indicator appears on the device casing. Installation PC150/110V/54V Release 01 11/2018... -
Page 26: A Further Support
Further support Technical questions For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You find the addresses of our partners on the Internet at http:// www.hirschmann.com. A list of local telephone numbers and email addresses for technical support... - Page 27 Installation PC150/110V/54V Release 01 11/2018...
