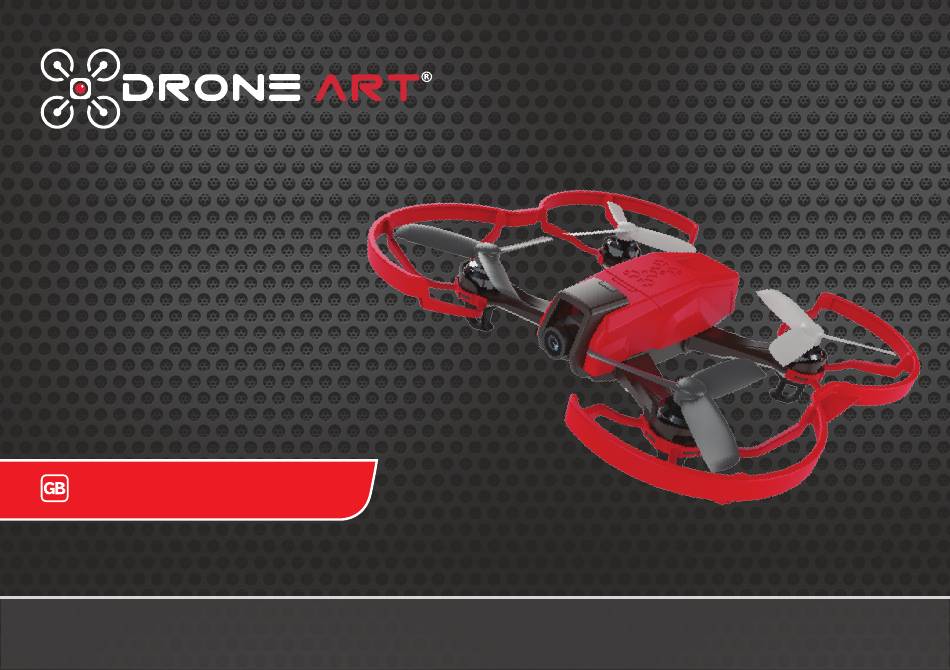

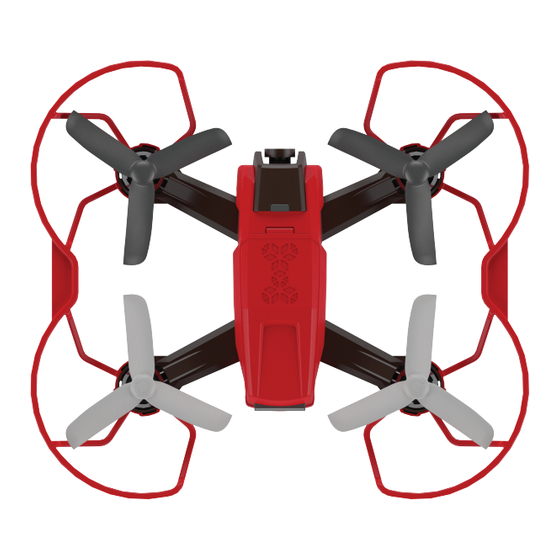

- Page 1 Operating instructions Xtreme V2 88025RC (RtF)
-
Page 3: Table Of Contents
21. Video channel selection - Automatic ............19 5.5.2 LiPo batteries ..............6 22. Video channel selection - Manual ..............19 Miscellaneous ..................8 22.1 Xtreme V2 ..................19 Accident prevention ..................8 22.2 Transmitter ..................19 Emergency stop ...................8 23. Preflight checklist ..................19 Charging and installing battery ..............9 24. -
Page 4: Introduction
3. Symbols Dear customer, BLUE provides you with additional useful information, and highlights Thank you for purchasing the RC EYE Xtreme V2! We hope you will enjoy your FPV important facts. experience and that the V2 will become a favorite flyer whether it’s your first drone or just a new drone you are adding to the collection. For the best experience please read and RED stands for danger and alert. -
Page 5: Safety Instructions
■ Always switch on the transmitter first before powering on the Xtreme V2. ▬ is visibly damaged, ■ Set the throttle to zero before powering on the Xtreme V2. The motors might run ▬ is no longer working properly, unintentionally! ▬ has been stored for extended periods in poor ambient conditions, or During operation ▬... -
Page 6: Outdoor Flying Locations
Remove the flight battery from the Xtreme V2 after every flight. ■ ■ In case of a defect or a malfunction, remove the problem before using the Xtreme V2 Remove the battery from the transmitter if you do not use it for a longer period of time. again. ■... - Page 7 interference. The rotors could start up inadvertently and cause damage or injury. used. The same applies for “swollen” rechargeable batteries, or rechargeable batteries with other visible deformation or leaks. Do not attempt to charge such rechargeable ■ Rechargeable LiPo batteries are very susceptible to moisture due to the chemicals they batteries! Danger of fire and explosion! Dispose of such rechargeable batteries in an contain! Do not expose them to moisture or liquids. Risk of explosion! ecologically sound fashion.
-
Page 8: Miscellaneous
In case of an emergency, press the Power / Emergency button (gray colored button) on top of the Xtreme V2, or the ARM / Emergency button (red colored button) on the transmitter. The best learning experience is provided by pilots who have experience in flying this type of aircraft. -
Page 9: Charging And Installing Battery
The charger only allows charging 1 battery at one time. 3. Charge the batteries as illustrated below: Flight battery Transmitter battery Charging ■ Use the supplied Xtreme V2 battery charger (89155RC) to charge the batteries. Read the charger’s operating instructions before using it. LED indicator Charging port for Flight battery (with push cover) -
Page 10: Installing The Battery
Installing the battery Install the flight battery as illustrated in the following sequence of diagrams. Fasten velcro strap Push the battery all the way in F-mode VIDEO ALT-hold FLIP Connect the transmitter battery and Close canopy, and make place it into the battery compartment, then sure it is tightly locked in place Open the battery compartment as shown. -
Page 11: Installing Propellers And Guards
9. Installing propellers and guards Propeller installation Warning! Remove the flight battery before you install propellers and Tightening Tightening direction direction guards! Overtightening will irreversibly damage the thread in the propeller hub. In this case you must immediately replace the propeller! Both threads Spinning mark on Spinning mark on Black color... -
Page 12: Fpv Camera And Antenna
1. Disarm the Xtreme V2 by pressing the ARM button on remote control. 2. Turn off the Xtreme V2 by pressing the Power button on top of the Xtreme V2. 3. With the Xtreme V2 turned off, you can safely inspect it for damage. -
Page 13: Basic Control
13. Basic control Study below diagrams before operating the Xtreme V2. Manual channel button (beneath the hatch) LEDs inside Canopy LEDs inside Manual channel button Power button / BOTTOM emergency button MicroSD FPV camera with Micro USB port card slot... - Page 14 Altitude hold/ Bind Video out On / Off Elevator trim To avoid any misbehavior of the Xtreme V2, and as a common safety practice, always follow the sequence: Powering ON: First power ON the transmitter, then power ON the Xtreme V2. Powering OFF: First power OFF the Xtreme V2, then power OFF the transmitter. 14 | Basic Control...
-
Page 15: Mode 2 Control
14. Mode 2 Control Arm/Disarm button / emergency button Mode 2 Control | 15... -
Page 16: Auto-Flip
LEDs on the transmitter will give a short blink; the front LED on the Xtreme V2 is lit solid light blue. Note: The Xtreme V2 flip mode has a safety timeout feature. If after you pressed the Flip 2. Give stick input for flip direction. See illustrations to the right button you do not move the Aileron / Elevator stick within 2 seconds, the Xtreme V2 will exit 3. The Xtreme V2 flips. flip mode and return to the previous flying mode. 16 | Auto-flip... -
Page 17: Altitude Hold
2. Power on the Xtreme V2, leave the transmitter turned off. ■ Pressing the ALT-Hold button toggles the altitude hold function on/off. 3. Wait approx. 10 seconds and on the side of your Xtreme V2 you will see a little orange LED light flashing on one of the side holes. This means the Xtreme V2 is in bind mode. F-mode 4. -
Page 18: Remote Osd Menu
19. Remote OSD Menu 20. Photo and Video modes 20.1 Photo taking ■ To take a photo, press the video button once quickly. ■ Each taken photo is confirmed by a double beep. 20.2 Video recording 20.2.1 Start ■ To start video recording, long press the video button. ■ Start of recording is confirmed by a single beep. ■ The recording notification timer on the 4.3” monitor fades in. 20.2.2 Stop Transmitter Video signal Receiver channel Frequency ■... -
Page 19: Video Channel Selection - Automatic
Your Xtreme V2 comes out of the box already bound to the transmitter. Once transmitter 2. Press the + button on the transmitter to change the frequency band. Press the – button and Xtreme V2 are powered on and you do not see the live feed image on the transmitter to change the video channel. Cycle until you find the frequency you wish to use. screen after a few seconds start the auto channel scan. -
Page 20: Status Indications
24. Status Indications Alarm Functions Alarms Description Indication The following reference charts are your quick guide to functions, LED and beeping indications. Xtreme V2 Transmitter Main Functions Alarm/Error Any abnormal Front and rear LEDs blinking white and situation about swapping with current flight mode’s LED... - Page 21 Aileron/ flight mode color after Xtreme V2 Transmitter Elevator stick. the flip. • If stick is moved, the Xtreme V2 Alt. Hold See chapter ‘Alt-hold’ Front LEDs: Alternating will make a short jump, then Flip mode: flashing of flight mode flips in commanded direction, color and orange.
-
Page 22: Technical Data
Frame size ........190 mm Dimensions ......... 180.6 x 148.7 x 64.5 mm Weight ........ 3 14 g (with flight battery, without propeller guards) 240 g (without flight battery, without propeller guards) Xtreme V2 – Video transmitter: Frequency ........5.8 GHz Channels ........22 Transmission power....25 mW Transmission distance ....max. 150 m (line of sight) -
Page 23: Disposal
Importer: Conrad SE, Klaus-Conrad-Str. 1, D-92240 Hirschau We declare on our own responsibility, that the product: 26.2 (Rechargeable) batteries Product description: RC EYE Xtreme V2 You as the end user are required by law (Battery Ordinance) to return all used Model: 88025RC (rechargeable) batteries. Disposing of them in the household waste is prohibited. -
Page 24: Fcc Note
28. FCC Note 29. Product support Caution: Visit http://droneart.com/help-and-support/ or call +852 2559 2662 for product support. This device complies with Part 15 of the FCC rules and Industry Canada license-exempt Additionally, visit our Online Ticket System at https://droneart.com/ticket for any Drone RSS standard(s). - Page 28 © 2018 Drone Art - The Art of Building Drones. ALL RIGHTS RESERVED © 2018. TERMS AND CONDITIONS APPLY.
