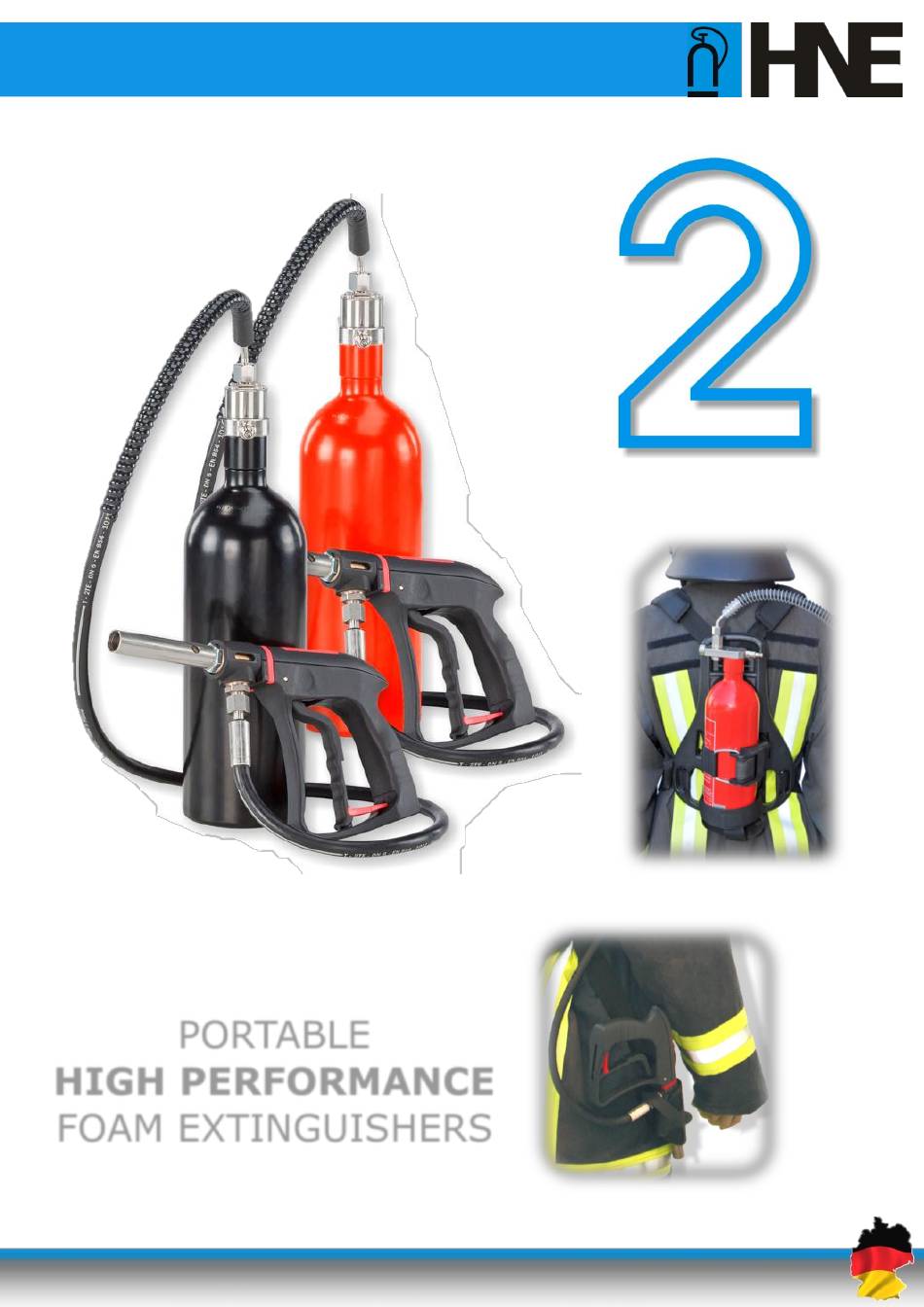

- Page 1 USER MANUAL HiPRESS PORTABLE HIGH PERFORMANCE FOAM EXTINGUISHERS www.hne.ag MADE IN GERMANY...
-
Page 2: Table Of Contents
HiPRESS 2 Content Page Important information......Symbols and warnings......Unpacking......... Storage..........Extinguishing agent......4 - 5 Device and filling equipment....6 - 8 Filling of the liquids......9 - 11 Filling of compressed air....... Jet gun..........Applying the device......Inspections........ -
Page 3: Important Information
The extra lightweight HiPress 2 is explicitly designed for use by security forces. The extra high and constant working pressure offers excellent fire rating and increased safety and capabilities for fire fighters during action. -
Page 4: Symbols And Warnings
HiPRESS 2 Symbols and meaning Important information is highlighted with the following icons. Please note it with particular attention in the interest of safety. Indication of possible danger. Disregard can result in damage or hazard to device, vicinity, operator or other persons. -
Page 5: Storage
As suitable extinguishing agents we recommend: most common foam agent against fires of class A + B. AFFF 6% optimized for HNE-high pressure technology to achieve superior extinction ratings. For fire class A + B. 63 A MG 6-30 Ready-for-use agent with -30°... -
Page 6: Device And Filling Equipment
HiPRESS 2 Overview head piece (separable) gauge for Druck- working pressure schlauch connector for compressed air pressure vessel jet gun foam nozzle actuator safety catch www.hne.ag MADE IN GERMANY... - Page 7 HiPRESS 2 Filling adapter Pressure reducer Safety valve Gauge for compressed air cylinder Protection cap Hand wheel for bottle connection Quick stop cock coupling Compressed air cylinder Hand wheel Steel (CFFR optional) 2 Liter / 300 bar Protection cap DIN-thread for 300 bar www.hne.ag...
- Page 8 HiPRESS 4 und 4 HiPRESS 2 VARIO 9 Basic rules for refilling The extinguisher achieves optimal performance only when accurately filled. Prepare things thoroughly and perform all steps with necessary care. We recommend a clean and steady work area with water supply.
- Page 9 HiPRESS 2 VARIO 9 Venting and opening: Always relief the system from any residual pressure before opening. Actuate the jet gun until no more hissing is heard. Only then you may unscrew the pressure vessel. Even after complete discharge of the extinguisher, new pressure may occur due rising temperature.
-
Page 10: Filling Of The Liquids
HiPRESS 2 Filling of the liquids: Be sure that the container is completely empty and clean before filling. The container requires 1.5 liters of total filling volume. For user training, you can use pure water. The amount of additive for foam generation depends on the used extinguishing agent. -
Page 11: Filling Of Compressed Air
(see page 5). A full compressed air cylinder (2 liters) is sufficient for app. 60 fillings of a HiPRESS 2 Pressurized vessels are hazardous for user and vicinity in case of negligence or mishandling. Always use filled air cylinders and extinguishers with due diligence. - Page 12 HiPRESS 2 Connecting the filling adapter : Remove the protective caps on pressure reducer and cylinder valve. Attach the pressure reducer to the thread of the cylinder valve and screw it tightly with the knurled hand-wheel. Tightening by hand is sufficient;...
- Page 13 HiPRESS 2 Charging the working pressure : Be sure, the stop cock of the low-pressure outlet is in closed position (transversely to the hose). Open the valve of the compressed air cylinder slowly and completely. The outlet of the filling adapter is now leading charging pressure (18 bar) for the extinguisher.
-
Page 14: Jet Gun
HiPRESS 2 The jet gun Every HiPRESS system is equipped with a recoilless jet gun. Range and flow rate are variable by stepless actuation. This increases efficiency and duration significantly when fighting small fires. A foldable safety catch prevents accidental actuation. -
Page 15: Applying The Device
HiPRESS 2 Applying the device The HiPRESS 2 is a stored-pressure extinguisher. You just have to turn the safety catch at the tripping lever into unlocked position. The jet of foam is triggered by pressing the lever. Jet range and throughput are adjustable to the situation by steplessly actuation. -
Page 16: Service And Maintenance
NOTE: As a highly safety-relevant element, the pressure reducer (filling adapter) is absolutely maintenance-free. Any work at it is solely reserved for HNE. Unauthorized action leads to the complete loss of warranty. After maintenance or repair, the extinguisher should be labeled with filling date and content. -
Page 17: Technical Data
HiPRESS 2 Technical data SPEZIFIKATION HiPRESS 2 volume of vessel 2 liters filling volume 1.5 liters propellant compressed air working pressure 18 bar duration app. 10 sec. range* app. 9 m temperature range *-25 to 60° C weight (empty) app. 3.5 kg weight (filled) app. -
Page 18: Replacement Parts
HiPRESS 2 Replacement parts - overview www.hne.ag MADE IN GERMANY... - Page 19 HiPRESS 2 Replacement parts HiPRESS 2 Please contact our service for orders Description Number Carrying frame (backpack) HiPRESS 2 Filling nipple M10x1 Retaining strap Manometer 0-28 bar Sieve d=2.5mm Vessel for HiPRESS 2 (red) Vessel for HiPRESS 2 (black) Pressure hose Jet gun with nozzle 2.8mm...
-
Page 20: Warranty
... relevant instructions in this manual have been disregarded If a recognized warranty case occurs, the decision for replacement or repair of single components or the entire device lies solely with HNE. Incurred costs for replacement parts, repair and transportation are assumed by HNE. www.hne.ag... -
Page 21: Declaration Of Conformity
HiPRESS 2 DECLARATION OF CONFORMITY Directive: 97/23/EG/EEC, Annex VII Type: Foam extinguisher HiPRESS 2 Drawing no.: 0001 0027, 0036 Cert.-no.: Z-IS-DDB-MUC-06-11-705893-001-004a Alter Postweg 96, D-86159 Augsburg declare our sole responsibility that the device specified with type, drawing number and serial number (see identification of pressure vessel) to which this declaration refers, is in accordance with the directions 97/23 EC and the AD-pamphlets. -
Page 22: Contact
KONTAKT HNE Technologie AG HIGH PERFORMANCE FIREFIGHTING SYSTEMS THANK YOU FOR CHOOSING OUR PRODUCT! In case of questions or technical problems, please contact our customer service and have type, date of manufacture and serial number of the device ready. HNE Deutschland: Sales &... -
Page 23: Servicing Notes
SERVICING NOTES Foam extinguisher Type : HiPRESS 2 Date of manufacture: ________________ please look at container and fill in Proper inspection and repair are crucial for reliability and optimal life span of your device. For traceability, we recommend to document such measures on this page. - Page 24 USER MANUAL TECHNOLOGIE AG HiPRESS PORTABLE HIGH PERFORMANCE FOAM EXTINGUISHERS SAVING ● PROTECTING ● PRESERVING WORLDWIDE www.hne.ag MADE IN GERMANY...
