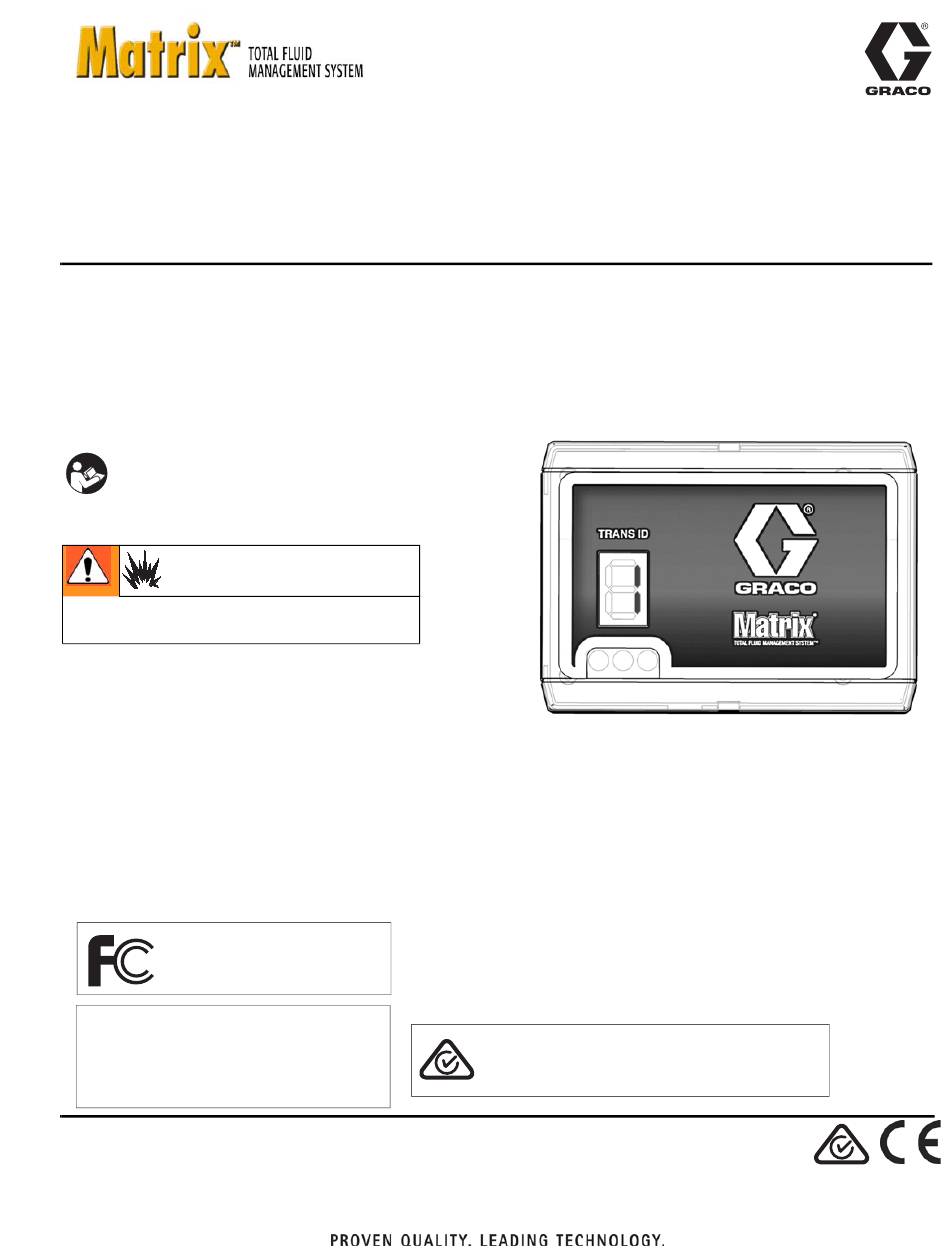

Transceiver for
Matrix Systems
- For use with Matrix Total Fluid Management System Components -
Part: 257464
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
Not for use in hazardous locations or in explo-
sive atmospheres!
The Matrix Transceiver contains an RF device with the following approvals:
FCC ID: TFB-FREESTAR
IC: 5969A-FREESTAR
Industry Canada Statement
The term "IC" before the certification/regis-
tration number only signifies that the
Industry Canada technical specifications
were met.
ABN 75 082 447 194
FreeStar3 ZFSM-101-3 (LSR)
313008H
EN
ti12127a
Advertisement
Table of Contents
Related Manuals for Graco Matrix 257464
Summary of Contents for Graco Matrix 257464
- Page 1 Transceiver for 313008H Matrix Systems - For use with Matrix Total Fluid Management System Components - Part: 257464 Important Safety Instructions Read all warnings and instructions in this manual. Save these instructions. Not for use in hazardous locations or in explo- sive atmospheres! ti12127a The Matrix Transceiver contains an RF device with the following approvals:...
- Page 2 Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama- tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where applicable.
-
Page 3: Transceiver Overview And Component Id
Transceiver Overview and Component ID Transceiver Overview and Component ID Transceivers use a radio frequency (RF) signal to facilitate communication between the Matrix PC and other hard- ware components in the Matrix System. The number of transceivers a Matrix System can support is determined by the type of system (Basic/Pro/Premier) you have. -
Page 4: Typical Transceiver Installations
Typical Transceiver Installations Typical Transceiver Installations Locate the transceiver in the main part of the shop, high on a wall or on the ceiling, in a location that provides an unobstructed line of site, near the meters and/or tank level monitors. If the transceiver is mounted outdoors, it must be placed into a protective, water proof, non-metallic, outside housing. -
Page 5: Two -Transceiver Facility Layout
Typical Transceiver Installations Two -Transceiver Facility Layout Tank Parts Up to 4000 ft (1219 m) Room Room RS422 connection. Matrix Computer Meters Transceiver 2 Transceiver 1 Meters Meters Meters 313008H... - Page 6 Connecting Transceiver to Matrix PC Connecting Transceiver to Matrix PC Plug and Play USB Cable- . 5) For distances between Transceiver and Matrix PC of 16.4 ft. (5 m) or less. 1. Connect USB connector (1) to computer USB port (2).
- Page 7 Connecting Transceiver to Matrix PC RS422 Cable Wire Orientation 4. The green power light (G) will illuminate indicating the Transceiver is on. See F . 7. NOTE: The Solid Grey and Solid Blue wires identified in F are identified as a reference to ensure correct orientation of components when connecting Transceiver to RS422 Cable 1.
- Page 8 4. Attach back plate to the wall or ceiling using screws. the Matrix Transceiver(s) connections, a USB hub must be used. These hubs are not supplied by Graco. Installing Transceiver During system installation, double-faced tape or screws can be used to allow relocation of the Transceivers to Mounting Holes optimize RF communication.
-
Page 9: Operation
Operation Operation Once the Matrix system is installed, you can verify that the Transceiver is functioning correctly by observing each component’s indicator light. Lights (H) will flash whenever there is communication between the Transceiver and Matrix PC software. . 13 Transceiver See F . -
Page 10: Transceiver Parts
Transceiver Parts Transceiver Parts 255731 ti12692a Accessories Ref. No. Part No. Description Part No. Description 15K769 LABEL, ID, Matrix transceiver 255731 CONVERTER, USB to RS422 15K747 COVER, transceiver 119572 CABLE, RS422, 1000 ft (305 m) 255174 BOARD, circuit assembly 15T999 CABLE, USB, 16.4 ft (5 m) 120174 SCREW, panhead #2... -
Page 11: Troubleshooting
Troubleshooting Troubleshooting Problem Cause Solution Transceiver will not com- Incorrect Transceiver ID selected Ensure correct Transceiver ID is municate to meters and selected. TLMs USB cable is not connected between Verify that USB cable connects trans- the transceiver and PC. ceiver to PC correctly. -
Page 12: Technical Data
Technical Data Technical Data Transceiver Weight 1.0 lbs. (454 g) RF Frequency 2405-2480 MHz RF Transmit Power 10dBm/10mW Unobstructed RF Range (based on building 300 to 500 ft (91.4 to 152.4 m) construction and RF environment) Obstructed RF Range (based on building 250 to 300 ft (76.2 to 91.0 m) construction and RF environment) RF Operating Temperature Range... - Page 13 Notes Notes 313008H...
-
Page 14: Graco Transceiver Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twenty-four months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
