Wen 3410 Manual

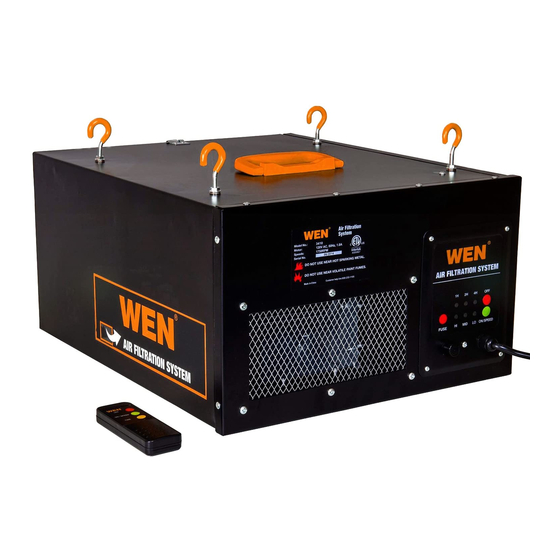

3-speed air filtration system
Hide thumbs Also See for 3410:

Advertisement

Quick Links

Replacement
Filters at
WENProducts.com
Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe,
reliable service.
Filtration System
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
3-Speed Air
Model # 3410
bit.ly/wenvideo
(M-F 8AM-5PM CST)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3410 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen 3410

Summary of Contents for Wen 3410

  • Page 1 IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions.

  • Page 2: Table Of Contents

    Know Your Air Filtration System Assembly and Adjustments Operation Maintenance Exploded View & Parts List Warranty TECHNICAL DATA Model Number: 3410 Motor: 120 V, 60 Hz, 1A, 1/6HP Air Flow Speeds: 300, 350, and 400 CFM Filters: 1 micron inner/5 micron outer Sound Output:...

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFE- TY INSTRUCTIONS. WARNING: To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read and understood.
  • Page 4 GENERAL SAFETY RULES 15. DO NOT OVERREACH. Keep proper footing and balance at all times. Wear oil-resistant rubber-soled foot- wear. Keep the floor clear of oil, scrap, and other debris. 16. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order. Follow instruc- tions for lubricating and changing accessories.

  • Page 5: Electrical Information

    ELECTRICAL INFORMATION GROUNDING INSTRUCTIONS IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug.

  • Page 6: Know Your Air Filtration System

    KNOW YOUR AIR FILTRATION SYSTEM Description Carrying Handle Control Panel/Receiver Fuse Power Cord Filter Lock Clip Outer Filter Hangers and Locknuts (4) Woodscrew Hooks (4) Chains (4) Remote Control NOT SHOWN: 1 - Inner Filter (present inside of machine on arrival) 2 - AA Batteries (Not Included) Carefully unpack the air filter and all its parts.

  • Page 7: Assembly And Adjustments

    ASSEMBLY AND ADJUSTMENTS The air filter is designed to circulate air and filter wood and other non-metallic dust. The unit requires only mini- mal assembly. However, it is important to consider how and where to place the unit. When selecting a site, make sure there is a suitable power source nearby.

  • Page 8: Operation

    OPERATION The air filter can be operated directly using the control panel or with the remote control. TURN ON AIR FILTER AND SPEED SETTINGS (Fig. 3 and 4) 1. Plug the power cord into an appropriate power source. 2. Press the ON/Speed button (1) on the control panel or the remote control to power on the air filter. The air filter will be running at low speed.

  • Page 9: Maintenance

    MAINTENANCE WARNING: To reduce the risk of injury and electric shock, unplug the air filtration system from the power source before changing the air filters or servicing the unit. CHANGE THE FILTERS (Fig. 5 and 6) Check the inner and outer filters periodically, depending on the amount of use, and change the filters when needed.

  • Page 10: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST  ...
  • Page 11 Fuse Holder 90243-002 Flat Washer M4 90243-040 Fuse Cap 90243-003 Lock Washer M4 90243-041 Fuse (2A) 90243-004 Screw M4X12 3410-042RF Control Panel Label RF 90243-005 Screw M6X16 90243-043 Screw M3X15 90243-006 Air Box Front Cover 90243-044 Screw M3X30 90243-007 Grid Plate 90243-045 Screw ST3.2X8...
  • Page 12 LIMITED TWO YEAR WARRANTY WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
