Summary of Contents for Wen 3410

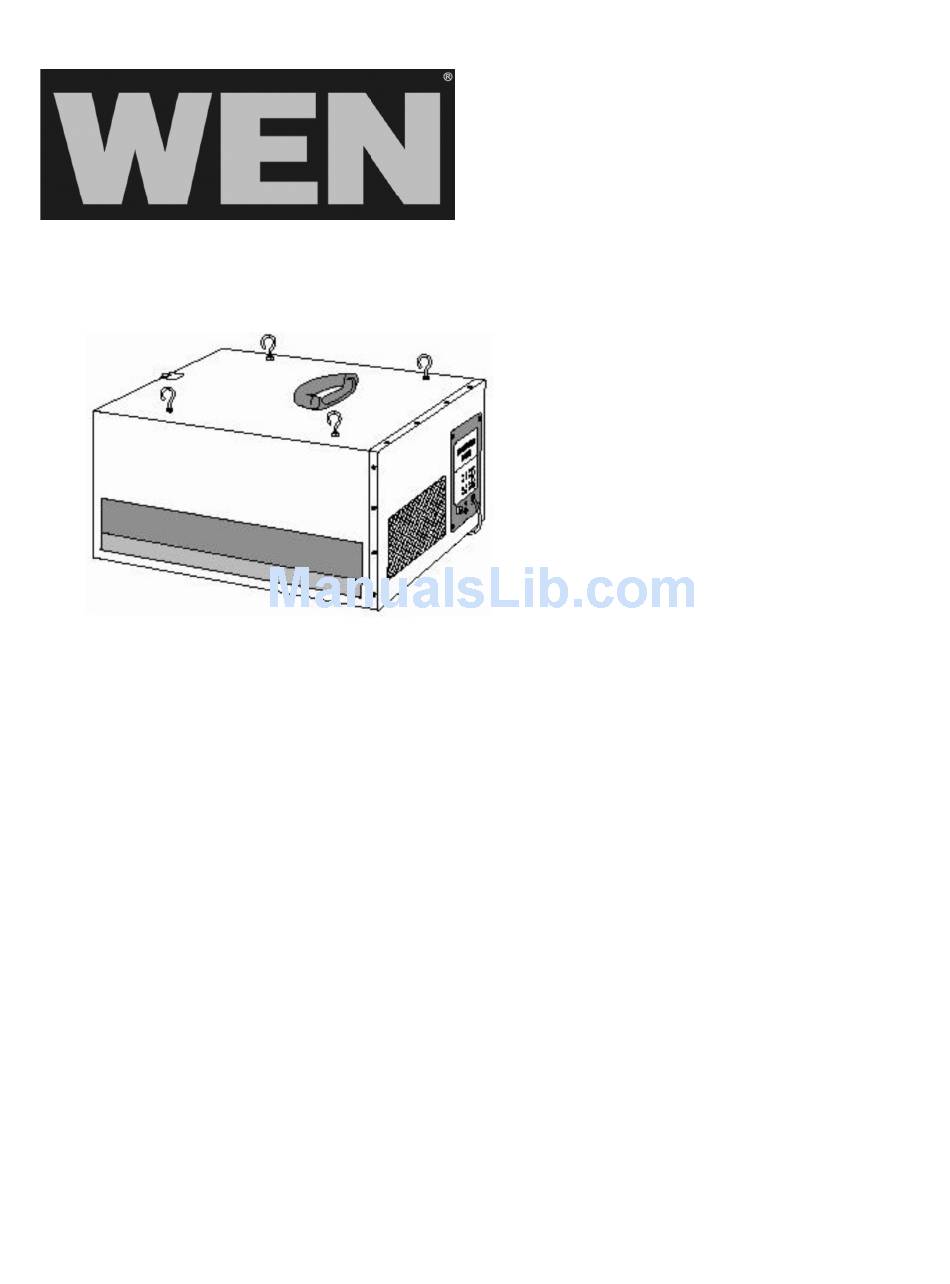

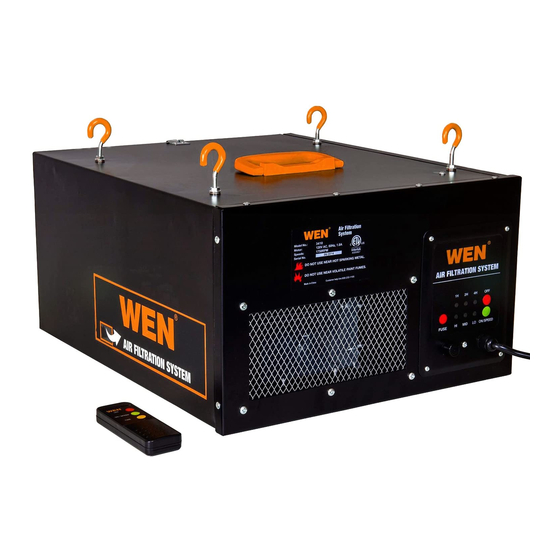

- Page 1 Air Filtration System Model: 3410 Questions? Problems? Please call our customer help line: (800) 232-1195 M-F 8-5 CST or by email: techsupport@wenproducts.com Operation and Safety Instructions...
-
Page 2: Table Of Contents
Air Flow Speeds: 300, 350, and 400 cfm Filters: 1 micron inner/ 5 microns outer Noise: 50-60 dB Maximum remote control distance: Net weight: 31 lb Part # Description 90243-026 Inner Filter 90243-027 Outer Filter Air Filtration System Model: 3410 WENPRODUCTS.COM... -
Page 3: General Safety Rules
12. NEVER STAND ON A TOOL. Serious injury could result if the tool tips or is accidentally hit. DO NOT store anything above or near the tool. 13. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order. Follow instructions for lubricating and changing accessories. Air Filtration System Model: 3410 WENPRODUCTS.COM... - Page 4 Wear a face or dust mask when working in a dusty environment. Use ear protection, such as plugs or muffs, during extended periods of operation. Air Filtration System Model: 3410 WENPRODUCTS.COM...
-
Page 5: Specific Safety Rules For Air Filters
5. Do not expose the air filter to water or rain. Do not use in damp environments. 6. Do not duct a power tool or machine directly into the air filter. Air Filtration System Model: 3410 WENPRODUCTS.COM... -
Page 6: Electrical Information
CAUTION: In all cases, make certain the outlet in question is properly grounded. If you are not sure if it is, have a licensed electrician check the outlet. WARNING: This unit is for indoor use only. Do not expose to rain or use in damp location. Air Filtration System Model: 3410 WENPRODUCTS.COM... -
Page 7: Know Your Air Filtration System
Not shown: 1-Inner filter (Assembled on the machine) 2-AA batteries Unpacking Carefully unpack the air filter and all its parts. Do not discard the carton or any packaging until the air filter is completely assembled. Air Filtration System Model: 3410 WENPRODUCTS.COM... -
Page 8: Assembly And Adjustments
4. Make sure the unit is level horizontally, and is at least 7' above the floor. If it is not, remove the air filter and adjust the length of the chain as needed. Then remount the unit. 5. Plug the air filter power cord directly into a power source. Air Filtration System Model: 3410 WENPRODUCTS.COM... -
Page 9: Operation
Turn off the air filter To turn off the air filter, press the OFF button on the control or on the remote control. Air Filtration System Model: 3410 WENPRODUCTS.COM... -
Page 10: Maintenance
1. Turn the fuse cap (1) counterclockwise to loosen and pull the fuse away from the control panel. 2. Insert a new fuse (2amps) (2) in the fuse cap and put it into the control panel. Air Filtration System Model: 3410 WENPRODUCTS.COM... -
Page 11: Air Filtration System Model
Replace the batteries in the remote control 1. Open the battery compartment on the remote control. 2. Remove the old batteries. 3. Install 2 new "AA" batteries according to the picture shown in the battery compartment. Air Filtration System Model: 3410 WENPRODUCTS.COM... -
Page 12: Exploded View And Parts List
Exploded view and parts list Air Filtration System Model: 3410 WENPRODUCTS.COM... - Page 13 Flange Nut 6 90243-028 Rubber Foot 90243-065 Chain 90243-029 Remote Control Unit 90243-069 Switch Box Cover As01 90243-AS01 Control Panel Assembly 90243-072 Wood Screw Hook 90243-036 Power Cord 90243-037 Strain Relief 90243-038 Screw M5X20 Air Filtration System Model: 3410 WENPRODUCTS.COM...
-
Page 14: Warranty
GREAT LAKES TECHNOLOGIES, LLC ("Seller") warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase. Ninety days for all WEN products, if the tool is used for professional use.
