A A UDIO S
SYSTEM
USERM
MANUAL
Nov. 2
2017 Ver. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ypsilon and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lancia Ypsilon

  • Page 1 A A UDIO S SYSTEM USERM MANUAL Nov. 2 2017 Ver. 1.0...
  • Page 3: Table Of Contents

    CONTENTS 1. INTRODUCTION..................... 2 2. TIPS ANDGENERALINFORMATION..............3 ROAD SAFETY ........................3 RECEPTION OFRADIOBROADCATINGS..............3 PROTECTIONAND MAINTENANCE................3 3. CONTROLS......................4 4. CONTROLS ONSTEERINGWHEEL............... 6 5. IDENTIFYINGYOURRADIO..................7 SWITCHING THE SYSTEM ON/ OFF ..................7 PASSWORDSCREEN.
  • Page 4: Introduction

    1. INTRODUCTION The audio system in your car is designed to match the characteristics of the passenger cabin, and in particular the appearance of the front panel. The instructions for use are given below; we recommend you read them carefully and always keep them on hand (for example, in the glove compartment).
  • Page 5: Tips Andgeneralinformation

    IMPORTANT In case of a malfunction, the system should only be checked and repaired by an authorized Lancia Service. If the temperature is too low, it can take time for the screen to reach optimum brightness. If the vehicle has been stopped for a period of time and the outdoor temperature is too high, the system may enter “thermal protection”...

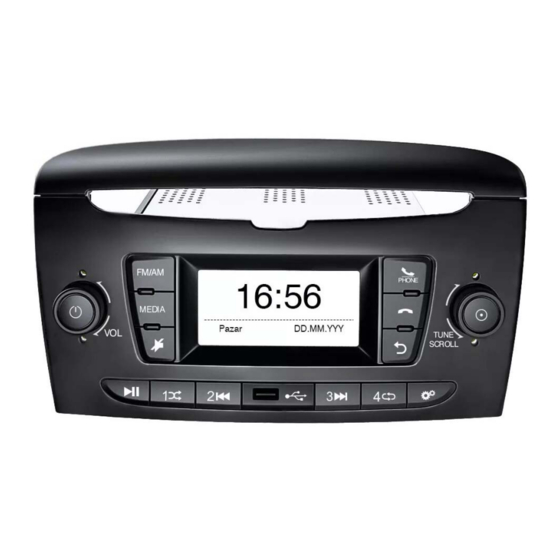

  • Page 6: Controls

    CONTROLS Button Functions Mode Switching On Brief Button Press Switching Off Long Button Press Volume Adjustment Knob Rotation Goes to last active FM/AM Source and cyclesradio sources and preset bands in the Brief Button Press order FM1/FM2/FM3/AM1/AM2 Goes to Player_Main and cycles Media Source Brief Button Press (USB/iPod/Bluetooth Audio) Volume Activation/Deactivation (Mute/Unmute) Brief Button Press...
  • Page 7 ONTROL But tton Fu nctions Confirma ation of Optio on Displayed Brie ef Button Pre anual Seek f for Radio / nob Rotation Change e the Selectio on Up/Down Step Knob Rotatio Change e the Selectio on Up/Down Continuous Play/Pa ause the Pla aying Track Brie...
  • Page 8: Controls Onsteeringwheel

    CONTROLS ON STEERING WHEEL The controls for the main system functions are present on the steering wheel to make control easier. The activation of the function selected is controlled, in some cases, by the duration of pressing button (short or long press) as described in the table below. Button Functions Mode Volume Activation / Deactivation (Mute / Unmute) Brief Button Press...
  • Page 9 GENER RAL INFO ORMATIO SWITC CHING TH HE SYSTE M ON/OFF The sys stem is switc ched on by p pressing brief fly the tton/knob. Fo or switching off the radio, p press the button/knob b long. Turn the button/k knob clockw ise toincreas se the...
  • Page 10: Radiomode

    RADIO (TUNER) MODE FM / AM Press the FM/AM button, to enter the radio mode and tuner band (FM1FM2FM3AM1AM2). The radio is equipped with the following modes: • AM • FM Volume & Mute • Rotate the rotary knob to adjust the volume. When the audio system is turnedon, the sound will be set at the same volume level as lastplayed (If Max Volume Setting is not set to ON).
  • Page 11 RADIO (TUNER) MODE Setting Presets The Presets are available for all Radio Modes, and are activated by pressing any of the four Preset buttons, located at the bottom of the screen. If an adjustedfrequency of a radio station wanted to be commit into memory, press and hold the desired numbered button for more than 2 seconds or until you hear a beep confirmation.
  • Page 12: Usb

    EDIA MO DIO SOUR RCE SELE ECTION This chapter des scribes the in nteraction mo odes concer ning the ope eration of Blu uetooth MEDIA Audi o / USB / iPo od. To activa ate or change e “Media Mo de”...
  • Page 13 DIA MOD BROWSE menu appe ears when user presses “TU UNE / SCRO OLL” button. User can navigat e inside list b by rotating “T TUNE /SCROLL” knob, enter in directorie es by pressing sa ame button. Pressing a song directly sta arts playing the song...
  • Page 14 Radio wil l show PIN N on display, the en it is nec cessary to s earch the Radio “Lancia” fro om Phone. Insert the PIN sho own on radio o display to P Phone. After enter ring Pin nu...
  • Page 15 PHONE PHONE-SELECT screen is selecting already paired (before paired) phone to start Bluetooth connection. PHONE-DELETE screen is deleting an already paired (before paired) phone from radio paired list. Thus, radio will not try to connect to deleted phone. If there is a connected device to the radio.
  • Page 16 PHONE PHONE-CONTACTS can be seen by entering “Contacts” menu item. During new pairing process, or connection in- process (after radio turns on, it takes up to 20 seconds to connect already paired phones), “Loading, Please Wait” warning will be shown, until whole phonebook is downloaded to the radio.
  • Page 17: Phone Mode

    PHONE PHONE-CONNECTED main screen is shown when “Connected Devices” menu item is selected from the PHONE BROWSE screen. There are 2 different modes for connecting Bluetooth devices;  PHONE Mode: For Handsfree talk with BT-enabled mobile phone.  AUDIO Mode: For listening music from BT-enabled devices.
  • Page 18: Audio

    SETTINGS SETTINGS To access the SETTINGS menu,press button. The menu includes the following items: • AUDIO • SYSTEM AUDIO SETTINGS To access the “AUDIO” Settings menu, press the button and chose the AUDIO. The menu includes the following items: • Bass •...
  • Page 19 SETTINGS - AUDIO EQUALIZER MODE Selection of Preset Equalizer Modes • Rock • Jazz • Classic • UserDefined CUSTOMIZE USER - SELECT Setting up frequency values for user customization; Use the TUNE / SCROLL rotary button to select the frequency bar you want to set and press OK to confirm.
  • Page 20 SETTINGS - AUDIO BALANCE This function allows you to adjust the balance of the sound coming from the left and right speakers. Set the balance as desired using the TUNE / SCROLL rotary knob, press OK to confirm. The adjustment can be set to 19 positions: from -9 to +9, “0”...
  • Page 21 SETTINGS - SYSTEM SYSTEM SETTINGS To access the “SYSTEM” Settings menu, press the button and chose the SYSTEM. The menu includes the following items: • Language • AlternativeFrequency • TrafficAnnouncement • Text Scrolling • Display MediaInfo • IgnitionTime • Autoplay LANGUAGE English or Italian User Interface selection.
  • Page 22 SETTINGS - SYSTEM TEXT SCROLLING If track info text is larger than the display size, full info text is displayed as scrolling. To activate / deactivate Text Scrolling, turn the rotary knob to ON / OFF, then confirm by pressingOK. DISPLAY MEDIA INFO With this option, you can see the file name and path or ID3 Tag information (Song and...
  • Page 23: Safetyguidelines

    SAFETY GUIDELINES WARNING! ALWAYS drive safely with your hands on the steering wheel. You have full responsibility and assume all risks related to the use of the device features and applications in this vehicle. Only use device when it is safe to do so. Failure to do so may result in an accident involving serious injury or death.
  • Page 24 FCC Regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 25 ENGLISH This user manua al publication is pro ovided for informa ation purposes onl ly. Lancia may mo odify the features scribedin this publ ication at any time e for technical or c commercial reaso For further informa ation, please cont act the Lancia Ass sistance Network.
