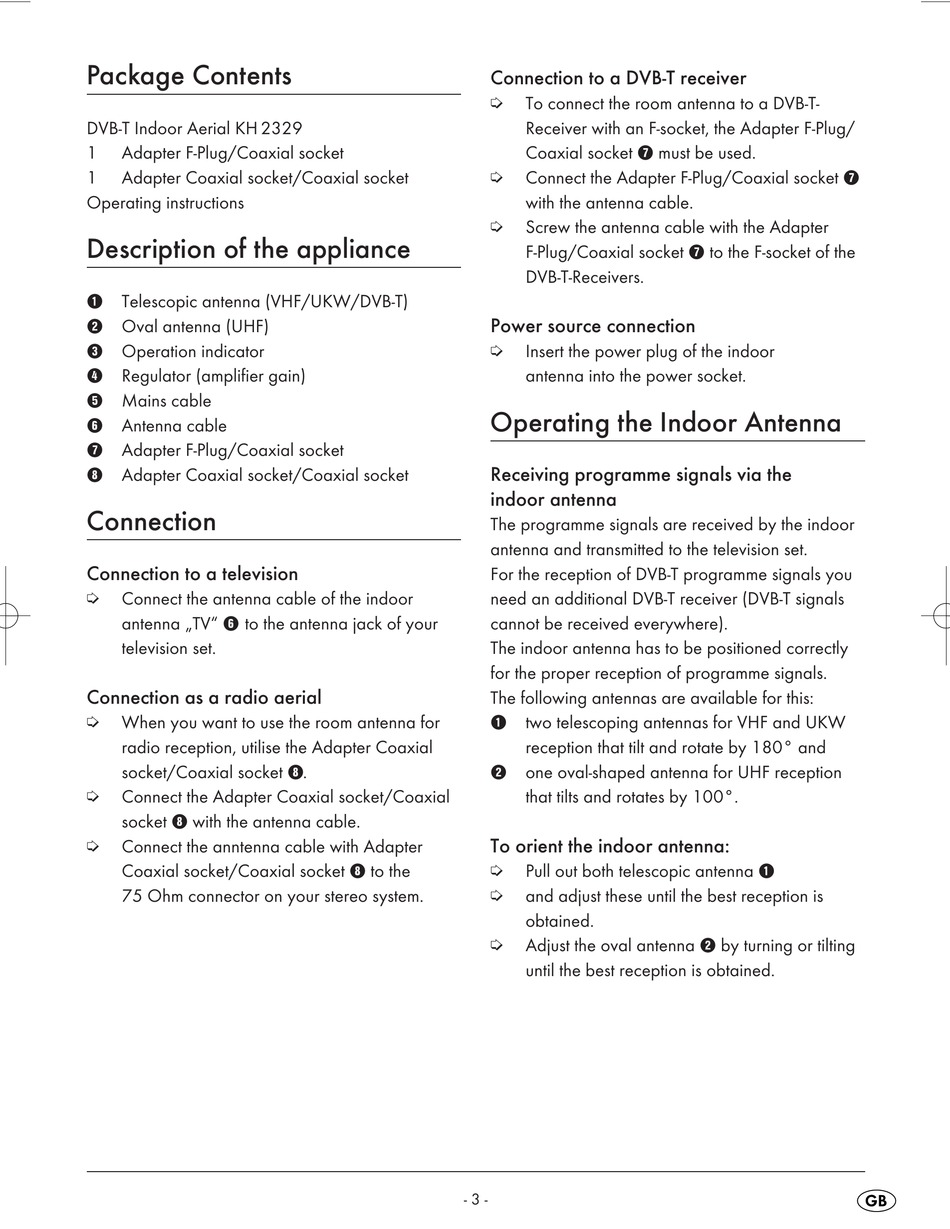

Package Contents
DVB-T Indoor Aerial KH 2329
1
Adapter F-Plug/Coaxial socket
1
Adapter Coaxial socket/Coaxial socket
Operating instructions
Description of the appliance
1
Telescopic antenna (VHF/UKW/DVB-T)
2
Oval antenna (UHF)
3
Operation indicator
4
Regulator (amplifier gain)
Mains cable
5
6
Antenna cable
7
Adapter F-Plug/Coaxial socket
8
Adapter Coaxial socket/Coaxial socket
Connection
Connection to a television
Connect the antenna cable of the indoor
antenna „TV"
6
to the antenna jack of your
television set.
Connection as a radio aerial
When you want to use the room antenna for
radio reception, utilise the Adapter Coaxial
socket/Coaxial socket
Connect the Adapter Coaxial socket/Coaxial
socket
8
with the antenna cable.
Connect the anntenna cable with Adapter
Coaxial socket/Coaxial socket
75 Ohm connector on your stereo system.
8
.
8
to the
Connection to a DVB-T receiver
To connect the room antenna to a DVB-T-
Receiver with an F-socket, the Adapter F-Plug/
Coaxial socket
Connect the Adapter F-Plug/Coaxial socket
with the antenna cable.
Screw the antenna cable with the Adapter
F-Plug/Coaxial socket
DVB-T-Receivers.
Power source connection
Insert the power plug of the indoor
antenna into the power socket.
Operating the Indoor Antenna
Receiving programme signals via the
indoor antenna
The programme signals are received by the indoor
antenna and transmitted to the television set.
For the reception of DVB-T programme signals you
need an additional DVB-T receiver (DVB-T signals
cannot be received everywhere).
The indoor antenna has to be positioned correctly
for the proper reception of programme signals.
The following antennas are available for this:
1
two telescoping antennas for VHF and UKW
reception that tilt and rotate by 180° and
2
one oval-shaped antenna for UHF reception
that tilts and rotates by 100°.
To orient the indoor antenna:
Pull out both telescopic antenna
and adjust these until the best reception is
obtained.
Adjust the oval antenna
until the best reception is obtained.
- 3 -
must be used.
7
7
to the F-socket of the
1
2
by turning or tilting
7
