Summary of Contents for Hallins Temptainer Basic Series

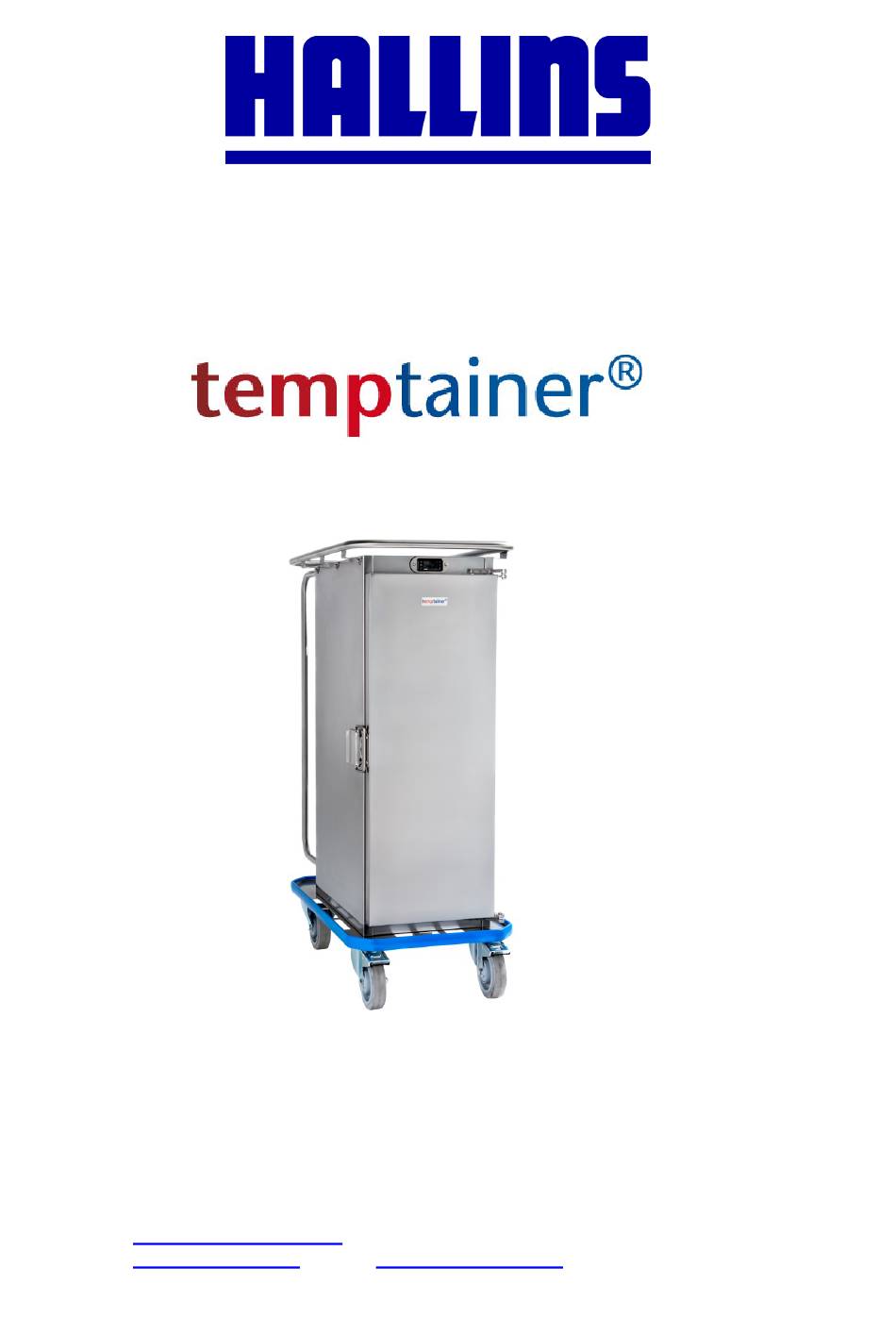

- Page 1 USER GUIDE ORIGINAL INSTRUCTIONS BASIC Hallins Sales AB Box 24 SE-599 21 ÖDESHÖG Tel.: +46 (0)144-15300 Fax: +46 (0)144-31400 Email: support@hallins.com Version: 1.0 Web: www.hallins.com www.temptainer.se Date: 02/09/2016 TT Basic-Engelska...
-
Page 2: Table Of Contents
1. CONTENTS CONTENTS ........................2 INTRODUCTION ....................... 3 DELIVERY AND ASSEMBLY .................... 4 WARRANTY ........................5 USE ........................... 6 SAFETY ..........................6 IMPORTANT – for trolleys with active heating and cooling ....Fel! Bokmärket är inte definierat. BEFORE STARTING WORK ....................7 DURING WORK ........................ -
Page 3: Introduction
2. INTRODUCTION Use and layout are generally the same for all models; any significant differences are shown in the text and pictures. Please remember that: Only qualified personnel may use the trolley! Before using the trolley for the first time, the operator is obliged to study and then observe the instructions in this manual. -
Page 4: Delivery And Assembly
Any deviations from the above must ALWAYS and IMMEDIATELY be noted on the consignment note before acknowledging receipt of the shipment to the carrier! Also contact Hallins, ideally at once but no later than three days after receipt of the shipment. Tel.: +46 144 15 300 (ask for Sales Support). -
Page 5: Warranty
4. WARRANTY The manufacturer will rectify any faults that can be attributed to production or material faults and that occur within 24 months of delivery. The warranty also applies in accordance with the following provisions: BFS 2009 General provisions for the supply of catering equipment. NL 09 General provisions for the supply of machinery and other mechanical, electrical and electronic equipment. -
Page 6: Use
5. USE The Temptainer Basic is designed to be used for the transport of food in an indoor environment under normal conditions in terms of temperature, humidity and lighting. The surface should be level, hard and non-slip and have no cavities or obstructions. The Temptainer Basic should normally be moved by hand, although some versions may also be moved in a chain. -
Page 7: Before Starting Work
IMPORTANT When using in public environments, particularly where children may be present, the user must take adequate measures to prevent people from entering the work area. We recommend that a risk analysis be prepared for the environment in question. BEFORE STARTING WORK •... -
Page 8: Temptainer Basic With Convection Heating
TEMPTAINER BASIC WITH CONVECTION HEATING * On/off knapp Connect the power cable to an earthed electrical socket (230-240 V~) and press *on at the on/off-button to start the heating process. NOTE! The trolley should be switched on approx. 20 minutes before use so that the temperature reaches the right heating temperature (approx. -
Page 9: Temptainer Basic With Compressor Active Cooling Technology
TEMPTAINER BASIC WITH COMPRESSOR COOLING TECHNOLOGY * On/off knapp Connect the power cable to an earthed electrical socket (230-240 V~) and press *on at the on/off-button to to start the cooling process. The trolley should be switched on approx. 40 minutes before use so that the temperature reaches the right cooling temperature (approx. -
Page 10: Temptainer Basic In Neutral Design
This kind of transport uses a pulling device consisting of a pin and tow-bar, which are available as options from Hallins. The maximum number of trolleys that may be connected in a chain is four. -
Page 11: Maintenance And Troubleshooting
In addition to this manual, it is possible that we may send separate instructions that accompany the trolley in terms of maintenance and troubleshooting. NOTE! Only Hallins original spare parts may be used when replacing parts. Failure to observe this may nullify the warranty obligation in full. CLEANING... -
Page 12: Troubleshooting
If despite this a problem should occur, use the troubleshooting list below to obtain relevant guidance. If problems persist after you have taken the measures specified in the list below, you should contact an authorised service engineer or Hallins Sales AB. Symptom Procedures Trolley with active heating A. -
Page 13: Overview And Technical Data
8. OVERVIEW AND TECHNICAL DATA OVERVIEW – general information The Temptainer Basic from Hallins is available in several options. The size of the trolleys is described using the number of guides, normally 12 guides, with guide gaps of 80 mm. The trolleys are adapted to gastronorm standards and only gastronorm containers, trays, etc. -
Page 14: Digital Display - Control
4. MAIN FUNCTIONS Digital controllers with off cycle defrost, AUX relay, power supply 100 or 230VAC with or w/out battery 4.1 HOW TO SEE THE SETPOINT backup. Push and immediately release the SET button: the display will show the XR30CX Set point value;... -
Page 15: Single
TECHNICAL DATA – specific information SINGLE The Single model is a trolley in either compressor cooling (CC), convection heating (HS) or neutral (N) version. Figure 1. Single model with active compressor cooling (CC). Front Back The item on the picture is equip with an extra handle on the back Figure 1. -
Page 16: Tower
Technical data – Single HS M6062012-01 Guide pair (qty) Width x depth (mm) 500x770 Height (mm) 1380 Weight (kg) Capacity (litres) Max 120 Output (W) 230-240 V, 50-60 Hz, 1- phase Wheel diameter (mm) 160 mm, 2 fixed, 2 swivel brake Technical data –... -
Page 17: Spare Parts
9. SPARE PARTS If any component is no longer working, contact your supplier or Hallins. Only Hallins original spare parts may be used when replacing parts. Failure to observe this may nullify the warranty obligation in full. Hallins stocks a full range of spare parts. -
Page 18: Stickers
10. STICKERS Machine sign (individual) -
Page 19: Operation Book - Service And Maintenance
11. OPERATION BOOK - SERVICE AND MAINTENANCE PART NUMBER: ___________________________________________ SERIAL NUMBER: ___________________________________________ DELIVERED: ___________________________________________ SERVICE INTERVAL: ___________________________________________ SERVICE & MAINTENANCE SERVICE & MAINTENANCE SERVICE & MAINTENANCE DATE ……………………………….. DATE ……………………………….. DATE ……………………………….. SIGNED ………………………………… SIGNED ………………………………… SIGNED ………………………………… OBSERVATIONS:……………………… OBSERVATIONS:………………………... -
Page 20: Recycling
Specialist companies take care of worn-out trolleys, dismantle them and utilise any materials that can be reused. Electrical items must be taken to special collection points for electrical materials. Hallins Sales AB can offer a service to take care of worn-out Temptainer Basic. Contact Hallins Sales AB for further information. -
Page 21: Eu Declaration Of Conformity
13. EU DECLARATION OF CONFORMITY Declaration of conformity in accordance with the Low Voltage Directive, 2006/95/EC, the EMC Directive, 2004/108/EC and the Machine Directive, 2006/42/EC. Manufacturer: Hallins Sales AB Box 24 SE-599 21 ÖDESHÖG Sweden Tel.: +46 (0)144 – 153 00 Fax: +46 (0)144 –...
