Applications
VeriLock
Security Sensor Application
®
VeriLock
Security Sensor Application
®
for Andersen
A-Series Frenchwood Hinged Inswing & Outswing, 400 Series Frenchwood
®
Outswing and Hinged Inswing & Outswing Entry Doors
for Andersen
A-Series Frenchwood Hinged Inswing & Outswing, 400 Series Frenchwood
®
Outswing and Hinged Inswing & Outswing Entry Doors
Thank you for choosing Andersen. /
For questions call 1-888-888-7020. For more information and/or guides visit a nde rs enw in dows . co m.
Please leave this guide with building owner.
Si tiene alguna pregunta llame al 1-888-888-7020. Para obtener más información y/o guías, visite a nde rse nw in dows . com.
Deje esta guía con el dueño de la construcción.
▶ Read guide from beginning to end before starting installation. Read all warnings and cautions during unit installation.
Lea completamente la guía antes de comenzar la instalación. Lea y respete todas las advertencias y precauciones durante la instalación de la unidad.
▶ Check with your local building code official to identify and confirm compliance with local building code requirements.
Consulte los códigos locales de construcción para identificar y confirmar que se cumplan los requisitos del código de construcción.

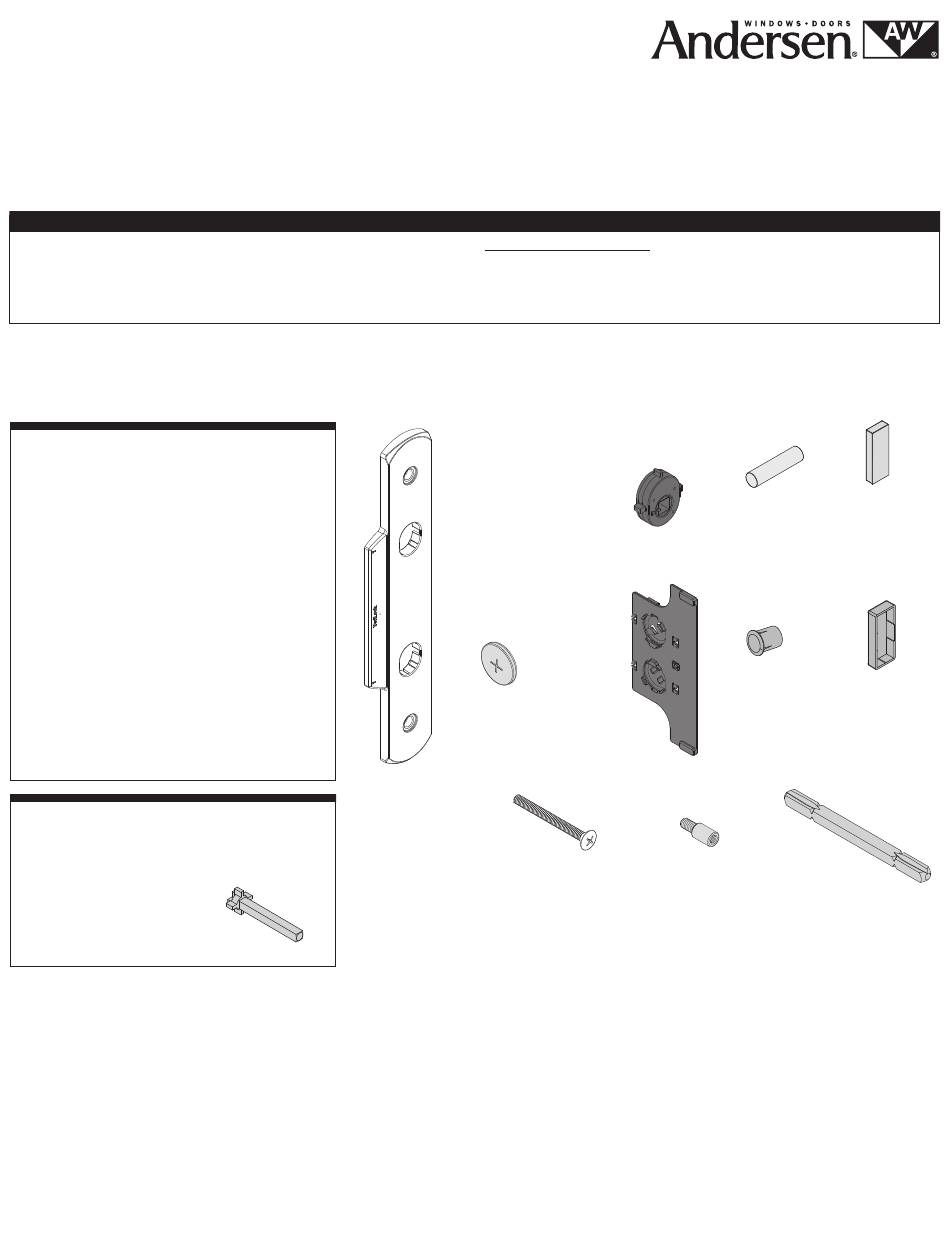

Parts Included /
Partes Incluidas
(1) Instruction Guide /
Instruction Guide
(4) VeriLock Face Plate /
(1) VeriLock Sensor /
VeriLock Sensor
(1) Actuator /
Actuator
(2) CR-2032 Battery /
CR-2032 Battery
(1) Cylinder Magnet /
Cylinder Magnet
(1) Block Magnet /
Block Magnet
(2) Cylinder Magnet Cap/
(2) Block Magnet Cap/
Block Magnet Cap
(2) Screw Standoff /
Screw Standoff
(1) 4-1/4" Spindle /
4-1/4" Spindle
(4) #8 x 1-3/4" Bolt (2 white, 2 stone)
(Tribeca® Hardware Only) /
#8 x 1-3/4" Bolt (2 white, 2 stone)
(Tribeca® Hardware Only)
Additional Parts Required for
Entry Doors Only (Ordered Seperately)
Additional Parts Required for
Entry Doors Only (Ordered Seperately)
(1) Extended Lock Actuator /
Extended Accionador del cerrojo
Tools Needed /
Herramientas Necesarias
∙ Safety Glasses /
Lentes de seguridad
∙ Phillips Screwdriver /
Destornillador Phillips
∙ 1/8" Hex Key /
Hex Key de 1/8"
∙ Drill/Driver /
Taladro/destornillador
∙ 5/16" Drill Bit /
Broca para taladro de 5/16"
∙ Tape Measure /
Tape Measure
∙ Drop Cloth /
Drop Cloth
"Andersen" and all other marks where denoted are trademarks of Andersen Corporation and its subsidiary. © 2016 Andersen Corporation. All rights reserved.
"Andersen" y todas las demás marcas que aparezcan son marcas registradas de Andersen Corporation y su subsidiaria © 2016 Andersen Corporation. Todos los derechos reservados.
Gracias por elegir Andersen.
VeriLock Face Plate
Cylinder Magnet Cap
VeriLock®
Face Plate
VeriLock®
Face Plate
CR-2032
Battery
CR-2032
Battery
#8 x 1-3/4" Bolt
(Tribeca Hardware Only)
#8 x 1-3/4" Bolt
(Tribeca Hardware Only)
Depending on individual installation requirements, some parts may not be used.
Depending on individual installation requirements, some parts may not be used.
Hinged Inswing &
®
Hinged Inswing &
®
Actuator
Actuator
VeriLock®
Sensor
VeriLock®
Sensor
Cylinder
Magnet Cap
Cylinder
Magnet Cap
Screw Standoff
Screw Standoff
Cylinder
Block
Magnet
Magnet
Cylinder
Block
Magnet
Magnet
Block
Magnet Cap
Block
Magnet Cap
4-1/4"
Spindle
4-1/4"
Spindle
913 98 3 1 BA - 0 1
