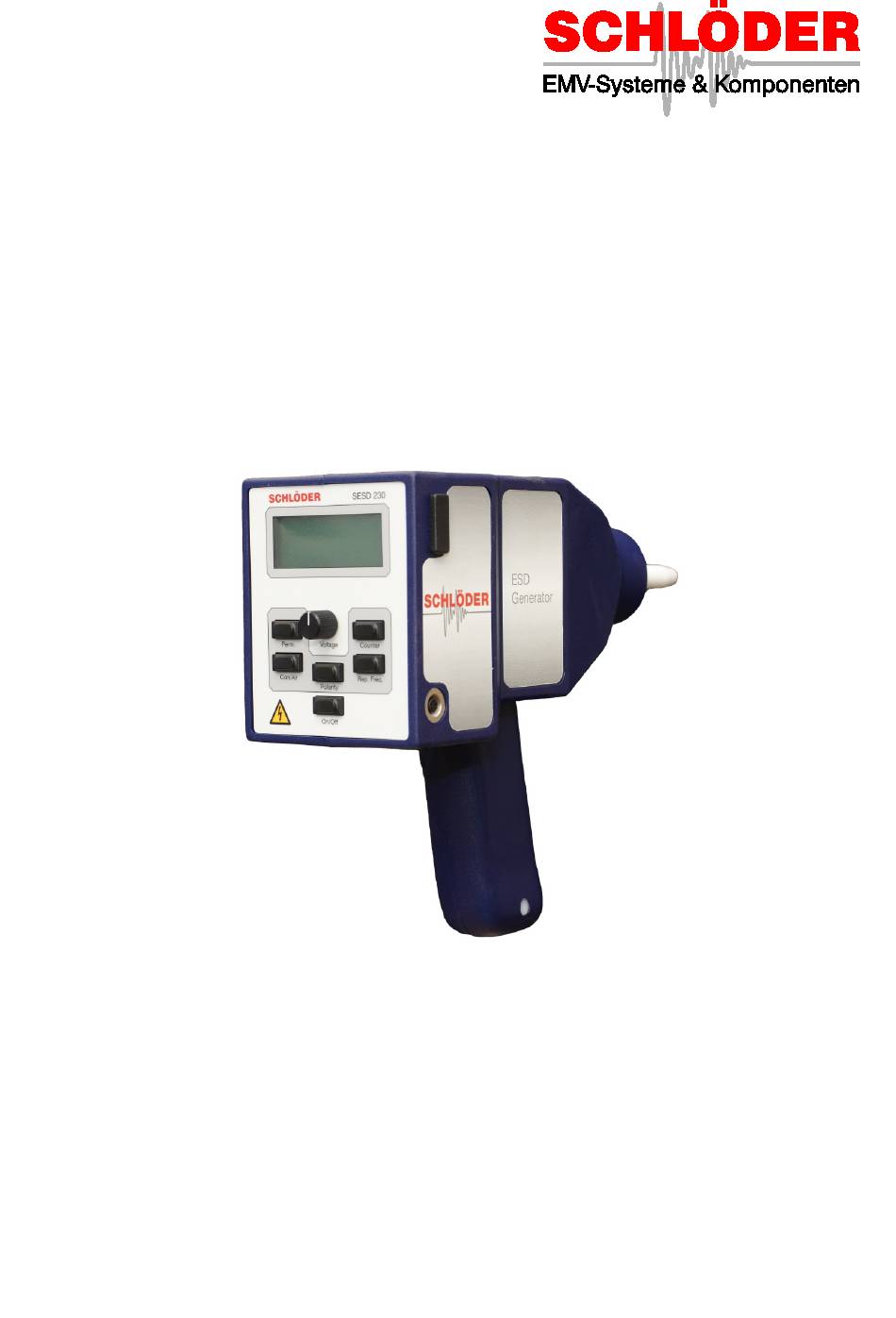

- Page 1 OPERATION MANUAL ESD - GENERATORS SESD 216 SESD 230...
-
Page 2: Operation Manual
Before using the generator please read this manual and also the warnings to the safety points under item 1 This generator contains a Li-Ionen battery. Please note also Section 5.13.1 “Note for internal battery:” User manual SESD 216 / SESD 230 281606 page 2 of 20... -
Page 3: Table Of Contents
10.2 A - / C ........................ 19 ONTACT DISCHARGE 10.3 P ........................... 19 OWER SUPPLY SCOPE OF DELIVERY ........................19 ADDITIONAL ............................ 20 BLOCK SCHEMATIC DIAGRAM ..................... 20 User manual SESD 216 / SESD 230 281606 page 3 of 20... -
Page 4: Safety Regulations
Safety regulations Warnings The test generators SESD 216 and SESD 230 creates high voltage up to 16.500 Volts and 30.000 Volts. The energy of these high voltages is limited, but injury might be incurred if the probe tip is touched. -
Page 5: Introduction
Introduction The test generator SESD 216 / SESD 230 simulates "Electrostatic Discharge" as defined in the standard IEC /EN 61000-4-2. The standard shows two test modes a) Air Discharge The discharge electrode with the domed point should first be connected to the SESD. The high voltage discharge of the generator is into an air gap. -
Page 6: Unit Function
Counter Counter pre-selectable Clear Clear of the setup values Rep. Freq. Repetition frequency Store Store of the setup values LCD Display 4 lines User manual SESD 216 / SESD 230 281606 page 6 of 20... -
Page 7: Case
AIR discharge b) Contact discharge [11] Connector for the discharge return cable [14] Connector for a tripod [12] Trigger button [13] Connector for the power supply Drawing 2 User manual SESD 216 / SESD 230 281606 page 7 of 20... -
Page 8: Description Of Function
Referring to the standard tests the electrostatic discharges have to be tested in positive (+) and negative (-) polarity. The display shows the chosen polarity on the left hand of the voltage value, "+" or "-". User manual SESD 216 / SESD 230 281606... -
Page 9: Mode Con / Air
4 MΩ. In other cases the display shows "NO CONTACT". At the level < 1,0 kV (SESD 216) or < 1,5 kV (SESD 230) the display doesn’t show usually "NO CON- TACT". Notice, in this case a discharge will be done. -
Page 10: Counter Mode
140/ 140 With this adjustment and pressing the trigger button the counter counts down and change the polarity after the half of the values (at 70 at our example) User manual SESD 216 / SESD 230 281606 page 10 of 20... -
Page 11: Continuous Discharge
"_" appears for two or three seconds. During this time the high voltage is discharged internally. While the symbol "_" is displayed, you should not try to change options. User manual SESD 216 / SESD 230 281606 page 11 of 20... -
Page 12: Trigger Button
The default usage of the generator is in the accumulator-supply The power supply can be used in a wide range of voltage (85 V to 264 V) and frequency (47 Hz to 63 Hz). User manual SESD 216 / SESD 230 281606... -
Page 13: Display The Accumulator Charge
Switch OFF the ESD generator. Press and hold down the buttons [Perm], [Polarity] and [Counter], then press shortly the “ON/OFF” button. The display shows now the serial number in the upper line on the right side. This will be displayed for some seconds User manual SESD 216 / SESD 230 281606 page 13 of 20... -
Page 14: Recall - Test Level 1 - 4
Press button „Perm“ [4] and follow the instruction in chapter 6.1 and set the parameters in the display. Now press button „Counter“ [6] and adjust the quantity of the discharge pulses – see chapter 5.6 “Counter Mode”. User manual SESD 216 / SESD 230 281606 page 14 of 20... -
Page 15: Setup - Function
Five ESD discharges are defined per step. The complete test time is depending from the selected repetition frequency. By pressing the trigger button [12] the automatic test will start. User manual SESD 216 / SESD 230 281606 page 15 of 20... -
Page 16: Programming The Automatic Tests
Depending on the voltage swing (beginning and end) and the step size results in a maximum possible number of discharges per step. A higher number cannot be set. User manual SESD 216 / SESD 230 281606 page 16 of 20... -
Page 17: Store The Input
With the confirmation “YES = Rep. Freq.” the data in the setup 10 deleted. It will only appears strokes _ _ _. By selecting “NO = Counter“ no data will changed. You come back to setup menu 10. User manual SESD 216 / SESD 230 281606 page 17 of 20... -
Page 18: Calibration
Therefore we recommend a calibration every two years !! Test setup The correct test setup can be found in the standard: Industrial IEC 61000-4-2 EN 61000-4-2 Automotive ISO 10605 User manual SESD 216 / SESD 230 281606 page 18 of 20... -
Page 19: 10 Technical Data
• Discharge return cable 2m long • Test tip for Contact discharge - „sharp“ • Test tip for Air discharge - „round“ • Operation manual • Transportation case User manual SESD 216 / SESD 230 281606 page 19 of 20... -
Page 20: 12 Additional
ESD Verification Set 2 Ohm (4 GHz) for verification the ESD pulse (With PTB – Certificate) • SESD 30 S100 Optical set and remote software 13 Block schematic diagram Drawing 5 Address of the manufacture: User manual SESD 216 / SESD 230 281606 page 20 of 20...
