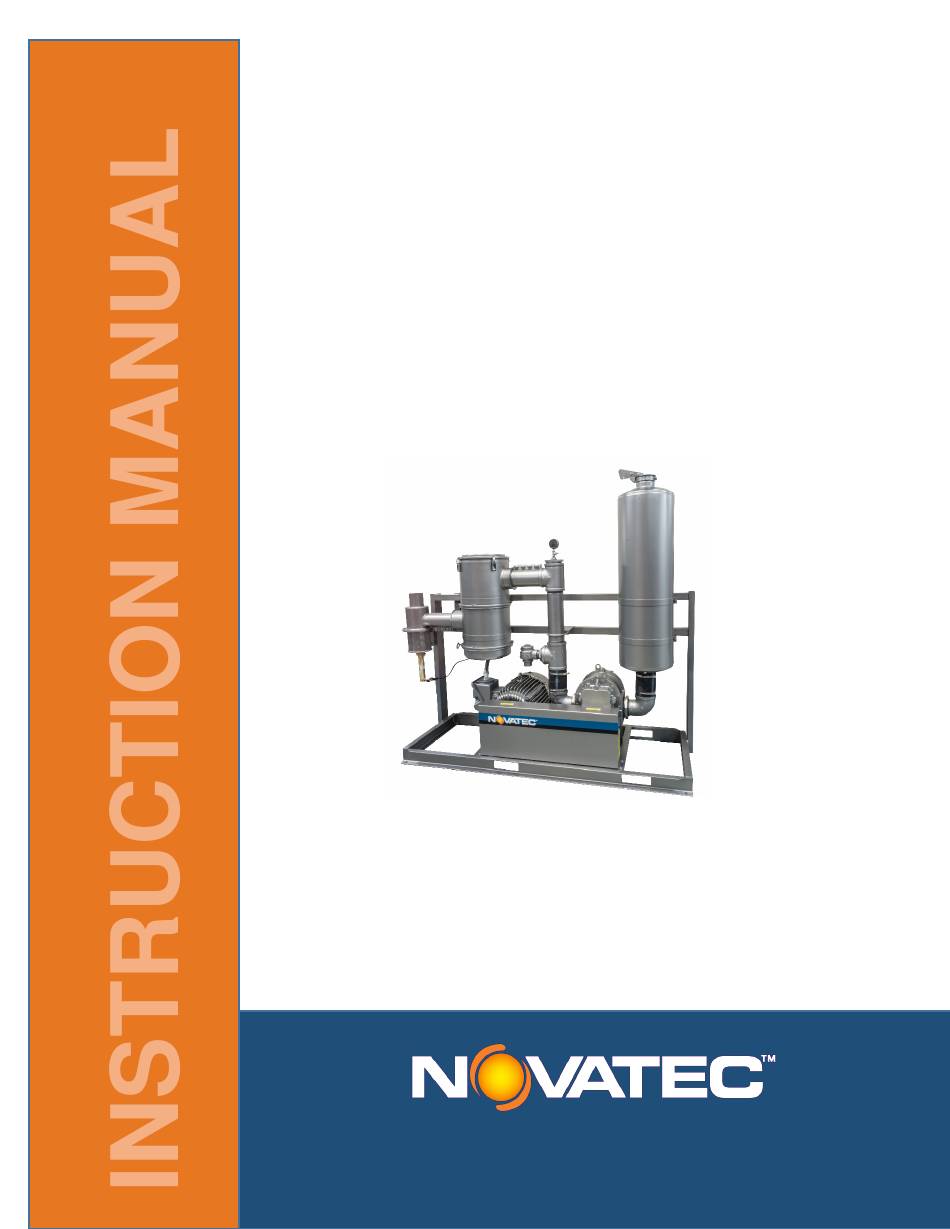

- Page 1 Positive Displacement Vacuum Pump Model: VPD-25 VPD-25 IM 12 FEB 2018 © 2018 Novatec, Inc. All Rights Reserved 222 E. Thomas Ave. Baltimore, MD 21225 Phone 410-789-4811 Parts Email: parts@novatec.com Toll Free: 800-938-6682 Service: service@novatec.com Main Fax: 410-789-4638 Sales: sales@novatec.com...
-
Page 2: Instruction Manual Vpd-25 Im 12 Feb
Instruction Manual VPD-25 IM 12 FEB 2018 Please record the following information, which is specific to this piece of equipment, in the space provided. Our Parts/Service Department will need these numbers to properly respond to any of your requests. Instruction Manual: VPD-25 IM 12 FEB 2018... -
Page 3: Table Of Contents
9.0 VPD-25 PARTS LIST ........................... 7 10.0 MAINTENANCE AND INSPECTION SCHEDULE ................8 11.0 BLOWER MAINTENANCE ........................9 12.0 WARRANTY – NOVATEC, INC. - Effective Date 1 MARCH 2017 ........... 11 © 2018 Novatec, Inc. All Rights Reserved Page 3... -
Page 4: Introduction
Instruction Manual VPD-25 IM 12 FEB 2018 1.0 INTRODUCTION The Novatec VPD vacuum pump is designed to pneumatically convey plastic pellets or powders in a vacuum conveying system. It does this by creating a vacuum to “pull” air through the piping system. -
Page 5: Unpacking
When the unit is unpacked, make a visual inspection looking for missing parts or damage that may have occurred during shipment. Report any missing parts to Novatec immediately. All electrical and mechanical connections should be checked for tightness, as vibration during transit may cause them to loosen. -
Page 6: Mechanical Installation
Instruction Manual VPD-25 IM 12 FEB 2018 6.0 MECHANICAL INSTALLATION Only qualified technicians familiar with local and national codes should install the equipment. Connect the vacuum lines as shown on the installation drawings. Connect the compressed air (80-120 psig) to air actuated valves as required. -
Page 7: Vpd-25 Parts List
Instruction Manual VPD-25 IM 12 FEB 2018 9.0 VPD-25 PARTS LIST NOTE: Information shown is for standard vacuum power units. Refer to special job drawings for custom unit information. Verify information on existing part before ordering and installing replacement. All information is subject to change without notice. -
Page 8: Maintenance And Inspection Schedule
Instruction Manual VPD-25 IM 12 FEB 2018 10.0 MAINTENANCE AND INSPECTION SCHEDULE It is recommended that maintenance and inspection is done on a scheduled basis. Maintenance requirements will naturally vary widely for each installation and specific operating conditions. It is suggested that a complete inspection be performed with the necessary maintenance at the end of the first day, the first week, the first month and the first 3 months. -
Page 9: Blower Maintenance
Root’s recommends using lubrication oil manufactured by Royal Purple that is called SYNFILM GT 220. The Novatec Part Number for this oil is 03-0991 and is available in quart containers. If you choose to use another brand of oil, be sure it is a good grade industrial type rust, oxidation, and foam inhibited, non-detergent oil such as Mobil DTE BB, Texaco R&O 220, Amoco 220 or equal. -
Page 10: Instruction Manual Vpd-25 Im 12 Feb
Instruction Manual VPD-25 IM 12 FEB 2018 NOTE: Novatec VPD Series pumps utilize Universal RAI–DSL blower models, with bearings enclosed in a lubricant bath, eliminating the grease and relief fittings. © 2018 Novatec, Inc. All Rights Reserved Page 10... -
Page 11: Warranty - Novatec, Inc. - Effective Date 1 March 2017
**5-Year Extended Warranty - When a MachineSense® data plan is activated for products with **, Novatec automatically extends the warranty to 5 years. The data plan must be activated within 60 days after product shipment, and remain active through the warranty period to maintain extended warranty eligibility. - Page 12 Use with abrasive materials will void the warranty of any standard product. Wear resistant options may be available to extend usable service life with abrasive materials. Novatec reserves the right to limit the warranty if the customer installs replacement parts that do not meet the specifications of the original parts supplied by Novatec.
