JUNO TL Series Installation Instructions

IMPORTANT SAFETY/OPERATING
INSTRUCTIONS
1. Read and save all instructions.
2. Do not install this Trac in wet locations.
3. Do not install any fixture assembly closer than 6
inches from any curtain or similar combustible
material.
4. Trac intended to be connected to 12 volt second-
ary of an isolated type transformer supply.
5. Use only fixtures and fittings intended for use with
Juno TL series Trac.
6. Do not exceed 20 amp capacity of Trac (240
watts at 12 volts).
7. Reference local electrical/building codes for
approved wiring techniques.
TRAC INSTALLATION
A. Installing Trac 12 using standard
endfeed connector:
1. Attach Trac to mounting surface using #6
toggle bolts or wood screws (supplied) at
12˝ intervals.
2. Remove endfeed cover and loosen terminal
block set screws.
3. Insert 12 volt supply wire from transformer
secondary and tighten set screws. Tighten
screws to a torque at 7 in/lb. minimum.
(Do not use wire smaller than No. 12 AWG).
4. If wire is being fed in from end, carefully
remove center breakout tab from cover and
re-install onto endfeed.
Note: See separate instructions for installing Trac in
conjunction with TL34 conduit feed. TL21 out-
let box canopy, or in-line with TL546/TL547
transformers.
B. Joining Trac sections:
1. Remove dead end from first Trac.
2. Remove endfeed cover from second Trac.
3. Insert end of first Trac attachment screw and
terminal block set screws over buss bars.
Tighten screws to a torque at 7 in/lb.
minimum.
4. Break out end of cover and re-install onto
connector.
C. Field cutting instructions:
1. Remove dead-end and endfeed connector.
2. Loosen endfeed Trac attachment screw and
pull out endfeed so buss bars pass point
where Trac will be cut.
3. Cut Trac with fine-tooth hack saw, slide
endfeed with buss bars back into Trac and
re-tighten Trac attachment screw.
4. Using side-cutters, cut buss bars 1/4˝ longer
than Trac and re-install dead-end or desired
connector.
1300 South Wolf Road • Des Plaines, IL 60018 • Phone 800-323-5068 • www.junolightinggroup.com

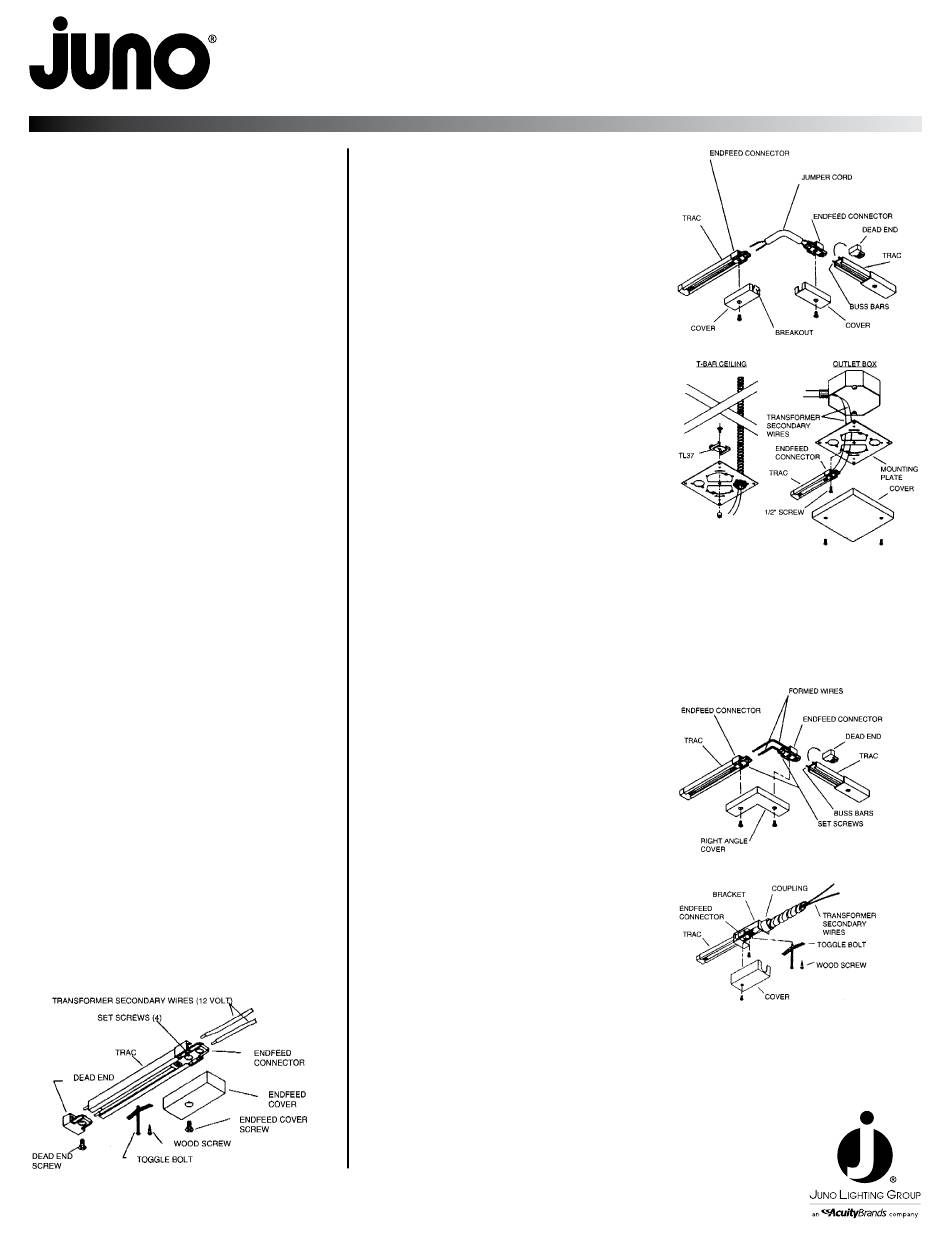

INSTALLATION INSTRUCTIONS
For Juno TL Series Low Voltage Trac
TL20 Adjustable Joiner
1. Remove dead-end from Trac.
2. Slide TL20 endfeed connector into Trac over
buss bars. Tighten endfeed Trac attachment
screw and terminal block set screws.
3. Secure TL20 cover to TL20 endfeed connector.
4. Remove cover from endfeed of other Trac and
attach jumper cord wires using terminal block
set screws. Tighten screws to a torque of 7 in/lb.
minimum.
5. Carefully remove center breakout from endfeed
cover and secure cover onto endfeed connector.
TL21 Outlet Box/T-Bar Ceiling Feed
A. Feeding Trac from outlet box:
1. Attach mounting plate in outlet box.
2. Remove and discard cover from endfeed
connector and mount endfeed connector to
mounting plate using 1/2˝ screw.
3. Mount Trac to ceiling.
4. Attach secondary transformer wires to end
feed connector using set screws. Tighten
screws to a torque at 7 in/lb. minimum.
5. Secure cover to mounting plate (if feeding
more than one (1) Trac, carefully remove the
corresponding breakout in canopy).
B. Feeding Trac in T-bar Ceiling:
1. Attach TL37 T-bar clip (ordered separately) to
T-bar runner, and then install mounting plate
to TL37.
2. Secure secondary wires to mounting plate
using 1/2˝ conduit or BX fitting (not supplied).
3. Mount Trac to ceiling using TL37 T-bar clips
at 12˝ intervals. To complete installation,
follow steps 4 & 5 described above.
TL24 Right Angle Joiner
1. Remove dead-end from Trac.
2. Slide TL24 endfeed connector into Trac over
buss bars. Tighten endfeed Trac attachment
screw and terminal block set screws.
3. Remove cover from endfeed of other Trac.
4. Slide formed wires into endfeed connector and
tighten set screws. Tighten screws to a torque of
7 in/lb. minimum.
5. Secure right angle cover onto both endfeed
connectors.
TL34 Conduit Feed
1. Fasten conduit or BX to bracket either through
end knockout with coupler fitting (supplied) or
through top knockout with standard conduit or
BX fitting (not supplied).
2. Fasten bracket to mounting surface.
3. Remove and discard endfeed cover from Trac
endfeed connector.
4. Fasten endfeed connector to bracket with screw,
and mount Trac to ceiling.
5. Attach secondary transformer wires to endfeed
connector using set screws. Tighten screws to a
torque of 7 in/lb. minimum.
6. Secure cover to bracket.
