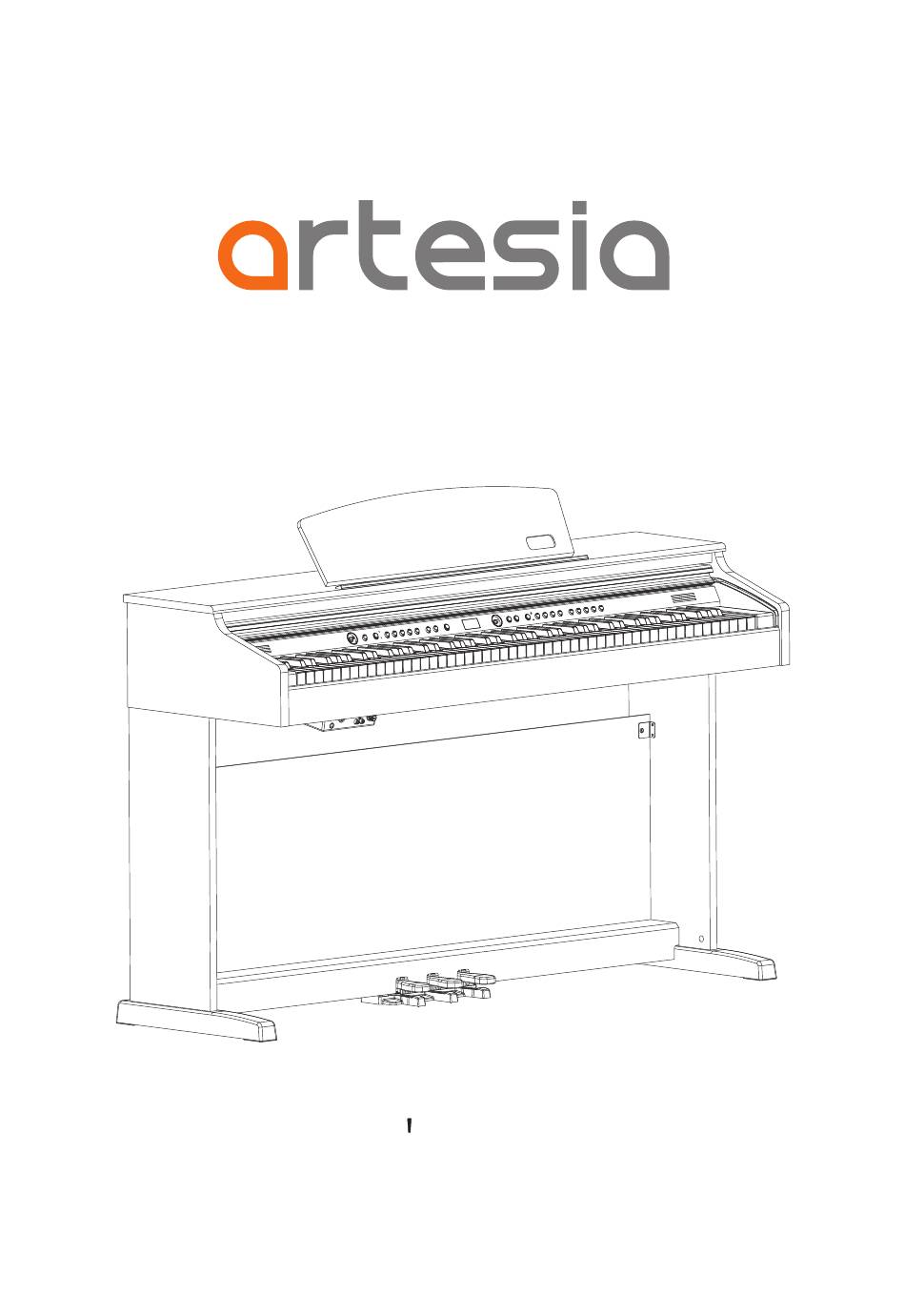

DP-10e
Owner s Manual
V
M
I
irgin
usical
nstruments

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Artesia DP-10e and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VMI Artesia DP-10e

Summary of Contents for VMI Artesia DP-10e

  • Page 1 DP-10e Owner s Manual irgin usical nstruments...
  • Page 3 Thank you for choosing the Artesia DP-10e Your Piano is not only an excellent piano but is also a traditional...

  • Page 4: Table Of Contents

    Panel Control ................Setup ..................Basic Operation ............... The Connector Box ..............Voice/ Effect ................Set Up .................. Accompaniment ..............Song Recording ............... Learning Function ..............MIDI Function ................. Factory Reset ................Appendix ................Specifications ................Warranty ................

  • Page 5: Panel Control

    Panel Control...
  • Page 6 Rear Panel DC 12V PEDAL DC 12V PEDAL Connections Panel to Host MIDI Input Level Front Panel 1. STANDBY /ON button 19. LAYER button 2. VOLUME Data Control knob 20. SPLIT button 3. DEMO button 21. REVERB button 4. BANK A / BANK B button 22.

  • Page 7: Setup

    Setup You are no doubt eager to play your new piano instrument, but first please make sure you have completed the following setup steps: 1) See the assembly guide 2) Once the piano is securely assembled, connect the plug of the foot pedal unit into the pedal jack located on the bottom rear panel.

  • Page 8: Basic Operation

    Basic Operation Standby/On Press the [STANDBY/ON] button to turn on the power and the LCD display will illuminate. STANDBY/ON USB DISK SONG Auto Standby Your piano will switch off automatically after 30 minutes of inactivity. In this case, press the [STANDBY/ON] button to turn on the power. Deactivate Auto Standby Function To deactivate the Auto Power Standby Function: hold the first white key and first black key from the left...
  • Page 9 Sostenuto Pedal (Center) The sostenuto pedal also allows you to sustain notes, but it works a little different than the damper pedal. If you play a note or chord on the keyboard and press the sostenuto pedal while the notes are held, those notes will be sustained as long as the pedal is held.
  • Page 10 Press the [DEMO] button again to stop playing the Demo Song. [+ / YES] & [- / NO] These buttons are used to adjust or select the parameters of specific functions.

  • Page 11: The Connector Box

    The Connector Box Headphones This piano is equipped with two sets of standard stereo headphone jacks to accommodate private practice or late-night playing. The internal speaker system is automatically shut off when a pair of headphones is plugged into the 1. Headphone jack. to Host MIDI Out MIDI (Musical Instrument Digital Interface) is a world-standard communication...
  • Page 12 Line Out The piano's stereo RCA line output can be used to deliver the output of the piano to a keyboard amplifier, stereo sound system, mixing console or powered speaker monitors. The piano's internal sound system will remain on unless headphones are plugged in to the #1.

  • Page 13: Voice/Effect

    Voice/Effect This piano has 137 voices. See page 31 for a complete list of all voices. Selecting a Voice When the upper LED indicator of the [VOICE/RHYTHM] button is lit, you can select the desired voice by pressing the appropriate VOICE button. VOICE PIANO E.PIANO...
  • Page 14 Split Button Press the [SPLIT] button to activate the split mode, your keyboard will be split into two sections that play different voices on the left and right sides of the keyboard. To activate the Split mode: press the [SPLIT] button, then when the Split indicator will flash, next press a voice select button to select the left voice.
  • Page 15 The reverb types in the list below can be selected from the reverb display. Hall1 Hall2 Room1 Room2 Room3 Stage Stage2 Plate To change the reverb level: see page 15. Chorus Shimmering, broadening effect that is added to your selected instrument voice. Press the [CHORUS] button can turn on or turn off the chorus effect.(Default:00) When the chorus mode is turned on, you can press the or [+/YES] and [-/NO]...
  • Page 16 This will be very helpful when the instrument is used by two players at the same time as they will be able to play the same piano sound in the same octave. Press [ DUET ] button again to exit the DUET mode. While the DUET feature is selected using the optional 3 lever pedal, the pedals...
  • Page 17 When the lower indicator of the [BANK A/BANK B] button is lit, press the ] button repeatedly to select the EQ Bass or EQ Treble function. Press the [CHORD/EQ] button repeatedly to select the EQ Bass , then press the [+/YES] and [-/NO] buttons or [DATA WHEEL] to set the value:-12~12. (Default:00).

  • Page 18: Set Up

    Set Up Press the [SET UP] button repeatedly or turn the [DATA WHEEL] to select the function that you desire, see the table below: Function LCD Display Range Default 00-08 Reverb Type REVERB 00-13 Chorus Type CHORUS 00-63 Reverb Level REV LVL 00-63 Chorus Level...
  • Page 19 Reverb Type ● Press the [SETUP] button repeatedly or turn the [DATA WHEEL] to select “REVERB” , then press the [+/Yes] button to confirm the selection, then use the [+/Yes] and [-/No] buttons or [DATA WHEEL] knob to select the desired Reverb Type.
  • Page 20 Chorus Level ● This function allows you to adjust the chorus depth for the voice section. Press the [SETUP] button repeatedly or turn the [DATA WHEEL] to select “CHR LVL” , then press the [+/Yes] button to confirm the selection, then use the [+/Yes] and [-/No] buttons or [DATA WHEEL] to adjust the value.
  • Page 21 Main Voice Volume ● In this function you can set the Main Voice Volume. Press the [SETUP] button repeatedly or turn the [DATA WHEEL] to select MAIN “ VOL , then press the [+/Yes] button to confirm ” the selection, then use the [+/Yes] and[-/No] buttons or [DATA WHEEL] to increase or decrease the value.
  • Page 22 Acc.Vol ● This function makes it possible to raise of lower the Accompaniment Volume of your piano. to select " Press the [SETUP] button repeatedly or turn the [DATA WHEEL] " , then press the [+/Yes] button to confirm the selection, then use the [+/Yes] and[-/No] buttons or [DATA WHEEL] to adjust the value.
  • Page 23 Transpose ● The Transpose function allows you to change the pitch of the piano in semitone steps, up to a maximum setting of 12 semitones (one octave). Press the [SETUP] button repeatedly or turn the [DATA WHEEL] to select “TRANSPOS” , then press the [+/Yes] button to confirm the selection, then use the [+/Yes] and[-/No] buttons or [DATA WHEEL] knob to adjust the value.
  • Page 24 Local on------ Normal operation. Keyboard and Controllers are sent to the Sound Engine. Keyboard plays normally. Local off------ There will be no sound produced by the keyboards own tone generation system. MIDI function will continue to work as usual. Reset ●...

  • Page 25: Accompaniment

    Accompaniment Your piano has 100 accompaniment styles which can be used to provide Fully-orchestrated Auto Accompaniment. When the Auto Accompaniment function is turned on, your piano will create fully-orchestrated rhythm, bass and chord accompaniment based on chords you play with the left hand in the Auto Accompaniment section of the keyboard(i.e.
  • Page 26 Using Auto Accompaniment When the upper indicator of the [BANK A/BANK B] button is lit. Select a Rhythm Style Reference: Select a Rhythm style .(P.21) See list of Rhythm Styles on page 32 Turn the Chord Function Reference: Chord Button "...
  • Page 27 Fill-In Press the [FILL IN /TRACK 1 ] button at any time while the accompaniment is playing to add a rthymic fill-in pattern. If you press the [SYNC/RECORD] button and then the [FILL IN/TRACK 1] button , the accompaniment will start from the fill-in as soon as a chord is detected in the AUTO ACCOMPANIMENT section of the keyboard.

  • Page 28: Song Recording

    Song Recording The recording function lets you record your performances using up to two independent tracks. The recorded data will not be lost when you turn off the piano. Start Recording When the lower indicator of the [BANK A/BANK B] button is lit. Hold down the [SYNC/RECORD] button, and then press the [INTRO/ENDING/ACCOMP], [FILL IN/TRACK 1] or [VARIATION/TRACK 2] button to enter recording mode, the [SYNC/RECORD] button indicator will light up, and [INTRO/ENDING/ACCOMP],...
  • Page 29 To play your recorded song from the beginning, simply press the [START/STOP/PLAY] button. Playback stops when the [START/STOP/PLAY] button is pressed again. SYNC INTRO ENDING FILL IN VARIATION START STOP RECORD ACCOMP TRACK 1 TRACK 2 PLAY T rack Clear When the lower indicator of the [BANK A/BANK B] button is lit.

  • Page 30: Learning Function

    Learning Function There are many play along songs built into this Piano for your practice enjoyment. These songs have separate left and right-hand parts that can be turned on and off as required so you can practice the corresponding part on the piano. Selecting A Song Press the [DEMO] button, then press the [+/YES] / [-/NO] button or [DATA WHEEL] to select Bank.
  • Page 31 Practicing The Right Hand Of The Selected Song 1). Press the [VARIATION/TRACK2] button to mute the right hand part of the song. SYNC INTRO ENDING FILL IN VARIATION START STOP RECORD ACCOMP TRACK 1 TRACK 2 PLAY 2). Press the [START/STOP/PLAY] button to start the song without the right hand part. SYNC INTRO ENDING FILL IN...

  • Page 32: Midi Function

    MIDI Function If you are an advanced MIDI user, this section will help you to access the MIDI controller capabilities of the piano. If you already know that you need this specialized functionality, then this section is for you. However, this information is not necessary in order to enjoy playing the piano.

  • Page 33: Factory Reset

    Factory Reset Press the [SETUP] button repeatedly or turn the [DATA WHEEL] to select “RESET”, then press the [+/Yes] button to confirm and then the piano will reset. R 1 2 USB DISK SETUP + / YES - / NO SONG Hold down the [+/YES] and [-/NO] buttons and press the [STANDBY/ON]button to turn on the piano, then your piano will be set back to factory defaults.

  • Page 34: Appendix

    Appendix MIDI Implementation Chart F u n c t i o n T r a n s m i t t e d R e c o g n i z e d R e m a r k s Basic Default 1-16...

  • Page 35: Voice List

    Voice List PROGRAM PROGRAM PROGRAM BANK BANK BANK VOICE NAME VOICE NAME VOICE NAME CHANGE CHANGE CHANGE PIANO SynStrg2 SciFi ChoirAah ETHNIC GrandPno BritePno VoiceOoh Sitar El.Grand SynVoice Banjo HnkyTonk Orch Hit Shamisen BRASS ElPiano1 Koto Trumpet Kalimba ElPiano2 Trombone Bagpipe Harpsich Clavi.

  • Page 36: Style List

    Style List STYLE NAME STYLE NAME STYLE NAME R&B FunkyPop R&B 1 Folk 1 R&B Shuf LATIN ROCKIN LatnPop1 Motown LatnPop2 Gospel 2 Tango GosShuf Rumba Gospel 1 Beguine Blues Latin 1 SwingFnk Latin 2 Reggae 1 Bolero BoogWoog Merengue RockRoll Salsa SlowBlus...
  • Page 37 Troubleshooting Hints When the instrument is turned on or off, a This is normal and indicates that the instrument popping sound is temporarily produced. is receiving electrical power. When using a mobile phone, noise is produced. To prevent this, turn off the mobile phone or use Using a mobile phone in close proximity to the it further away from the instrument.

  • Page 38: Specifications

    Specifications Keyboard: 88 weighted velocity-sensitive keys Display: Multi-Function LCD Display Polyphony: Voice: Sustain, Sostenuto, Soft Pedal: Bass [-12,+12]dB, Treble [-12,+12] Reverb(8 types),Reverb Level, Effect: Chorus(13 types),Chorus Level style: Syschro start, Intro, Ending, Fillin, Variation, Chord, Acc style Feature: Volume, Metronome Keyboard control Split,Layer,Duet,Tune,Transpose,6 Touch Sensitivity 10 demo + 376 learning songs...

  • Page 39: Warranty

    Warranty FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 40 Virgin Musical Instrument Company INC P O Box 2908 La Mesa, CA 91943 888-998-9848 E-mail: info@virginmi.com Virginmusicalinstrumentscompany.com...
