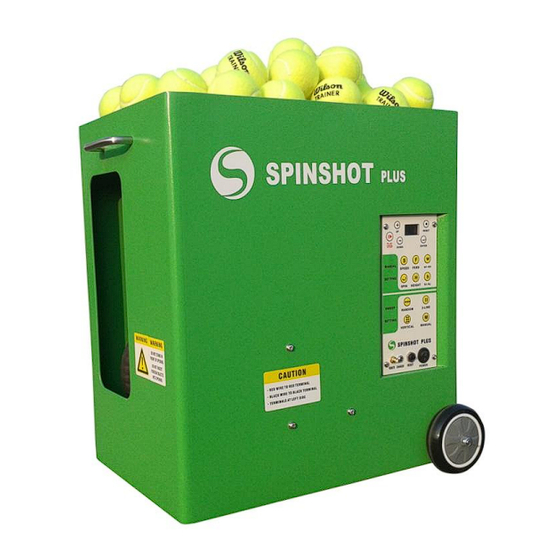

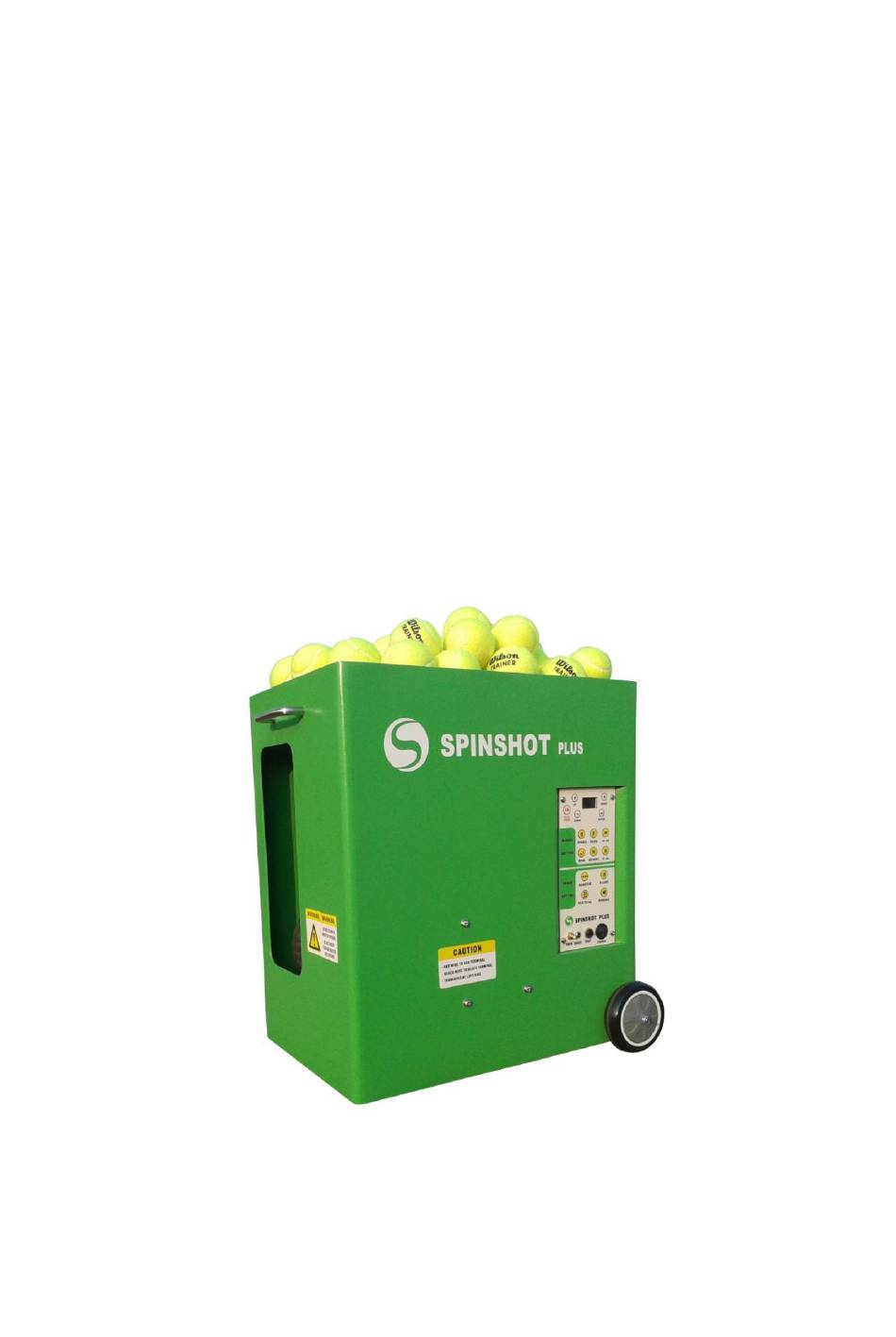

Section-1: Before Using Machine Introduction Thank you for purchasing a SPINSHOT tennis ball machine. This manual contains important information concerning the proper use and care of your ball machine. Please read owner’s manual completely before operating your machine. Tennis Balls To Be Used Please take note that brand new tennis balls are not recommended to be used especially during first ten hours of break-in period.
Section-2: Operating Machine Control Panel POWER: The power switch is used to turn on or off the machine. After you turn on the power, the machine will show its battery voltage on the LCD. Both horizontal and vertical motors will perform a functional initialization for proper function of the machine.
Page 5
Then user should select USR-xxx for wireless access before make remote connections. User can see more details and download Android installation code from http://www.spinshot.co.uk/Remote.html , or search for "Drill Maker" in Apple Store for iphone application code.
Page 6
level at 1. The SPEED value can be adjusted when the machine is in running mode and will take effective immediately. FEED: The FEED button needs to be pressed first when the user adjusts the ball feed interval. Then the user can press the UP or DOWN buttons to adjust the feed rate.
Page 7
2-Line oscillation mode (2-line oscillation or 2-line vertical oscillation). Oscillation Mode Setting and Buttons SPINSHOT-Plus model can support different oscillation modes, or a combination of oscillation modes. Overall it can support 5 types of oscillation: ...
Page 8
horizontal oscillation mode. The two-line oscillation automatically shoots to two preset locations allowing a user to practice alternating forehand and backhand shots. 2-line width can be defined by w1-w2 setting as described in section of “w1-w2”. After the machine has been set to the 2-line oscillation mode, the user can still press vertical oscillation to make the machine set to a 2-LINE HORIZONTAL AND VERTICAL OSCILLATION.
Page 9
followed by lobs. 3. Each time when the user presses the oscillation button to enter a different oscillation mode, there will be a default setting shown in the LCD. Such a setting is the preferred value for the corresponding oscillation mode. 4.
Transporting and Storage Remove all balls and close the ball hopper before transporting your SPINSHOT ball machine. Store the machine in a clean, dry location. Never store the machine in a closed trunk where temperatures can be very high. Extreme temperatures and conditions can affect the machine’s electronic board and battery.
Page 11
balls consistently. Clean the ball throwing wheels only when the machine is off. Firmly rub coarse sandpaper across the throwing wheels through the ball ejection opening to remove the dirt and ink build-up. Sand the entire circumference of each wheel and use enough pressure to rough-up the rubber surface of the wheels.
Section-3: Warranty Warranty Period The warranty service is free for materials and workmanship for a period of one year from date of original purchase except for the battery, which is warranted for three months. Scope of Warranty This warranty covers all defects in material and workmanship. The following are not covered by the warranty: ...
