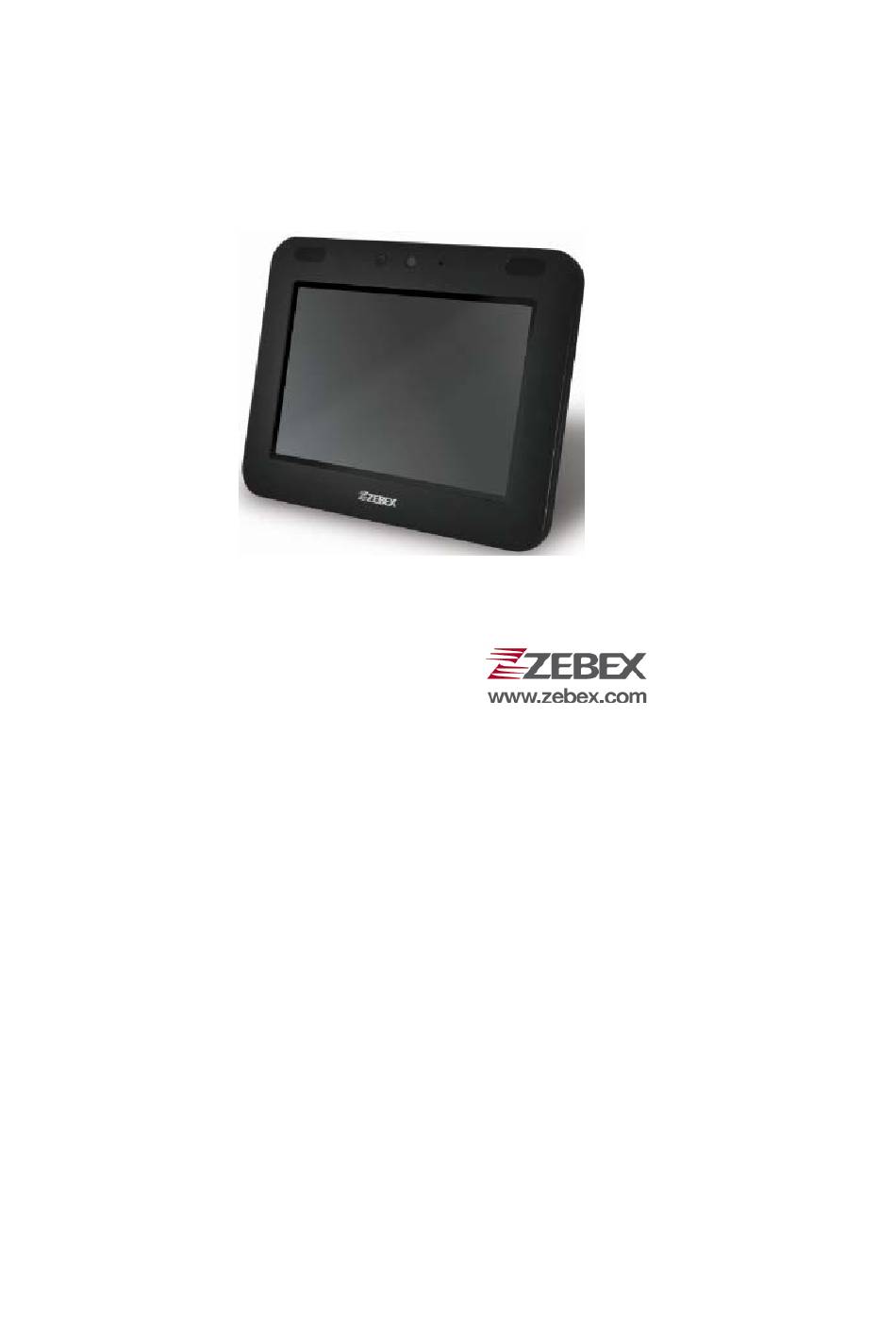

- Page 1 Z-721x Series Product QUICK START & REGULATORY GUIDE...
- Page 2 ZEBEX reserves the right to make changes to any product to improve reliability, function, or design. ZEBEX does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein.
- Page 3 Quick Reference Guide Audio Microphone Power Button Features Camera External Speakers 10 in.Touchscreen Display External Speakers BarCode Scanner Figure 1. Front view VESA Mounting Holes Figure 2. BackView...
- Page 4 Quick Reference Guide Figure 3. View of Ports Overview Z-721x Series product is a pre-assembled system consisting of the following: 10 in. touchscreen display C o n c i e r g e H U B Barcode scanner The final system hardware configuration may change based on customer preference, including additional accessories (sold separately).
- Page 5 Setup and Installation Guide Configuration Notes The instructions, and screen captures in this guide describe default software applications included with the Concierge. Customers and/or partners may develop, and install additional custom software applications which run on the Concierge. In addition, customers and/or partners may choose to add their own hardware accessories prior to installation.
- Page 6 Insert, and tighten the screws through each of the four aligned mounting holes. Figure 3. Z-721x Mounting Dimensions Getting Started Obtain a power cord (60320 C13 IEC) that is appropriate for your region and amperage. Alternatively, this device support Power Over Ethernet. Plug-in the male end of the power cord to the wall socket.
- Page 7 SYSTEM TI OMAP 4470 Dual core 1.5GHz Operating System Android 4. 2 . 2 Memory 1GB RAM & 16GB ROM(Optional : 64G ) Display 10.1" 1280x800 IPS; Capacitive type 5 points touch Scanner 1D/2D decoding capability (Option) 2 x 1W speaker Audio 1 x microphones Camera...
- Page 8 Notes : FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and ...
