Summary of Contents for Zebex Z-7212

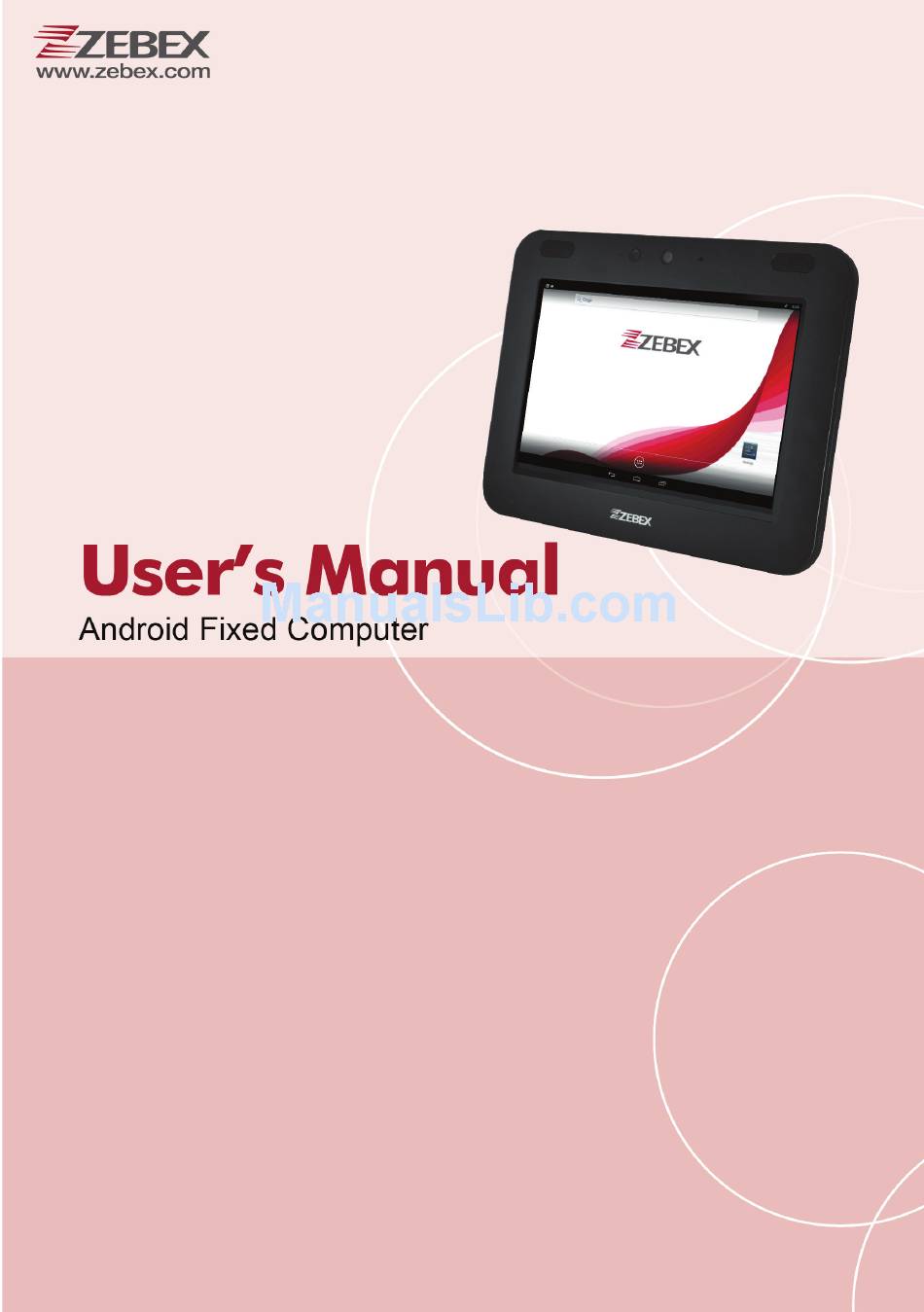

- Page 1 ’ ANUAL User’s Manual Android Fixed Computer...
- Page 3 ’ ANUAL Revision History Changes to the original manual are listed below: Version Date Description of Version 2016/06/07 Initial release Android Fixed Computer...
-
Page 4: Important Notice
Regulatory Information Caution: Only use ZEBEX approved accessories. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 5: Guidance For Printing
’ ANUAL CAUTION Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. -
Page 6: Table Of Contents
’ ANUAL Table of Contents Important Notice........................ii Regulatory Information ..................ii Guidance for Printing ..................iii Getting Started........................1 Product Overview......................1 Front View......................1 Ports ........................2 Back View......................2 Using the Device......................3 Unpacking......................3 Cleaning and Maintenance ..................3 Configuration Notes .....................3 Mounting the device ....................4 Power On the Device....................5 Scanning Barcodes ....................5 Using the Touch Screen ....................6 Home Screen........................6... - Page 7 ’ ANUAL Storage .......................20 Security ......................20 Language & Input ....................21 Backup & Reset ....................22 Add Account .......................22 Date & Time .......................22 Accessibility......................22 About Tablet.......................22 Specification........................23 Android Fixed Computer...
-
Page 9: Getting Started
’ ANUAL Getting Started Product Overview This product is a pre-assembled system consisting of the following: 10 in. touch screen display Concierge HUB Barcode scanner The final system hardware configuration may change based on customer preference, including additional accessories (sold separately). The final system mounting/installation is decided by the customer (e.g., mounting the system on a wall, on a stand, or within a customer designed enclosure). -
Page 10: Ports
’ ANUAL Ports Ethernet RS232 HDMI Volume Audio DC IN 0.5A 1.5A IN Out Back View VESA Mounting Holes Android Fixed Computer... -
Page 11: Using The Device
’ ANUAL Using the Device Unpacking Carefully remove the device from the packaging to avoid damaging the touch screen display. Once removed from its packaging, inspect it for damage. Please keep the packaging as it is the approved shipping container, and should be used if the device needs to be returned for servicing. -
Page 12: Mounting The Device
’ ANUAL Mounting the device NOTE The instructions in this guide provide basic installation guidance for the system. WARNING! Always utilize professional installers to safely install, mount, and supply power to the Concierge device. Always ensure device mounting, and power routing meets regional building codes. IMPORTANT The wall outlet must be located near the device, and be easily accessible. -
Page 13: Power On The Device
’ ANUAL Insert, and tighten the screws through each of the four aligned mounting holes. Power On the Device Obtain a power cord (60320 C13 IEC) that is appropriate for your region and amperage. Alternatively, this device support Power Over Ethernet. Plug-in the male end of the power cord to the wall socket. -
Page 14: Using The Touch Screen
’ ANUAL Using the Touch Screen The device uses a Multi-Touch screen. Swipe your finger across the screen or tap an icon to provide input to the device. Tap items on the screen to select them; press the back key to go back to the previous step. -
Page 15: Add Apps To Home Screen
’ ANUAL Tap to enable/disable Apps menu, tap to Wi-Fi access all the apps Tap to enable/disable Tap to return to Bluetooth previous screen Tap to enable/disable Tap to go back to home screen Tap to recently used Tap to enable/disable data syncing apps Tap to toggle brightness... -
Page 16: Change Home Screen Wallpaper
’ ANUAL Change Home Screen Wallpaper 1. Tap and hold any empty spot on the home screen. 2. Select the source of the wallpaper. 3. Select an image to apply as the wallpaper. 4. Tap” Set wallpaper” at the bottom of the preview screen to apply it. Change Device Settings 1. -
Page 17: General Settings
’ ANUAL General Settings Factory Data Reset Select “Settings”Backup & reset””Factory Data reset” on the device. Tap “Reset phone” to delete all data and restore back to your device’s factory settings. Note: Please plug in the device before doing a reset. Warning: Resetting your device will delete all data and content, including your Google account, downloaded files, and all your settings. -
Page 18: Data Capture Options
Data Capture Options Turn on Barcode Scan 1. Open ZEBEX Barcode Reader app the first time you use the device. Afterwards, the app automatically launches at startup. 2. To enter the barcode reader settings, swipe down from the Home screen and tap Barcode Reader. -
Page 19: General
’ ANUAL General 1. Tap “Barcode Reader” to turn the scanner on or off. 2. Tap “Prefix Settings” and “Suffix Settings” to set prefix/suffix characters. Notifications Tap “Ringtone” to set the beep sound. Android Fixed Computer... -
Page 20: Backup And Restore
’ ANUAL Backup and Restore Default Setting Tap “Restore factory default settings” to return the scanner back to factory default settings. On Device 1. Tap ”Backup current settings” to backup scanner settings on your device. 2. Tap ”Restore settings” to restore scanner settings from the device. 3. -
Page 21: Code Readable Settings
’ ANUAL Code Readable Settings Tick “Enable_all_barcodes” to make all barcodes readable or tick individual barcode type to enable desired readable barcodes. Code Options Tap a barcode type to set its options. Android Fixed Computer... -
Page 22: Output Mode
’ ANUAL Output Mode 1. Tick “Simulated keyboard” to enable the function. 2. Tick “Automatic Carriage Return” to enable carriage return after scan. 3. Tick “Clipboard Mode” to enable clipboard mode. Android Fixed Computer... -
Page 23: System Settings
’ ANUAL System Settings Select “Settings” in the APPS menu. Note: Except for special notes, the setting of this device means: If the icon on the right side is displayed as OFF it indicates this option is disabled. If the icon on the right side is displayed as ON, it indicates this option is enabled. Wi-Fi Enable/Disable Wi-Fi To enable/disable Wi-Fi, tap to turn the Wi-Fi on or off on the right side. -
Page 24: Bluetooth
’ ANUAL Instructions to connect with Wi-Fi network Click the Wi-Fi network in the list, and input the network password (if it is required) in the popup window. After the connection is successful, it will show the message like “Has connected to …”... -
Page 25: Ethernet
’ ANUAL Ethernet Enable/Disable Ethernet To enable/disable Ethernet, tap the checkbox on the right side to turn it on or off. Android Fixed Computer... - Page 26 ’ ANUAL Ethernet Configuration Use Interface option to configure proxy and IP settings for your Ethernet. Select options from drop down menus and type in settings to change the configurations. Android Fixed Computer...
-
Page 27: Data Usage
’ ANUAL Data Usage Mobile Data Tap to enable or disable mobile connection. Set Mobile Data Limit Tap to set data limit by dates. More Airplane Mode Tap to enter offline mode. Tap to set VPN. Tethering & portable hotspot ... -
Page 28: Display
’ ANUAL Display Brightness Adjust the screen brightness. If the Auto Adjustment of Brightness is selected, the system will adjust the brightness automatically. If it is not selected, you can manually move the slider to adjust it. Wallpaper Select a photo as your wallpaper. Daydream This option controls what happens when the phone is docked and/or sleeping. -
Page 29: Language & Input
’ ANUAL Uses the PIN code to unlock a locked screen. Password Enter a password of at least 4 characters for unlocking the screen. Owner Info Tick to show owner info on lock screen; type text in below window to display the text. Encrypt tablet Enable encryption using a numeric PIN or password. -
Page 30: Backup & Reset
’ ANUAL Text-to-speech Output Sets the language-specific voice for the spoken text. Pointer Speed Slide to set the pointer speed. Backup & Reset Factory data reset For the instructions and explanations, see Factory Data Reset section of this manual. Add Account Change the settings of auto synchronization function or manage the accounts in need of synchronization. -
Page 31: Specification
’ ANUAL Specification Z-7212 SYSTEM TI OMAP 4470 Dual core 1.5GHz Operating Android 4.2.2 System Memory 1GB RAM & 16GB ROM(Optional : 64G ) Display 10.1" 1280x800 IPS; Capacitive type 5 points touch Scanner 1D/2D decoding capability ; 2 x 1W speaker... - Page 32 ’ ANUAL ENVIRONMENTAL Operating 0~50℃ Temperature Storage -20~70℃ Temperature Humidity 20 ~ 90% RH (non-condensing) Environmental IP54 rated sealing(with back cover sealed) Sealing REGULATORY Safety / EMC CE, FCC , NCC , BSMI,CB ACCESSORIES Option Adapter(Input: AC100~240V, 50~60 Hz ; Output: 12VDC / 4.16A; Efficiency Accessory Level: VI) Other...
