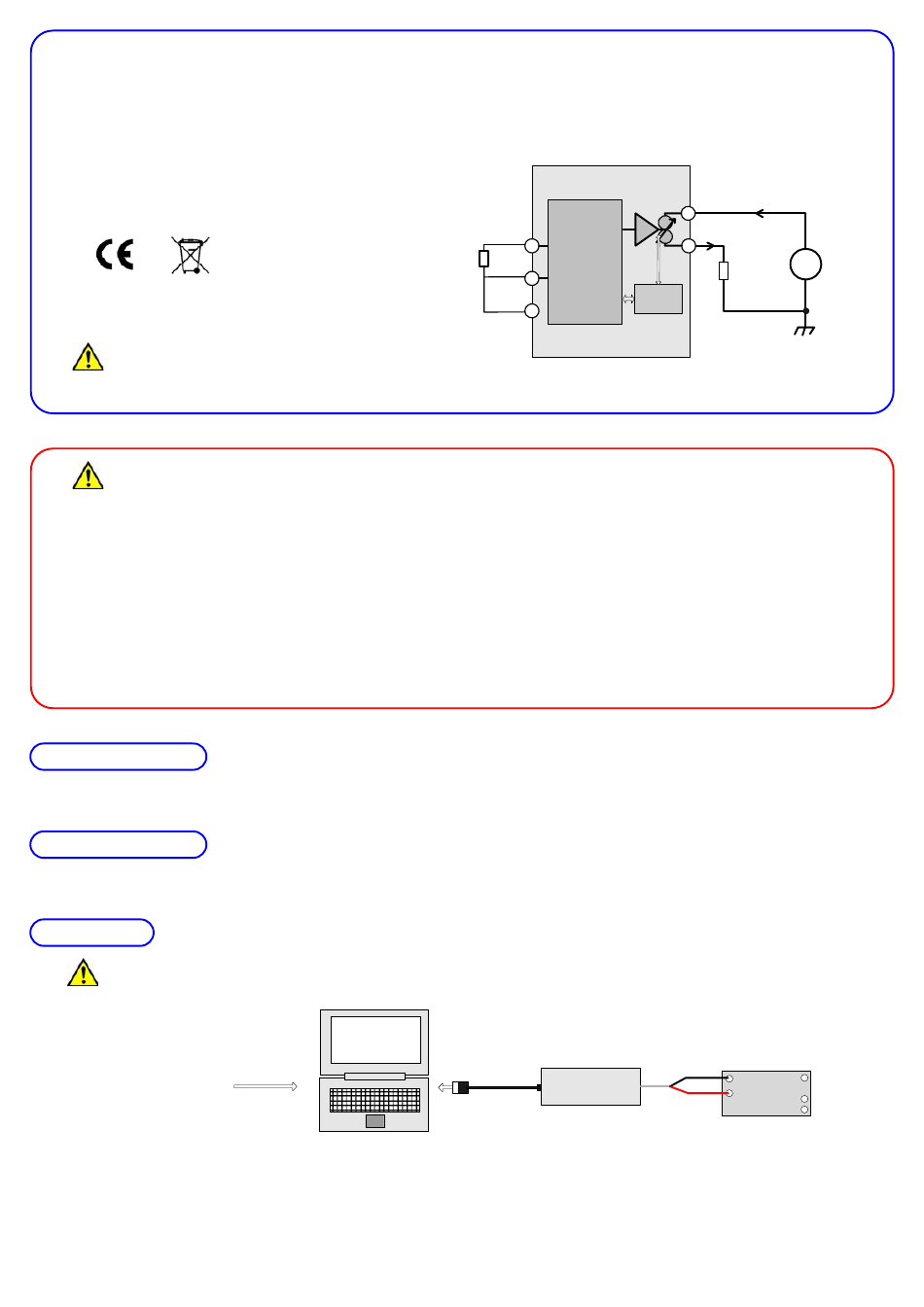

USER GUIDE
SMART PCB TRANSMITTER INPUT PT100
TWO WIRE (4 to 20) mA
Important - Please read this document before any installing.
Every effort has been taken to ensure the accuracy of this document, however we do not accept responsibility for damage, injury, loss or expense resulting from errors and omissions, and we reserve the right of amendment without notice.
IMPORTANT - CE & SAFETY REQUIREMENTS
Product must be mounted, inside a suitable enclosure providing environmental protection to IP65 or greater.
To maintain CE EMC requirements , input wires must be less than 3 metres.
The product contains no serviceable parts , or internal adjustments. no attempt must be made to repair this product. Faulty units must be returned to supplier for repair.
This product must be installed by a qualified person. All electrical wiring must be carried out in accordance with the appropriate regulations for the place of installation.
Before attempting any electrical connection work, please ensure all supplies are switched off.
ABSOLUTE MAXIMUM CONDITIONS ( To exceed may cause damage to the unit) :-
Supply Voltage
Current with over voltage
Input Voltage
Ambient
PRODUCT SPECIFICATION
Please refer to the product data sheet for full specification.
RECEIVE AND UNPACKING
Please inspect the packaging and instrument thoroughly for any signs of transit damage. If the instrument has been damaged, please notify your supplier immediately.
CONFIGURATION
IMPORTANT Do not attempt to configure the Transmitter when connected to a loop supply.
USB SPEEDLINK SOFTWARE
The following parameter can be configured by simply entering as prompted by the software package.
· Low range
· High range
· Units
(°C, °F)
· Burnout (direction of output current on sensor burnout)
D2569_01_01 CN5192 CS2017_User_Guide
± 30 V dc (Protected for over voltage and reverse connection)
± 100 mA
± 3 V between any terminals
Temperature
(-40 to 85) °C Humidity (10 to 95) % RH (Non condensing)
COMPUTER
PT100
1
2
3
Input PT100
USB CONFIG-UNIT
USB CABLE
CONFIGURATOR
+
+
-
V
s
Loop
Load
-
COMMS
2 Wire (4 to 20) mA
Output
Pt 100
Black ‐
Red +
Factory default:
Low Range
= 0
High Range
= 100
Units
= °C
Burnout
= UPSCALE
Advertisement
Table of Contents
Related Manuals for Status PT100
Summary of Contents for Status PT100
- Page 1 USER GUIDE SMART PCB TRANSMITTER INPUT PT100 PT100 TWO WIRE (4 to 20) mA Loop Load COMMS Input PT100 2 Wire (4 to 20) mA Important - Please read this document before any installing. Output Every effort has been taken to ensure the accuracy of this document, however we do not accept responsibility for damage, injury, loss or expense resulting from errors and omissions, and we reserve the right of amendment without notice.
- Page 2 Ø 3mm MAX LOAD Ohms = (Vs ‐ 10) / 0.021 ‐ INPUT CONNECTION Loop PT100 wire must be equal length and type . Load To maintain CE compliance cable length must be less than 3 Metres. OUTPUT CONNECTION Use twisted pair or screened cables for cable lengths greater than 30 Metres. Max cable length...
