- Page 1 USER GUIDE 9584 - Sept 2011 - Version 2...
- Page 2 CTLTAPE - 4-channel DMX wall-mounted controller English Page 2...
-
Page 3: Important Safety Information
Any maintenance procedure must be performed by a CONTEST authorised technical service. Basic cleaning operations must tho- roughly follow our safety instructions. - Page 4 Its two program memories offer a quick access to your favourite ambient lighting, while an extra button allows you to use it as any standard power switch. Initially designed for the POWTAPE, POW50R and POW100R, the CTLTAPE can also adapt to any product with a compatible DMX chart.

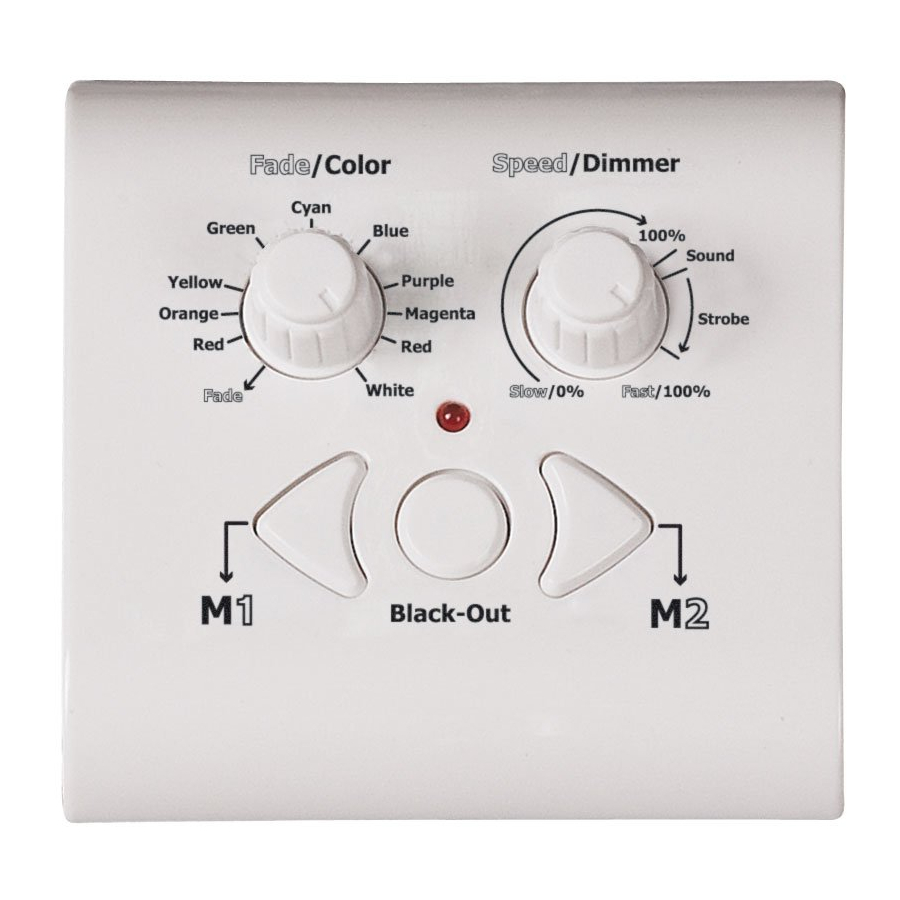

- Page 5 English 2-2 : Modes Your CTLTAPE features two distinct modes which can be accessed by two-button combinations: b - RGB1 mode: Standard mode, there is nothing to configure. In this mode, there are two distinct functions depending on the position of the Fade/Color button. Please find below the different functions available.
- Page 6 DATA+ 3-3 : DMX Connection to other devices: POW100R Your CTLTAPE features 3 pins for its DMX output (GND/DATA-/DATA+) and 2 pins for 12V power supply unit (+12V/0V). Your CTLTAPE requires a 12V power supply unit to be activated. The CTLTAPE is compatible with any 4-channel DMX device, according to the DMX chart page 9.
-
Page 7: Dmx Chart
: Dimmer 000 - 007 : Black-Out Your CTLTAPE uses 4 channels assigned to addresses 1 to 4. It is crucial to make sure your installation is compatible in terms of DMX chart and assignation. 5 - Technical specifications Main characteristics: •... - Page 8 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
