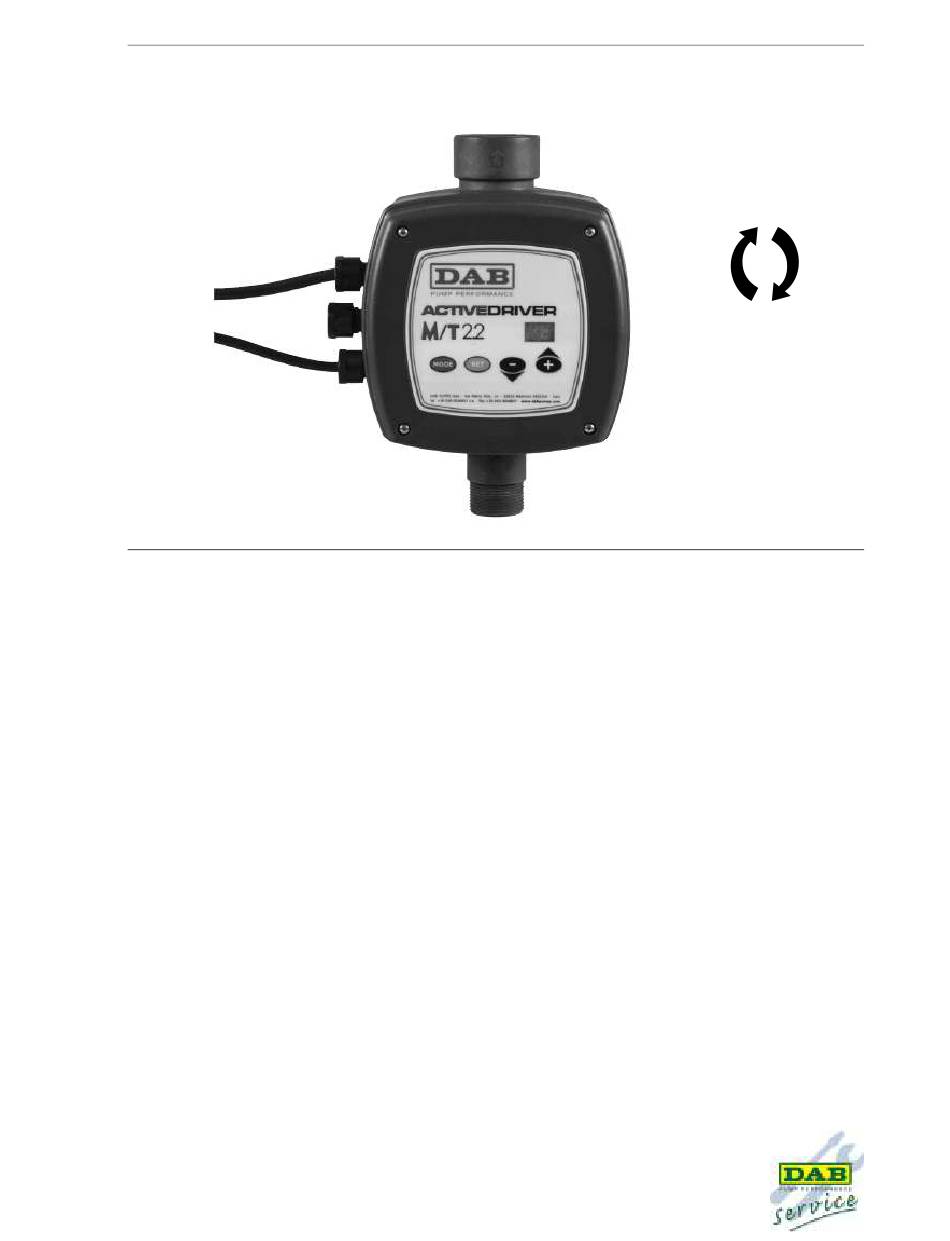

ACTIVE DRIVER
INTRODUCTION
The DAB ACTIVE DRIVER is an innovative integrated pump control system that utilizes a
variable frequency drive controller (VFD) to provide CONSTANT PRESSUE regardless of the
demand flow requirements.
>Applications
The DAB ACTIVE DRIVER will fit to most DAB domestic pump, specifically Jet, JINOX, JECOM,
EURO, EUROINOX, EUROCOM, K Series and KVCX Vertical Multistage.
The unit is available if the following configurations,
ACTIVE DRIVER M/M 1.1
Suits single phase 230v power supply, and will couple to single phase pump units up to
1.1kW, and is programmable to a maximum pressure of 6 Bar (600kPa), not exceed a
flow of 300lpm.
ACTIVE DRIVER M/T 1.0
Suits single phase 230v power supply, and will couple to three phase pump units up to
1.0kW, and is programmable to a maximum pressure of 9 Bar (900kPa), not exceed a
flow of 300lpm.

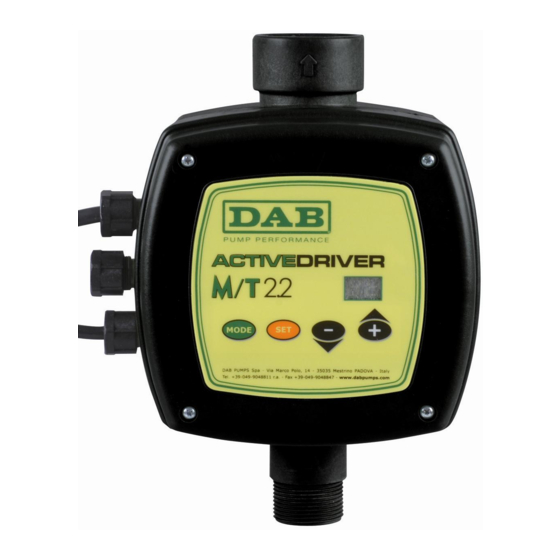

ACTIVE DRIVER M/T 2.2
Suits single phase 230v power supply, and will couple to three phase pump units up to
2.2kW, and is programmable to a maximum pressure of 9 Bar (600kPa), not exceed a
flow of 300lpm.
1
25/9/08
INVERTER
CONTROLLED

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACTIVE DRIVER M/M 1.1 and is the answer not in the manual?

Questions and answers

Related Manuals for DAB ACTIVE DRIVER M/M 1.1

Summary of Contents for DAB ACTIVE DRIVER M/M 1.1

  • Page 1 (VFD) to provide CONSTANT PRESSUE regardless of the demand flow requirements. >Applications The DAB ACTIVE DRIVER will fit to most DAB domestic pump, specifically Jet, JINOX, JECOM, EURO, EUROINOX, EUROCOM, K Series and KVCX Vertical Multistage. The unit is available if the following configurations, ACTIVE DRIVER M/M 1.1...
  • Page 2 If a duty point of 100lpm at 350kPa is required, then this should be assumed as the maximum required duty of the pump. An ideal selection for this would be the DAB KVCX35/120, as it will provide the flow required at around 380kPa and the required pressure at a maximum flow of 115lpm.

  • Page 3: Essential Information

    Programming The DAB ACTIVE DRIVER is easy to program, it is essential that key information about the DUTY POINT and PUMP are know before attempting to program the unit. >ESSENTIAL INFORMATION 1. DUTY POINT (Pressure) 2. Rated Current of Pump (not required for AD M/M 1.1) 3.
  • Page 4 Programming The ACTIVE DRIVER has a simple programming logic and is easy to program. There is a two digit illuminated LCD screen and four input buttons. By pressing and holding these buttons in sequence will allow the programmer to access different parts of the programming matrix.
  • Page 5 Programming > Pump Start Up Once you have installed the ACTIVE DRIVER and the pump is primed and ready to start, these are the simple steps to programming the controller. After switching the power supply on, the following indication should be present, = Zero Flow &...
  • Page 6 rt >ROTATION , direction of rotation of the motor, (not applicable to AD M/M 1.1). This allows you to change the direction of rotation without rewiring the power supply to the motor. To access this setting, press [mode], [set] and [-] simultaneously for five seconds, press [mode] until the display indicates , and then flashes to which is the pre...
  • Page 7 Ad>INTERCONNECTION ADDRESS , refers to the name given to each of the ACTIVE DRIVER units when they are connected in a multiple pump system. A cable connection needs to be made in order to achieve this condition. (Not applicable to the AD M/M 1.1) To access this setting, press [mode], [set] and [-] simultaneously for five seconds, press [mode] until the display indicates , and then flashes to...
  • Page 8 Programming > Resetting Factory Settings It is possible to restore the default settings by pressing [set] an [+] for two seconds whilst restoring the power supply (switching on).
  • Page 9 Programming > Quick Set Up The following is a quick set up procedure for basic operation, for all settable parameters refer to the complete input list on the last page.
