Add Paging to Your Existing Phone Line
Without an Expensive Phone System
The SLP-1 Single Line Paging controller will
allow you to page family members or co-
workers from any phone in your home or
small office. The pages can be heard over
the same speakers that are installed for
multi-zone music distribution.
The SLP-1 connects in series with a single
existing phone line. The unit has a built-in 2
watt amplifier, pre-amp output, music on hold
input, intercom features and selectable loud
ringing. The SLP-1 provides an input for a
lighted doorbell switch, allowing a door chime
to be heard over existing speakers. Page
from several different phone lines by
connecting multiple units.
Features
• Whole house/small business paging from existing
phones
• Built-in 2 watt mono paging amplifier with gain control
• Phone to phone intercom
• Page from several different phone lines by connecting
multiple units
• Music on hold
• Caller on hold
• Can provide background music from external source
• Background music mute (automatic during paging or
touch tone selectable while you are on a call)
• Selectable loud ring (electronic warble over speakers)
• Doorbell switch input (lighted or non-lighted) for acti-
vating door chime (ding-dong sound over speakers)
• Unique door chimes when used with a C-200, C-500,
C-1000B or C-2000B doorbox/entry phone controllers
• Switch selectable On-Hold alarm tones
• Stereo pre-amp input and line level output for use with
receivers and high wattage amplifiers
• Simple control commands: no touch tone programming
• Page trigger output (12V signal for enabling paging
source input on multi-source amps)
• Pre-amp volume control
• Bypass code: ignores all touch tones on next off-hook
allowing you to steer through auto attendants, etc.
• Comes complete with power supply
PRODUCT MANUAL
Applications
• Whole house paging from an existing phone line
• Add paging, intercom, and music on hold features for
small businesses
• Loud ringing / night bell
• Provide unique door chimes when used with a C-200,
C-500, C-1000B or C-2000B
Specifications
Power: 120V AC/13.8V AC 1.25A, UL listed adapter provided
Dimensions: 5.25" x 3.5" x 1.75"1 (33mm x 89mm x 44mm)
Shipping Weight: 3 lbs (1.36 kg)
Environmental: 32°F to 90°F (0°C to 32°C) with 5% to 95%
noncondensing humidity
Paging Amplifier Output: 2 watts - powers up to (3) 8 Ohm
or (16) 45 Ohm speakers
Sound Pressure: 100 dB @ 1 meter (loud electronic warble
from 25AE paging horn)
REN: 0.5A
Maximum Speaker Output Wire Run: 91m (300 ft) maxi-
mum, 18 AWG
Maximum Doorbell Switch Wire Run: 305m (1000 ft) max-
imum, 24 AWG
Max Load on Page Trigger Output: 1K Ohm
Talk Battery: 36V DC
Connections: (1) 6-position and (1) 8-position screw termi-
nal blocks, (1) 3.5mm (1/8") jack, (4) RCA jacks, 1.85m (6 ft)
audio cord with 3.5mm (1/8") double ended mono plugs in-
cluded

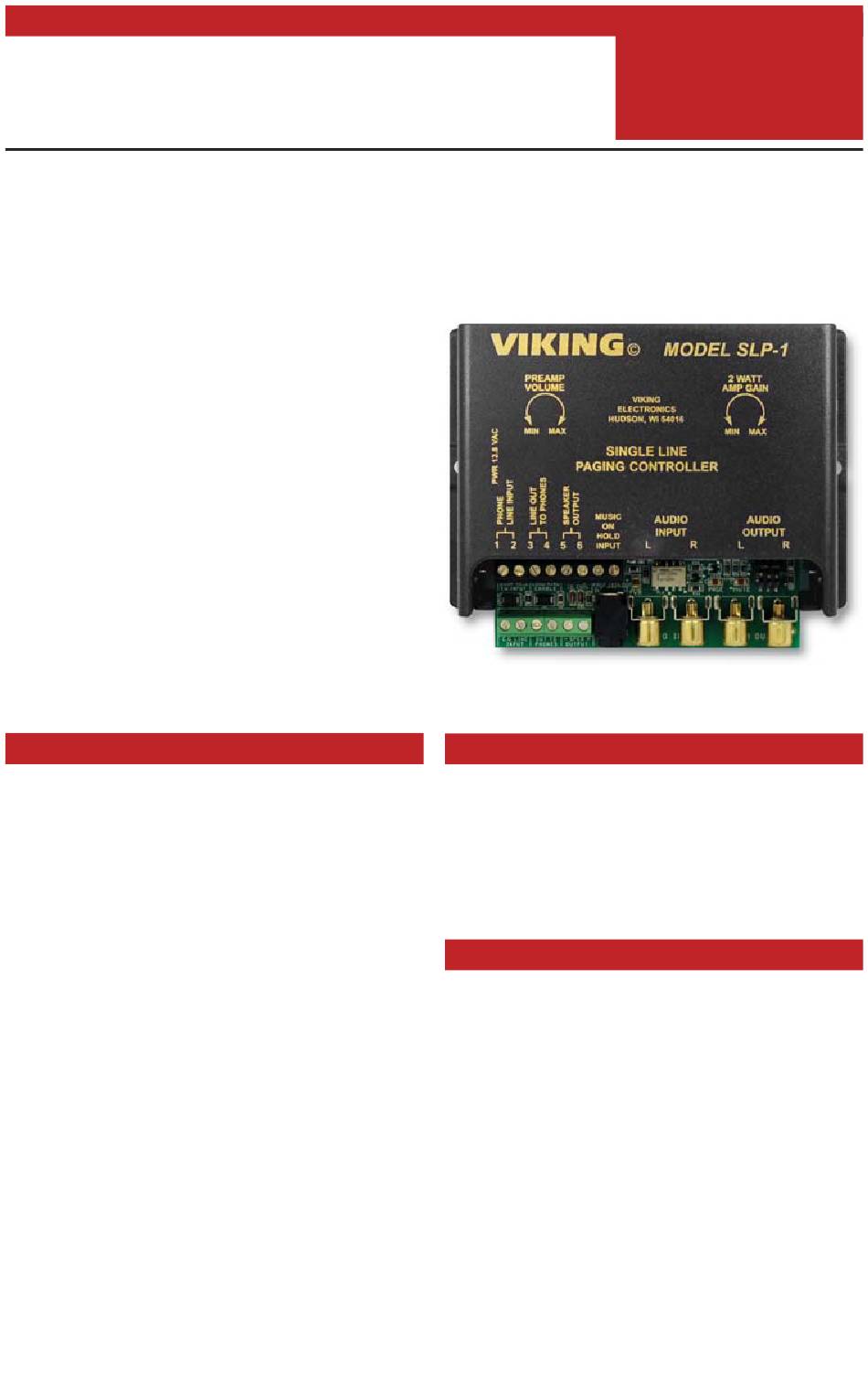

SLP-1
Single Line
Paging Controller
November 13, 2017
Advertisement
Related Manuals for Viking Electronics SLP-1
Summary of Contents for Viking Electronics SLP-1
- Page 1 The pages can be heard over the same speakers that are installed for multi-zone music distribution. The SLP-1 connects in series with a single existing phone line. The unit has a built-in 2 watt amplifier, pre-amp output, music on hold input, intercom features and selectable loud ringing.
-
Page 2: Features Overview
Pre-Amplifier Volume Control - For paging, Internal 2 Watt (Mono) Amplifier Gain loud ringing, door chime and on-hold alarm tones. Control - To adjust speaker output volume. VIKING MODEL SLP-1 © PREAMP 2 WATT J10 Page Trigger Contact VOLUME... -
Page 3: Installation And Applications
Installation and Applications A. Installation Using the Internal 2-Watt Amplifier, Stereo Receiver, Doorbell Input, Music On Hold and Providing Optional Loud Ringing VIKING 120V AC MODEL SLP-1 © PREAMP 2 WATT 13.8V AC VOLUME AMP GAIN VIKING Adapter ELECTRONICS (included) - Page 4 J9 1-3 (see diagram above). Users often turn off all zones when they retire for the evening. In this event, we recommend dedicating up to three 8-Ohm speakers on the SLP-1’s 2 watt speaker output. They should be placed in central locations (hallways, etc.) on each level so the door chime can be heard when all zones are dis- abled.
- Page 5 “dry” contact page trigger output. N.O. and N.C. relay contacts are available on solder pads J9 1-3 (see diagram above). Users often turn off all zones when they retire for the evening. In this event, we recommend dedicating up to three 8-Ohm speakers on the SLP-1’s 2 watt speaker output.
- Page 6 Entry Phone Triggered Unique Front and Back Door Chimes from a Single Line Phone The SLP-1 can be used with one or two Viking C-500 entry phone controllers. The phone line first runs through the SLP-1, then runs through one or two C-500’s before continuing on to the house phones. Connect both C-500’s “SLP Control” output terminals 18 & 19 to the SLP-1’s “Doorbell Sw Input”...
-
Page 7: Operation
If the caller hangs up while on hold, the SLP-1 can sense a CPC disconnect signal and will automatically release the line. Note: The SLP-1 has a maximum on-hold call time of 1 hour. After a caller has been on hold for 1 hour, the SLP-1 will automatically disconnect the call. - Page 8 (ding-dong) sound over the speakers. When door phone 2, 3 or 4 on the C-2000B or C-500 is activated, the SLP-1 will produce 2, 3 or 4 dings respectively. This is ideal for determining which door the visitor is located at without having to answer the telephone. Note: The C-1000B or C-2000B must have the auxiliary contact mode programmed for custom ring cadence.
- Page 9 Quick Reference Guide Make a photocopy of the Quick Reference Guide (below) and place one near your phones for quick reference to all of the SLP-1 Touch Tone commands. VIKING SLP-1 Quick Reference Guide TOUCH FEATURE TONE DESCRIPTION COMMAND “P” for Page. Speak into the phone and your voice...
- Page 10 Basic Single Entry Phone Interface The C-200 allows single line telephones or a telephone system to share a phone line with a single Viking entry phone. Tenants may answer an entry phone call and converse with the visitor. The C-200 provides a “Call Waiting” tone when the phone line is in use. Tenants may call out to the entry phone for monitoring purposes.
- Page 11 • Switch between two CCTV cameras automati- cally when either doorbox is activated • Add a Viking SLP-1 Single Line Paging Controller to provide paging, intercom, loud ringing, door chime and music on hold features • Provide commercial or residential security via two- way handsfree communication from a door or gate •...
-
Page 12: Two Year Limited Warranty
Product Support: (715) 386-8666 Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates and/or subsidiaries assume no responsibility for errors and omissions contained in this information. Revisions of this document or new editions of it may be issued to incorporate such changes.
