Viking Electronics ES-1 Product Manual

Designed, Manufactured and Supported in the USA
VIKING
C O M M U N I C A T I O N & S E C U R I T Y S O L U T I O N S
Add Keyless Entry and/or Card Reader Entry for a

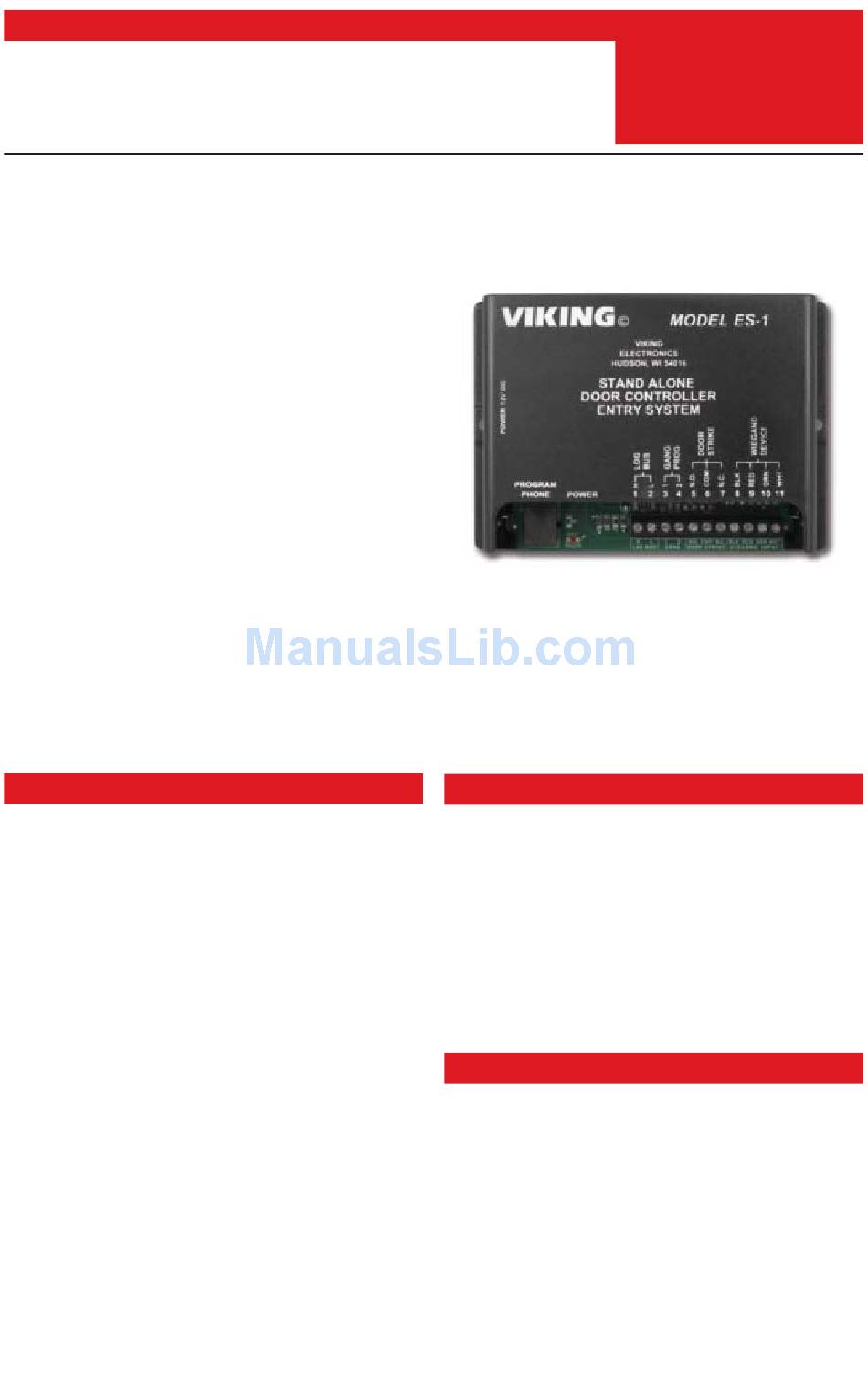

The ES-1 is a door controller designed to operate
a door strike or magnetic lock upon receiving a
valid card read and/or keyless entry code from Wie-
gand devices. One ES-1, one or two Wiegand de-
vices and a door strike or magnetic lock of your
choice is required for each entry point.
The Wiegand device used may be the Viking
model PRX-1 Proximity Card Reader and/or the
PRX-2 Proximity Card Reader with Keypad, PRX-
3 Medium Range Proximity Card Reader or or
PRX-4 Wiegand Output Keypad or any other card
reader, RF transmitter or digital keypad that outputs
the 26 bit Wiegand format. If two Wiegand devices
are used, one can be placed on each side of a
doorway to control access in both directions (entry
and exit). Up to 250 valid Wiegand codes can be
programmed into the ES-1.
Other programmable parameters, like relay activa-
tion, mode (normal, off, or open) and facility codes
Features
• Up to 250 tenants
• Program and control with a Touch Tone phone
• Use with any 26 bit Wiegand device
• Supports 1 entry point
• Compatible with Viking models PRX-1, PRX-2
PRX-3, and PRX-4 and certain legacy 125KHz
HID® proximity card readers*
• Non-volatile memory (no batteries required)
• LOG BUS data output for logging entry events
• Card plus keypad mode for highest security
• One time codes for visitors
• Bi-directional (entry and exit) control
www.vikingelectronics.com
Information: (715) 386-8861
* HID and the HID logo are registered trademarks of HID
Global Corporation, an ASSA ABLOY company. All other
trademarks are the property of their respective owners.
PRODUCT MANUAL
Single Door with Up to 250 Users
are also stored in non-volatile memory. All program-
ming is done with a local touch tone phone. Up to
three ES-1s can be programmed simultaneously if
they will be sharing all the same programming
codes and parameters. Entry logging is possible
with the ES-1's log bus data output.
Applications
• Business entrances
• High rise apartment buildings
• Condos
• Senior citizen buildings
• Assisted care centers
• Retirement homes
• Gated communities
Specifications
Power: 120V AC/12V DC 500mA, UL listed adapter pro-
vided or use any 12-24V AC or DC source @ 100mA (de-
signed to share power with the door strike's power supply)
Dimensions: 133mm x 89mm x 44mm (5.25" x 3.5" x
1.75")
Shipping Weight: 1.3 kg (3 lbs)
Environmental: 0° C to 32° C (32° F to 90° F) with 5%
to 95% non-condensing humidity
Relay Contact Ratings: 5A @ 30V DC/250V AC maxi-
mum
Maximum Wiegand Length: 152m (500 ft) - 24 AWG
Maximum LOG BUS Length: 1610m (5280 ft - 1 mile),
24 AWG
Connections: 11 screw terminals, (1) RJ-11 telco jack
ES-1
Stand Alone Door
Controller Entry System
July 3, 2014
