Disassembly

JUICE EXTRACTOR

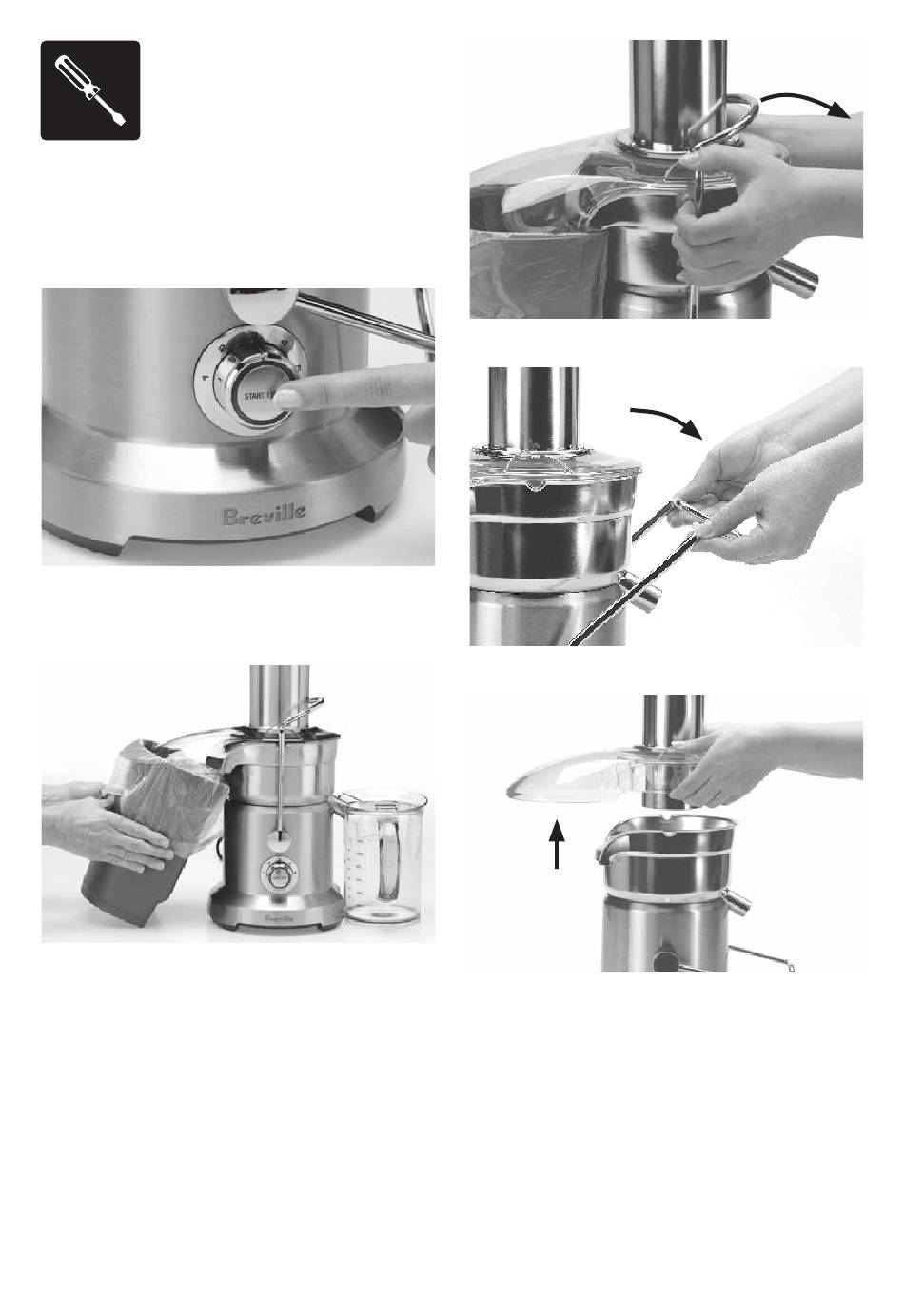

1. Push the START | STOP button on the
control panel of the juicer to turn off, then
unplug the cord.
2. Remove the pulp container by holding the
handle and pivoting the bottom of the pulp
container away from the juicer.
3. Place both hands on either side of the
locking arm and pull back and lift over the
grooves on either side of the juicer cover.
14
4. Move the locking arm down.
5. Lift the juicer cover off the juicer.
6. To remove the filter bowl surround, hold
base of juicer and turn filter bowl surround
by the juice spout.
