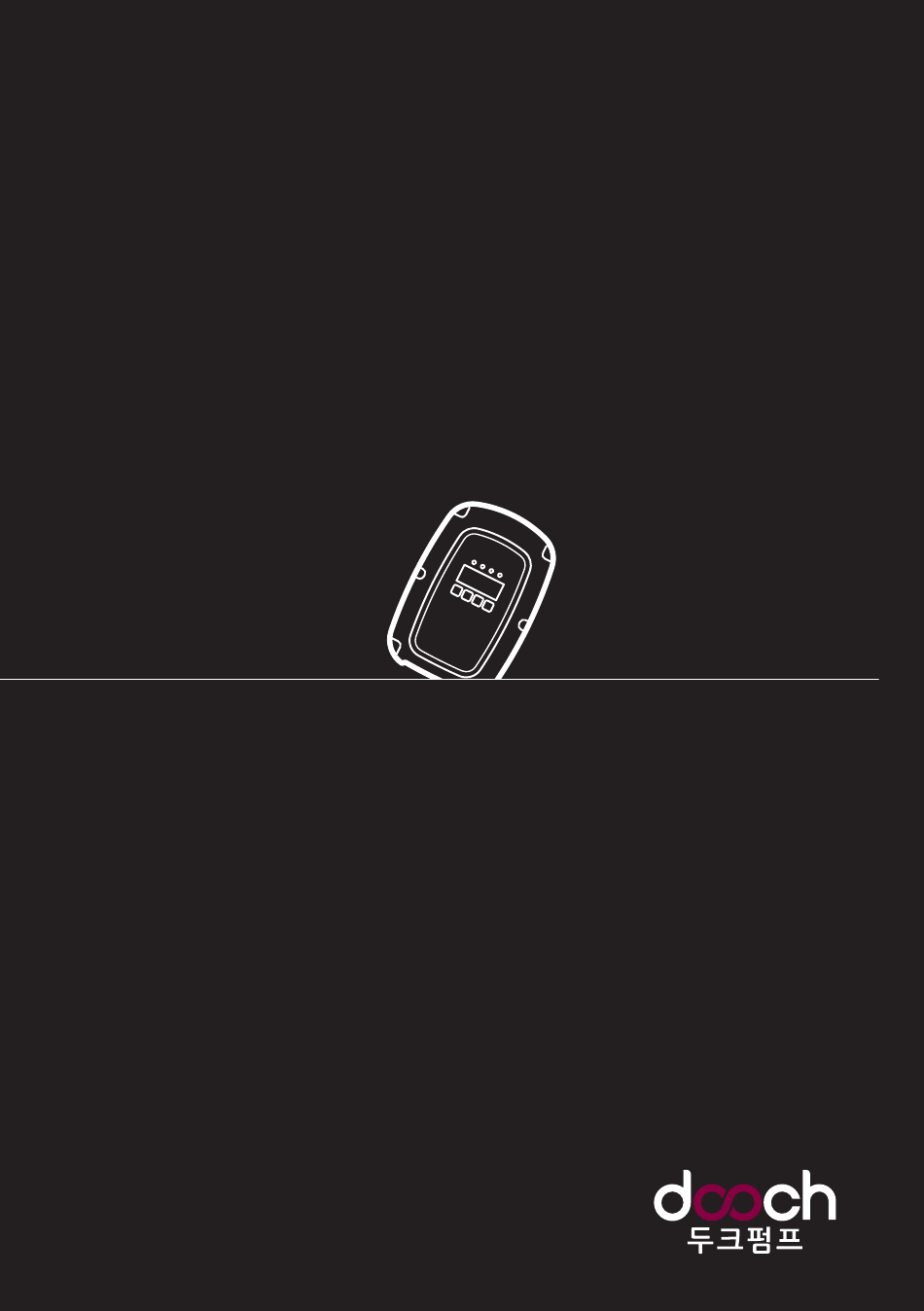

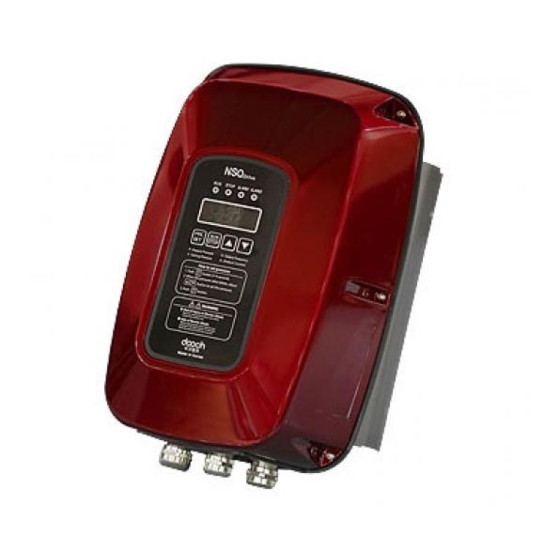

  • Page 1 Drive INSTRUCTION MANUAL...
  • Page 3 Safety Instructions Preface Thank you for choosing DOOCH’s high performance NSQ-Drive series. Describing specification, installation, operation, function, and maintenance of the NSQ-Drive series provided for the users who are familiar with and having basic experience in using a variable frequency drive.
  • Page 4 Safety Instructions Do not remove the cover while power is applied or the unit is in operation. Otherwise, electric shock could occur. Do not run the inverter with the front cover removed. Otherwise, you may get an electric shock due to high voltage terminals or charged capacitor exposure.
  • Page 5 Safety Instructions Cautions for Use A. Transportation and Installation Be sure to carry VFD in a proper way suitable for its weight, or it may result in damage to the VFD. Be sure to use heat-treated wooden crate when you adopt wooden packaging for the product. Do not pile up VFD's above allowable limit.
  • Page 6 Safety Instructions C. Adjustment before starting trial operation Do not supply the excessive range of voltage displayed in the user manual to the each terminal. It may cause damage to the inverter. Current hunting can be occurred in the low speed territory during testing. It occurs where the capacity is above 110kW with no-load and the axis is not connected.

  • Page 7: Table Of Contents

    CONTENTS Chapter 1. Basics 1.1 Confirmation of Specification on Nameplate 1.2 Type of product 1.3 Installation 1.4 Wiring Chapter 2. Specification 2.1 Specification of Product (1 Phase) 2.2 Specification of Product (3 Phase) Chapter 3. External Dimension 3.1 NSQ-0040S ~ NSQ-0150SE 3.2 NSQ-0150S ~ NSQ-0220SE NSQ-0075T ~ NSQ-0400T 3.3 NSQ-0550T ~ NSQ-0750T...
  • Page 8 CONTENTS Chapter 5. Operation 5.1 FND 5.1.1 Appearance and Description of FND 5.1.2 Functional Description of each Part 5.1.3 How to change Parameter Settings 5.2 Function Setup 5.2.1 Basic Function Setup 5.2.2 Expansion Function Setup 5.3 Basic Operation 5.3.1 Constant Pressure Control Mode Chapter 6.

  • Page 9: Chapter 1 Basics

    Chapter 1 Basics 1. What You Should Know before Use 1.1 Nameplate Information Take the VFD out of the box, check the rating shown on a side of the product body and whether the VFD type and rated output are exactly what you ordered. Check also whether the product has been damaged during delivery.

  • Page 10: Installation

    Chapter 1 Basics Product model name is indicated as above. Initial four digits indicate driving capacity of the drive in 00.00kW unit. Decimal point is not indicated. 'S' refers Single phase. 'T' refers Three phase. 1.3 Installation Make sure you install the product correctly considering the place, direction or surroundings in order to prevent decrease in the life and performance of the VFD.

  • Page 11: Specification Of Product (1 Phase)

    Chapter 2 Specifications of product 2.1 Rated Input and Outputt (Single Phrase) Model Specification Model NSQ-_____S 0040 0075 0150 0220 Standard Motor [kW] 0.75 Standard Motor [HP] Output Capacity[ [kVA] Rated Output Current [A] Output Voltage [V] 200V ~ 230V Output Frequency [Hz] 0.05 ~ 50/60 Rated Input Voltage [V]...

  • Page 12: Specification Of Product (3 Phase)

    Chapter 2 Specifications of product 2.2 Rated Input and Output (Three Phase) Model Specification Model NSQ-_____T 0075 0150 0220 0400 0550 0750 1100 1500 1850 2200 Standard Motor [kW] 0.75 18.5 Standard Motor [HP] Output Capacity[ [kVA] 10.5 15.8 19.7 25.7 29.6 Rated Output Current [A]...

  • Page 13: Chapter 3 External Dimension

    Chapter 3 External Dimension 3. External Dimension 3.1 NSQ-0040S, 0075S, 0075SE, 0150SE 156.5 4-M4 TAP...

  • Page 14: Nsq-0150S ~ Nsq-0220Se Nsq-0075T ~ Nsq-0400T

    Chapter 3 External Dimension 3.2 NSQ-0150S ~ NSQ-0220SE NSQ-0075T ~ NSQ-0400T 181.5 4-M4 TAP NSQ-0075T, 0150T, 0220T, 0400T exterior sizes are identical NSQ-0075T, 0150T, 0220T (*Note: Cooling Fan not Included*) NSQ-0400T (*Note: Cooling Fan Included)

  • Page 15: Nsq-0550T ~ Nsq-0750T

    Chapter 3 External Dimension 3.3 NSQ-0550T ~ NSQ-0750T 210.5 4-M4 TAP NSQ-0550T, 0750T *Note: All external dimensions are identical*...

  • Page 16: Nsq-1100T ~ Nsq-2200T

    Chapter 3 External Dimension 3.4 NSQ-1100T ~ NSQ-2200T 227.8 6-M4 TAP NSQ-1100T, 2200T *Note: All external dimensions are identical*...

  • Page 17: Chapter 4 Installation

    Chapter 4 Installation 4. Installation 4.1 Cautions on Installation Be careful so that the plastic parts of the inverter may not be damaged. Do not move the product holding the cover only. Do not install the product where there is vibration, a press or truck. Life of the inverter greatly influenced by the surround ing temperatures, make sure that the surrounding temperature does not exceed th e permitted temperature (-10~0℃).

  • Page 18: Wiring Diagram Of Terminals

    Chapter 4 Installation 4.2 Wiring Diagram of Terminals 4.2.1 Wiring Diagram of Terminals (Single Phase) Main Power Circuit MCCB 200~230V AC Input MOTOR 50/60 Hz Control Circuit Pressure Sensor 1 (4~20mA) CAN Com. Option) CANH Low Level Sensor (Pulse) CANL OPEN SHORT...
  • Page 19 Chapter 4 Installation 4.2.2 Wiring Diagram of Terminals (3 Phase) Main Power Circuit MCCB 380~440V AC Input MOTOR 50/60 Hz Control Circuit Pressure Sensor 1 (4~20mA) Command (RUN) Pressure Sensor 2 Emergency (ESTOP) (4~20mA) NPN Connection Low Level Sensor (Pulse) Setting Frequency Input 0~10V VGND...

  • Page 20: Wiring Of Main Power Supply Circuit

    Chapter 4 Installation 4.3 Wiring of Main Power Supply Circuit 4.3.1 Description on Main Power Supply Terminals Single Phase Terminal Sign Terminal Name Description: 1 Phase L1, L2 AC Input To connect commercial AC Input. Ground It is a ground terminal on drive enclosure. Please ground it. U, V, W Drive output To connect Motor.

  • Page 21: Cautions On Ground Wiring

    Chapter 4 Installation Do not make short circuit nor ground with drive output terminals (U,V,W). Short circuit or ground of output terminals may damage on the drive. Do not connect static condenser or noise filter at the output of the drive. It may cause frequent trip on the drive, or static condenser or noise filter may be destroyed due to overheating.
  • Page 22 Chapter 4 Installation 3 Phase Thickness of Wires Drive Terminal Screw Torque (AWG) Capacity screw size (N.m) R, S, T U, V, W 0.75kW 1.2 ~ 1.5 2(14) 2(14) 2(14) 1.5kW 1.2 ~ 1.5 2(14) 2(14) 2(14) 2.2kW 1.2 ~ 1.5 3.5(12) 3.5(12) 2(14)

  • Page 23: Control Circuit Wiring

    Chapter 4 Installation 4.4 Control Circuit Wiring 4.4.1 Arrangement of Control Terminal Block 0.4kW ~ 2.2kW (Single Phase) 4.4.2 Functions of Control Terminal Block(Single Phase) Classification Terminal sign Terminal Name Description S1P, S1N Pressure Sensor 1 Connection terminal for Pressure Sensor 1 Pump S2P, S2N(Option) Pressure Sensor 2...
  • Page 24 Chapter 4 Installation 0.4kW ~ 2.2kW (3 Phase) 485- 485+ CANL CANH LV2 AUXG 485+ 485- I1 GND V1 EST CG 24V P1 CG S2N S2P...
  • Page 25 Chapter 4 Installation 0.4kW ~ 2.2kW (3 Phase) LV2 CANH CANL...

  • Page 26: Functions Of Control Terminal Block

    Chapter 4 Installation 4.4.3 Functions of Control Terminal Block (3 Phase) Classification Terminal Sign Terminal Name Description S1P, S1N Pressure Sensor 1 Connection terminal for Pressure Sensor 1 Pump Connection terminal for Pressure Sensor 2 S2P, S2N Pressure Sensor 2 Control (used for differential pressure control) LV1, LV2...

  • Page 27: Cautions On Control Circuit Wiring

    4.4.5 Connection of Pressure Sensor and Low Water Level Sensor Use the pressure sensor and low water level sensor specified by Dooch. General specifications of the pressure sensor and low water level sensor specified by Dooch are as follows: Category...

  • Page 28: Sink Mode And Source Mode

    Chapter 4 Installation 4.4.6 Sink Mode and Source Mode (3 Phase) This product is configured to allow applying both sink mode (NPN: Using CG common terminal) and source mode (PNP: Using 24V common terminal) to the input terminal logic of control circuit. It is possible to toggle between sink mode and source mode using selection switch within the control board.

  • Page 29: Chapter 5 Operation

    Chapter 5 Operation 5. Operation 5.1 FND 5.1.1 Appearance and Description of FND FND has five digits of 7-segment, four LED lamps to display various settings and states and consists of four buttons to operate drive or enter setting. LAMP BUTTONS Instructions on setting the pressure Warnings...

  • Page 30: Functional Description Of Each Part

    Chapter 5 Operation 5.1.2 Functional Description of each Part 1) LED Lamps LED lamps consist of Run, Stop, Alarm1 and Alarm2 and functions of them are as follows: - Functions of each Button Turned on for waiting and flickered on operation Stop Turned on during stop Alarm1...

  • Page 31: How To Change Parameter Settings

    Chapter 5 Operation 5.1.3 How to Change Parameter Settings Since any change of parameter settings has direct influence on operation, please be careful about it. Before changing any parameter setting, be sure to write it on paper. Do not change the parameter setting except for responsible operator or professional engineer. Since there are items with data or parameter unavailable for change during operation, be sure to confirm.

  • Page 32: Function Setup

    Chapter 5 Operation 3)How To Change Parameter Settings In order to change parameter setting, press key at the desired parameter item to enter into Setting Change Mode. On Setting Change Mode, use key to change it to desired setting. Press key again, then message is displayed to apply the setting.
  • Page 33 Chapter 5 Operation Setup Item Prameter code Description on Function Input Location of Run To select a method to issue Run command dr-01 Command (FND, Terminal Block) Input Method of To select a method to control target operation frequency dr-02 Target Frequency (Own PID, FND, V1, I1) Capacity of Motor...

  • Page 34: Expansion Function Setup

    Chapter 5 Operation 3) Drive Control Function upon External Command These parameters are to be set basically when controlling the drive using external controller. Setup Item Parameter Code Description on Function Frequency Setup upon To set up output frequency range against voltage when dr-60~63 V1 Voltage controlling drive using V1 voltage...
  • Page 35 Chapter 5 Operation 2) Setup Parameters for Pump System Protection Setup Item Parameter Code Description on Function Pr-70 To set up high pressure alarm level and time in order to High Pressure Alarm Pr-72 protect discharge pipe from high pressure. Pr-71 To set up low pressure alarm level and time in order to Low Pressure Alarm...

  • Page 36: Basic Operation

    Chapter 5 Operation 5.3 Basic Operation 5.3.1 Constant Pressure Control Mode 1) Single Drive Operation In case of using a single drive to control constant pressure, it is possible to apply it to the pump system as below. A. Wiring Diagram MCCB 3Φ...
  • Page 37 Chapter 5 Operation Connect drive wiring so that the power input lines and motor output lines should not be interchanged. • Be sure to install wiring breaker at the power input of drive. • Check the polarity of pressure sensor and connect it properly. (In case of KELLER 21G series, connect brown line of pressure sensor to SEN1P terminal and white line to SEN1N terminal respectively.) •...
  • Page 38 Chapter 5 Operation C. Operation Parameters - Basic Setup Parameters Setup Parameter Setup Item Functional Description Sequrnce Code Run Command Input dr-01 To set up Run command with FND. Location Setup Target Frequency Input To set up Target Frequency Input Method of dr-02 Method Setup drive with own PID.
  • Page 39 Chapter 5 Operation 2) Multi-Drive Operation of Drives In case of using several drives linked together to control constant pressure, it is possible to apply it to the pump system as follows: A. Wiring Diagram MCCB MCCB MCCB 3Φ 380V~440V 3Φ...
  • Page 40 Chapter 5 Operation C. Operation Parameters Basic Setup Parameters Setup Parameter Setup Item Functional Description Sequrnce Code Run Command Input dr-01 To set up Run command with FND. Location Setup Target Frequency Input To set up Target Frequency Input Method of dr-02 Method Setup drive with own PID.

  • Page 41: Display Of Present Status

    Chapter 6 Functions & Descriptions 6. Functions/Descriptions 6.1 Status Group DISPLAY NAME Explanation Remark Present In case of difference pressure, It shows measured present pressure pressure It shows difference pressure. If you press setting button for longer Setting It shows setting pressure and operator than 2 seconds, It change to pressure pressure can input pressure value.

  • Page 42: Pump Control Group

    Chapter 6 Functions & Descriptions 6.2 Pump Controls △Indicates that it is an option Diff. Change Factory Para. Display Name Range Pressure 1 Phase 3 Phase Setting Link Operation Pr-00 Jump Code 1 ~ 92 × ○ ○ ○ ○ Pr-01 Pump Capacity Setup 0.75~25.00[kW]...
  • Page 43 Chapter 6 Functions & Descriptions Diff. Change Factory Para. Display Name Range Pressure 1 Phase 3Phase Setting Link Operation Standby Pump wating Pr-55 1~100[sec] ○ ○ ○ ○ ○ time Pr-61 PID control Type Setup 0 ~ 1 ○ ○ ×...

  • Page 44: Drive Control Group

    Chapter 6 Functions & Descriptions 6.3 Drive Control Group To setup initial value according to drive capacity To setup initial value with basis of Dooch induction motor Change Factory Display Name Range 1 Phase 3Phase Setting Operation dr-00 CAN Comm. Speed 1 ~ 90 ○...
  • Page 45 Chapter 6 Functions & Descriptions Change Factory Display Name Range 1 Phase 3Phase Setting Operation dr-37 No. of Restart after Trip 0 ~ 50 ○ ○ ○ Waiting Time of dr-38 1~250[sec] ○ ○ × Automatic Restart after Trip dr-40 Drive Control Mode 0 ~ 1 ○...

  • Page 46: Description On Function Of Parameter Settings

    Chapter 6 Functions & Descriptions 6-4. Description on Functions of Parameter Settings 6-4-1 Pump Control Group Pr-00 Jump Code It allows moving to desired code number directly. It is also possible to move to other code using key after moving. Pr-01 Pump Capacity To set up and confirm pump capacity.
  • Page 47 Chapter 6 Functions & Descriptions Pr-03 Sensor 1 Capacity Setup Enter the maximum value that the pressure sensor can measure. By entering capacity of pressure sensor attached to the drive being used, it is possible to display the currently measured pressure. Example) In case the using sensor has 10bar, enter 10.0.
  • Page 48 Chapter 6 Functions & Descriptions Pr-08 I Gain of PID Controller It is relevant to ‘I’ (Integral Constant) out of PID control parameters. PID I-Gain 1 second means the time required for the output power to be accumulated to 1.0[Hz] when 100 bar error is maintained.
  • Page 49 Chapter 6 Functions & Descriptions Pr-12 Start Variation It sets up start variation pressure value. That is, the operation starts when the current pressure has larger variance than the specified value comparing to setting. In case of alarm occurrence, operation does not start. Factory Setting Input Range 0.3 [bar]...
  • Page 50 Chapter 6 Functions & Descriptions Pr-41 485 comm. ㆍIt setsup 485 comm. ID set up Setup Data Functional Description f the number of data request protocol is different, data is not 1 ~ 250 (Factory Setting 1) transmitted. Pr-42 485 comm. speed 485 comm.
  • Page 51 Chapter 6 Functions & Descriptions Pr-51 Communication ID Setup It is CAN Communication ID on Multi-Drive control mode. Be sure to not duplicate ID for setup. Setup Data Functional Description 0 (Factory Setting) Single Mode Related Functions dr-02 Target Frequency Input Method Pr-52 CAN Communication Speed Multi-Drive...
  • Page 52 Chapter 6 Functions & Descriptions Pr-54 Lead Pump Alternation Time Alternative operation refers to an operation that when it reaches time specified by the user, the drive with a lot of power consumed is to be stopped and the one with less power consumption is to be started alternatively at the same time in order to prevent a specific drive(pump) being operated constantly.
  • Page 53 Chapter 6 Functions & Descriptions Pr-64 Output Ratio on Starting Increase of AllPID(Preparing) It is an output ratio to start the next drive by applying it centralized control method for multiple pump operation. That is, if the output ratio of drive in operation is higher than a specified value, the next drive to be linked starts to be operated.
  • Page 54 Chapter 6 Functions & Descriptions Pr-73 Low Pressure Alarm Time It sets maintaining time of low pressure alarm level to issue the low pressure alarm. That is, if the current pressure decreases under the low pressure alarm level (Pr-71) and maintains its state for a specified time, a low pressure alarm is displayed and operation stops.

  • Page 55: Chapter 6 Function Table & Description

    Chapter 6 Function Table & Description Pr-76 Low Water Level Alarm Method Selection It is a mode to set up low water level alarm detection method. In case of setting up low water level sensor, it is required to attach electrode outside to determine existence of water within piping.
  • Page 56 Chapter 6 Function Table & Description FND Display Description tSF, tOP, tUP, tUL, tASH etc Error Content (Refer to Chapter 8 Fault History Table) H xx.x Frequency with Error A xx.x Current with Error t xx.x No. of Errors coourred Stdy, StOP, AdOFS, wdOG Operation status with Error Pr-86 Deletion of Fault History...

  • Page 57: Drive Control Group

    Chapter 6 Function Table & Description 6-4-2 Drive Control Group dr-00 Jump Code It allows moving to desired code number directly. It is also possible to move to other code using key after moving. dr-01 Command Input Location Setup It sets operation command location. When selecting FND key, it is possible to issue operation command using key on main body of drive.
  • Page 58 Chapter 6 Function Table & Description dr-10 Motor Capacity It sets motor capacity. It is set when pump drive is released from the factory. Setting value is for displaying. It is used when the current pump drive checks the motor capacity being set. Changing the setting does not have influence other parameters.
  • Page 59 Chapter 6 Function Table & Description dr-15 Non-load Current of Motor It sets non-load current of motor. Factory Setting Input Range Initial value is set upon drive capacity 0.5 ~ 100.0 [Arms] dr-16 Rated Slip Freq. of Motor It displays slip freq. of motor. Settings are automatically set upon No.
  • Page 60 Chapter 6 Function Table & Description dr-20 Motor Rotation Direction Selection It sets up rotation direction of the pump. Be sure to check the rotation direction of the pump for normal operation. As the rotation direction may change according to wiring, be sure to check it. Setup Data Functional Description 0 (Factory Setting)
  • Page 61 Chapter 6 Function Table & Description dr-30 Overload Trip Selection It sets up whether it will generate trip upon overload of the motor. It is used for protecting the motor. Setup Data Functional Description Release Related Function dr-12 Rated Current of Motor 1 (Factory Setting) Setting dr-31...
  • Page 62 Chapter 6 Function Table & Description dr-33 Stall Prevention Selection It selects whether it uses Stall Protection. On occurrence of Stall, it decelerates the speed. Setup Data Functional Description 0 (Factory Setting) Release Related Function Setup dr-12 Rated Current of Motor dr-34 Stall Prevention Level dr-34 Stall Prevention Level...
  • Page 63 Chapter 6 Function Table & Description dr-37 No. of Auto Restart after Trip It refers to No. of automatic operations for drive after occurrence of trip. If the trip occurs more than specified number, it can not restart. If there is no trip during certain time, No of trip might be deleted. It may not be restarted according to error code.
  • Page 64 Chapter 6 Function Table & Description dr-42 Start Frequency It refers to frequency that drive starts to output. Factory Setting Input Range 0.50 [Hz] 0.1 ~ 40.00 [Hz] dr-43 Max Operation Frequency It can limit max operation frequency of drive. It cannot exceed range of rated frequency (dr-17) of motor.
  • Page 65 Chapter 6 Function Table & Description dr-53 ~ dr-54 Indication of Accumulated Power It displays accumulated power of drive in Mega, kilo Wh unit. Displayed accumulated power may have error comparing to actual value. Parameter Functional Description dr-53 To display in Mega Wh unit dr-54 To display in Kilo Wh unit dr-55 Power Semiconductor Temperature...
  • Page 66 Chapter 6 Function Table & Description dr-60 ~ dr-67 Command Frequency Setup upon External Analog Input Parameter No. Function Name Functional Description dr-60 V1 Min Input Voltage To set up min voltage to be input from external. Corresponding Freq. to To set up frequency corresponding V1 min input dr-61 V1 Min Input Voltage...
  • Page 67 Chapter 6 Function Table & Description dr-89 Initialization Code It initializes to the factory settings. ※ Caution : All present data will be lost once it is re-setted to the factory setting. Setup Data Functional Description 0 (Factory Setting) To maintain content To initialize dr-53, dr-54 to the factory settings dr-90 Initialization Code It initializes to the factory settings.

  • Page 68: Fault History Table

    Chapter 7 Checking and Troubleshooting 7.1 Fault History Table Content Description Restarting Remarks Display Er-01 Pressure Sensor Error ○ Er-02 High Pressure Alarm ○ Er-03 Low Pressure Alarm ○ Er-04 Low Level Alarm ○ Er-05 tASH Drive Arm Short Trip ×...

  • Page 69: Chapter 7. Cause Of Fault And Reaction

    Chapter 7 Checking and Troubleshooting 7.2 Reset of fault and alarm In case of fault or alarm, FND shows Pr-80. To reset in Pr-group, Press twice. To reset in St-group, Press once. In case of Er-01, Er-02, Er-04(Low Level Sensor Alarm), If cause is resolved, it reset and restart automatically.
  • Page 70 Chapter 7 Checking and Troubleshooting Reaction Check the setup pressure and high pressure alarm level. When the current pressure goes down under the high pressure alarm setting, the drive will recover automatically. Related Function Function Name Ref. Page Pr-70 High Pressure Alarm Level Pr-72 High Pressure Alarm Time Er-03(Low Pressure Alarm-tLP)
  • Page 71 Chapter 7 Checking and Troubleshooting Reaction Check if the water tank (water reservoir) is filled with water. Check if there is any water by opening the air cock of the pump. After relea sing error by pressing key, press key to start the pump Air Cock Air Cock Related Function...
  • Page 72 Chapter 7 Checking and Troubleshooting Related Function Function Name Ref. Page dr-22 Rising Time Er-06(H/W Over Current Trip-tOC) Cause In case acceleration/deceleration time is excessively short comparing to load inertia When the drive restarts during free run of motor Drive damage from fire Reaction Adjust the acceleration/deceleration time.
  • Page 73 Chapter 7 Checking and Troubleshooting Related Function Function Name Ref. Page dr-10 Motor Capacity dr-21 Motor Stopping Method dr-22 Rising Time dr-23 Falling Time dr-41 Torque Boost Amount Er-08(Motor Overheat-tMOH) Cause Occurred by motor overheat. Occurred when load is larger than rated drive capacity. In case drive capacity is not properly selected Operation under low speed for long time Reaction...
  • Page 74 Chapter 7 Checking and Troubleshooting Er-10(Low Voltage Trip-tLv) Cause Occurred when the power supply voltage is low Occurred when the connected load is larger than the power capacity Reaction Check the drive input voltage. Check the power capacity. ※ It is possible to check the DC Link voltage on FND display part. Er-11(High Voltage Trip-tOv) Cause Occurred when the deceleration time (dr-23) is short comparing to the load inertia.
  • Page 75 Chapter 7 Checking and Troubleshooting Related Function Function Name Ref. Page dr-10 Motor Capacity dr-12 Rated Current of Motor dr-30 Motor Overload Trip Selection dr-31 Motor Overload Trip Level dr-32 Motor Overload Trip Time Er-13(Drive Overload Operation Trip-tdOL) Cause Occurred when the load is larger than the rated drive capacity. Reaction Use drive with larger capacity suitable for the load.
  • Page 76 Chapter 7 Checking and Troubleshooting Related Function Function Name Ref. Page Pr-51 Communication ID Er-16(Communication Error-tCE) Cause Occurred when CAN communication lines have defective connection. Occurred when drive CAN communication IC is defective. Reaction To check connection status of CAN communication lines. Replace the drive.
  • Page 77 Chapter 7 Checking and Troubleshooting Er-20(External Fault Input-tES) Cause An error upon external signals. Reaction Check input side of external signals. Er-21(Allowable Time Elapsed-tLt) Reaction Contact your local sales agent.

  • Page 78: Chapter 8 Appendix

    Chapter 8 Appendix 8.1 RS-485 Communication Specification Article Specification Communication Speed 1200/2400/4800/9600/19200 bps Control Procedure Asynchronous Communication Communication System Half duplex system Letter 8 bit Stop bit 1 bit Error Check (CRC16) 1 byte Parity Check None Communication Protocol(ModBus - using RTU protocol) Code Name 0 X 03...
  • Page 79 Chapter 8 Appendix Single Write Query(Example of writing the set pressure 5.5bar) Start Slave ID Function Add Hi Add Lo Data Hi Data Lo 3.5 byte 3.5 byte Time Time Hex Response Start Slave ID Function Add Hi Add Lo Data Hi Data Lo 3.5 byte 3.5 byte...
  • Page 80 Chapter 8 Appendix NSQ System Operation Conditions Address Address Parameter Scale Unit Remark (Decimal) (Hexidecimal) 4096 0X1000 Program version 0.01 0 ~ 65535 0:STOP 1:READY System (inverter EN and output zero) 4097 0X1001 operation status 2:RUN (inverter EN and output non-zero) 3:Fault(system fault) 4098 0X1002...
  • Page 81 Chapter 8 Appendix Address Address Parameter Scale Unit Remark (Decimal) (Hexidecimal) Bit Description Bit 0 : 1 Bit 1 : 2 4104 0X1008 Inverter Fault Bit 2 : 3 Bit 3 : 4 Bit 4 : 5 Bit 5 : 6 Output Current 4111 0X100F...
  • Page 82 Chapter 8 Appendix NSQ System Operation Conditions Address Address Parameter Scale Unit Remark (Decimal) (Hexidecimal) 4117 0x1015 Output Current (Inverter 1) 0~600 0x1016 4118 Output Current (Inverter 2) 0~600 4119 0x1017 Output Current (Inverter 3) 0~600 4120 0x1018 Output Current (Inverter 4) 0~600 4121 0x1019...
  • Page 83 Chapter 8 Appendix Address Address Parameter Unit Remark Scale (Decimal) (Hexidecimal) 4135 0x1027 Output Current (Inverter 1) 0~10000 4136 0x1028 Output Current (Inverter 2) 0~10000 4137 0x1029 Output Current (Inverter 3) 0~10000 4138 0x102A Output Current (Inverter 4) 0~10000 4139 0x102B Output Current (Inverter5) 0~10000...

  • Page 84: Accessories

    Chapter 8 Appendix 8.2 Accessories 8.2.1 EMC FILTER EMC(electromagnetic compatibility to EN 61800-3) EMC Filter(Manufacturer : Schaffner) VFD Model Model Rated Current[A] Weight[kg] Dimensions[mm] NSQ-0075T FN 3258-7-45 190X40X70 NSQ-0150T NSQ-0220T FN 3258-16-45 250X45X70 NSQ-0400T NSQ-0550T FN 3258-30-45 270X50X85 NSQ-0750T NSQ-1100T FN 3258-55-45 250X85X90 NSQ-1500T...
  • Page 85 Memo...
  • Page 86 Warranty This product has been manufactured through a strict quality management and inspection process by Dooch Technical Team. The warranty period is 12 months from the date manufactured, provided that, the warranty period is subject change depending on the terms and condition of the agreement under separate cover.
  • Page 88 NSQ-1601-M Drive DOOCH CO., LTD. │ 332 Hwagok-ro, Jangan-myeon, Hwaseong-si, Gyeonggi-do, Korea TEL : +82-31-831-1200 FAX : +82-31-831-1240 www.doochpump.com...
